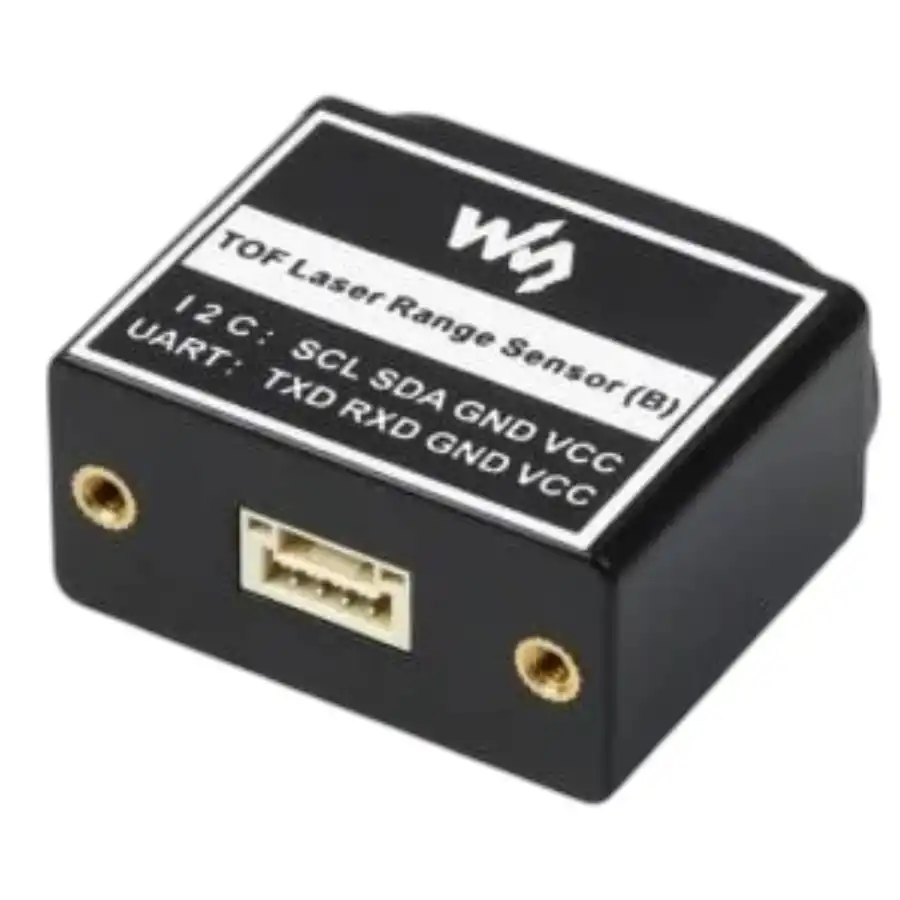

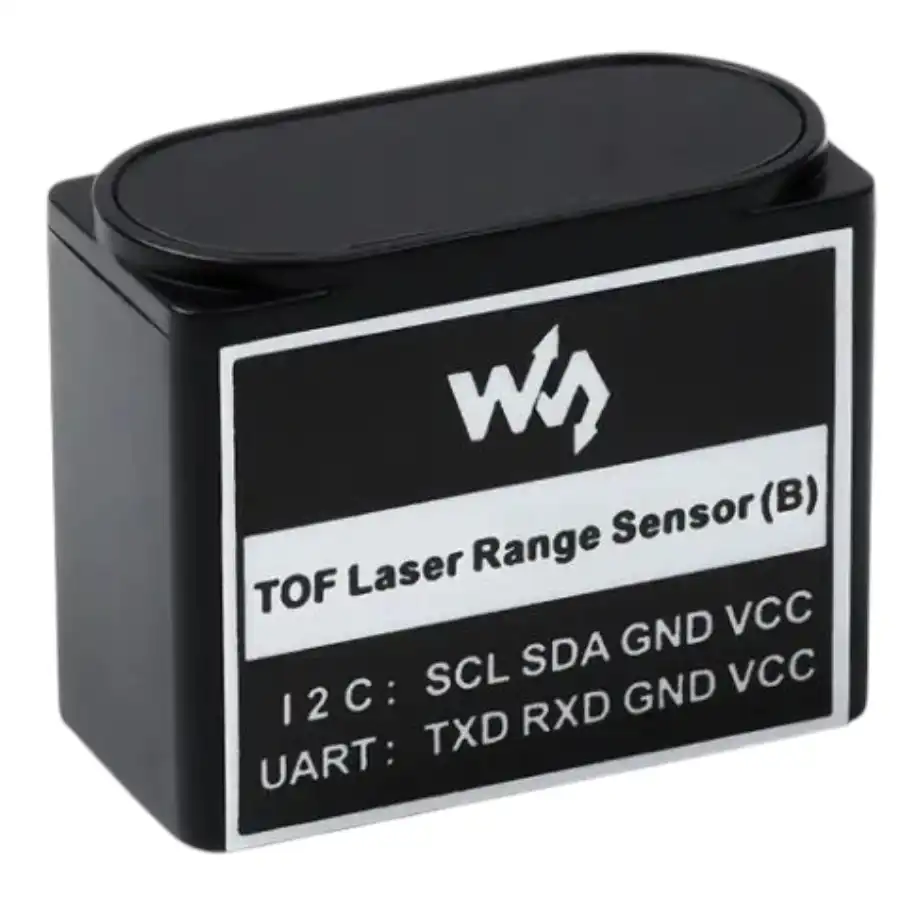

Waveshare TOF (Time Of Flight) Laser Range Sensor (B), UART / I2C Bus, Long Range
The TOF Laser Range Sensor (B) is a TOF-based (time of flight) laser ranging sensor with an embedded MCU and ranging algorithm, which is capable of offering up to 15m measuring range, ±2% accuracy, and 1mm resolution. It supports UART or I2C communication bus, features a longer measuring distance and higher light interference resistance capability due to its ultra-narrow FOV, suitable for either indoor or outdoor conditions.
This sensor can be widely used in applications like common distance measuring, robot obstacle avoidance/route planning, as well as drone altitude setting/ceiling detection, and more…
Useful link:
TOF Laser Range Sensor (B) tutorial.
Features:
- Long Range Zone: 15M
- Short Blind Zone: 1ocm
- Refresh Rate: 15Hz
- Field of View: 1° ~ 2°
- Interfaces: UART , I2C
Specifications:
| Typical measuring range(m) | 0.10 ~ 15.0m |
|---|---|
| Typical measuring accuracy | 0.10 ~ 2m ±2cm; 2 ~ 15m ±2% |
| Resolution | 1 mm |
| Depth Field of View (Deg.) | 1° ~ 2° |
| Interfaces | UART , I2C |
| Power Consumption | 610mw |
| Operating Temperature (°C) | -10°c ~ 60°c |
| I2C | up to 400kbps |
| Power Supply(V) | 3.7 ~ 5.2v |
| Wavelength (nm) | 750 ~ 830nm |
| Baudrate uart | 115.2kbps ~ 3000kbps |
| Weight (g): | 7.7 |
| Dimensions (mm) | 22.7 × 28 × 13.6mm |
Package Includes:
1 x Waveshare TOF (Time Of Flight) Laser Range Sensor
Waveshare TOF (Time Of Flight) Laser Range Sensor (B), UART Overview
The Waveshare TOF Laser Range Sensor (B) is a precision time-of-flight distance sensor capable of measuring from 0.10 m up to 15.0 m. It integrates an embedded MCU with a proprietary ranging algorithm, offering millimeter-level resolution and strong ambient light immunity.
Key Features of Waveshare TOF (Time Of Flight) Laser Range Sensor (B), UART
- Measuring range: 0.10 m to 15.0 m for long-distance detection
- High accuracy: ±2 cm within 0.10–2 m, ±2% beyond 2 m
- 1 mm resolution for fine distance discrimination
- Ultra-narrow 1°–2° field of view to reduce light interference
- Dual interface: UART and I2C communication bus for flexible integration
- Robust indoor/outdoor performance with built-in MCU ranging algorithm
- Fast shipping from Zbotic across India
Applications and Use Cases
- Obstacle detection and avoidance in mobile robots
- Automated drone altitude maintenance and landing guidance
- Distance monitoring in industrial automation lines
- Building layout surveying and level measurement
- Security perimeter intrusion detection
- Smart home automation for presence or gap sensing
How to Use Waveshare TOF (Time Of Flight) Laser Range Sensor (B), UART
Begin by mounting the sensor on a stable surface and wiring VCC/GND along with your choice of UART or I2C pins on your microcontroller. Load the Waveshare sample firmware or your own driver code, configure the bus speed and address (for I2C), then start polling distance data at your required interval. Ensure the target is within the 1°–2° field of view and avoid direct sunlight to maintain best accuracy.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I select between UART and I2C interfaces?
The sensor provides dedicated TX/RX pins for UART and SDA/SCL pins for I2C. Use the onboard jumper to activate your desired bus, then match the interface settings in your firmware before initializing communication.
What is the practical accuracy at different distances?
Within 0.10 m to 2 m the sensor maintains ±2 cm accuracy. Beyond 2 m up to 15 m, expect a tolerance of ±2% of the measured distance. Resolution remains 1 mm across the full range.
Can I use this sensor outdoors under bright sunlight?
Yes—its ultra-narrow 1°–2° field of view and built-in algorithm improve resistance to ambient light. For best results, avoid pointing directly into the sun or highly reflective surfaces.
ENS160 + AHT21 Combo: Air Quality and Climate in One Board
Indoor air quality has emerged as one of the most important factors in human health and productivity, yet...
Read More →
Sensor Accuracy vs Precision: Understanding the Difference
Every hobbyist, engineering student, or professional who has ever worked with sensors has encountered the terms accuracy and...
Read More →
How to Interface BMP280 Pressure Sensor with Arduino
The BMP280 is a high-precision barometric pressure and temperature sensor from Bosch Sensortec that has become a staple...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Interface / Protocol | I2C, UART |
| SKU | AI0796 |
| Weight | 0.02535 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare TOF (Time Of Flight) Laser Range Sensor (B), UART / I2C Bus, Long Range is a versatile lidar sensor used across a wide range of applications including robot navigation, obstacle detection, indoor mapping, autonomous vehicles, and distance measurement.
Common use cases:
- Adding obstacle avoidance to a mobile robot
- Building a 2D/3D indoor map
- Measuring distances for surveying
This product is ideal for robotics developers, autonomous vehicle engineers, and surveying professionals.
Technical Tip: LiDAR sensors use laser pulses to measure distance. Check scan rate (Hz), range (meters), and angular resolution for your application.
