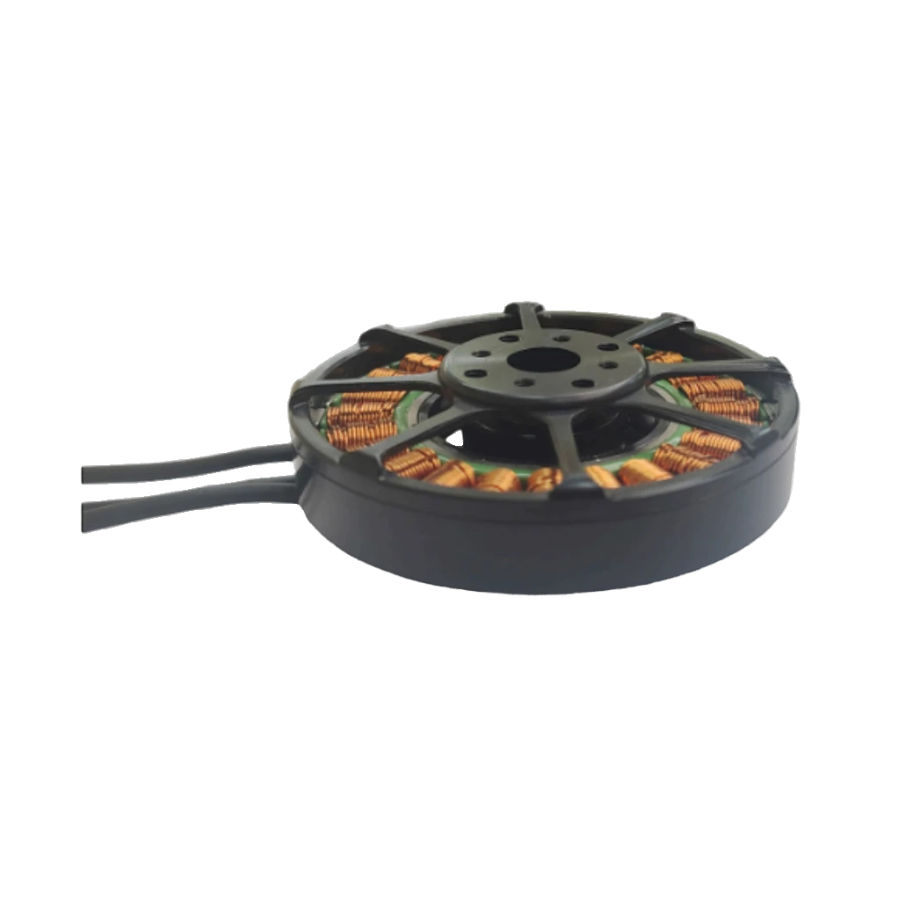

TOBITEK BYW1(7006)-Drone Motor
Description:
The TOBITEK BYW1 (7006) 230KV Drone Motor is designed for UAV and multirotor propulsion applications. It delivers up to 5 kgf of maximum thrust and supports a recommended 6S battery. Featuring a 24N28P configuration and durable 6901 2RS bearings, it is suitable for compatible drone builds requiring reliable propulsion performance.
Specification:
- 230KV Rating: Designed for compatible drone propulsion systems.
-
High Thrust Output: Maximum thrust of 5 kgf.
-
6S Battery Support: Recommended for 6S battery systems.
-
700W Maximum Power: Supports demanding propulsion applications.
-
Durable Bearings: Equipped with imported 6901 2RS bearings.
-
Robust Construction: Features a 24N28P motor configuration.
-
Compatible ESC: Recommended XC U80 V2 80A ESC.
-
Recommended Propeller: 2480 propeller.
Specification:
| Parameter | Specification |
|---|---|
| Brand | TOBITEK |
| Model | BYW1 (7006) |
| KV Rating | 230 KV |
| Maximum Thrust | 5 kgf |
| Recommended Battery | 6S |
| Maximum Power | 700 W |
| Peak Current | 30 A |
| Motor Weight | 190 g |

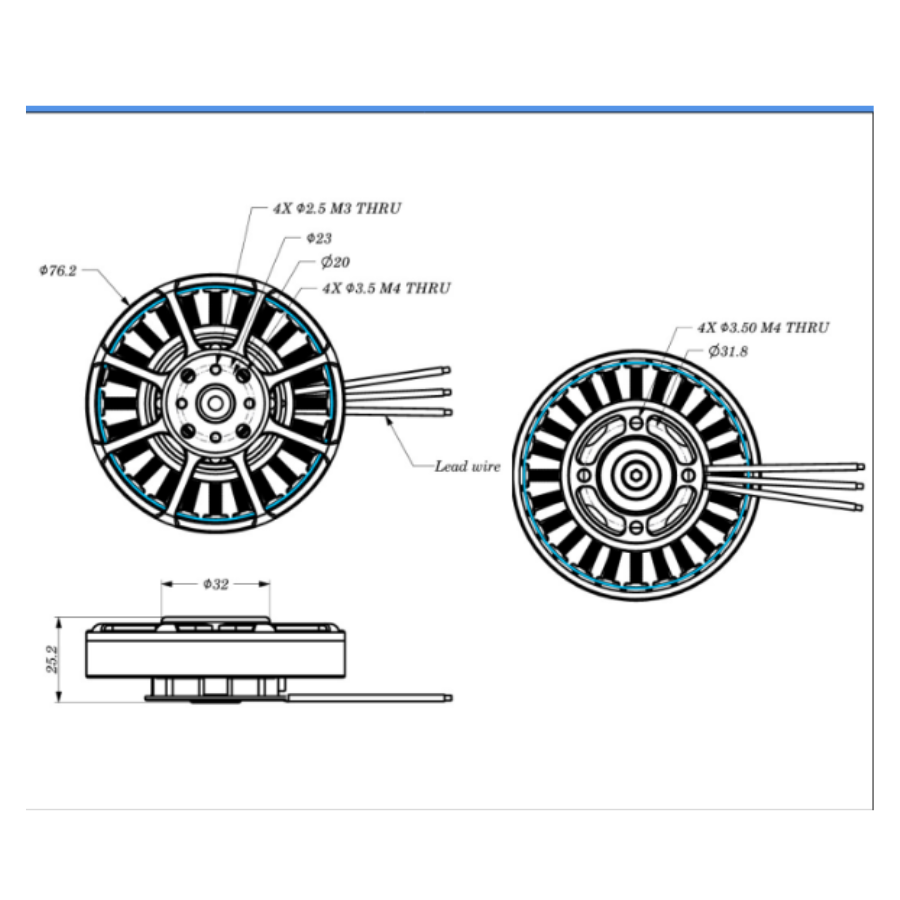

| Stator Dimensions | Ø70 × 6 mm |
| Motor Dimensions | Ø76.2 × 25.2 mm |
| Shaft Diameter | 4 mm |
| Configuration | 24N28P |
| Bearing Type | Imported 6901 2RS |
| Lead Wire Length | 100 mm |
| Coil Insulation Test Voltage | 500 V |
| Copper Wire Temperature Class | 220 |
| Magnet Temperature Rating | 120°C |
| Recommended ESC | XC U80 V2 80A |
| Recommended Propeller | 2480 |
Package Include:
1x TOBITEK BYW1(7006)-Drone Motor
Betaflight Setup Guide: PID Tuning for Beginners
Table of ContentsWhat is Betaflight?What Are PIDs and Why Do They Matter?Tools You Need Before You StartStep 1:...
Read More →
Stepper Motor Half-Step vs Full-Step: Resolution & Torque Trade-offs
Stepper motors are the workhorse of precise motion control — used in 3D printers, CNC routers, laser cutters,...
Read More →
ArduCopter Guided Mode: Complete Mission Planner Waypoint Tutorial
Table of ContentsIntroductionPrerequisites and HardwareMission Planner Installation and ConnectionPre-Flight ConfigurationUnderstanding AUTO Mode vs Guided ModeCreating a Waypoint MissionKey...
Read More →Technical Specifications
| Brand | TOBITEK |
|---|---|
| SKU | AI5306 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The TOBITEK BYW1(7006)-Drone Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
