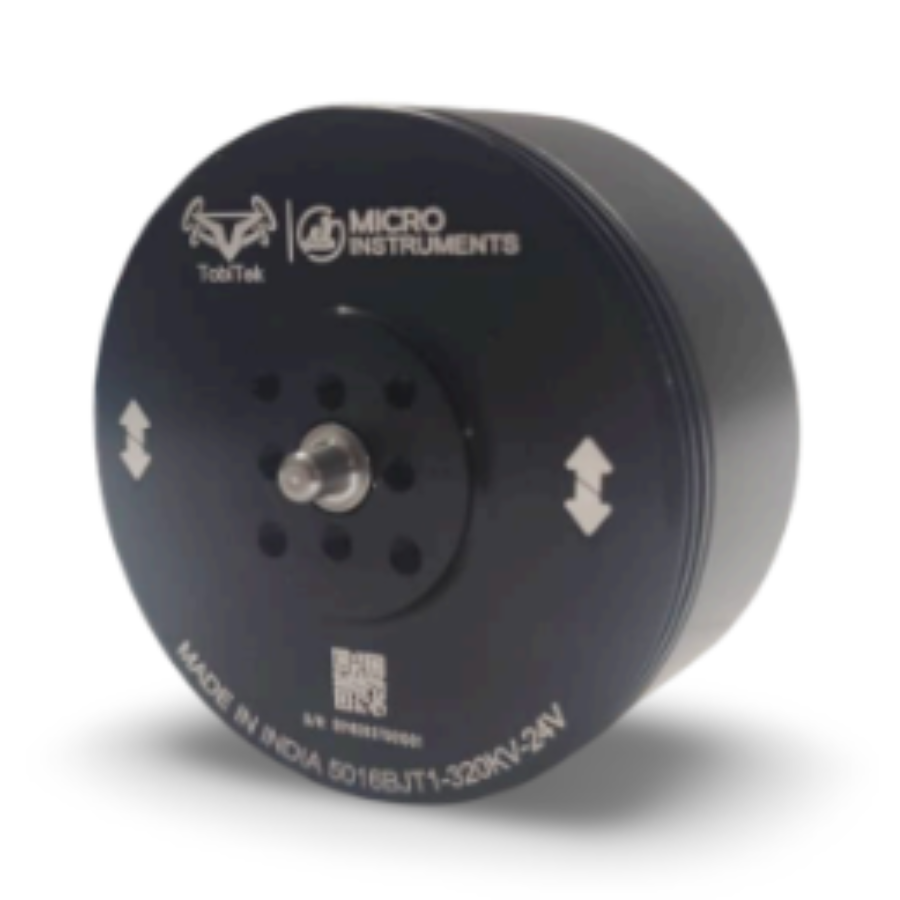

TOBITEK BJT1(5016)-Drone Motor
The TOBITEK BJT1 (5016) Drone Motor is designed for compatible UAV and multirotor propulsion systems. Its 5016 motor size makes it suitable for drone configurations that require a matching motor and propeller setup. Verify the KV rating, thrust, power capacity, and battery compatibility before installation.
Motor Technical Parameters:
| Specification | Details |
|---|---|
| Brand | TOBITEK |
| Model | BJT1 (5016) |
| KV Rating | 320 KV |
| Maximum Thrust | 7 kgf |
| Recommended Battery | 12S |
| Maximum Power | 1730 W |
| Peak Current | 36 A |
| Motor Weight | 225 g |
| Stator Size | Ø50 × 16 mm |

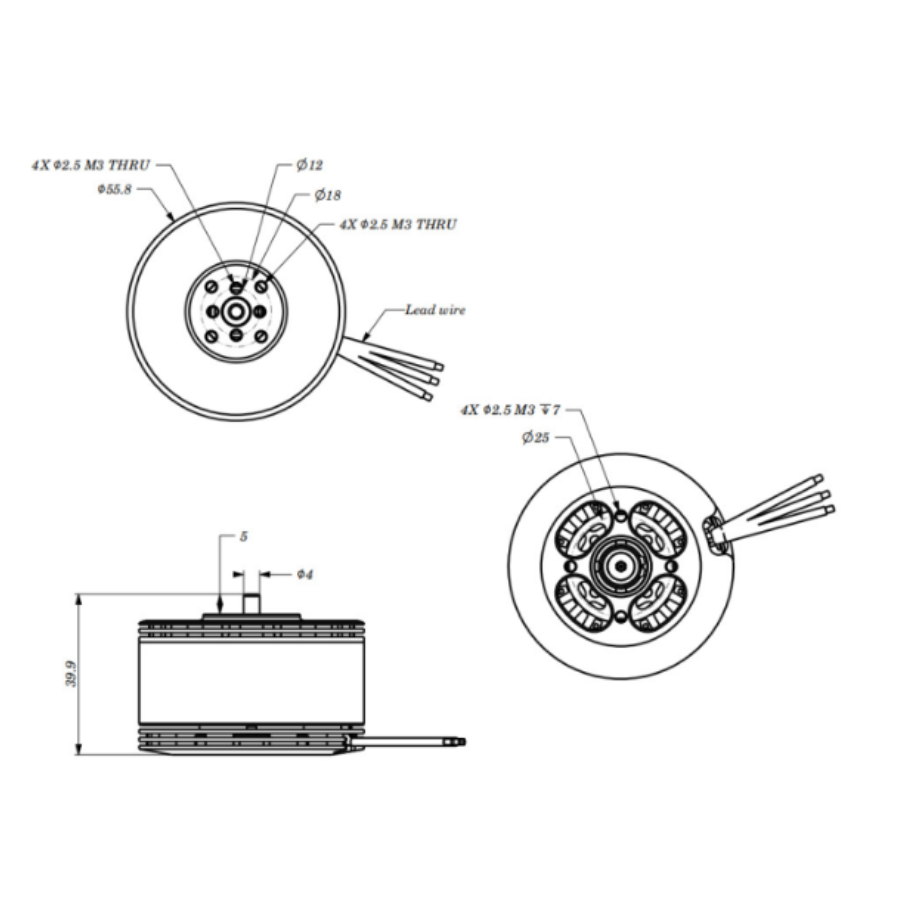

| Motor Dimensions | Ø55.8 × 39.9 mm |
| Shaft Diameter | 4 mm |
| Configuration | 24N28P |
| Bearing Type | Imported 696 2RS |
| Lead Wire Length | 100 mm |
| Coil Insulation Test Voltage | 500 V |
| Copper Wire Temperature Class | 220 |
| Magnet Temperature Rating | 120°C |
Features:
-
Designed for compatible UAV and multirotor drones.
-
5016 motor size for suitable drone configurations.
-
Suitable for custom drone and propulsion system builds.
-
Designed for use with compatible ESCs and propellers.
-
Verify electrical and performance specifications with the manufacturer.
Recommended ESC :
XC U80A ESC
Recommended Propeller :
Diameter X Thread Pitch APC 18 x 12E
Package Include:
1x TOBITEK BJT1(5016)-Drone Motor
BLDC Motor Controller: ESC Wiring & Programming Basics
Table of ContentsWhat Is a BLDC Motor?ESC Explained: How It WorksTypes of ESCs in India 2026ESC Wiring Guide...
Read More →
Planetary Gear Motor: How It Works & Applications in Robotics
When a robot arm lifts a payload, a mobile robot climbs a ramp, or an automated door opens...
Read More →
Drone Blackbox Analysis: Debug Crashes and Tune PIDs
Table of Contents Understanding Drone Blackbox Analysis Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →Technical Specifications
| Brand | TOBITEK |
|---|---|
| SKU | AI5332 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The TOBITEK BJT1(5016)-Drone Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
