Description:

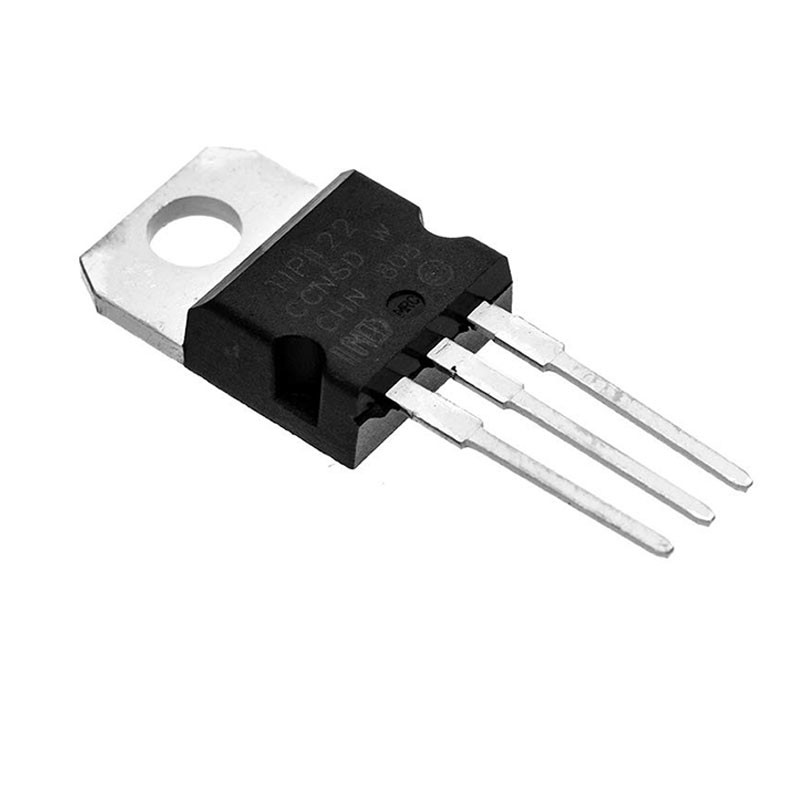

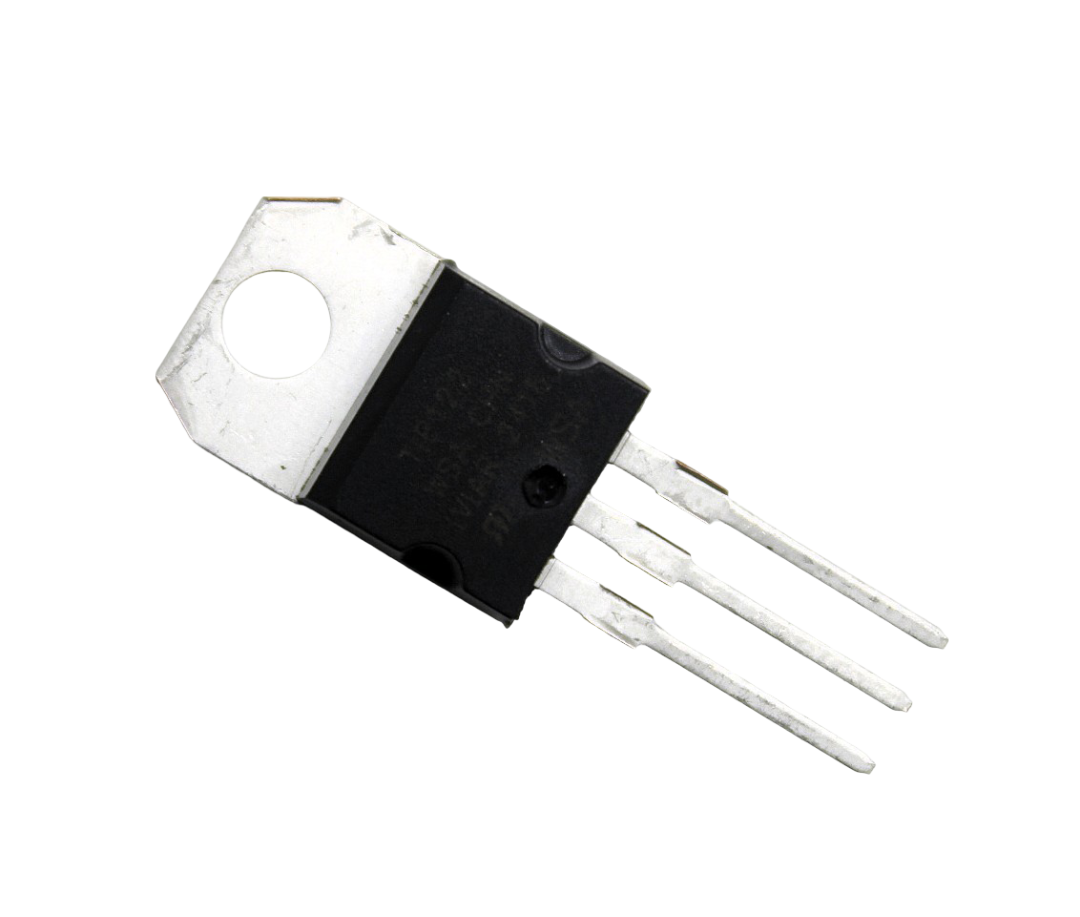

TIP122 Darlington NPN Transistor (Pack of 5)
The TIP122 is a three-layer NPN transistor, where the collector current (IC) depends on the base current (IB). Any change in the base current causes a proportional change in the collector current, provided the collector-emitter voltage (VCE) remains constant. This transistor is commonly used for amplification and switching applications, where a small input current at the base can control a much larger current flowing between the collector and emitter.
Note: Product may vary from images shown in terms of brand name according to the availability.
Features:
- Low saturation voltage
- Simple drive requirements
- High safe operating area
- For low distortion complementary designs
- Easy to carry and handle
Specification:
| Collector-Base Voltage (Vcb) (V) | 50 |
|---|---|
| Collector-Emitter Voltage (Vce) (V) | 45 |
| Emitter-Base Voltage (Veb) (V) | 6 |
| Collector Current (DC) (A) | 100m |
| Junction Temperature (°C) | 150 |
| Storage condition (℃) | -65 to 150 |
| Length (mm): | 10 |
| Width (mm): | 4.2 |
| Height (mm): | 15 |
| Weight (g): | 1 (approx.) (each) |
Package Includes:

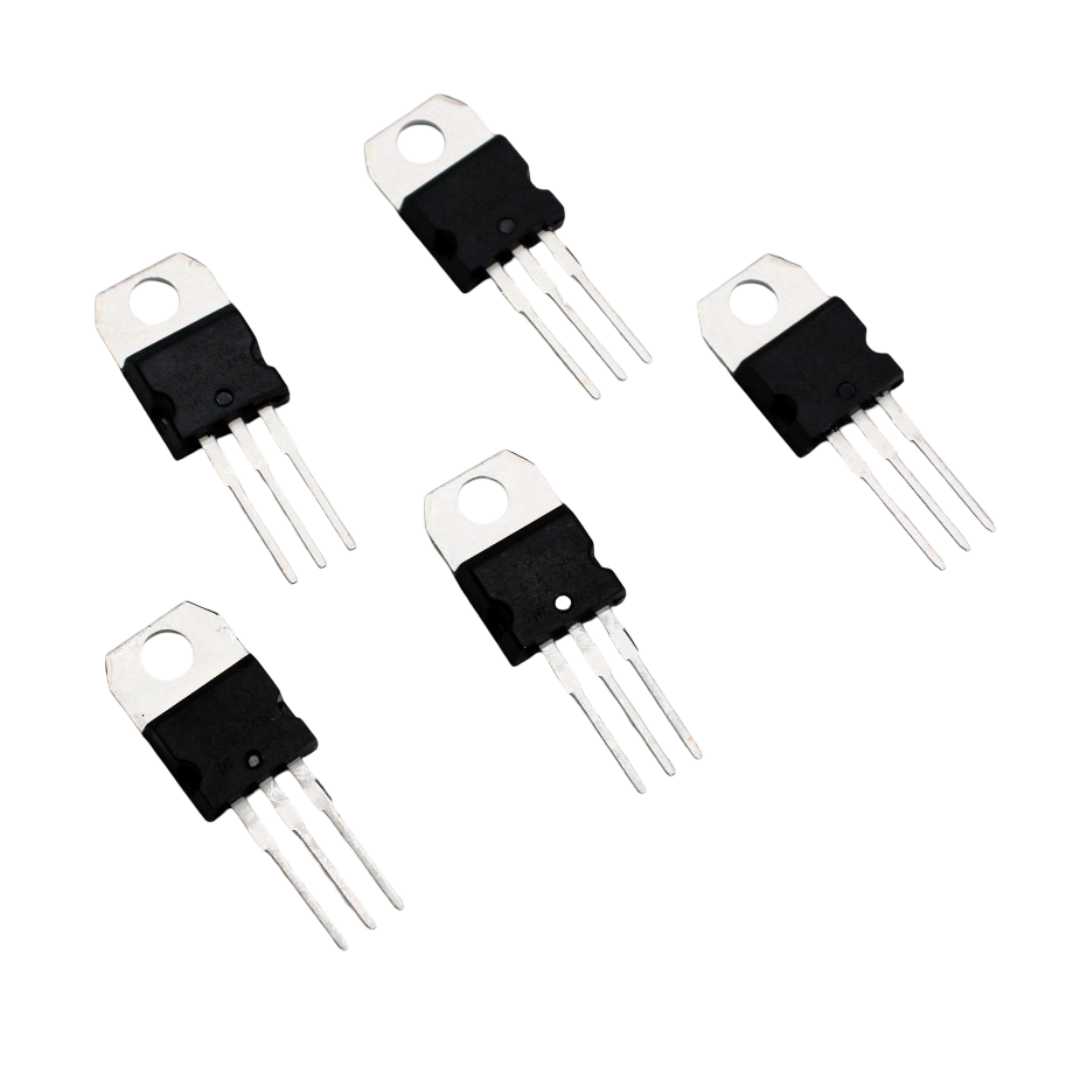

- 5 x TIP122 NPN Transistor
Technical Specifications
| Model | TIP122 |
|---|---|
| Package Quantity | 5 pcs |
| SKU | AI0389 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The TIP122 Darlington NPN Transistor (Pack of 5) is a versatile power transistors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
