Looking for Tl60m09 Brushless Motor? Tarot Martin Brushless Motor/Multi Rotor High Efficiency Long Endurance Motor 12S/6009/130KV TL60M09 is available at Zbotic with fast shipping across India.

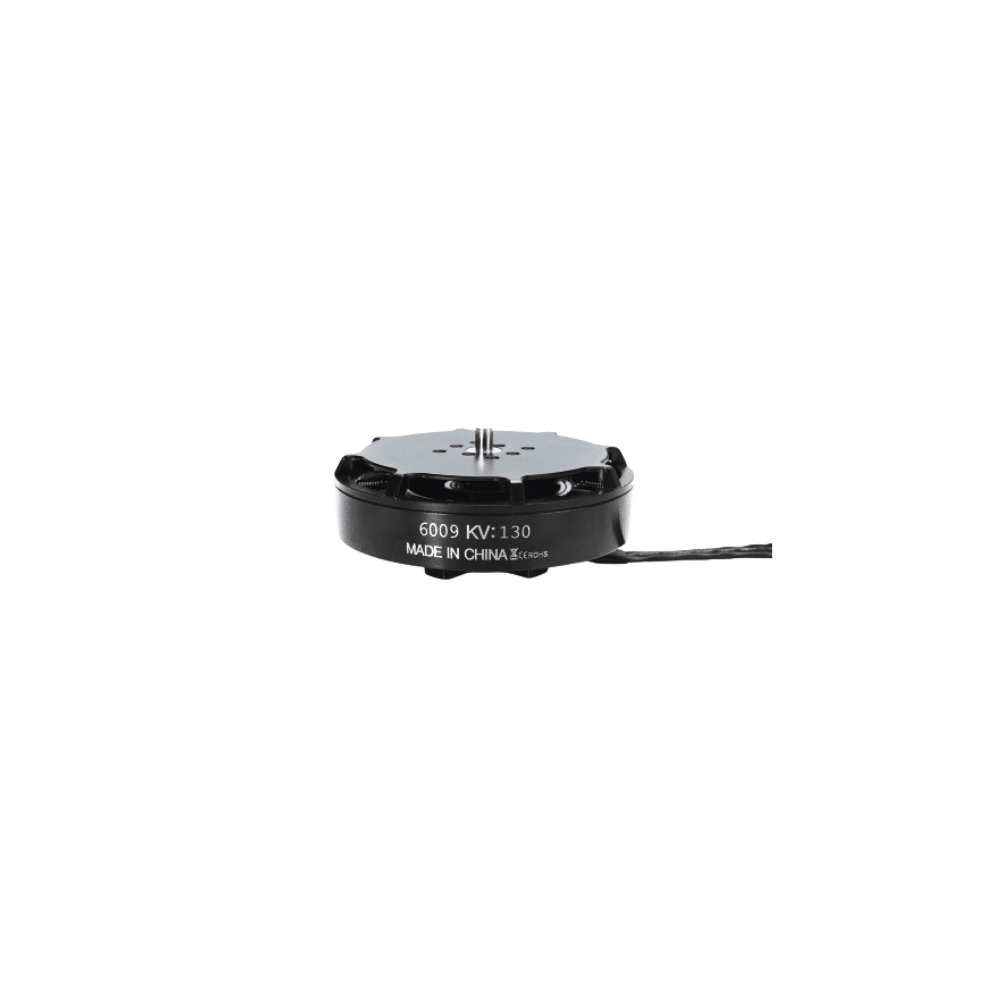

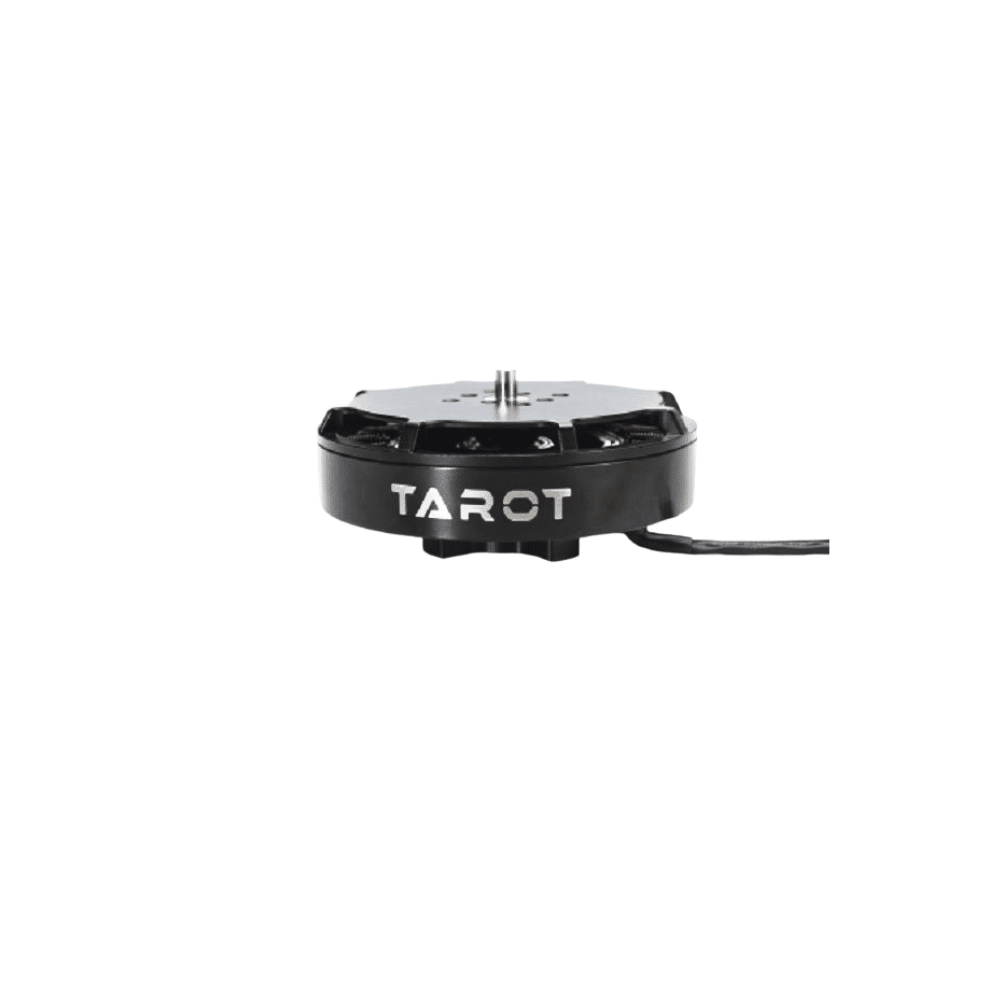

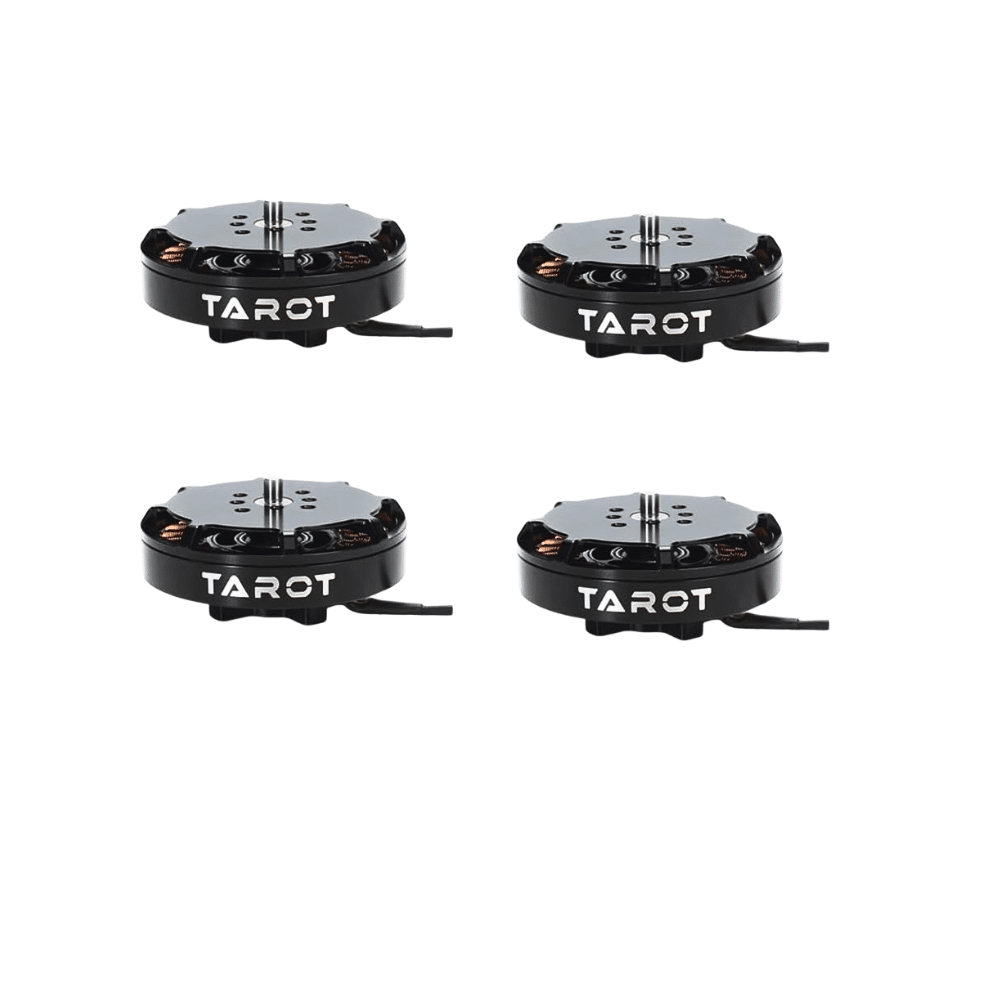

Tarot Martin Brushless Motor/Multi Rotor High Efficiency Long Endurance Motor 12S/6009/130KV TL60M09
The Tarot Martin Brushless Motor, model 12S/6009/130KV TL60M09, is engineered for high-efficiency and long-endurance performance in multi-rotor applications. Designed to operate with a 12S power system, this motor delivers reliable power and extended flight times.
Its 6009 stator size and 130KV rating make it suitable for a range of multirotor configurations, focusing on maximizing efficiency and flight duration. The TL60M09 Tarot Martin Brushless Motor designation signifies a motor crafted for demanding applications where consistent performance and extended operational life are crucial.
Features:
- Long Endurance Design: Specifically engineered for extended multirotor flight times.
- CNC Machined Construction: Ensures precision, durability, and a smooth, non-marking finish.
- Excellent Balance: Minimizes vibrations for stable and smooth flight.
- High Magnetic Rotor: Utilizes NdFeB material for powerful and efficient performance.
- Reinforced Stator: High-strength epoxy resin protects against high temperatures.
- High Flux Outrunner : Delivers strong and consistent power output.
- Special Balancing Calibration: Reduces vibrations caused by imbalance.
- High-Speed Alloy Steel Shaft: Provides robust and reliable performance.
- Large-Size Precision Bearings: Low friction, low power loss, shock resistance, and strong radial support.
- Rigorous Testing: Undergoes comprehensive testing for various performance parameters.
- Tarot Legacy: Maintains the brand’s reputation for long life, high efficiency, low power consumption, low noise, and stable control.
- 20V unloaded current:0.3Amps
- Support lithium battery section:12S
- Props mounting diameter:12mm/15mm/18mm/20mm
- Recommended props size: 21-24 inch
Specification:
| Motor Type: | Brushless Motor |
|---|---|
| Voltage Rating (V): | 20 |
| Model No.: | TL60M09 |
| Rated Voltage (VDC): | 20 V |
| Shaft Length (mm): | 27.4mm |
| Stator Diameter | 60mm |
| Poles | 20P |
| Motor Length (mm): | 26 |
| Motor Shaft Length (mm) | 27.4 |
| Mounting Hole Distance | 25mm |
| Motor Stator Size | 6009 |
Package Includes:
1 x Martin 5006/290KV Motor
1 x Props clamp
4 x Cup head screw(M3 X 8mm)
2 x Half-round head screw(M3 X 8mm)
Tarot Martin Brushless Motor/Multi Rotor High Efficiency Overview
The Tarot Martin Brushless Motor 12S/6009/130KV TL60M09 is a high-efficiency, long-endurance propulsion unit crafted for multi-rotor drones. Engineered for 12-cell (12S) power systems, it delivers smooth, reliable thrust for aerial photography, mapping, and industrial UAV applications.
Key Features of Tarot Martin Brushless Motor/Multi Rotor High Efficiency
- 130KV Rating: Balanced RPM and torque for stable lift and prolonged flight times
- 6009 Stator Size: Optimized for high efficiency and consistent power delivery
- CNC Machined Housing: Precision-built for improved heat dissipation and structural rigidity
- Heat-Resistant Stator: Maintains performance under sustained loads
- Low-Loss Bearings: Minimizes friction for quieter operation and longer service life
- Fast Shipping from Zbotic: Dispatched within 24 hours to locations across India
Applications and Use Cases
- Aerial photography platforms requiring stable, long-duration hover
- Industrial surveying drones carrying LiDAR or multispectral sensors
- Cine-rigs and heavy-lift UAV setups for professional film production
- Mapping and inspection drones that demand consistent thrust over extended missions
- Agricultural UAVs applying precise payload dispersal at low RPM
How to Use Tarot Martin Brushless Motor/Multi Rotor High Efficiency
Mount the TL60M09 to your drone’s arm using the included hardware, then solder or attach the motor leads to a compatible 12S electronic speed controller (ESC). Calibrate the ESC according to manufacturer guidelines, fit a properly sized propeller, secure all connections, and perform a static thrust test before flight to confirm smooth operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can the TL60M09 run on lower-voltage setups?
While the TL60M09 is optimized for 12S systems, it can operate on 10S batteries at reduced RPM and thrust. Running below 12S will decrease maximum efficiency and endurance.
What propeller size pairs best with this motor?
Given its 130KV rating and 6009 stator, large-diameter propellers (15–18 inches) deliver optimal lift and flight duration. Always verify propeller thrust curves against your ESC’s current limits.
How can I extend the motor’s service life?
Periodic cleaning of the low-loss bearings, avoiding prolonged full-throttle runs, and ensuring proper cooling will keep the heat-resistant stator in top condition and maintain balanced flight characteristics.
Agriculture Sprayer Drone: Complete Guide to Tank, Pump and Nozzle Selection
Table of ContentsWhy Agriculture Sprayer Drones Are Transforming Indian FarmingSprayer System Components OverviewTank Selection: Capacity, Material, and MountingPump...
Read More →
Hexacopter vs Quadcopter: When More Motors Mean More Value
Hexacopter vs Quadcopter: When More Motors Mean More Value The drone world is built around the quadcopter. Four...
Read More →
Agricultural Drone Spraying System: Components and Setup
A well-designed agricultural drone spraying system is the heart of any crop protection drone, directly determining spray coverage,...
Read More →Technical Specifications
| Brand | Tarot |
|---|---|
| Model | TL60M09 |
| KV Rating | 130KV |
| SKU | AI7460 |
| Weight | 0.29 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Tarot Martin Brushless Motor/Multi Rotor High Efficiency Long Endurance Motor 12S/6009/130KV TL60M09 is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
