This is the Black variant of the GEPRC – SPEEDX2 1804 3450KV Black Motor in Drone Motor. Available at ₹1,886.82 (₹1,599.00 + GST) with free shipping across India.
Looking for Geprc – Speedx2 Motor Black? GEPRC – SPEEDX2 1804 3450KV Black Motor is available at Zbotic with fast shipping across India.

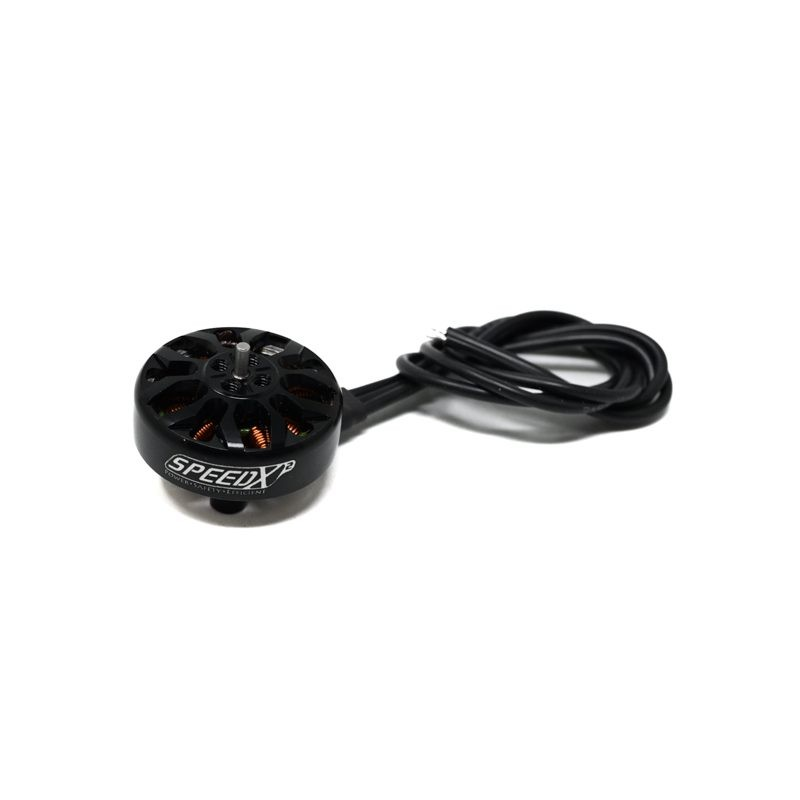

GEPRC – SPEEDX2 1804 3450KV Black Motor:
The GEPRC SPEEDX2 1804 3450KV Motor offers a lightweight and high-performance solution for 3″ whoops and 3–4″ toothpick/long-range FPV drones. Weighing only 13.2g, its arc-shaped, hollow-out design enhances cooling and efficiency. Built with 7075-T aluminum and N52H ARC magnets, it delivers explosive power and smooth handling. Optimized for tight builds and pusher drones, it ensures reliable, fast, and efficient flights for both freestyle and long-range applications.
Features:
- Super lightweight at only 13.2g.
- High-performance N52H ARC magnets.
- Durable 7075-T6 aluminum build.
- Smooth and stable handling during flight.
- Perfect for 3″ whoop, 3–4″ toothpick & long-range quads.
Specification
| Motor KV (RPM/V): | 3450 |
|---|---|
| Model No.: | SPEEDX2 1804 |
| Compatible LiPO Batteries: | 2-4S |
| Shaft Diameter (mm): | 1.5mm(out), 2mm(in) |
| Max. Power (W) | 404.8W (3S) |
| Maximum current(A) | 25.3 (5S) |
| Mounting Hole (mm) | 12 x 12(M2 Screw) |
| Shipping Weight | 0.7 kg |

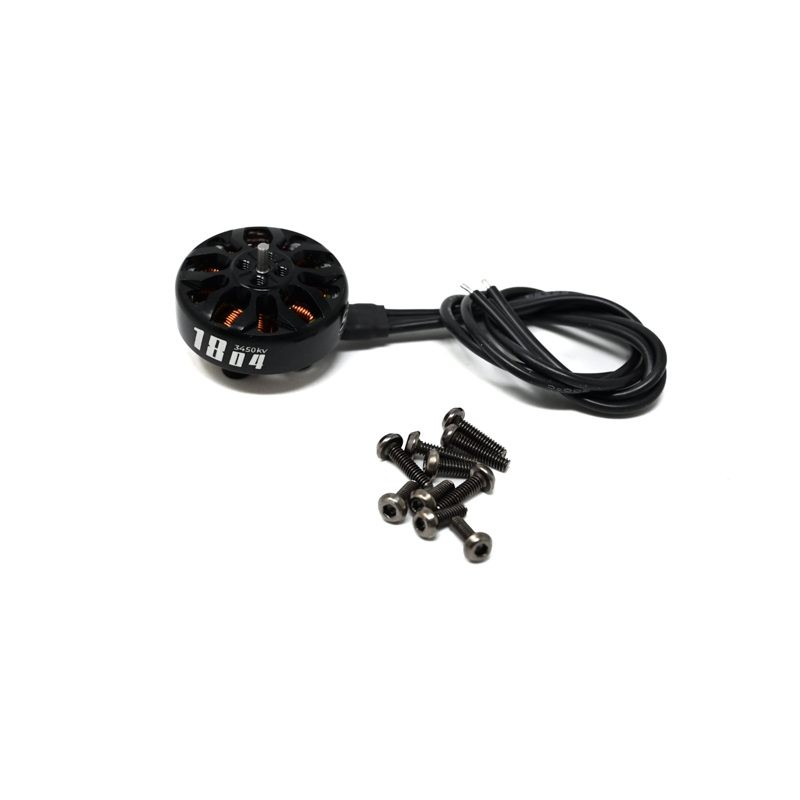

Package Includes:
1 x SPEEDX2 1804 Motor
5 x M2X6mm Screw
5 x M2X8mm Screw
GEPRC – SPEEDX2 1804 3450KV Black Motor Overview
The GEPRC SPEEDX2 1804 3450KV Black Motor is a high-performance brushless motor designed for 3″ whoops and 3–4″ toothpick or long-range FPV drones. With a compact 1804 stator size and 3450KV winding, it delivers responsive throttle control and smooth handling for freestyle and precise flight maneuvers.
Key Features of GEPRC – SPEEDX2 1804 3450KV Black Motor
- Ultra-lightweight at just 13.2 g for agile flight dynamics
- Arc-shaped hollow-out 7075-T6 aluminum housing for improved cooling and efficiency
- High-energy N52H ARC magnets delivering strong torque and rapid spool-up
- 3450KV winding optimized for 3″ props and efficient thrust on 3–4″ builds
- Black anodized finish for durability and sleek aesthetics
- Fast shipping from Zbotic across India, ready to install upon arrival
Applications and Use Cases
- 3″ whoop drones seeking lightweight agility and quick response
- 3–4″ toothpick frames with tight build decks and minimal stack height
- Pusher-style long-range FPV builds requiring efficient thrust
- Freestyle quads performing rapid flips, rolls, and precise acrobatics
- Micro cinematography rigs needing stable hovering and smooth motion
- Indoor racing circuits where low weight and quick throttle are critical
How to Use GEPRC – SPEEDX2 1804 3450KV Black Motor
Mount the SPEEDX2 1804 on your 3″ or 4″ frame using M2 screws, ensuring the motor bell aligns with the propeller adapter. Solder the three motor wires to your ESC in any order, then perform an ESC motor direction test. Attach a 3″ propeller and calibrate throttle endpoints in your flight controller software for optimal performance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which frame sizes work best with the SPEEDX2 1804 3450KV motor?
This motor is optimized for 3″ whoops and 3–4″ toothpick or long-range FPV drone frames, offering the right balance of thrust and efficiency for micro builds.
How much does the GEPRC SPEEDX2 1804 motor weigh?
The total weight of the motor, including bearings and bell, is only 13.2 grams, making it ideal for lightweight racing and freestyle setups.
What propeller size should I use with this 3450KV motor?
For peak efficiency and thrust, pair the 3450KV SPEEDX2 1804 motor with 3″ tri-blade props on 3–4 S LiPo batteries or 4″ props on lower-voltage setups.
