T-Motor V LINK 2.0
Description:

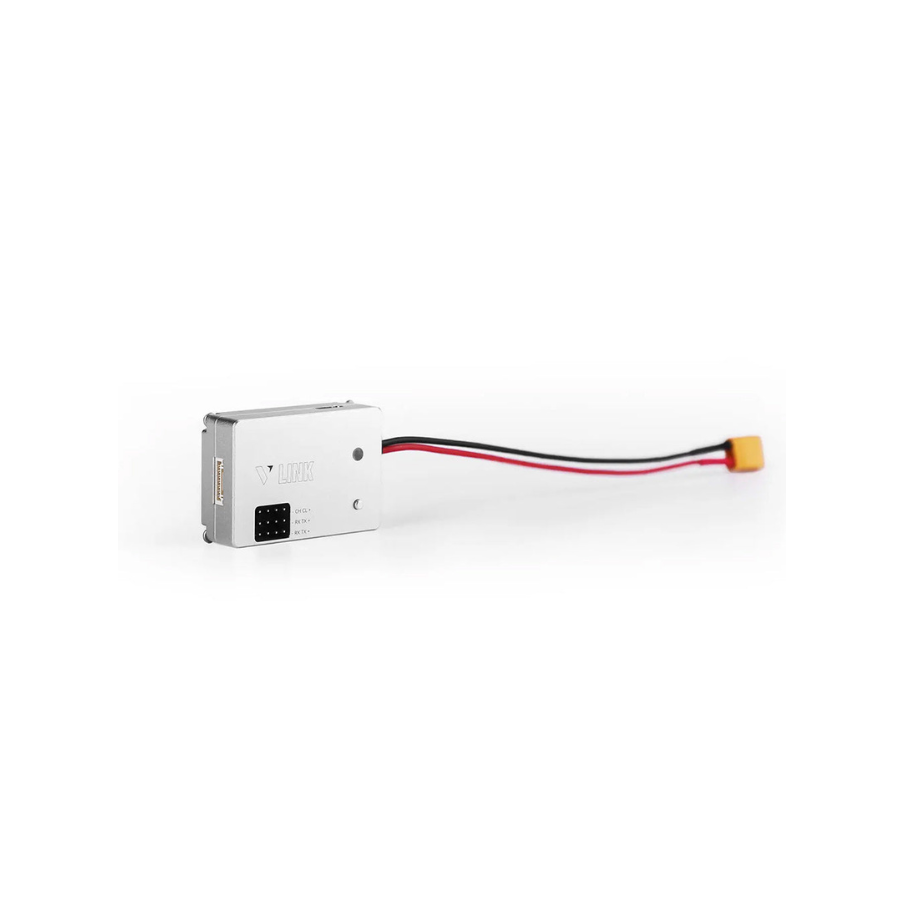

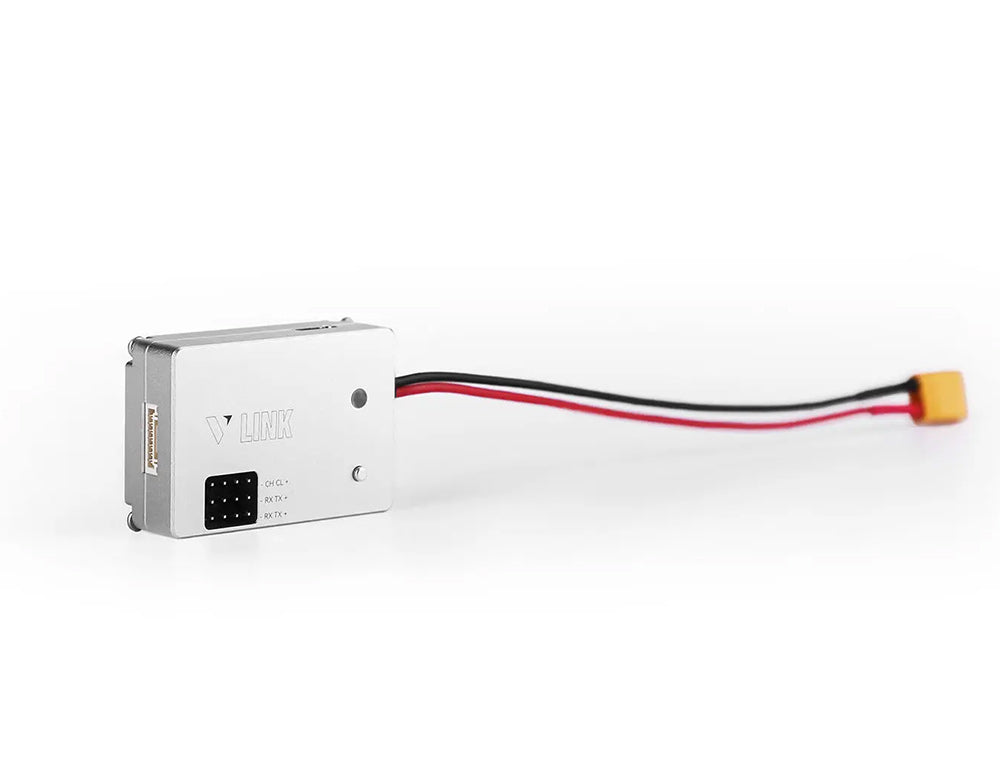

The T-MOTOR V LINK (also called V LINK 2.0) is a UAV ESC communication and telemetry data box designed for T-MOTOR V-Series ESCs. It integrates data acquisition, storage, firmware management, and ESC parameter configuration into a compact module for professional drone propulsion systems. It allows users to monitor propulsion performance, diagnose faults, and improve flight safety.
Application:
- Industrial UAVs : Professional drone telemetry and diagnostics
- Heavy-Lift Drones : Propulsion monitoring for large UAV systems
- VTOL Aircraft : ESC tuning and operational analysis
- Agricultural Drones : Flight logging and propulsion diagnostics
- Research UAVs : Data collection for experimental platforms
- Mapping & Survey Drones : Long-duration propulsion monitoring
- UAV Maintenance : Fault detection and ESC troubleshooting
- Flight Testing : Performance analysis during UAV development
Specifications:
| Parameter | Details |
|---|---|
| Product Name | V LINK 2.0 |
| Device Type | ESC Data Acquisition & Storage Module |
| Compatible ESC Series | T-MOTOR V Series ESCs |
| Communication Interfaces | Serial Port / CAN / USB |
| Supported Voltage | 18–60V |
| Battery Compatibility | 6S–14S LiPo |
| Dimensions | 47.4 × 32.4 × 14.3 mm |
| Weight | 29 g |
| PC Software Support | Yes |
| Firmware Upgrade Support | Yes |
| Offline Data Logging | Supported |
| Real-Time Telemetry | Supported |
| ESC Parameter Tuning | Supported |
| Fault Data Download | Supported |
| CAN Communication | Supported |
| USB Communication | Supported |
Packing List Includes:
- 1 × T-Motor V LINK 2.0
