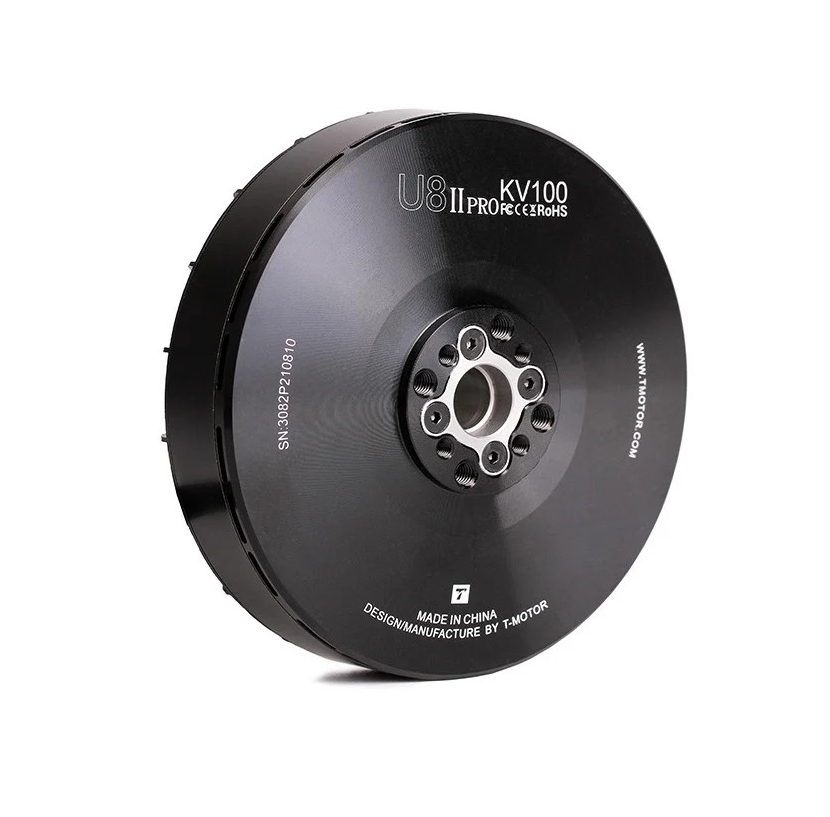

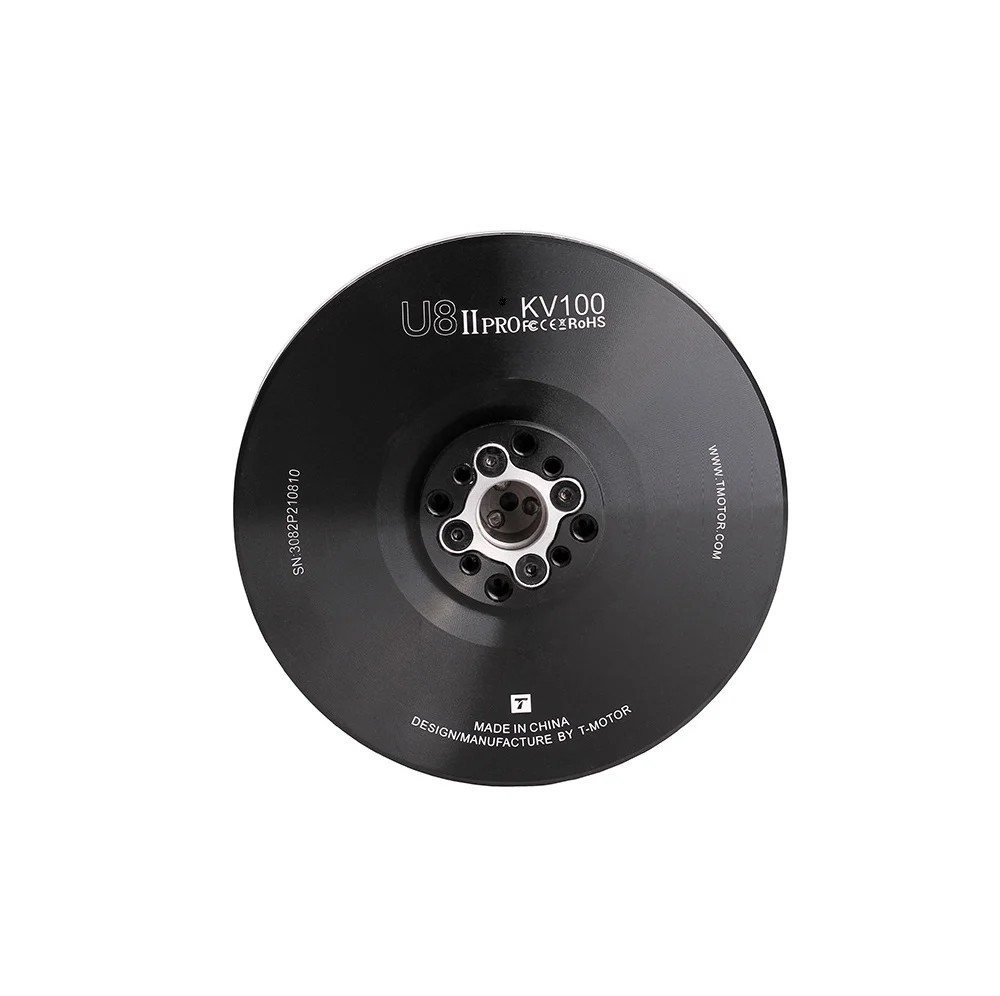

T Motor U8Ⅱ PRO Efficiency Type UAV Motor 100KV
The “U Efficiency” motors, part of the U-series, are specifically designed for high-performance UAVs that require extended endurance. These motors are ideal for applications like surveillance, patrol, security, surveying, and mapping, where long flight times are crucial. Their lightweight design allows for prolonged flight durations, while industrial-grade dustproof and waterproof features, along with anti-aging technology, greatly improve motor longevity.
The motors are equipped with precisely engineered curved magnets and carefully controlled tolerances, as well as strategically positioned magnets that optimize the motor’s magnetic circuit for superior performance. Additionally, they use imported, custom-designed bearings that further extend the motor’s lifespan and ensure smooth, reliable flight operations over extended periods.
Features:
- Keeping out foreign objects of 0.7mm and above and raindrops in all-weather flight.
- A preferred option for a variety of applications including aerial photography, mapping and surveying, and delivery.

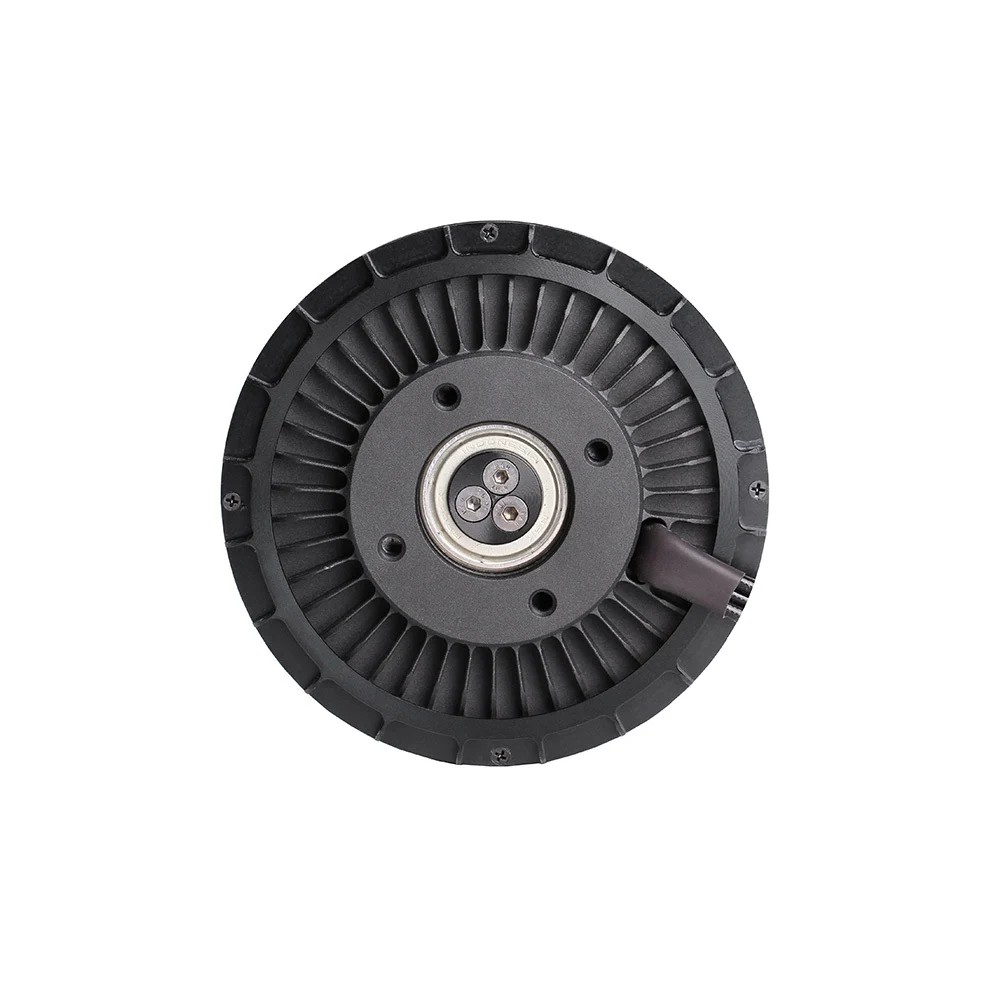

- Centrifugal fans and cooling fins for better air exchange. Materials of high thermal conductivity bring up the cooling performance by 1 7%.
- Steel shaft imported big bearings, 7075 aviation aluminum alloy, specially selected high temperature resistant enameled wire, and arc magnets.
Specification:
| Model | T Motor U8Ⅱ PRO Efficiency Type UAV Motor 100KV |
|---|---|
| Motor KV | 100 |
| Idle Current(A) | 1.0 |
| Peak Current(180s) | 1450 |
| Internal Resistance(mΩ) | 134-141 |
| Configuration | 36N42P |
| Bearing | Imported 6901ZZ. |
| Coil Insulation Test | 1000V/5s |
Package Includes:
1 x T Motor U8Ⅱ PRO Efficiency Type UAV Motor 100KV
T Motor U8Ⅱ PRO Efficiency Type UAV Motor 100KV Overview
The T Motor U8Ⅱ PRO Efficiency Type UAV Motor 100KV is a high-performance brushless motor engineered for heavy-lift and long-endurance drone platforms. It excels in applications that demand reliable thrust and extended flight time, making it ideal for professional aerial operations.
Key Features of T Motor U8Ⅱ PRO Efficiency Type UAV Motor 100KV
- High-efficiency design delivers strong lift with minimal power consumption
- Lightweight construction optimizes flight endurance on multi-rotor frames
- Industrial-grade IP56 protection resists dust ingress and water spray
- Precision-curved magnets and tight manufacturing tolerances for smooth operation
- Anti-aging materials and coatings extend motor lifespan under heavy use
- Genuine product from T Motor, fast shipping available from Zbotic across India
Applications and Use Cases
- Surveillance and security drones requiring stable lift over extended periods
- Surveying and mapping UAVs that carry high-resolution cameras or LiDAR payloads
- Inspection platforms for infrastructure, powerlines, and pipelines
- Agricultural drones used for crop monitoring or spraying operations
- Search and rescue multi-rotors operating in challenging outdoor environments
How to Use T Motor U8Ⅱ PRO Efficiency Type UAV Motor 100KV
Mount the U8Ⅱ PRO motor on a compatible drone frame using the supplied screws, connect it to a suitable electronic speed controller (ESC) rated for the motor’s current draw, and attach the recommended propeller size. Ensure proper wiring gauge, perform ESC calibration, and balance the propellers before flight for optimal performance and vibration-free operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What propeller size is recommended for the U8Ⅱ PRO 100KV motor?
For optimal efficiency and thrust balance, use carbon-fiber propellers in the 18–22 inch range, matched to your drone’s frame and payload requirements.
Can this motor operate in light rain or dusty environments?
Yes. The motor’s IP56 rating provides protection against low-pressure water jets and limited dust ingress, making it suitable for most outdoor conditions.
Which ESC specification pairs best with the U8Ⅱ PRO Efficiency motor?
Select a high-current 50A–60A brushless ESC with a burst rating above the motor’s maximum continuous current for reliable performance and safe temperature levels.
