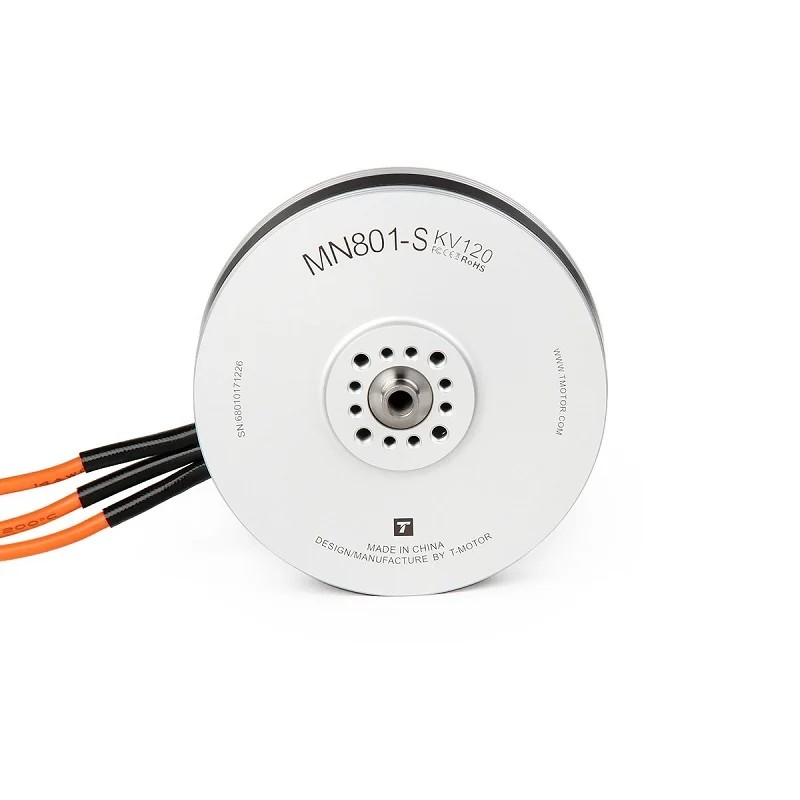

T Motor MN801-S KV120
Presenting the T Motor MN801-S KV120, a pinnacle in UAV Brushless Motors. Featuring a bell cap with a centrifugal fan structure, this motor offers accelerated and efficient cooling. The fin-designed base expands the heat dissipation area by 15%, significantly boosting cooling performance.
Fly with confidence in any setting: The MN801S boasts a semi-closed design, shielding the motor from dust and debris. Crafted with a special alloy shaft, custom bearings, varnished wires, silicon steel sheet, magnet, and bell treated with cutting-edge anti-rust and anti-corrosion technology, it provides exceptional protection.
Reliability assured: The T-shape shaft, secured with a circlip and screw, ensures stability and safety even under high RPM and power, preventing rotor looseness. With a 12mm steel shaft and 24mm large bearings, the MN801S delivers outstanding impact resistance, stability, and durability.
Optimized for peak performance: Anti-high temperature curved magnets, coupled with precise tolerance control and rational magnet spacing, enhance motor performance by over 5%, creating an optimal motor magnetic circuit.
Features:
- Heavy load motor,born for VTOL
- Long service life
- Excellent cooling performance
- Anti-high temperature/Anti-overload
- Dust-resistance/Waterproof/Anti-corrosion.
Specification:
| Motor size | 89 x 39.4mm |
|---|---|
| Stator | Imported silicon steel sheet; Anti-rust treatment; 150°Chigh temperature-resisting coatings |
| Configuration | 24N28P |
| Shaft Diameter | IN: 12mm, OUT: 8mm |
| Bearing | Imported 6901ZZ |
| Magnet Level | 180°C high temperature resistance |
| Silicon Cable | 14AWG*150MM |
| Copper Wire | 220°C high temperature resistance: Level C |
| Coil Insulation Test | 500V |
| Centrifugal Cooling Design | YES |
| Rotor Dynamic Balance Standard | </=5Mg |
| Motor Dynamic Balance Standard | </= 10Mg |
| IP | IP45 |
| Weight (g) | 470 (inc. cable) |

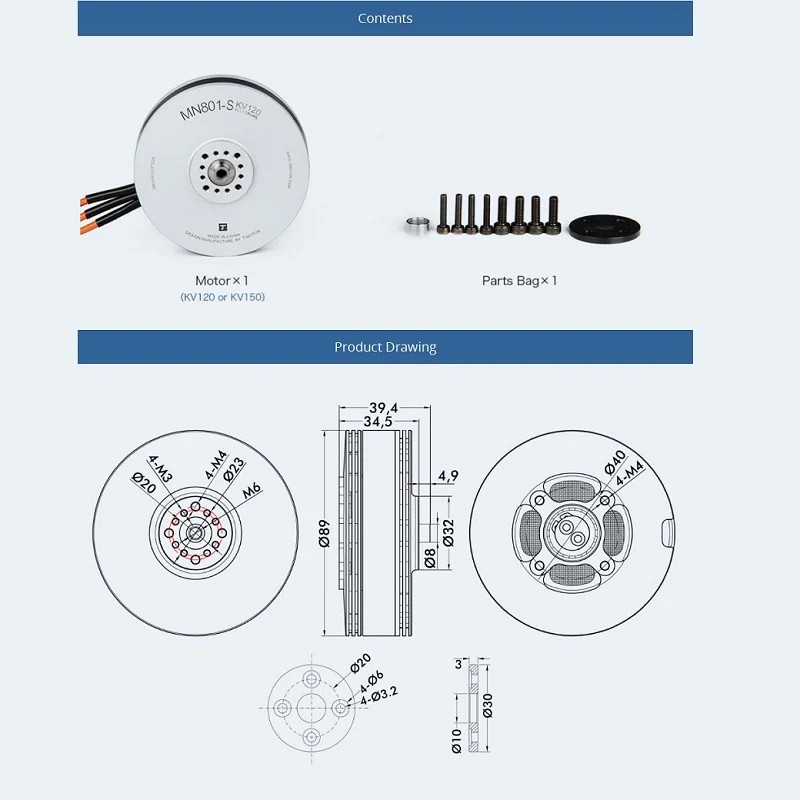

Package Includes:
1 x T motor MN801-S KV120
1 x Accessories (as shown in image)
T Motor MN801-S KV120 Overview
The T Motor MN801-S KV120 is a high-performance brushless UAV motor designed for heavy-lift and industrial multirotor drones. With a robust 24N28P configuration and precision engineering, it delivers reliable thrust and efficient cooling for demanding aerial applications.
Key Features of T Motor MN801-S KV120
- Compact dimensions of 89 × 39.4 mm for streamlined drone integration
- 24N28P stator made from imported silicon steel, coated for 150 °C high-temperature resistance
- Bell cap with centrifugal fan structure and fin-designed base, boosting heat dissipation area by 15%
- Semi-closed design with anti-rust and anti-corrosion treatments to protect against dust and debris
- Special alloy T-shape shaft (12 mm inner, 8 mm outer) paired with imported 6901ZZ bearings
- Magnets rated for 180 °C high-temperature resistance for enhanced reliability
- Fast shipping across India from Zbotic
Applications and Use Cases
- Heavy-lift industrial drones carrying LiDAR or thermal imaging payloads
- Agricultural multirotor UAVs for spraying and crop monitoring
- Professional filmmaking platforms requiring stable thrust under load
- Mapping and surveying drones operating in dusty or corrosive environments
- Search and rescue UAVs needing reliable motor performance in challenging conditions
How to Use T Motor MN801-S KV120
Mount the MN801-S KV120 onto your drone’s motor mounts using the appropriate screws and ensure the T-shape shaft is securely seated. Connect the motor leads to your electronic speed controller, verify correct spin direction, and perform a break-in procedure by running the motor at low RPM for several minutes. Regularly inspect the bell cap fins and bearings for debris, and keep the cooling vents clear to maintain optimal performance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What shaft diameters does the MN801-S KV120 use?
This motor features a stepped T-shape shaft with a 12 mm inner diameter and an 8 mm outer diameter, compatible with standard collet-style prop adapters.
How does the cooling design enhance motor performance?
The centrifugal fan structure in the bell cap accelerates airflow over the fins, while the fin-designed base increases heat dissipation area by 15%, keeping the motor cooler under load.
What temperature ratings do the coatings and magnets have?
The stator windings are protected by a 150 °C high-temperature-resistant coating, and the magnets are rated up to 180 °C, ensuring reliable operation in strenuous environments.
