Looking for Am66a Motor? T-Motor AM66A ESC is available at Zbotic with fast shipping across India.
Product Features:
- High-Performance 32-Bit ARM Microprocessor: Operates at up to 48MHz for fast and efficient processing.
- BLHeli-32 Firmware: The third-generation firmware, building on the success of BLHeli and BLHeli-S, providing advanced motor control.
- Damped Light Mode: Features regenerative braking for rapid motor deceleration and active freewheeling, enhancing overall performance.
- Sync Loss Prevention: Built-in features to prevent synchronization loss, with adjustable parameters to optimize performance in demanding conditions. Default settings perform excellently in typical environments.
- Throttle Mode Compatibility: Supports multiple throttle modes including normal PWM, OneShot125, OneShot42, and MultShot for flexible control options.
- DShot Digital Throttle Modes: Fully compatible with DShot150, 300, 600, and 1200 digital throttle modes for precise and reliable control.
- Beacon Functionality: The ESC will emit a beep after a set time of zero throttle, helping you locate lost drones.
- Integrated BEC: A robust 10A continuous/20A instantaneous BEC, supporting additional power for servos and electronics. Output voltage is selectable between 5.8V, 7.4V, and 8.2V for customized power management.

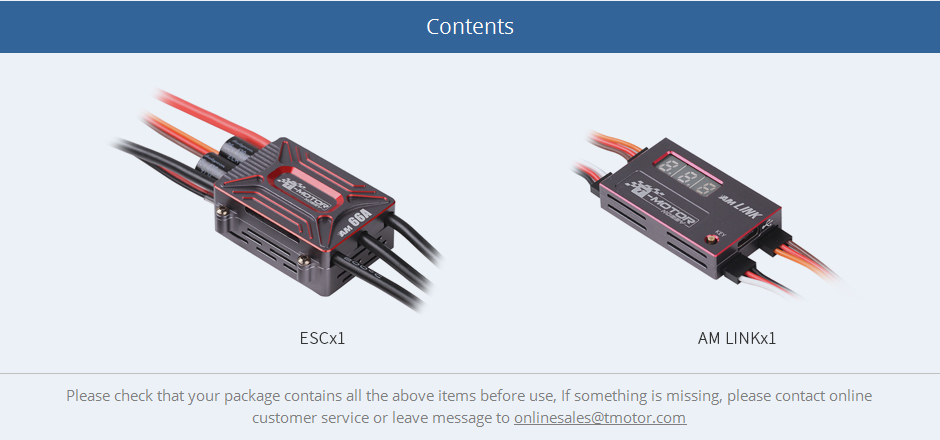

Package include
1 x T-Motor AM66A ESC

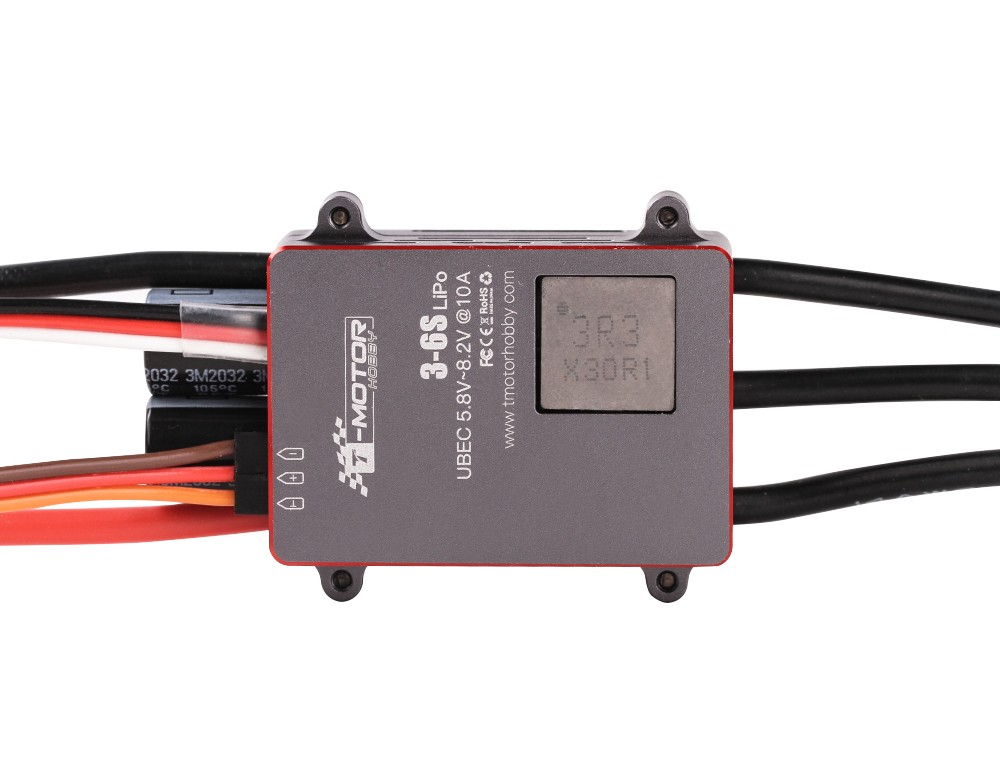

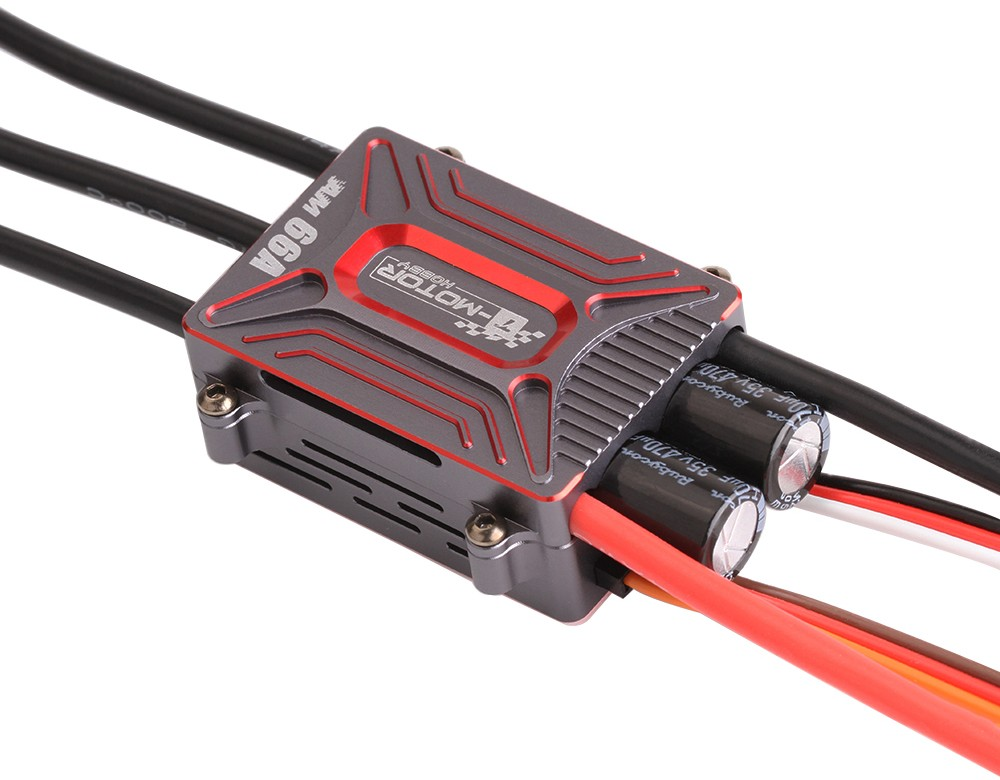

T-Motor AM66A ESC Overview
The T-Motor AM66A ESC is a high-performance electronic speed controller designed for multirotor drones. Equipped with a 32-bit ARM processor and BLHeli-32 firmware, it delivers precise motor management for competitive racing and professional aerial platforms.
Key Features of T-Motor AM66A ESC
- 32-Bit ARM Microprocessor running at up to 48 MHz for rapid signal processing
- BLHeli-32 Firmware: Third-generation code offering advanced timing and smoothing
- Damped Light Mode: Active freewheeling and regenerative braking for faster deceleration
- Sync Loss Prevention: Built-in safeguards with adjustable parameters for reliable operation under high loads
- Throttle Mode Compatibility: Supports multiple throttle inputs including standard PWM
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- FPV racing quads requiring rapid throttle response and braking
- Professional photography drones needing smooth and precise motor control
- Heavy-lift multirotors where sync loss prevention ensures stability under load
- DIY drone builds and prototypes leveraging BLHeli-32 configurability
- Experimental UAV platforms testing regenerative braking performance
How to Use T-Motor AM66A ESC
Install the AM66A ESC between your flight controller and motor, connect the power leads to your LiPo battery, and calibrate throttle range via the BLHeli-32 Configurator. Configure Sync Loss Prevention and Damped Light Mode parameters through the GUI to match your drone’s performance requirements.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What firmware is pre-installed on the T-Motor AM66A ESC?
The ESC comes pre-flashed with BLHeli-32, the latest third-generation firmware for enhanced motor timing and control.
How can I minimize motor desynchronization during aggressive maneuvers?
Use the built-in Sync Loss Prevention feature and adjust its parameters via the BLHeli-32 Configurator; default settings suffice for most flight conditions.
Does the AM66A ESC support regenerative braking?
Yes, Damped Light Mode provides active freewheeling and regenerative braking for quick motor deceleration and improved flight responsiveness.
FPV Drone Building Guide for Beginners
Building your first FPV drone is one of the most thrilling projects in the drone hobby. FPV (First...
Read More →
DigiSky Drone Registration Walkthrough: Step-by-Step India
Every drone owner in India must complete DigiSky registration before flying. The DGCA's DigiSky platform is the official...
Read More →
Drone Fishing: Drop Bait System with GPS RTH
Table of Contents Understanding Drone Fishing Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical Tips...
Read More →Technical Specifications
| Brand | T -Motor |
|---|---|
| Model | AM66A |
| SKU | AI6204 |
| Availability | Out of Stock |
Applications & Use Cases
The T -Motor T-Motor AM66A ESC is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine T -Motor product sourced from authorized channels
