Looking for 80a Motor? T Motor Alpha 80A 12S ESC is available at Zbotic with fast shipping across India.
This is all down to a little device called an ESC, or (Electronic Speed Controller) This is what translates a pilot’s controls into precise instructions sent to the motors to control movement Electronic speed controllers (ESCs) are devices that allow drone flight controllers to control and adjust the speed of the aircraft’s electric motors. A signal from the flight controller causes the ESC to raise or lower the voltage to the motor as required, thus changing the speed of the propeller
An ESC or an Electronic Speed Controller controls the brushless motor movement or speed by activating the appropriate MOSFETs to create the rotating magnetic field so that the motor rotates. The higher the frequency or the quicker the ESC goes through the 6 intervals, the higher the speed of the motor will be,
Here, is the motor compatibility chart for this ESC,
Features:
- Low Noise
- Temperature and Interference
- Fast Response
- High Efficiency
- For Compatibility
- Please Leave A Note of Motor Type
Specifications:
- Voltage: 18V – 52.2V
- Current: 80A
- Peak Current: 100A
- Stand by consumption: ≤50mA
- BEC: NO
- Throttler refresh Frequency: 1100 – 1940µs
- Throttler Response speed: 300ms
Packages Includes:
1 x T Motor ALPHA 80A 12S ESC

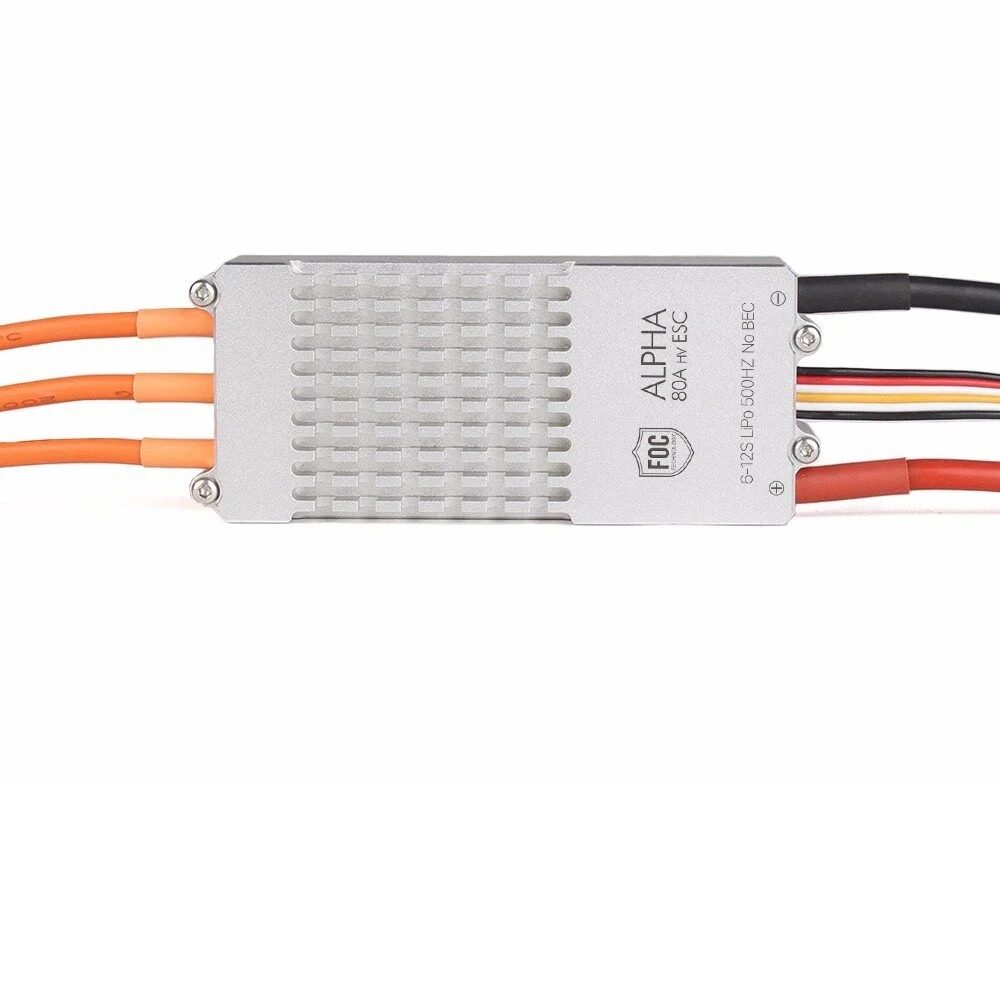

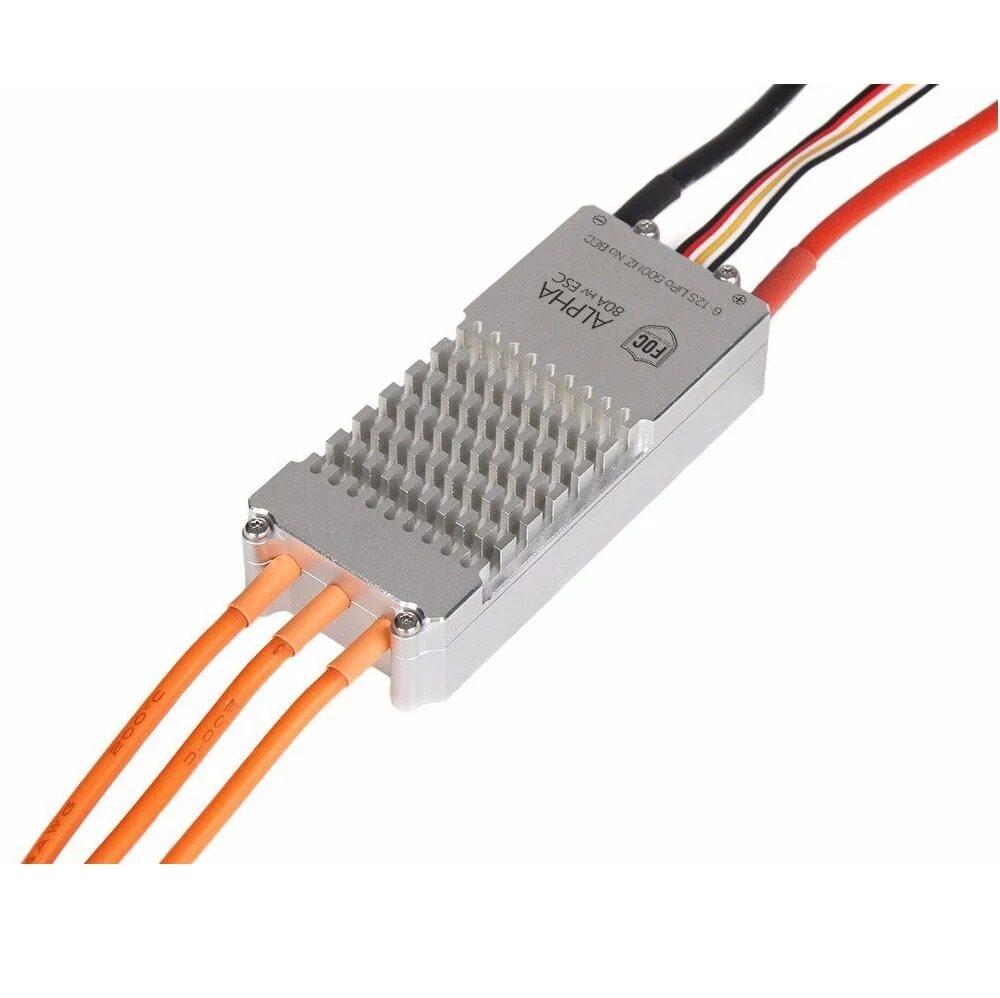

T Motor Alpha 80A 12S ESC Overview
The T Motor Alpha 80A 12S ESC is a high-performance electronic speed controller designed for multirotor and heavy-lift drones running on up to 12S LiPo batteries. It translates flight controller signals into precise motor control, delivering up to 80 A continuous current and handling peaks of 100 A for aggressive thrust and rapid throttle response.
Key Features of T Motor Alpha 80A 12S ESC
- Continuous current rating of 80 A with 100 A peak capability for demanding flight profiles
- Wide input voltage range of 18 V–52.2 V, compatible with up to 12S LiPo battery packs
- Low standby power consumption (≤ 50 mA) to preserve battery when idle
- High-efficiency MOSFET-based design for minimal heat generation and smooth power delivery
- Compact and lightweight form factor, ideal for racing and professional UAV builds
- Genuine T Motor product – fast shipping across India from Zbotic.in
Applications and Use Cases
- FPV racing drones requiring high burst current for rapid acceleration
- Professional aerial photography and videography multirotors
- Heavy-lift platforms carrying cameras, sensors or payloads
- Industrial inspection UAVs operating on 11S–12S battery systems
- Research and development test rigs with varying throttle demands
- Custom multirotor prototypes where compact, high-current ESCs are essential
How to Use T Motor Alpha 80A 12S ESC
Mount the ESC on your drone’s frame in a well-ventilated area, solder the power leads to your battery connector and attach the three motor phase wires to the brushless motor. Connect the ESC’s signal wire to the PWM input on your flight controller, then power up the system to calibrate throttle endpoints. Ensure all connections are secure and insulated before performing a test hover.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Does the Alpha 80A 12S ESC include a BEC output?
No, the T Motor Alpha 80A 12S ESC does not include an onboard BEC. You will need an external BEC or power module to supply 5 V/12 V to your flight controller and receiver.
What battery configuration can I use with this ESC?
This ESC supports 18 V to 52.2 V input, which corresponds to 5S through 12S LiPo battery packs. Ensure your battery connections and wiring can handle the voltage and current.
How do I connect the ESC to my flight controller and motors?
Solder the main power leads to your battery plug, connect the three motor phase wires to the corresponding motor terminals, and plug the signal wire into the throttle/PWM port on your flight controller. Double-check polarity and insulation before powering up.
