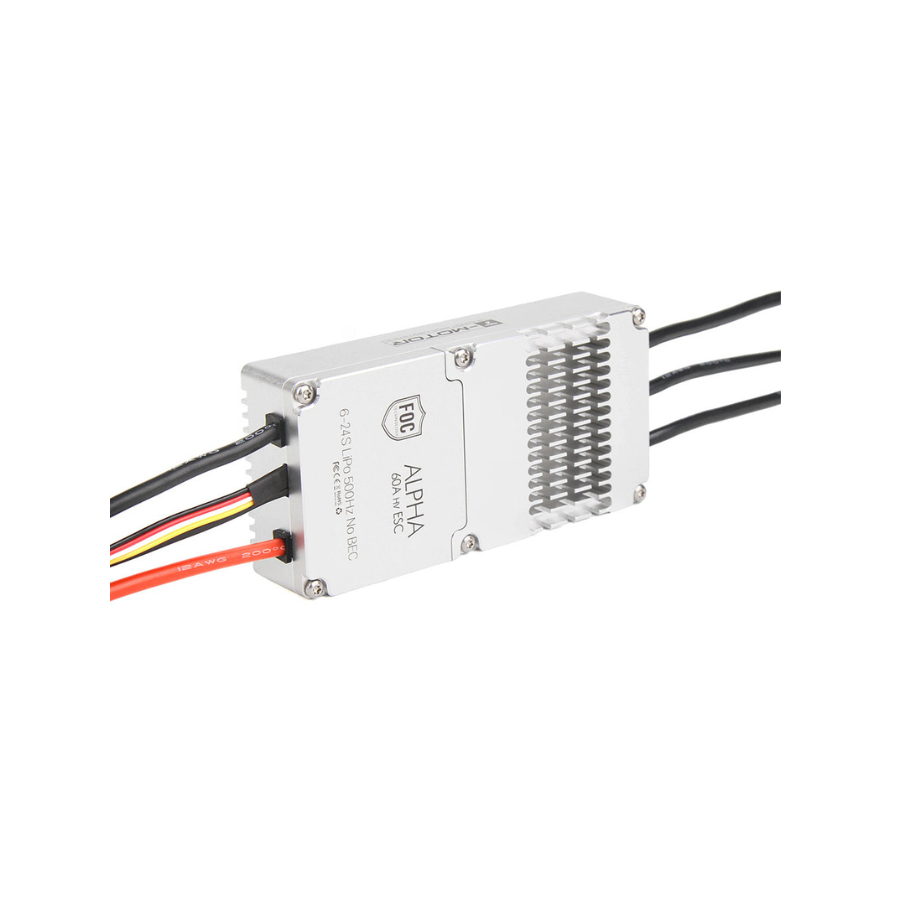

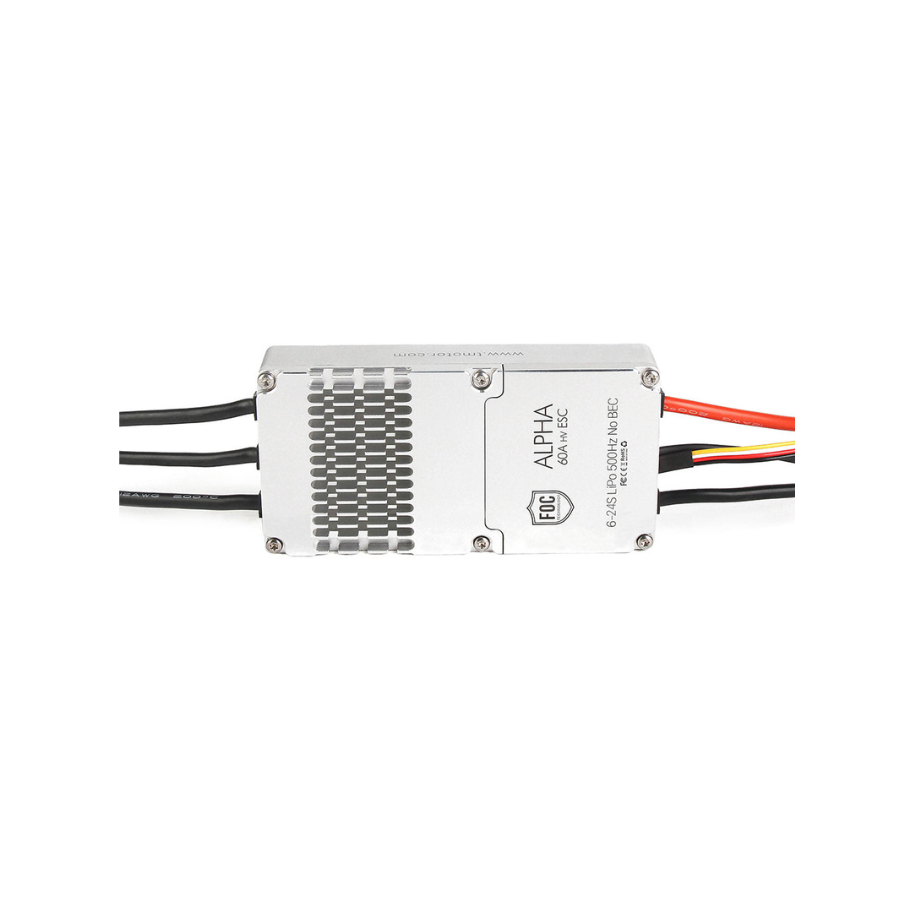

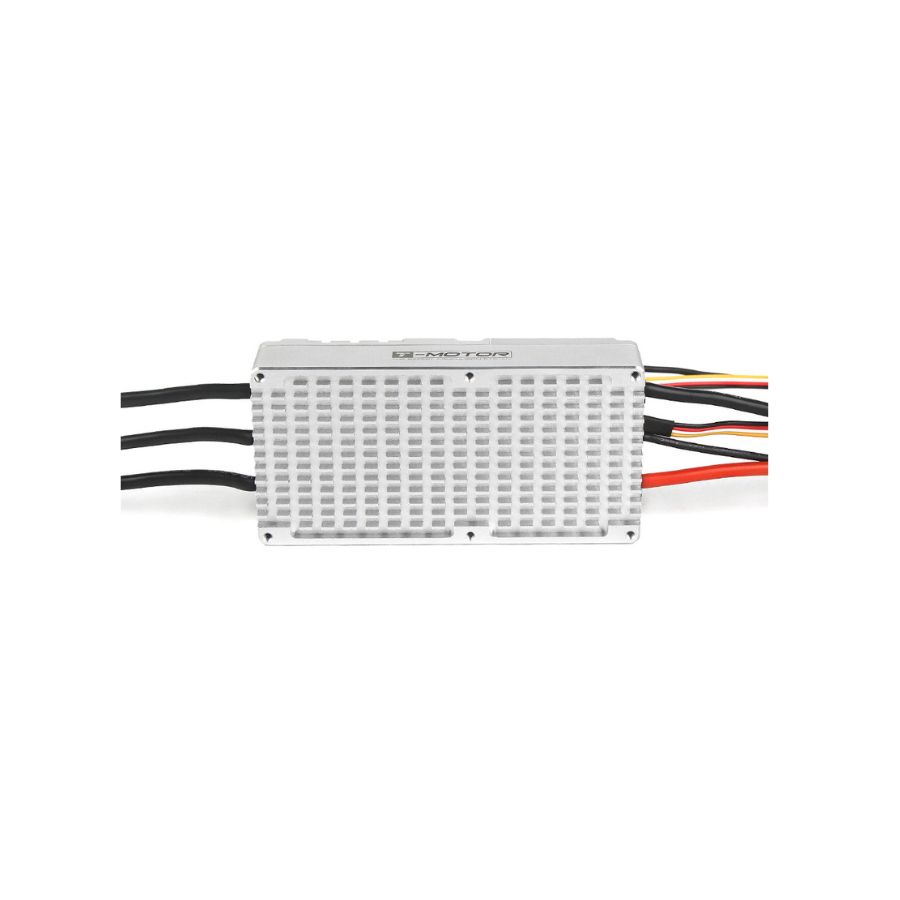

T-MOTOR ALPHA 60A 24S Multi-Rotor UAV FOC ESC
Description:
The T-MOTOR ALPHA 60A 24S FOC UAV ESC is a high-voltage electronic speed controller designed for large multi-rotor UAVs and industrial drones. Featuring advanced FOC technology, it delivers fast response, low-noise operation, high efficiency, and stable motor control with built-in protection functions for reliable heavy-duty propulsion systems.
ALPHA 60A 24S ESC Highlights:
- Low Noise
- Temperature and Interference
- Fast Respons
- High Efficiency
- For Compatibility
- Please Leave A Note of Motor Type
Specifications:
| Parameter | Specification |
|---|---|
| Model | ALPHA 60A 24S |
| ESC Type | Industrial BLDC FOC (Field-Oriented Control) UAV ESC |
| Input Voltage | 12S–24S LiPo (44.4V–100V) |
| Continuous Current | 30 A |
| Peak Current | 60 A (10 seconds) |
| Control Protocol | PWM / CAN |
| Throttle Position Range | 1100–1940 μs |
| Throttle Refresh Frequency | 500 Hz |
| Throttle Response Speed | 50 ms |
| BEC | No |
| Standby Consumption | ≤50 mA |
| Weight (Including Cables) | 112 g |
| Dimensions (L × W × H) | 89.5 × 40 × 20.5 mm |
| Input Cable | 14 AWG Silicone Wire |
| Output Cable | 16 AWG Silicone Wire |
| Programming Support | Alpha Data Link |
| Operating Temperature | -20°C to +65°C |
| Application Type | Industrial UAVs, VTOL Aircraft, Heavy-Lift Drones |
Packing Includes:
- 1 x T-Motor ALPHA 60A 24S UAV ESC
- 1 x Hardware Kit
Drone Thermal Imaging: Search and Rescue Applications
Table of Contents Understanding Drone Thermal Imaging Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
Agriculture Drone Parts List: Complete Buying Guide for India
The demand for agriculture drone parts in India has exploded as farmers increasingly adopt drone-based spraying to cut...
Read More →
Comparing Agricultural Drone Frames: EFT vs DJI Agras Parts
Choosing the right agricultural drone frame is the foundation of any crop spraying operation, and the EFT comparison...
Read More →Technical Specifications
| Brand | T -Motor |
|---|---|
| Current Rating | 60A |
| SKU | AI4939 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The T-MOTOR ALPHA 60A 24S Multi-Rotor UAV FOC ESC is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
