The module can cover thousands of devices in a district environment, making it ideal for applications such as meter reading, smart home and burglar alarm systems.
Connection Diagram:

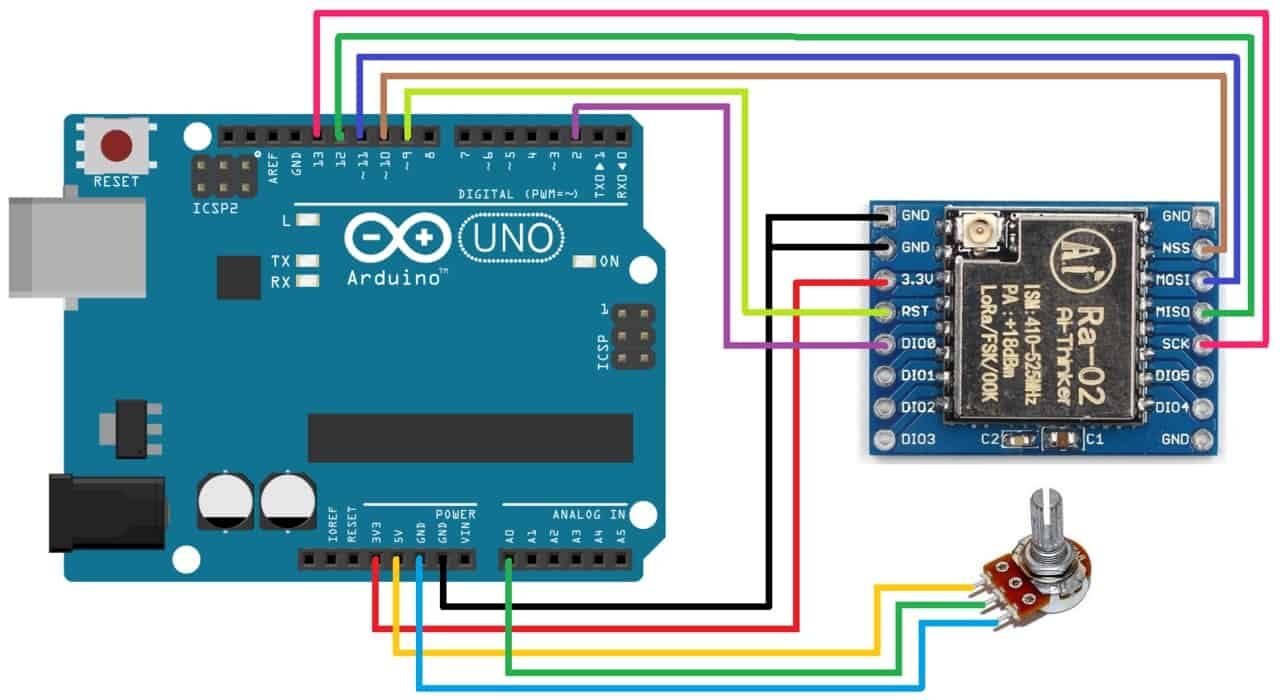

LORA Transmitter :

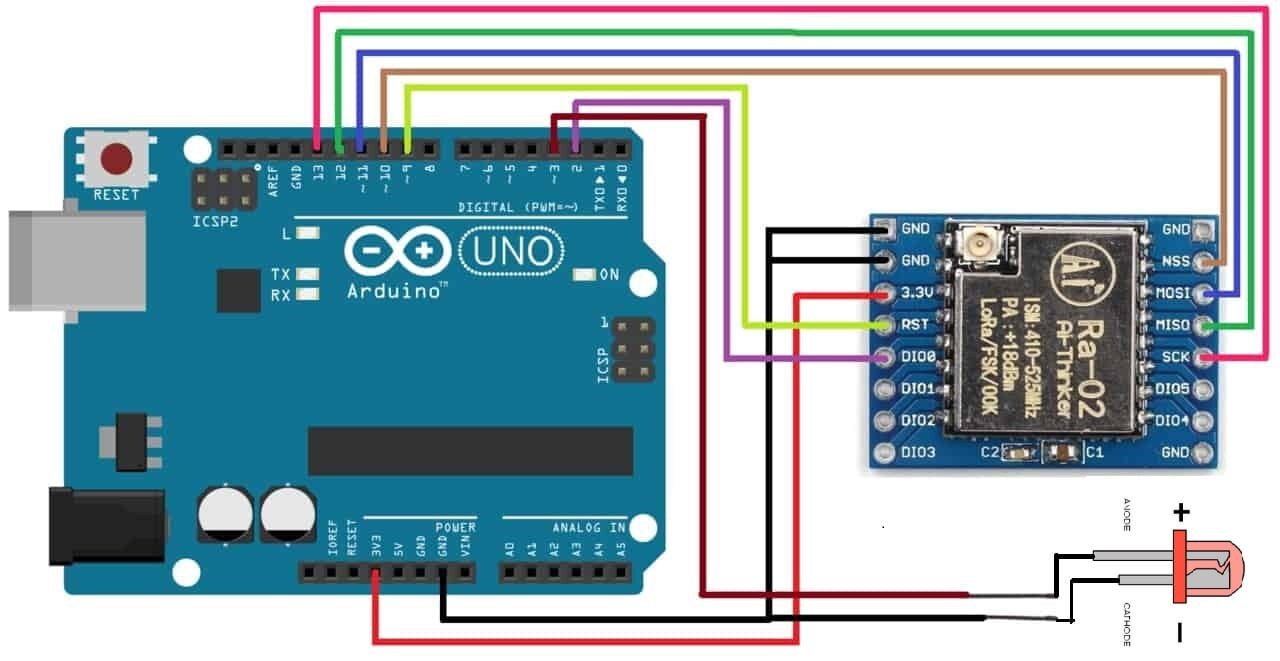

LORA Receiver:

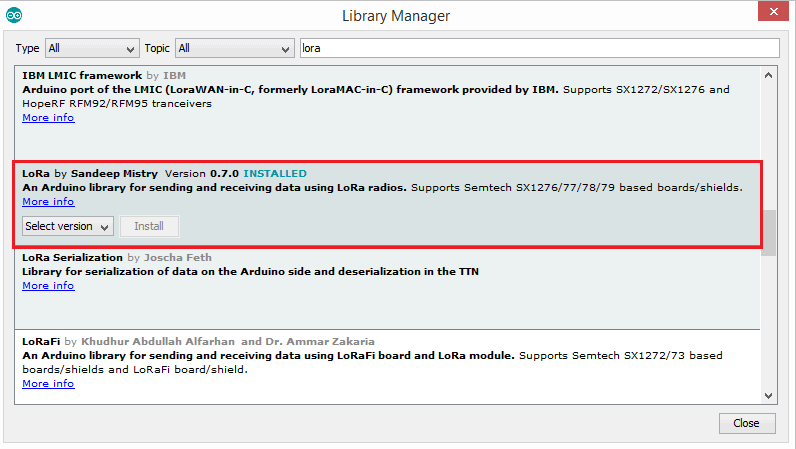

  Note: You need to install the library in Arduino IDE which is shown in image given below:
Features:Â
- LoRa â„¢ Spread Spectrum modulation technology
- Constant RF power output at 20dBm-100mW voltage change
- Half-duplex SPI communication
- Supports FSK, GFSK, MSK, GMSK, LoRa â„¢ and OOK modulation modes
- Automatic RF signal detection, CAD mode and very high speed AFC
- Packet engine with CRC up to 256 bytes
- Small footprint dual-row stamp-hole patch package
- Shielded housing
- Spring Antenna
Specification:
Communication distance | 15KM |
---|---|
Sensitivity | down to -148dBm |
Programmable bit rates | up to 300kbps |
RSSI dynamic range | 127dB |
Wireless frequency | 433MHz |
Working voltage | 1.8-3.7v |
Shipping Weight | 0.008 kg |
Shipping Dimensions | 8 × 7 × 1 cm |

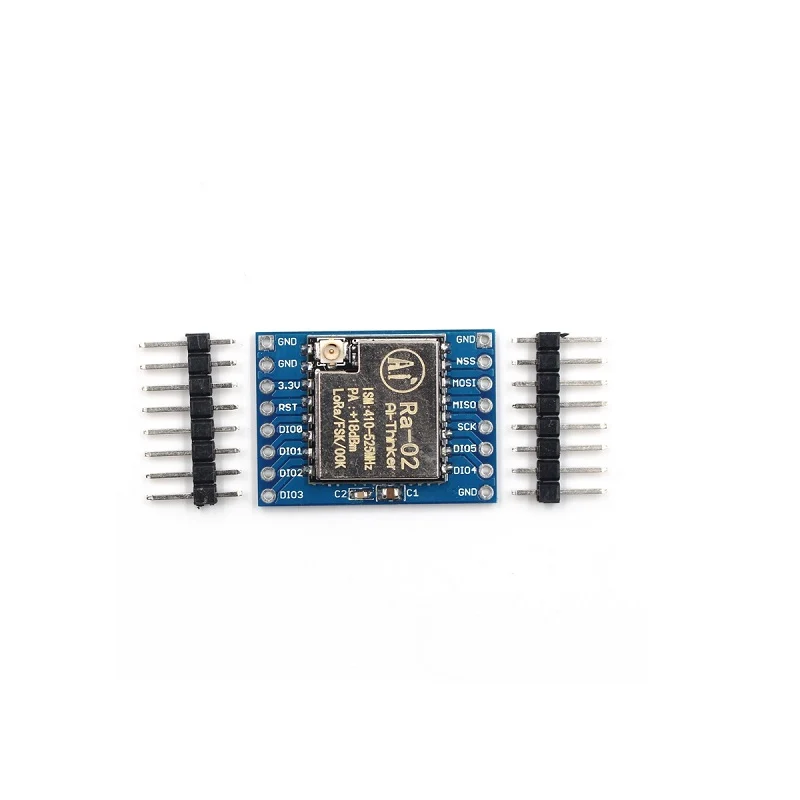

Package Includes:
1 x LoRa Wireless Spread Spectrum Transmission
