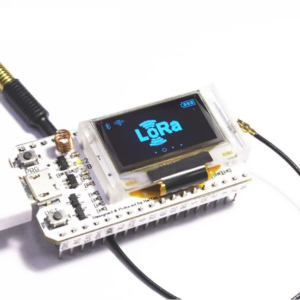

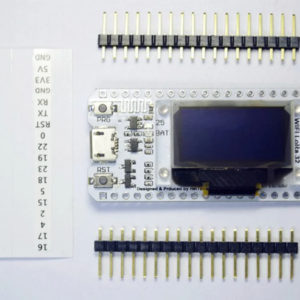

ESP32 LoRa SX1278 0.96 Inch Blue OLED Display BT WiFi Module for Arduino
This product is an affordable network device that integrates the ESP32 LoRa SX1278 module with a 0.96-inch blue OLED screen, a BT WiFi module, and a CP2102 USB to serial chip. It works with Arduino and offers these benefits:
– The main chip is Lexin ESP32, which features a dual-core Tensilica LX6 processor that runs at 240MHz and provides up to 600DMIPS of processing power. It also has 520 KB of built-in SRAM, an 802.11 b/g/N HT40 Wi-Fi transceiver with baseband, protocol stack, and LWIP, and a dual-mode Bluetooth (classic and BLE) chip.
– The product uses an SX1278 chip for LoRa wireless communication, operating at 433MHz frequency. It has a high sensitivity of about -148dBm and a power output of 20 dBm, ensuring reliable and long-range transmission (up to 2.6Km in open areas).
– The product comes with an onboard 32MByte Flash memory, a Wi-Fi antenna, a lithium battery charging circuit and interface, and a 0.96-inch blue OLED screen. It supports the Arduino development environment and enables easy and quick programming verification and product development.
Note: Package does not include the Lithium battery
Features:
- Supports Sniffer, Station, softAP and Wi-Fi Direct modes
- Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b
- Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
- Receiver sensitivity up to – 98 dBm
- UDP continues to throughput by 135 Mbps
- Application:Camera
Specification:
| Operating Temperature Range (°C): | -40 to 90 |
|---|---|
| Antenna Length (mm) | 160 |
| Display Size (inch) | 0.96 |
| Length (mm): | 52 |
| Width (mm) | 25 |
| Height (mm) | 8 |
| Weight (g): | 15 |
| Shipping Weight | 0.018 kg |
| Shipping Dimensions | 7 × 4 × 1 cm |
