This is the XT90 connector variant of the SwiftWing XT90 Connector PCB Mount Welding Board in Drone Accessories. Available at ₹110.25 (₹105.00 + GST) with free shipping across India.

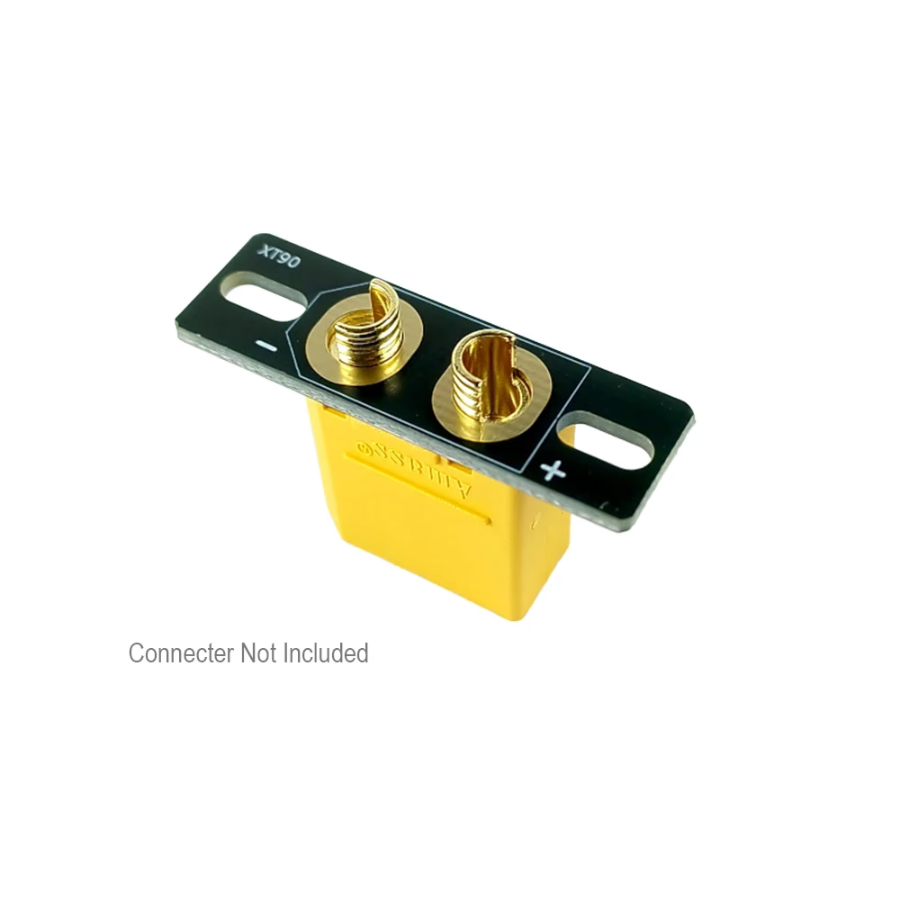

SwiftWing XT90 Connector PCB Mount Welding Board
Description:
The SwiftWing XT90 Connector PCB Mount Welding Board is a durable and efficient solution for securely mounting XT90 connectors in high-current applications. Designed for FPV drones, robotics, and battery systems, it allows easy installation and removal of battery packs while maintaining stable power connections.
Its compact design reduces cable clutter, minimizes weight, and protects wires from damage. Ideal for clean, professional builds, it enhances reliability and simplifies power distribution setups.
Features:
- XT90 PCB Mount Design: Enables secure mounting of XT90 connectors directly onto frames for stable power connections.
- Easy Battery Connection/Disconnection: Simplifies installation and removal of battery packs in drones and robotics systems.
- Supports Male & Female XT90 Connectors: Flexible design allows soldering of both connector types based on application needs.
- Cable Protection: Reduces wear and abrasion on wires, improving overall durability.
- Reduced Cable Length & Clutter: Helps minimize wiring complexity for cleaner and more efficient builds.
- Lightweight Design: Optimized PCB layout reduces overall system weight, ideal for UAV applications.
- Screw Mounting Support: Allows firm and reliable installation on frames, panels, or enclosures.
- Improved System Reliability: Provides stable electrical connections and reduces connector fatigue.

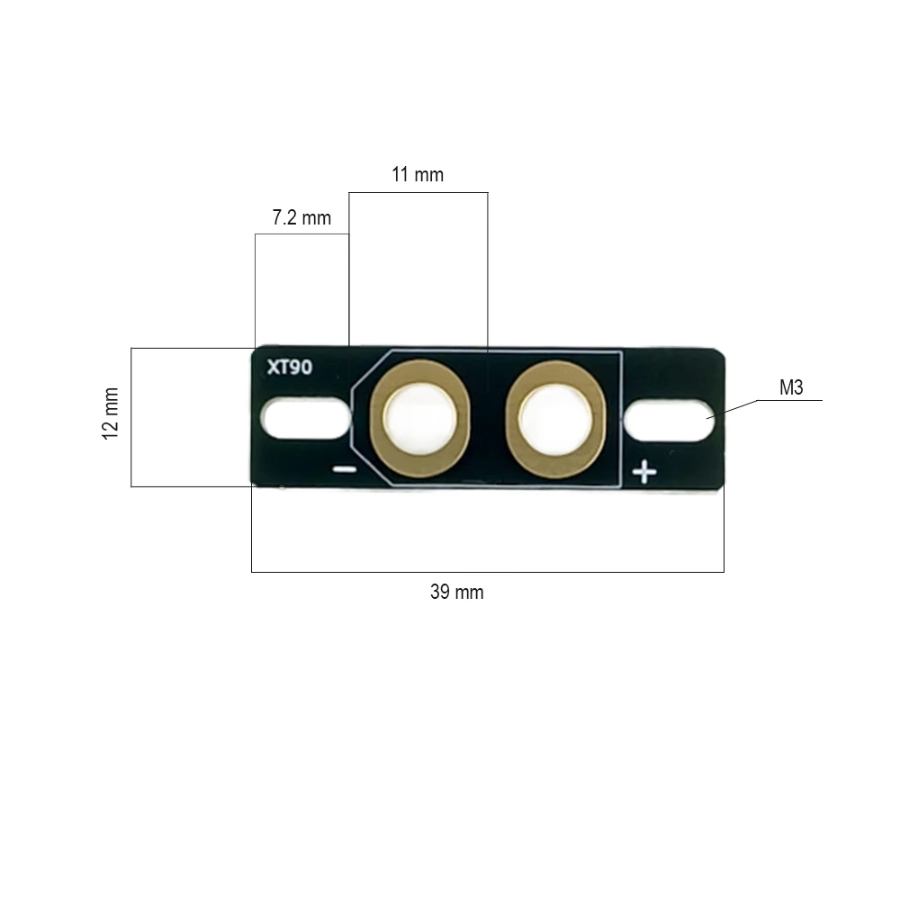

Specifications:
- Connector Support: XT90 (Male/Female)
- Mounting Type: Screw mounting (PCB plate)
- PCB Type: Durable multi-layer board
- Application: High-current power distribution
- Package Includes: 1 × XT90 PCB Welding Board Plate
Attachements:
Package Includes:
1 x SwiftWing XT90 Connector PCB Mount Welding Board
