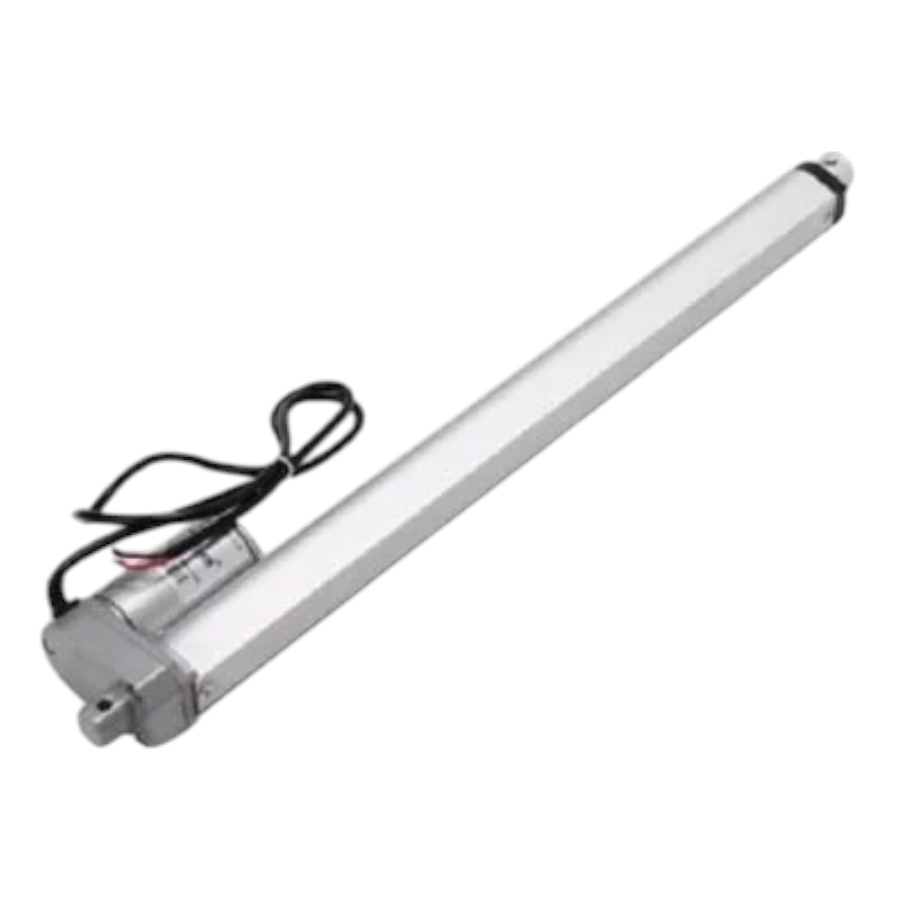

This is the 24V variant of the Stroke Length DC24V 500MM 7MM/S 1500N Putter Electric Linear Actuator in Linear Actuators. Available at ₹4,478.10 (₹3,795.00 + GST) with free shipping across India.
With Reliable performance, sensitive action stable running. Good environment adaptability. High-quality metal material, high-performance motor, built-in stroke switch. Maximum push/pull is up to 1500N, and stroke speed is up to 7mm/s when under no-load. These are commonly used in automotive, medical devices and engineering industry, agricultural machinery,
Applications:
- Agricultural machinery
- Industrial electric lifting system
Note: 1. The actual product may vary in terms of color and markings.
2. It’s works on reverse polarity.
Features:
- Aluminum frame and extension tube
- Compact Design
- Built-in Limit Switch
- Low Noise
- Moisture-proof Surface
- Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.

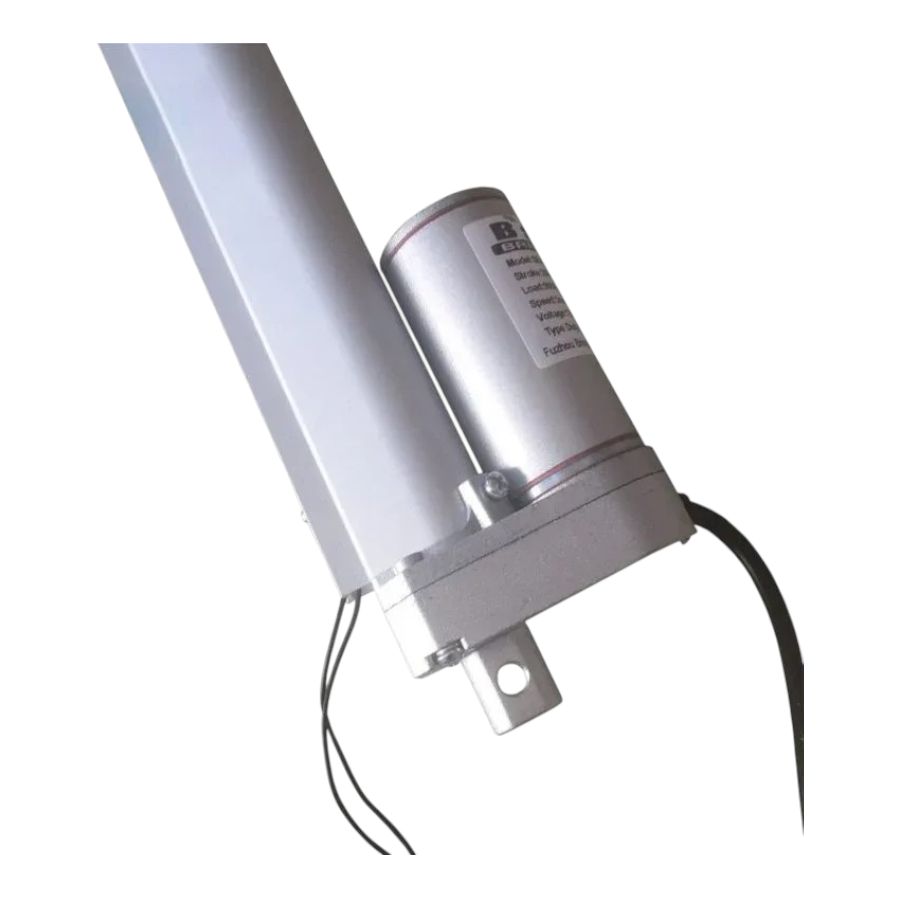

- Permanent magnet DC motor drive
Specification-

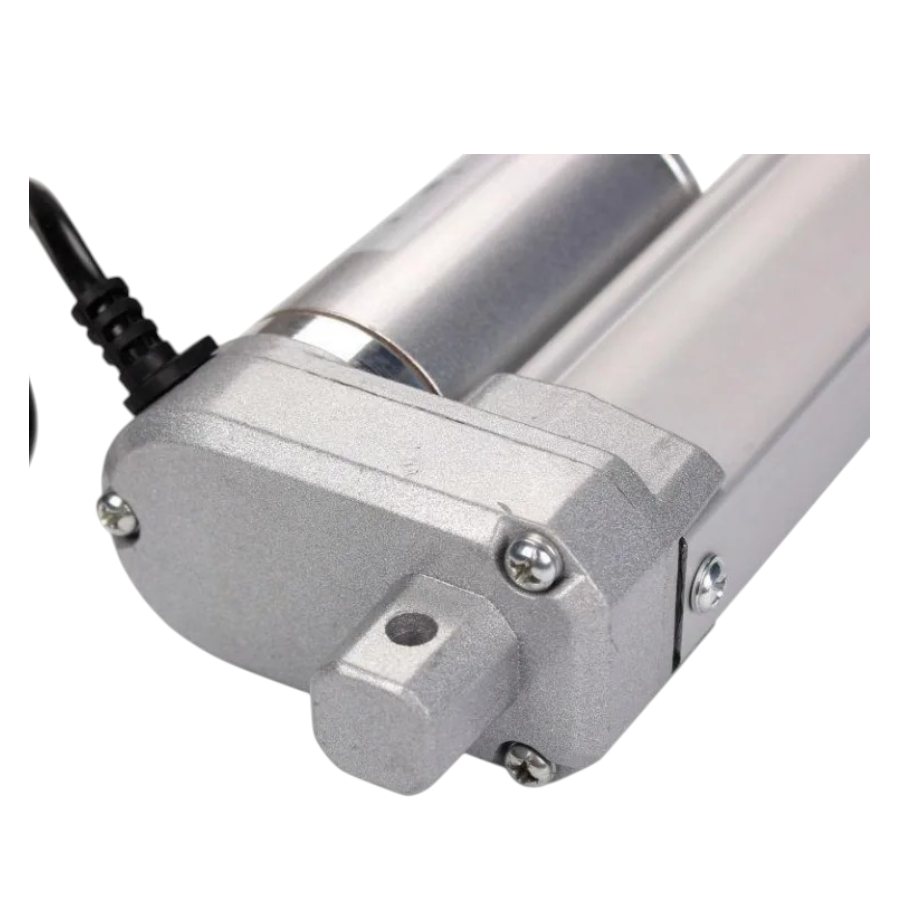

| Mounting hole diameter (both ends) | 1/4” (6.4mm) |
|---|---|
| Protection Level | IP55 |
| Maximum static load | 337.2 lbs. ( 1500 Newtons ) |
| Self Locking Force | 1000N |
| Motor Diameter | 39 mm |
| Speed at no load | 7 mm /sec |
| Speed at full load | 5.5 mm /sec |
| Noise level | 45 dB |
| Weight (g): | 1479 |
| Length (mm): | 62 |
| Width (mm) | 40 |
| Height (mm) | 75 |
| Shipping Weight | 1.5 kg |
| Shipping Dimensions | 63 × 9 × 5 cm |
Packages Includes:
1 x Electric Linear Actuator
Stroke Length DC24V 500MM 7MM/S 1500N Putter Electric Overview
The Stroke Length DC24V 500MM 7MM/S 1500N Putter Electric Linear Actuator is a robust electric push rod designed to convert 24V DC motor rotation into precise 500 mm linear movement at 7 mm/s. With a self-locking capacity of 1500 N, this actuator delivers controlled, reliable motion for industrial, agricultural, and vehicle-mounted applications.
Key Features of Stroke Length DC24V 500MM 7MM/S 1500N Putter Electric
- 500 mm adjustable stroke for medium-range extension and retraction
- Operates on 24 V DC with low power consumption and smooth 7 mm/s speed
- 1500 N self-locking thrust to hold loads securely without power
- Built-in limit switches for automatic end-position cut-off and overrun protection
- Durable aluminum alloy housing and guide sleeve for long service life
- Lightweight design (1.449 kg) ideal for mobile platforms
- Fast Shipping: Shipped quickly from Zbotic’s warehouse
Applications and Use Cases
- Raising and lowering agricultural sprayer booms with precise positioning
- Tilting and adjusting panels on clean sweeping vehicles
- Automated cargo hatches and access doors on small vessels
- Height adjustment of workbenches, conveyor chutes, and material feeders
- Integration into construction formwork for remote actuation of shutters
- Ergonomic adjustment in industrial inspection stations
How to Use Stroke Length DC24V 500MM 7MM/S 1500N Putter Electric
Mount the actuator using its front and rear clevis brackets, ensuring alignment with the load. Connect the red and black leads to a regulated 24 V DC power supply, observing correct polarity. Adjust built-in limit switches to match the desired 500 mm travel. Secure wiring, apply power, and test extend/retract cycles to confirm smooth operation and reliable end-stop performance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum load capacity of this actuator?
This linear actuator offers a self-locking thrust of up to 1500 N, ensuring it can hold and move medium-duty loads without drift even when power is off.
Are limit switches adjustable?
Yes, the actuator features built-in micro-motion control switches that can be fine-tuned to precisely stop at your required 500 mm stroke endpoints.
How should I mount the actuator for reliable performance?
Use the provided clevis mounting brackets at both ends, align the actuator to the load path to prevent side forces, and tighten all fasteners to avoid play during operation.
Technical Specifications
| Model | DC24V |
|---|---|
| Operating Voltage | 24V |
| Size | 500mm |
| SKU | AI2614 |
| Weight | 1.9084 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Stroke Length DC24V 500MM 7MM/S 1500N Putter Electric Linear Actuator is a versatile linear actuators used across a wide range of applications including automated doors, adjustable furniture, solar tracker systems, robotics, and agricultural equipment.
Common use cases:
- Building a solar panel tilt mechanism
- Motorizing a standing desk
- Creating a linear motion system for robotics
This product is ideal for automation engineers and DIY furniture builders.
Technical Tip: Check stroke length, force rating, and speed. Larger stroke = longer actuator body. Use limit switches for end-stop protection.
