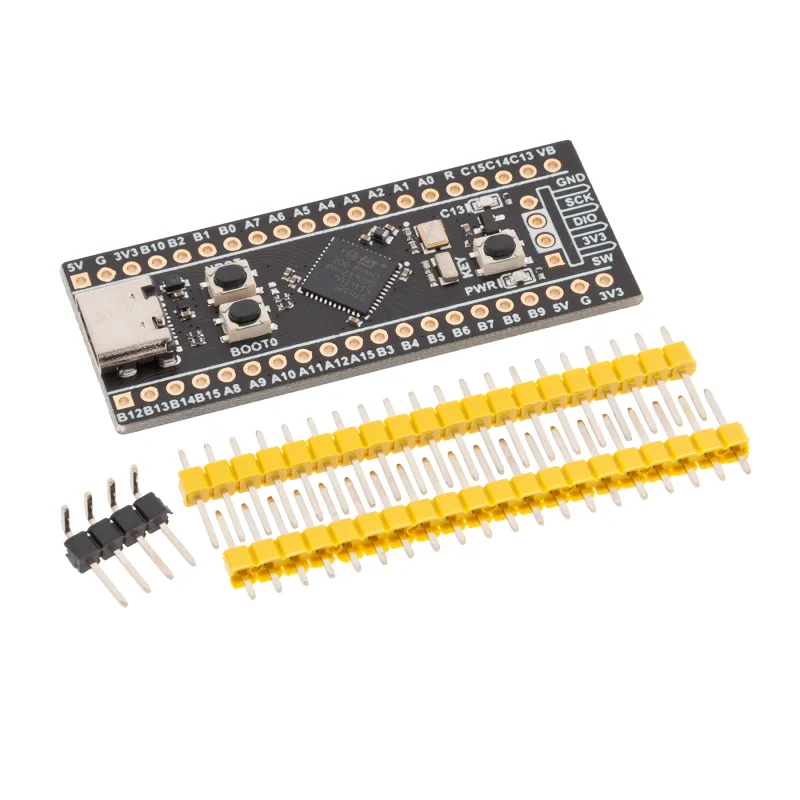

STM32F411CEU6 Minimum System Board Microcomputer STM32 ARM Core Board
This is the STM32F411CEU6 Minimum System STM32 ARM Core Board. The board serves as a low-cost Minimum System Development Board for the ARM Microcontroller STM32F103C8T6. It is suitable for learners who want to explore the STM32 microcontroller with the ARM Cortex-M4 32-bit core.
Pinout Diagram:
Features:
- 100% Brand new and high-quality STM32 Board
- 72MHz work frequency.
- 512K flash memory, 128K SRAM.
- Reset(POR/PDR).
- 4-26MHz crystal.
- Onboard USB Type C interface, you can give the board power supply and USB communication.
Specification:
Model | STM32F411CEU6 |
---|---|
Core | ARM Cortex-M4 32-bit core |
Debug Mode | SWD |
Length (mm): | 53 |
Width (mm): | 21 |
Height (mm): | 5 |
Weight (g): | 7 |
Shipping Weight | 0.01 kg |
Shipping Dimensions | 6 × 10 × 1 cm |
Package Includes:
1 x STM32F411CEU6 Minimum System Board Microcomputer STM32 ARM Core Board
