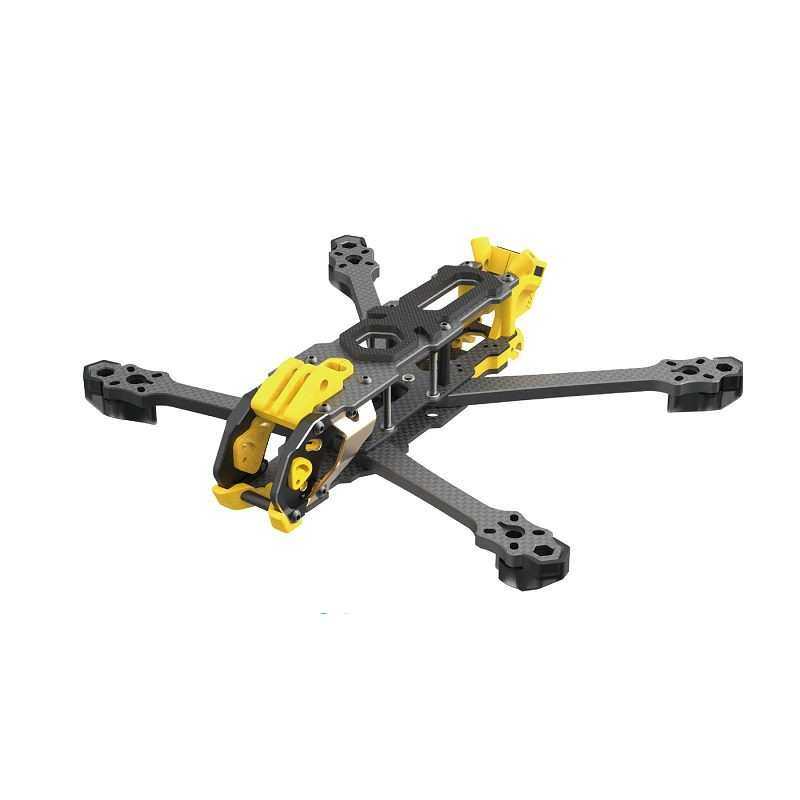

The SpeedyBee Mario 5 DC O4 Advanced Version is engineered for performance and versatility, featuring a high-strength aviation aluminum alloy head that not only protects the lens but also optimizes the DJI O3 VTX ultra-wide-angle view, minimizing the “jello effect” for a consistently steady image. Its unique carbon plate arm support structure significantly enhances body stability and reduces twisting, while also providing space for capacitor installation.
The frame offers a power dual-input method for easy center of gravity adjustment, along with integrated sockets and antennas for a clean build. A dedicated receiver installation space at the rear simplifies frequency binding. Furthermore, the SpeedyBee Mario 5 DC O4 Advanced Version encourages personalization with diverse open-source 3D models and includes protective armor that shields the FC and enhances DJI O3 heat dissipation, ensuring optimal cooling
Features:
- High-Strength Alloy Head: Protects the lens, Optimizes DJI O3 VTX ultra-wide-angle view, Minimizes “jello effect.”
- Unique Carbon Plate Arm Support: Enhances body stability, Minimizes twisting, Accommodates capacitor installation.
- Power Dual-Input Method: Selectable dual main power input, Easy center of gravity adjustment, Integrated socket and antenna.
- Receiver Installation Space: Dedicated rear bottom area, Easy frequency binding.
- Diverse Open-Source 3D Models: Customizable with various 3D models.
- Frame Protection Armor: Protects the FC (Flight Controller), Enhances DJI O3 heat dissipation, Recessed Gopro Mount, lowers the center of gravity.
Specification:
| Item Type: | Accessory |
|---|---|
| Model Type: | Drone Frame |
| Material: | Aluminium Alloy ( Head) |
| Thickness of Arms | 6mm |
| Thickness (mm): | Bottom Plate Thickness:2.5mm(T300 3K), Middle Plate Thickness:2.0mm(T300 3K), Top Plate Thickness:2.5mm(T300 3K) |
| Additional Specs.: | Battery Anti-Slip Pad: Silicone 3mm, Compatible Propeller Size : Max 5.1 Inch, FC Mounting Hole:30.5×30.5(M3), GPS Installation Size : 18*18*7, Internal Mounting Height : 23-31mm, Motor Mounting Hole Distance : 16-19mm, Motor Spring Hole Position: Φ8mm, Receiver Installation Space :25*13*6mm, Suitable Capacitor Size : Φ10mm*20mm |
| VTX Mounting Holes | 20×20(M2) |
Package Includes:
1 x Top Plate
1 x Bottom Plate
1 x Middle Plate
2 x Supporting Board
2 x Front Arm
2 x Back Arm
1 x Head L
1 x Head R
1 x Motor Protective Pad
1 x Receiver Protective Cover
1x Battery Anti-Slip Pad
2x Camera Silicone Mount
4x M3*16 Screw
4x M3*25 Screw
1x TPU GoPro Mount
1x TPU XT60/SMA Antenna Mount
1x TPU Receiver Mount
1x TPU CNC
1x CNC Air Intake L
1x CNC Air Intake R
1x TX60EW-M
1x SMA/U.FL
1x M5*22 Screw
1x M5 Iron Nut
1x 03 Antenna Mount
2x M4*3 Screw
4x M2*4 Screw
6x M2*7 Screw
14x M3*6 Screw
8x M3*12 Screw
4x M1.6*8 Hex Socket Cap Screws
4x M2*10 Hex Socket Cap Screws
1x SpeedyBee Mario 5 250mm strap
Drone Insurance in India: Is It Mandatory? Complete Guide 2025
As drones become increasingly common across India — from hobbyist FPV pilots in residential areas to commercial operators...
Read More →
Drone Motor Timing and Demag: ESC Advanced Settings
Table of Contents Understanding Drone Motor Timing and Demag Key Components and Requirements Step-by-Step Setup Guide Configuration and...
Read More →
Drone Business in India: License, Equipment, and Pricing
Table of Contents Understanding Drone Business in India Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →Technical Specifications
| Brand | SpeedyBee |
|---|---|
| SKU | AI7166 |
| Weight | 0.24 kg |
| Availability | In Stock |
Applications & Use Cases
The SpeedyBee Mario 5 DC O4 Advanced Version is a versatile drone frame and accessories used across a wide range of applications including FPV racing builds, freestyle drones, cinematic drones, and agricultural spraying platforms.
Common use cases:
- Building a new racing quad
- Replacing a broken frame arm after a crash
- Mounting a camera gimbal on a custom platform
This product is ideal for FPV builders, drone racing enthusiasts, and commercial drone operators.
Technical Tip: Carbon fiber frames offer the best strength-to-weight ratio. Ensure motor-to-motor distance matches your propeller size.
