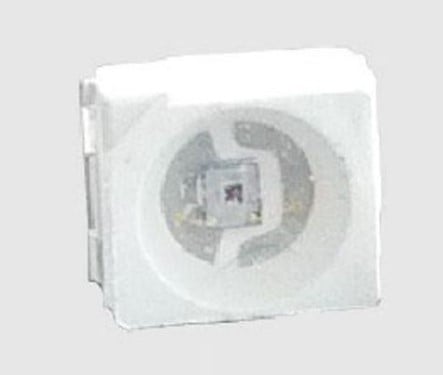

SMD Type Light Sensor 3528C-50 Replace Photoresistor
A light sensor is a device that allows a robot to measure the amount of light in the environment. It is a passive device, meaning it does not emit any light but only receives it. It converts the light into an electrical signal that can be processed by the robot. Light sensors are also called photoelectric devices or photo sensors, because they use the photoelectric effect to transform light (photons) into electricity (electrons).
Features
- Replace photo cell
- Linear output conforming to illuminance
- Low dark current and Low working Lux
TYPICAL APPLICATIONS
- Night light and electronic toy control
- Camera exposure
- Switch for Photoelectric Equipment
SMD Type Light Sensor 3528C-50 Replace Photoresistor Overview

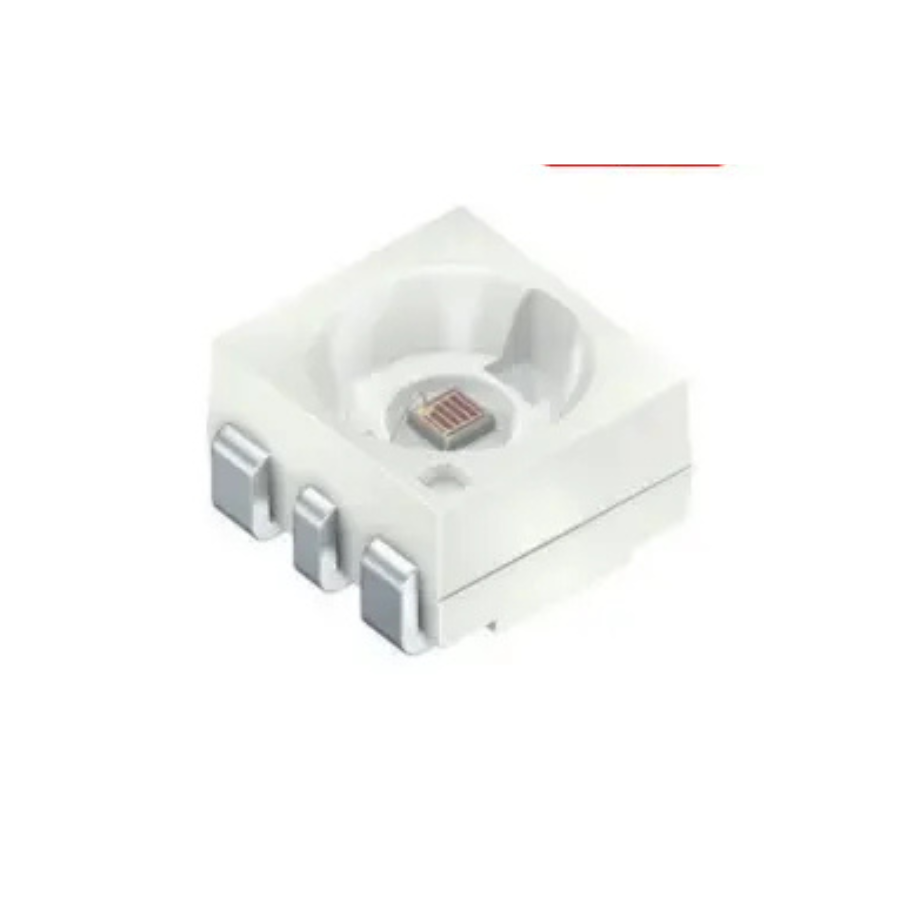

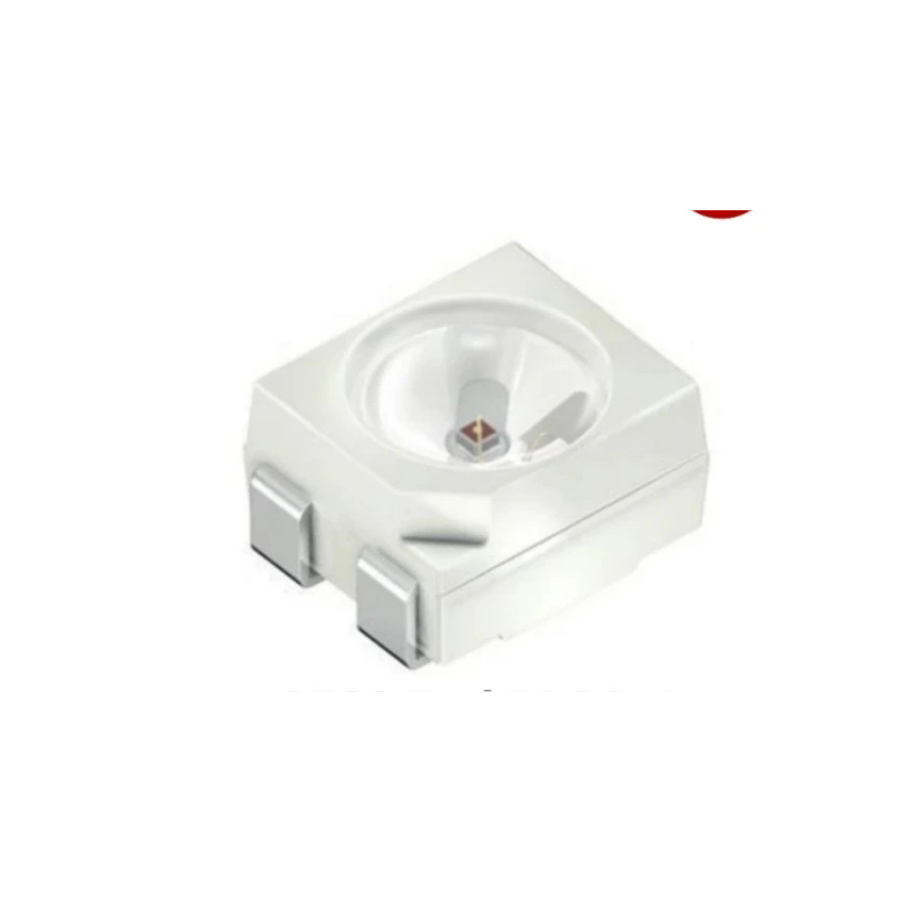

The SMD Type Light Sensor 3528C-50 Replace Photoresistor is a surface-mount photoconductive device designed to detect ambient light levels with a linear resistance response. Ideal for direct replacement of through-hole photoresistors, it delivers low dark current and reliable performance at low lux environments.
Key Features of SMD Type Light Sensor 3528C-50 Replace Photoresistor
- Surface-mount 3528 package for compact PCB integration
- Direct replacement for standard photo cell configurations
- Linear output conforming to illuminance for predictable sensing
- Low dark current minimizes leakage in dark conditions
- Sensitive performance at low working lux levels
- Genuine product, fast shipping from Zbotic
Applications and Use Cases
- Automatic brightness control in night lights
- Exposure adjustment in digital and security cameras
- Light-based switching in photoelectric equipment
- Ambient light sensing for electronic toys and DIY robotics
- Integration with microcontrollers for light-level monitoring
How to Use SMD Type Light Sensor 3528C-50 Replace Photoresistor
Solder the 3528C-50 onto a PCB using a standard 3528 footprint, then connect it in a voltage divider circuit to produce a variable voltage proportional to ambient light. Read this voltage with an analog input on your controller and calibrate against known lux values for accurate illumination measurements.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What package does the SMD Type Light Sensor 3528C-50 use?
It is built in a standard 3528 SMD package, making it compatible with common surface-mount PCB footprints.
How do I measure light levels with this photoresistor?
Place the sensor in a voltage divider configuration and connect the divider output to an ADC input on your microcontroller. Calibrate the ADC readings against known light sources for precise illuminance data.
Can the 3528C-50 detect low-light conditions effectively?
Yes, thanks to its low dark current and low working lux design, it remains responsive even under dim lighting, ensuring reliable detection in low-light environments.
Technical Specifications
| Discharge Rate | 3528C |
|---|---|
| SKU | AI1010 |
| Availability | Out of Stock |
Applications & Use Cases
The SMD Type Light Sensor 3528C-50 Replace Photoresistor is a versatile light dependent resistors (ldr) used across a wide range of applications including voltage dividers, current limiting, pull-up/pull-down networks, signal conditioning, and LED current limiting.
Common use cases:
- Limiting current through an LED
- Creating a voltage divider for analog sensing
- Pull-up resistor for I2C communication lines
This product is ideal for electronics students, hobbyists, and engineers.
Technical Tip: Use Ohm's Law (V=IR) to calculate the correct resistor value. Color bands indicate resistance: use an online calculator for quick reference.
