The SKYRC e680 80W AC/DC Balance Charger/Discharger/Power Supply is user-friendly and feature-rich. It can charge all popular battery types including LiPo, LiIon, LiFe, LiHV, NiMH, NiCd, Pb, as well as DJI Mavic’s system battery. Moreover, the e680 can supply 13.8V and a maximum of 80W power directly to devices such as tire sanders, LED pit lights, and motor testers through its power supply function. It is proficient in all standard charging and discharging modes like charge, balance charge, fast charge, storage, and discharge. Notably, the Pb program includes an AGM and cold charging mode. Additionally, it has a dedicated mode for DJI Mavic batteries, although an optional charging cable is required.
Features:
- Terminal Voltage Control.
- Re-Peak Mode for NiMH/NiCd Battery.
- Battery Voltage Meter.
- Battery Internal Resistance Meter.
- Up-to 80W DC Power Supply.
- AGM and Cold Mode for PB Battery
- Suitable for LiPo/LiHV/Lilon/LiFe/NiCd/NiMH/Pb und DJI Mavic Batteries
Specification-
| DC Input Voltage Range (V) | 11 ~ 18 |
|---|---|
| Output Power(Watt) | 80 W max |
| Charge Current Range (A) | 0.1 ~ 8 |
| Maximum Discharge Power (W) | 10 |
| Dischage Current Range (A) | 0.1 ~ 2.0 |
| Drain Current for Balancing Li-Po’s (mA/Cell) | 300 |
| Li-ion/Po cell count | 1 ~ 6 |
| NiCd/NiMH cell count | 1 ~ 15 Cells |
| Pb battery voltage | 2 ~ 20 |
| Length (mm): | 135 |
| Width (mm): | 110 |
| Height (mm): | 60 |
| Weight (g): | 390 |
| Shipping Weight | 0.42 kg |
| Shipping Dimensions | 20 × 17 × 8 cm |

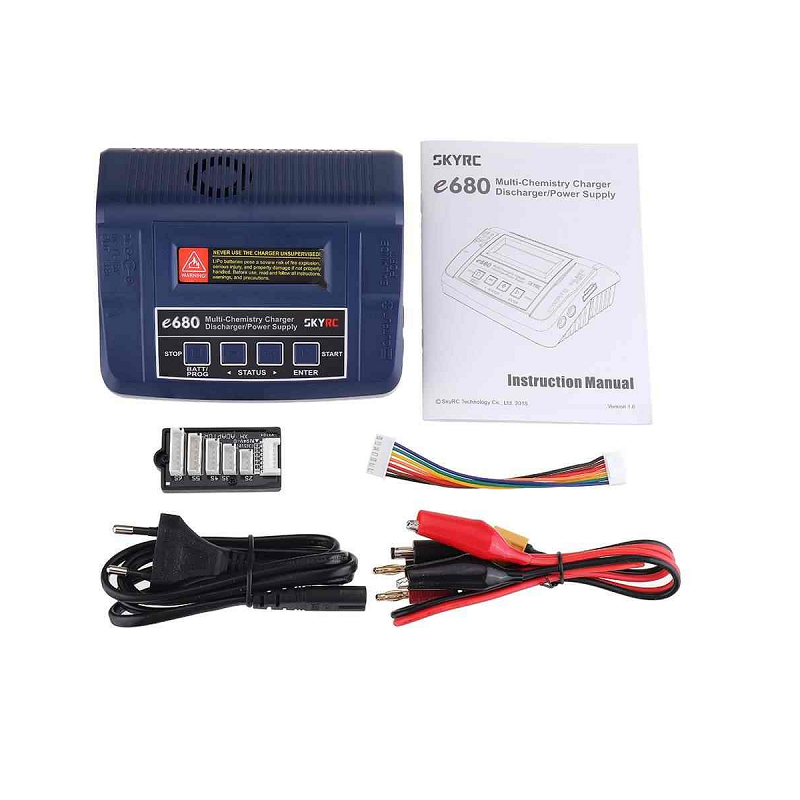

Package Includes:
1 x SKYRC e680 Charger (Original)
1 x Power cable
1 x Charging cable XT60
1 x Connecting cable DC input
1 x Balancer board XH
1 x Manual
Original SKYRC e680 80W AC/DC Balance Charger / Discharger Overview
The Original SKYRC e680 is a versatile AC/DC balance charger, discharger and 13.8 V/80 W power supply designed for hobbyists and professionals alike. It supports multiple battery chemistries—from LiPo, LiIon, LiFe and LiHV to NiMH, NiCd and Pb—and features built-in balancing, internal resistance measurement and dedicated DJI Mavic charging mode.
Key Features of Original SKYRC e680 80W AC/DC Balance Charger / Discharger
- Multi-chemistry support: LiPo, LiIon, LiFe, LiHV (4.35 V end voltage), NiMH, NiCd and Pb (including AGM and cold charge)
- Integrated balance charge and discharge modes plus storage and fast charge functions
- 80 W DC power supply output at 13.8 V for tire sanders, LED pit lights, motor testers and more
- Battery internal resistance meter and digital voltmeter for precise pack health monitoring
- Terminal voltage control and Re-Peak mode for optimal NiMH/NiCd charging
- Genuine product, fast shipping from Zbotic
Applications and Use Cases
- Charging and balancing LiHV racing drone batteries with 4.35 V cell cut-off
- Routine storage charging of NiMH packs and LiPo model batteries
- Powering LED pit lights or bench tools at a stable 13.8 V/80 W
- Discharging and testing internal resistance of RC car, boat and plane batteries
- Cold charging lead-acid (AGM) batteries in workshop or garage settings
- Dedicated DJI Mavic battery charging (requires optional cable)
How to Use Original SKYRC e680 80W AC/DC Balance Charger / Discharger
Connect the unit to AC mains or a suitable DC source, attach your battery via the balance and main leads, then select the battery chemistry and charge mode using the front panel controls. For power supply operation, switch to “PSU” mode, adjust the voltage/current limits, and connect your device to the output terminals.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which battery types can the SKYRC e680 charge?
The e680 supports LiPo, LiIon, LiFe, LiHV (with 4.35 V end voltage), NiMH, NiCd and lead-acid (Pb) batteries, including AGM and cold-charge modes for lead-acid packs.
Can I use the e680 as a bench power supply?
Yes. In PSU mode the e680 delivers a stable 13.8 V at up to 80 W, making it ideal for powering LED lights, motor testers or other 13.8 V devices.
How do I charge a DJI Mavic battery with the e680?
Select the dedicated “DJI” mode on the e680, connect the optional DJI Mavic charging cable to the output port, then follow the on-screen prompts to initiate a safe balance charge.
