Skydroid G20 – 2.4G/5.8G Dual Band 30KM Long Distance Remote Controller With GR01 Receiver for Industrial Drone
Product description:
The Skydroid G20 is a professional-grade 30KM long-range remote controller designed for industrial and commercial drone applications. It features a 7-inch 1920×1200 full HD high-brightness touchscreen, powered by a Qualcomm 6nm processor and the latest Android 13 OS, offering smooth operation and hardware-level decoding for 4K H.264/H.265 video. With dual-band 2.4GHz/5.8GHz automatic switching, it ensures stable signal transmission in complex environments. The controller is equipped with 8GB RAM, 128GB internal storage, and a 20000mAh battery providing up to 12 hours of runtime, supported by 36W PD Type-C fast charging. Its versatile I/O options—including SIM card slot, USB, Type-C, SBUS, PWM, and serial ports—make it compatible with various payloads such as gimbals, pods, and industrial-grade video equipment.
Specifications:
G20 Remote Control Parameters
| Display | 7” industrial FHD touch screen |
|---|---|
| Resolution | 1920 × 1200 |
| Processor | Qualcomm 6nm |
| OS | Android 13 |
| RAM / Storage | 8GB / 128GB |
| Battery Capacity | 20000mAh |
| Endurance | 8–12 hours |
| Charging Interface | TYPE-C, 36W PD |
| Size / Weight | 277×138×96mm / 1.2kg |
| Frequency Band | 2.4GHz / 5.8GHz Dual Band |
| Dynamic Frequency | Automatic Frequency Hopping |
| Transmission Distance | 5–30KM (ground-to-air, visual) |
| RF Power | 23dBm @CE/FCC |
| Operating Temp. | -10°C to 55°C |
| External Interfaces | USB, SIM card, Type-C, serial, SBUS, PWM |
GR01 Receiver Parameters
| Frequency | 2.4GHz / 5.8GHz |
|---|---|
| Voltage Range | 7.2–72V (XT30) |
| Operating Current | 12V / 300mA |
| Serial Baud Rates | 57600 / 115200 / 921600 |
| Data Transmission | 1 channel, 200Kbps–160Mbps |
| Network / SBUS Ports | 1 channel each |
| PWM Output | 3 channels |
| RF Power | 23dBm @CE/FCC |
| Channel Bandwidth | 1.25MHz to 40MHz (selectable) |
| Dimensions / Weight | 45.5×60×21.5mm / 37g |
| Operating Temp. | -10°C to 60°C |
Applications:
The Skydroid G20 remote controller is ideal for UAV missions in mapping, inspection, agriculture, surveillance, construction, and emergency response. Its 30KM image transmission, dual-band reliability, and advanced connectivity make it a versatile and powerful tool for demanding professional drone operations.
G20 features Qualcomm 6nm CPU, 7-inch FHD screen, 30KM transmission, Android 13, long battery life with 36W PD charging, and dual-band automatic switching.
Qualcomm Android platform. G20 features 6nm processor, Android 13, hardware decoding for H264/H265, 4K video, and smooth ground station software operation.
Battery life reaches 8-12 hours, supports 36W PD fast charging. New platform reduces power consumption and heat, extending battery life.
G20 achieves 30KM image transmission and remote control with unique technology.
G20 supports dual-band 2.4GHz/5.8GHz, automatically switches for stable signal and efficient transmission, enhancing communication’s anti-interference ability.
G20 supports long-distance high-definition digital image transmission, presenting a clear real-time view with all details accessible.
G20 supports SIM card network ports and Type-C interfaces. It has serial ports, PWM, SBUS, and various network ports for cameras, gimbals, and pods.
G20 remote control features a 7-inch display, Qualcomm processor, 8GB RAM, and 128GB storage. It operates on 2.4G/5.8G bands with a 20,000mAh battery. GR01 receiver supports 2.4G/5.8G frequencies, has various interfaces, and weighs 37g. Both operate between -10°C to 60°C.
Package Included:
Skydroid G20:
Skydroid G20 Remote Controller * 1
GR01 Receiver:
GR01 receiver*1

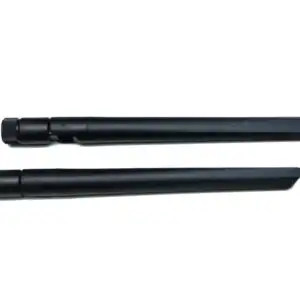

2.4G/5G receiver antenna*2

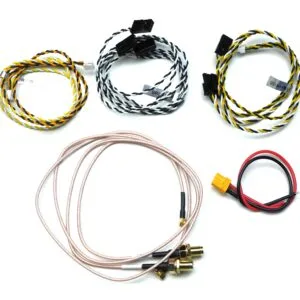

Receiver feeder*2
Receiver power cable (XT30)*1
PIX Telemetry line*1
Skydroid G20+GR01 Receiver:
G20 remote controller*1
GR01 receiver*1
2.4G/5G receiver antenna*2
Receiver feeder*2
Receiver power cable (XT30)*1
PIX Telemetry line*1
Type-C charger*1
Shoulder strap*1
