Looking for Sht10 Module? SHT10 Soil Temperature and Humidity Sensor Module is available at Zbotic with fast shipping across India.
Product Description

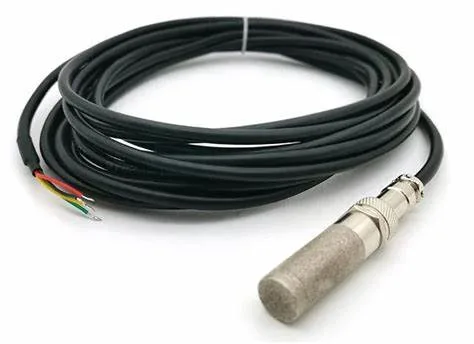

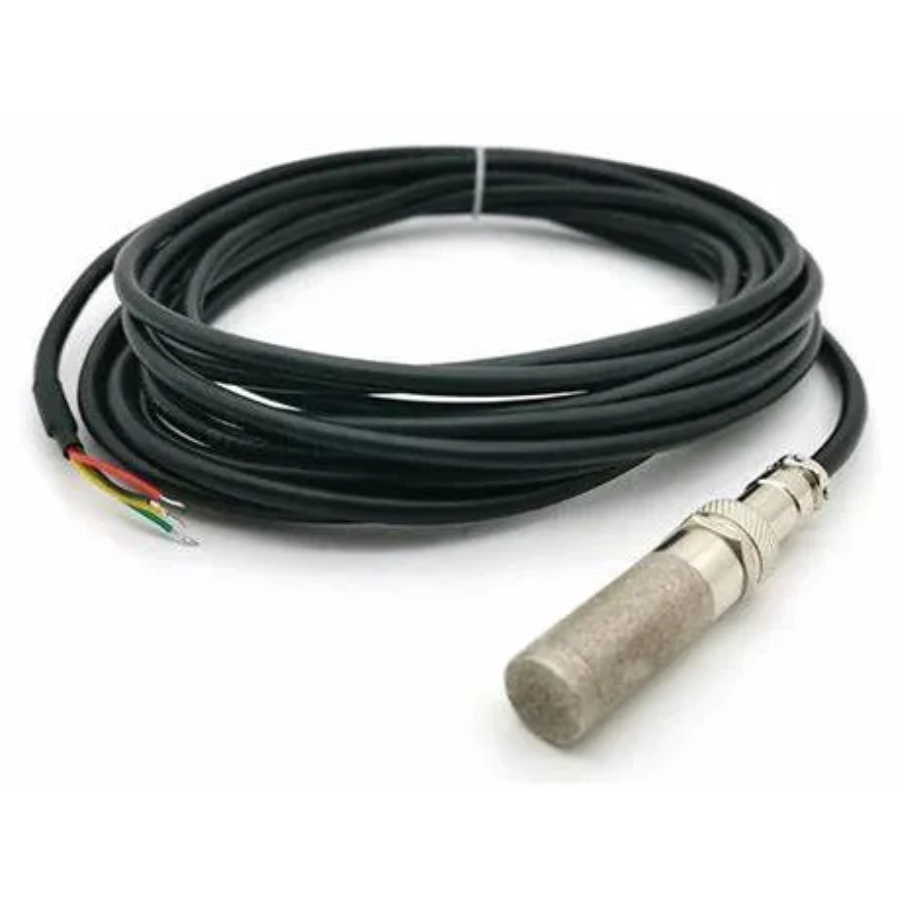

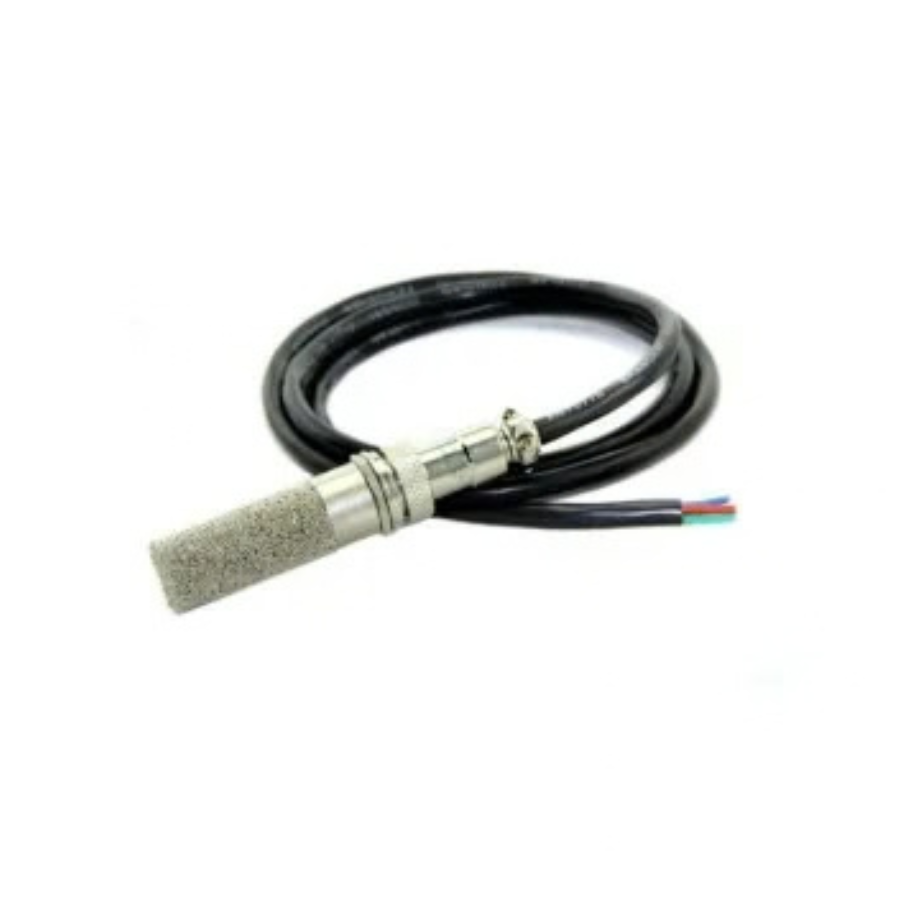

Enhance your gardening project with an SHT10 Soil Temperature and Humidity Sensor Module. This sensor has a Sensiron module that measures temperature and humidity inside a metal mesh casing. The casing is weatherproof and prevents water from entering and damaging the sensor, but allows air to flow through so that it can sense the moisture of the soil. It can be submerged in water, but it is better to avoid doing so for more than an hour at a time. If you need a sensor that can withstand longer submersion, you may want to look for a different one. You can also place it outside for outdoor weather sensing. For Arduino, there is a useful Sensiron library with an example.
Pin Out:
- Red = VCC (3-5VDC)
- Black or Green = Ground
- Yellow = Clock
- Blue = Data.
Features:
- Relative Humidity and Temperature Measurement
- Excellent Long-Term Stability
- Waterproof Package, and Can be Used for Measurement of Soil
- Low Energy Consumption
Package Includes:
1 x SHT10 Soil Temperature and Humidity Sensor Module
Datasheet:
Library
SHT10 Soil Temperature and Humidity Sensor Module Overview
The SHT10 Soil Temperature and Humidity Sensor Module from Sensirion is designed to measure soil temperature and relative humidity accurately. Encased in a weatherproof metal mesh, it protects the sensing element while allowing air exchange to monitor soil moisture conditions effectively.
Key Features of SHT10 Soil Temperature and Humidity Sensor Module
- Digital sensor resolution up to 14 bit for precise temperature and humidity readings
- Internal self-calibration ensures consistent accuracy over long-term deployments
- Weatherproof metal mesh casing prevents debris ingress while permitting airflow
- Short-term submersion resistance (up to one hour) for flexible placement
- Compact form factor ideal for greenhouse and garden installations
- Genuine Sensirion module with fast shipping from Zbotic across India
Applications and Use Cases
- Automated irrigation systems that adjust watering based on soil humidity
- Greenhouse environment monitoring for optimal plant growth
- Precision agriculture research to correlate soil conditions with crop yield
- Indoor potted plant sensor networks for smart home gardening
- Environmental data logging in field trials and soil science experiments
- DIY garden automation projects with Arduino or Raspberry Pi
How to Use SHT10 Soil Temperature and Humidity Sensor Module
Insert the SHT10 probe into the soil near plant roots, then wire VCC to your 3.3 V–5 V supply and GND to ground. Connect the DATA and SCK pins to digital I/O pins on an Arduino or similar microcontroller. Install a compatible SHT1x library in the Arduino IDE, initialize the sensor, and call readTemperature() and readHumidity() functions to retrieve measurements. Rinse off soil residue after each use and avoid leaving the module submerged for longer than one hour.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can the SHT10 module be used in fully submerged conditions?
It can handle short-term submersion up to one hour thanks to its weatherproof metal mesh casing. Extended immersion may allow moisture to reach the sensor element and affect accuracy.
What power supply does the SHT10 sensor require?
The module operates on a DC supply between 3.3 V and 5 V. Connect VCC to your microcontroller’s 5 V pin (or 3.3 V) and GND to ground for stable operation.
How do I read data from the SHT10 on an Arduino?
Use an SHT1x-compatible library in the Arduino IDE. Wire the DATA and SCK pins to digital I/O pins, call the library’s begin() method, then use readTemperature() and readHumidity() functions to obtain real-time measurements.
