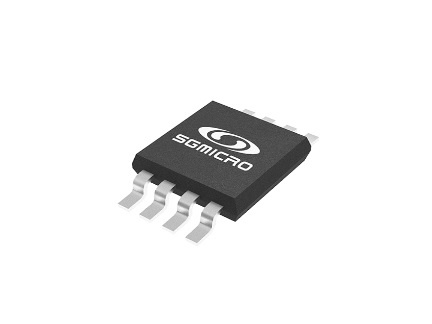

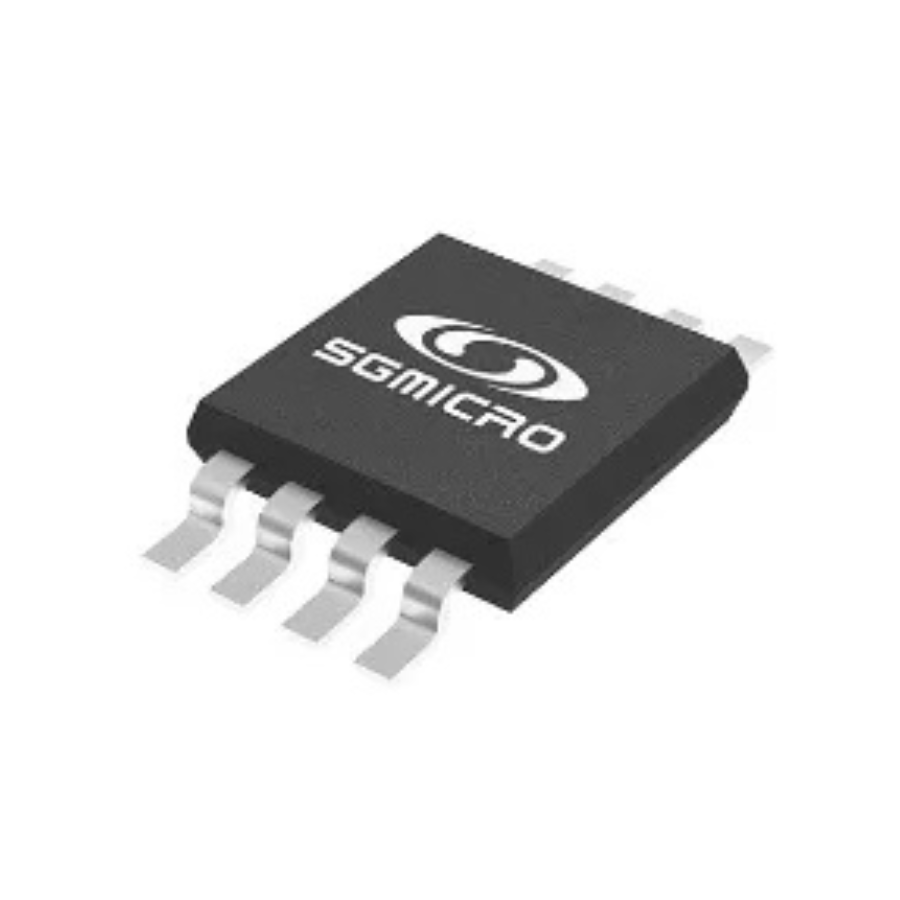

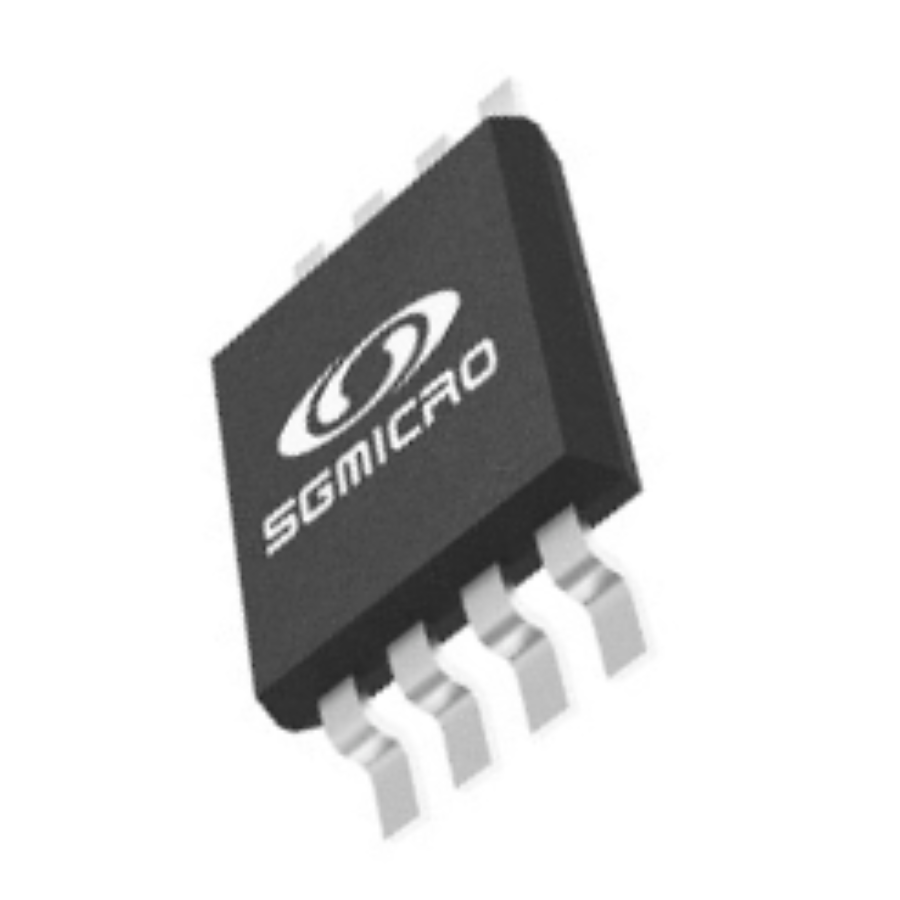

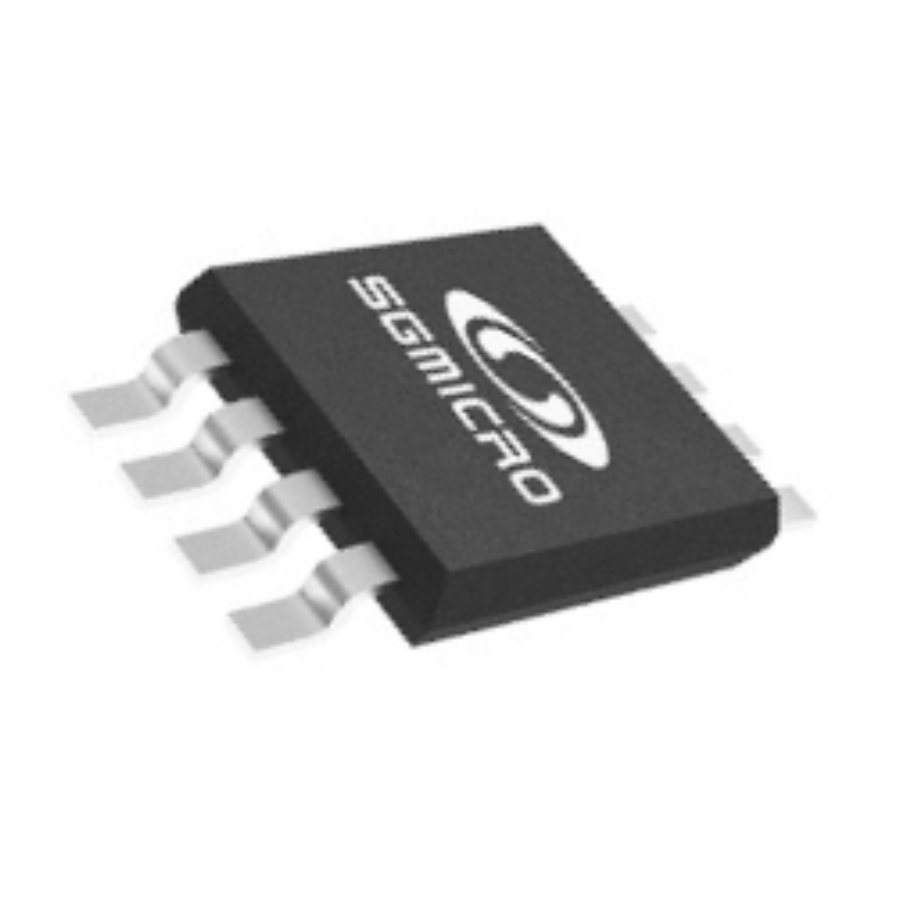

SGM8552 MSOP
The SGM8552 is a dual rail-to-rail precision operational amplifier, designed for high-performance applications. It features low input offset voltage and bias current, ensuring accurate signal processing. With a wide operating voltage range of 2.5V to 5.5V on a single supply, it offers flexibility for use in various applications.
Its rail-to-rail input and output capability make it ideal for both high-side and low-side sensing, simplifying circuit design and improving performance. Combined with its precision and long-term stability, the SGM8552 is perfect for applications such as temperature, position, and pressure sensors, medical equipment, and strain gauge amplifiers, all operating within the 2.5V to 5.5V range.
Engineered for reliability in demanding industrial and automotive environments, the SGM8552 operates across a wide temperature range from -40°C to +125°C. It is available in Green SOIC-8 and MSOP-8 packages, with a high ESD (HBM) rating of 8kV, ensuring robustness and durability in harsh conditions.
Features
Low Offset Voltage: 20μV (MAX)
Rail-to-Rail Input and Output Swing
2.5V to 5.5V Single-Supply Operation
Voltage Gain: 145dB (TYP) at 5V
PSRR: 110dB (TYP)
CMRR: 105dB (TYP)
Ultra Low Input Bias Current: 10pA
Low Supply Current: 930μA (TYP)
Overload Recovery Time: 60μs (at VS = 5V)
No External Capacitors Required
-40℃ to +125℃ Operating Temperature Range
Applications
Temperature Measurements
Pressure Sensors
Precision Current Sensings
Electronic Scales
Strain Gauge Amplifiers
Medical Instrumentation
Thermocouple Amplifiers
Handheld Test Equipment
Package Includes
1 x SGM8552 MSOP Amplifier
SGM8552 MSOP Overview
The SGM8552 MSOP is a dual rail-to-rail precision operational amplifier in an 8-pin MSOP package. It offers low input offset voltage and bias current, making it suitable for accurate signal conditioning in industrial and embedded systems.
Key Features of SGM8552 MSOP
- Dual op-amp in compact MSOP package for space-constrained PCB designs
- Rail-to-rail input and output swings within 10mV of supply rails
- Wide single-supply range: 2.5V to 5.5V (absolute maximum 6V)
- Low input offset voltage and bias current for precision measurements
- High ESD protection: 8kV HBM and 400V MM for robust handling
- Fast shipping from Zbotic: order ships within 24 hours (stock items)
Applications and Use Cases
- High-side and low-side current sensing in battery management systems
- Signal conditioning for temperature, pressure, and strain gauge sensors
- Precision instrumentation in medical equipment and portable devices
- Data acquisition front ends in industrial automation
- General-purpose amplification in mixed-signal embedded applications
How to Use SGM8552 MSOP
Begin by soldering the SGM8552 MSOP onto your PCB footprint, ensuring proper orientation of the 8 pins. Connect V+ to a clean 2.5V–5.5V supply and V– to ground. Place decoupling capacitors (0.1 µF and 1 µF) close to the supply pins. Configure each op-amp for the desired gain using external resistors between inputs and output. Ensure input signals stay within the –VS to (+VS)+0.1V range for optimal rail-to-rail operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the package type and pin count of the SGM8552?
The SGM8552 comes in an 8-pin MSOP package, offering a compact footprint for space-limited PCB designs.
What supply voltage range does the SGM8552 support?
The amplifier operates from 2.5V to 5.5V single supply, with an absolute maximum rating of 6V. Ensure decoupling capacitors are close to the supply pins.
Can the SGM8552 handle harsh industrial environments?
Yes. It features an operating temperature range of –40°C to +125°C, high ESD immunity (8kV HBM, 400V MM), and a wide input voltage tolerance for reliable performance.
Technical Specifications
| Model | SGM8552 |
|---|---|
| SKU | AI0451 |
| Weight | 0.00011 kg |
| Availability | Out of Stock |
Applications & Use Cases
The SGM8552 MSOP Operational Amplifier ICs is a versatile operational amplifier ics used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
