Description:

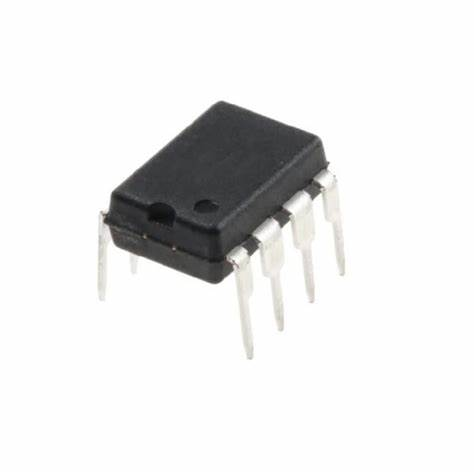

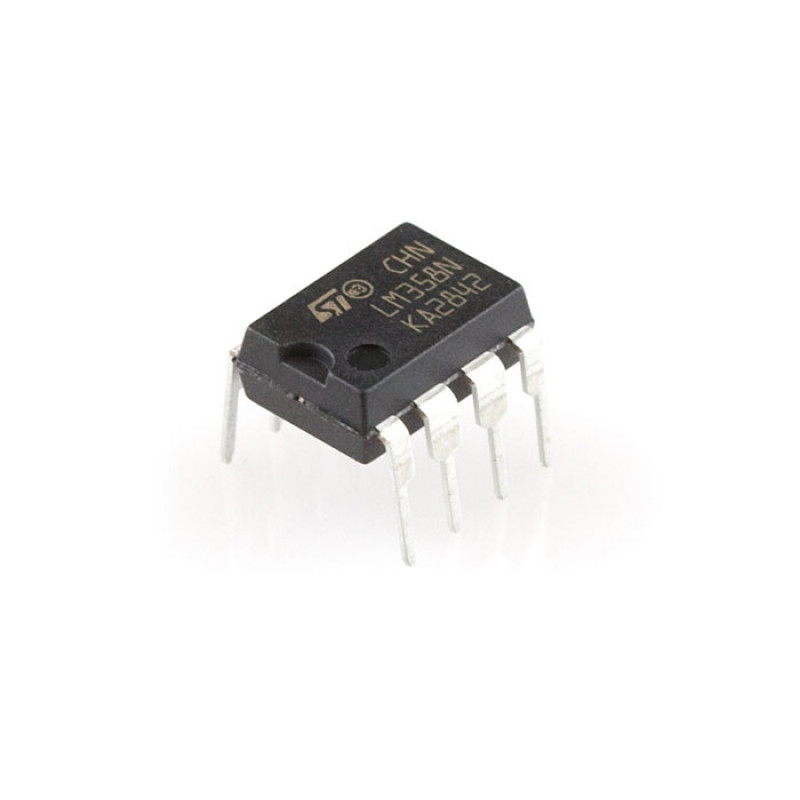

LM358 Low Power Dual Op-Amp IC DIP-8
These amplifiers offer several key advantages over standard operational amplifier types, particularly in single-supply applications. They are capable of operating with supply voltages as low as 3.0V and as high as 32V, while drawing only a quiescent current that is approximately one-fifth of that used by the MC1741 (per amplifier). The LM358 series is essentially half of an LM324.
The common-mode input voltage range extends to the negative supply, which eliminates the need for external biasing components in many applications. Additionally, the output voltage range includes the negative power supply voltage, enabling more flexible operation.
Designed based on the architecture of Quad Operational Amplifiers, these dual op-amps feature low power consumption, a common-mode input voltage range that extends to ground/VEE, and support for both single-supply and split-supply configurations.
Features:
- Short Circuit Protected Outputs
- True Differential Input Stage
- Single Supply Operation: 3.0 V to 32 V• Low Input Bias Currents
- Internally Compensated• Common Mode Range Extends to Negative Supply
- Single and Split Supply Operation
- ESD Clamps on the Inputs Increase Ruggedness of the Device without Affecting Operation• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Specification:
| Input Differential Voltage Range | ±32Vdc |
|---|---|
| Input Common Mode Voltage Range | −0.3 to 32Vdc |
| Output Short Circuit Duration | Continuous |
| Junction Temperature | 150 °C |
| Storage Temperature Range | −65 °C to +150 °C |
| Operating Ambient Temperature Range | 0 °C to +70 °C |
Note: –
Product may vary from images shown in terms of brand name according to the availability.
Application
- Transducer Amplifier
- DC gain block
- Active Filter
Package Includes
- 5 x LM358 Low Power Dual Op-Amp IC DIP-8
Technical Specifications
| Model | LM358 |
|---|---|
| Package Quantity | 5 pcs |
| SKU | AI0400 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The LM358 Low Power Dual Op-Amp IC DIP-8 (Pack of 5) is a versatile operational amplifier ics used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
