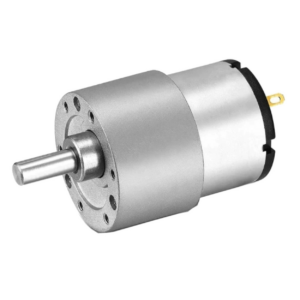

SGM37-520 DC12V 15RPM/MIN Miniature Forward and Reverse Brushed DC Speed Reducer Motor

This is the Red variant of the SGM37-520 DC12V 15RPM/MIN Miniature Forward and Reverse Brushed DC Speed Reducer Motor in 25GA motor, DC Motor with Gearbox, Motors & Drivers & Pumps & Actuators. Available at ₹636.02 (₹539.00 + GST) with free shipping across India.

Looking for Sgm37 Motor? SGM37-520 DC12V 15RPM/MIN Miniature Forward and Reverse Brushed DC Speed Reducer Motor is available at Zbotic with fast shipping across India.

SGM37-520 DC12V 15RPM/MIN Miniature Forward and Reverse Brushed DC Speed Reducer Motor

DC motor is equipped with a brushed motor, which makes the motor more stable and durable. This gearbox motor has high performance and excellent electrical conductivity, which can improve the service life of the product 12V Reduction motor for small smart device parts, like a Full vending machine, small lock, smart toy, etc.

This large and powerful SGM37-520 DC gear motor is available in a wide range of operating voltages and speeds, suitable for almost any project.

Features:

Small gear motor with low speed, low noise, and high torque.

The geared motor adopts pure copper winding, which has the characteristics of low heat generation and low loss.

The metal gearbox has the characteristics of wear resistance and rust resistance, and the motor has a long service life.

The high-torque gear motor has a thickened magnet with a strong magnetic field and strong anti-interference.

Specification:

Model: PB37-520-7

Rated Voltage: 12V

Revolving Speed: 15 RPM

Rated Torque: 0.15 kg. cm

Stall Torque: 0.6 kg. cm

Rated Current: 100 mA

Stall Current: 1.2A

Total Length(LxWxH) : 77x37x37mm

Gear Material: Full Metal

Shaft Size : 6 x 15mm(D*L)

Gearbox length(L) :27mm

Shaft Type : D Type

Net Weight: 0.1911kg

Applications:

Vending machines

panoramic cameras

Slot machines

Money detectors

Coin refund devices

Automatic doors

Peritoneal machines

Toys, etc.

Package include:

1*SGM37-520 DC12V 15RPM/MIN motor

SGM37-520 DC12V 15RPM/MIN Miniature Forward and Reverse Overview

The SGM37-520 DC12V 15RPM/MIN Miniature Forward and Reverse Brushed DC Speed Reducer Motor is a compact 12V gearbox motor delivering a precise 15 RPM output. Featuring a reversible brushed DC drive, it ensures stable, low-noise operation for small smart devices. Its integrated speed reduction gearbox enhances torque and durability for reliable continuous use.

Key Features of SGM37-520 DC12V 15RPM/MIN Miniature Forward and Reverse

• Reversible brushed DC design: simply swap polarity to change rotation direction
• Integrated reduction gearbox for 15 RPM output, boosting torque for load handling
• Low-noise operation and smooth speed control suited to precision applications
• Durable construction with excellent electrical conductivity for extended service life
• Compact “37-520” form factor fits into tight assemblies and small smart devices
• Genuine product shipped fast across India from Zbotic with full tracking

Applications and Use Cases

• Automated full vending machines requiring precise dispenser control
• Electronic door or cabinet locks with reliable forward/reverse actuation
• Smart toys and hobby robots needing low-speed, high-torque drives
• Micro conveyor belts or turntables in lab automation setups
• Adjustable camera sliders and gimbal tilt mechanisms

How to Use SGM37-520 DC12V 15RPM/MIN Miniature Forward and Reverse

Mount the gearbox motor securely using its standard flange or bracket in your device. Connect a 12 V DC power source, observing correct polarity to select forward or reverse rotation. Use a suitable driver or DPDT switch for speed control and direction changes, and ensure the motor runs within rated load to maximize lifespan.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Is the SGM37-520 reversible without extra hardware?

Yes. Simply reverse the DC supply polarity to switch rotation direction—no additional driver required.

What power supply does this gearbox motor require?

The motor is designed for a stable 12 V DC input. Ensure your power source can deliver sufficient current under load.

Can it handle continuous operation in a smart lock?

Absolutely. The brushed motor and robust gearbox offer stable, low-noise performance for continuous or intermittent actuation in locking mechanisms.
