Looking for S500 Frame 499483? S500 Multi Rotor Air PCB Frame with High Landing Gear for FPV Quad-Copter is available at Zbotic with fast shipping across India.

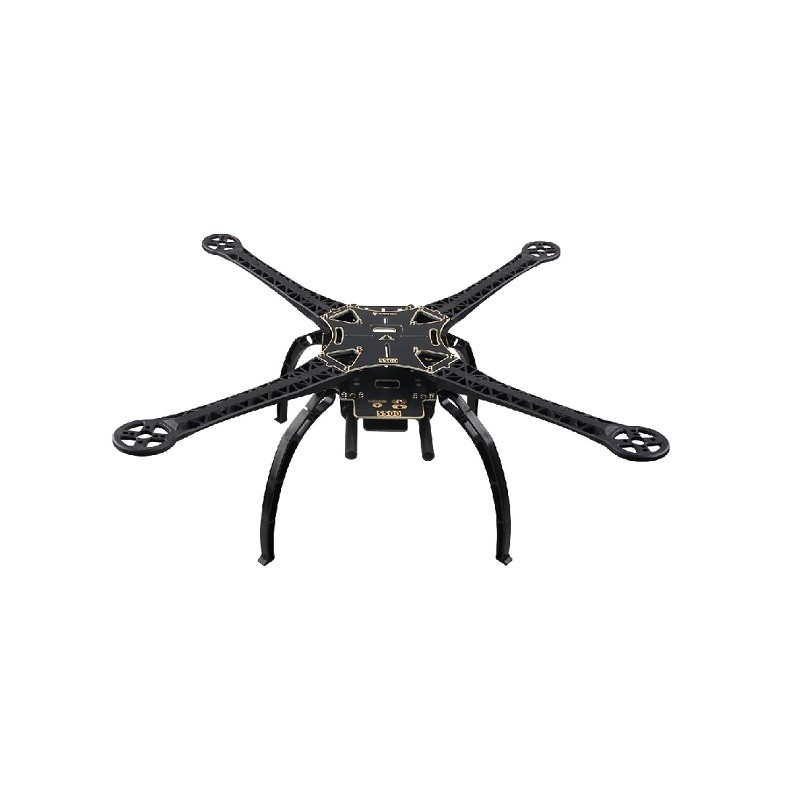

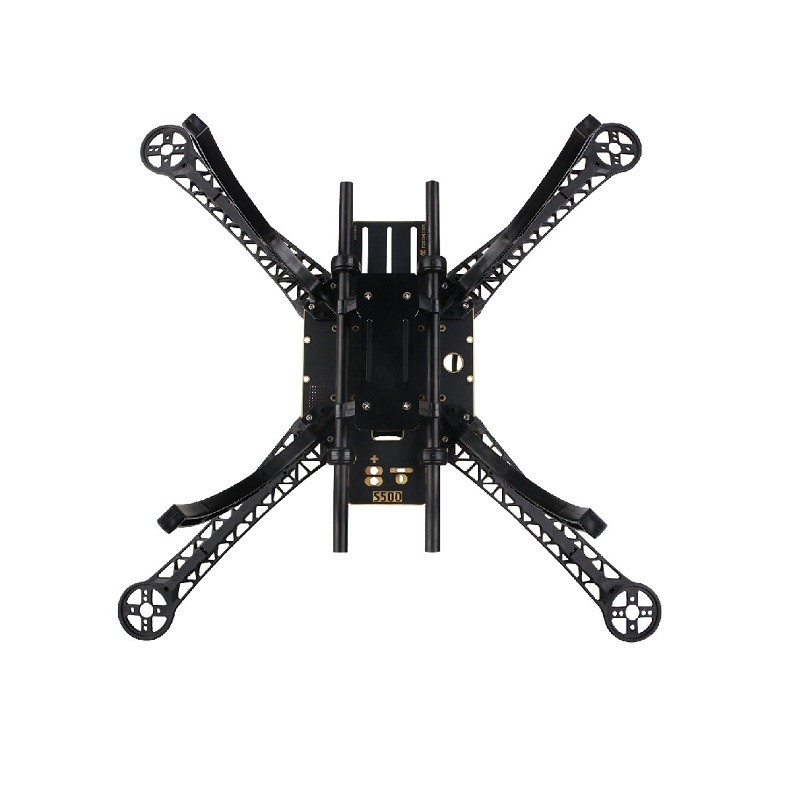

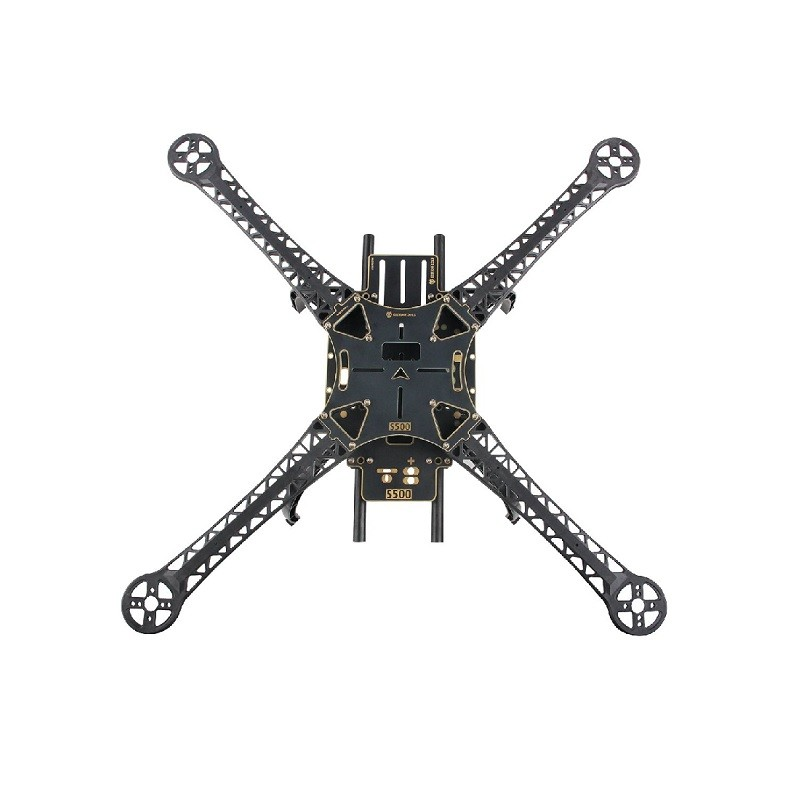

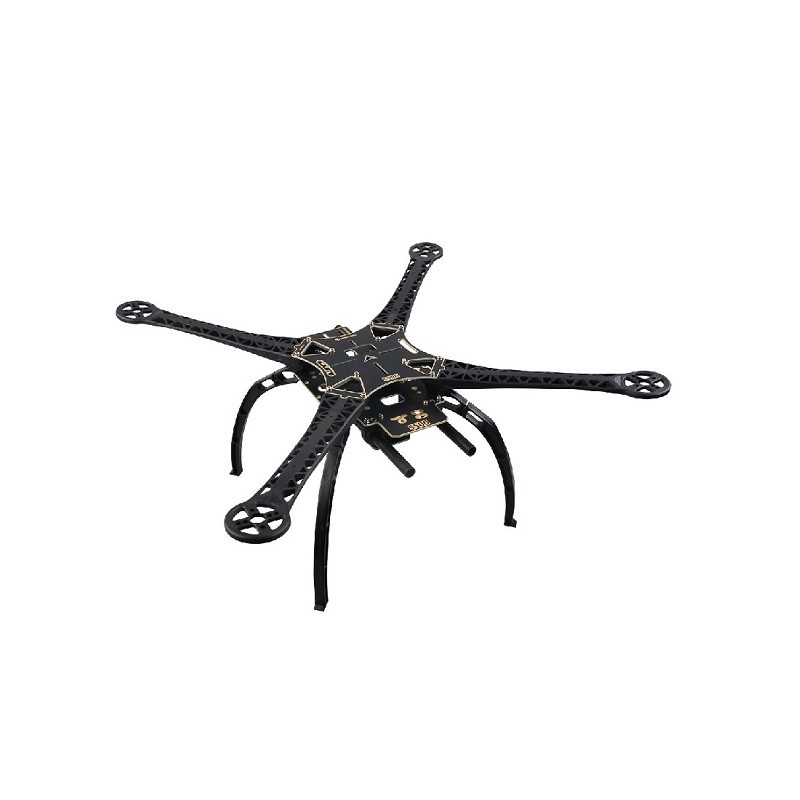

S500 Multi Rotor Air PCB Frame with High Landing Gear for FPV Quad-Copter
This is a S500 Multi Rotor Air PCB Frame with High Landing Gear for FPV Quadcopter.
The S500 Multi-Rotor Air PCB Frame serves as the up gradation of the F450 Quadcopter Frame. It keeps everything that has made the F450 Quadcopter frame successful.
The main great advantage of this frame is the arm have a slight upsweep, this gives the Quadcopter a dihedral effect which helps to make it very stable, especially when descending from altitude.
This S500 Quadcopter Frame is made from Glass Fiber which makes it tough and durable. They have the frame of ultra-durable Polyamide-Nylon which are the stronger molded arms having a very good thickness so no more arm breakage at the motor mounts on a hard landing. The arms have support ridges on them, which improves stability and provides faster forward flight.
It has an adjustable battery mount to achieve the perfect weight distribution and the bottom frame is ready to take a whole host of camera mounts and gimbals making it perfect for FPV and filming projects.
The S500 has a strong, light, and sensible configuration including a PCB (Printed Circuit Board) with which you can directly solder your ESC ‘s to the Quadcopter. So, making the Quadcopter build fast and easy. So, it avoids the use of extra PDB (Power Distribution Board) and makes the mounting clean and neat. The S500 Quadcopter Frame is a highly flexible frame during the mounting of various components like flight controller, battery, etc.
The frame has a wheelbase of 500mm and weighs around 400gm. It features mounting tabs at the front and rear end on the bottom plate of the mainframe for mounting cameras and other accessories.

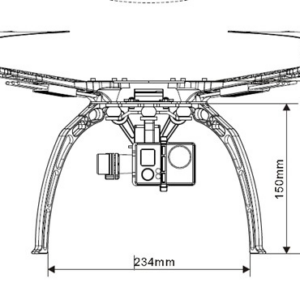

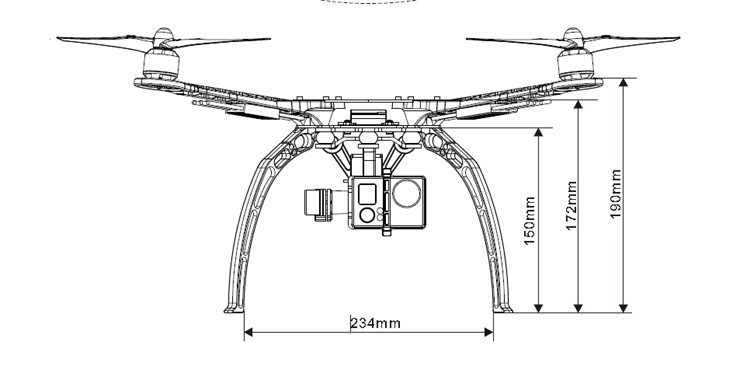

The landing gear has a ground clearance of 200mm and allows the mounting of the camera and other accessories at the bottom of the mainframe. The landing gear has plenty of height making it suitable for gimbals. The Plastic Landing Gear can withstand sudden crashes during the flying of FPV Quadcopters.
The added lift capacity makes this frame ideal for carrying larger payloads such as camera systems and other electronic components.
The frame comes with pre-threaded brass sleeves for all of the frame bolts, so attaching the arms to the mainframe is done within few minutes. Also, it requires one size of bolt for the overall build and thus a unique one-size hex wrench which makes hardware mounting very convenient. This feature of S500 Quadcopter Frames makes them so easy to assemble and disassemble.
Such lighter weight, higher strength Aerodynamic structure of this S500 frame featuring PA66 arms with glass fiber integrated frame make it the first choice of our customer.
We are offering a full line of multi-rotor accessories,
Multirotor Motors
ESC’s (Electronic Speed Controller)
Orange Li-PO Batteries
Flight Controllers
FPV Cameras
Gimbals
Propellers
Remotes
Or explore more variety of multirotor accessories by clicking below
Multirotors
You can also check our following Multirotor Kits category if you are a beginner or just not willing to send lot much of time in selecting appropriate parts for your quadcopter and want your quad in the air as soon as possible,
Multirotor Kits
Note: The dimensions and weight may have a ±2% error.
Note: S500 arms colors may be different
Features:
- Made by advanced engineering material, super strong & smooth
- Easy to assemble and disassemble.
- The frame is tough and durable.
- The main glass fiber frame has good strength.
- The arm equips support ridges for better and faster forward flight.
- Features pre-threaded brass sleeves.
- Large mounting tabs for camera mounting.
- In-built power distribution board.
Specification:
| Material: | Glass Fiber + Polyamide Nylon |
|---|---|
| Wheelbase (mm) | 500 |
| Weight (g): | 405 |
| Arm Size (L x W) mm | 220 x 40 |
| Motor Mount Hole Dia. (mm) | 3 |
| Landing Gear Material | ABS Plastic |
| Landing Gear Height (mm) | 200 |
| Landing Gear Color | Black |
| Landing Gear Weight (gm) | 75 |
| Shipping Weight | 0.49 kg |
| Shipping Dimensions | 30 × 20 × 7 cm |

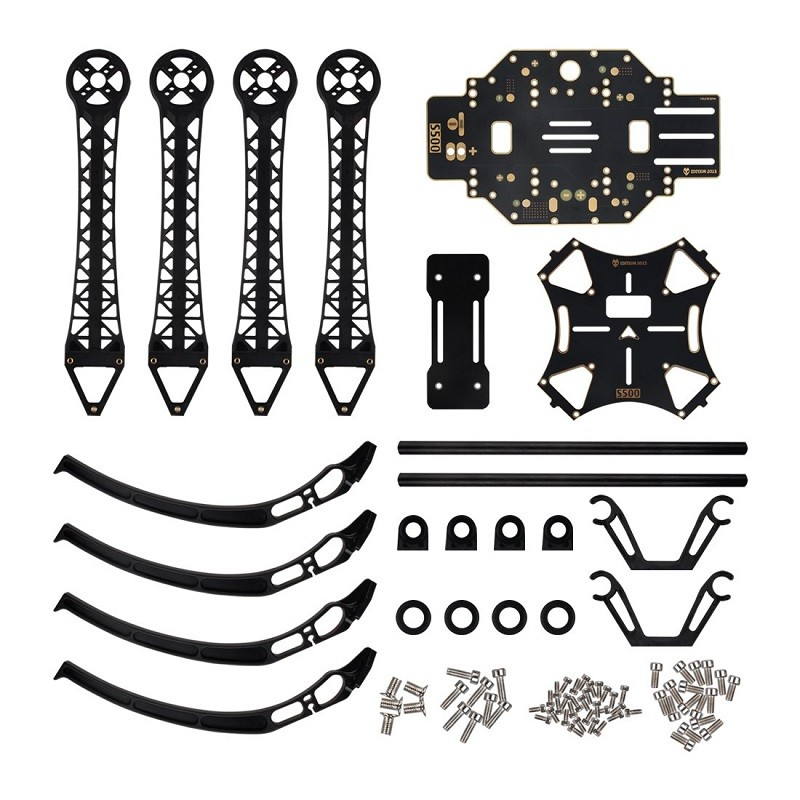

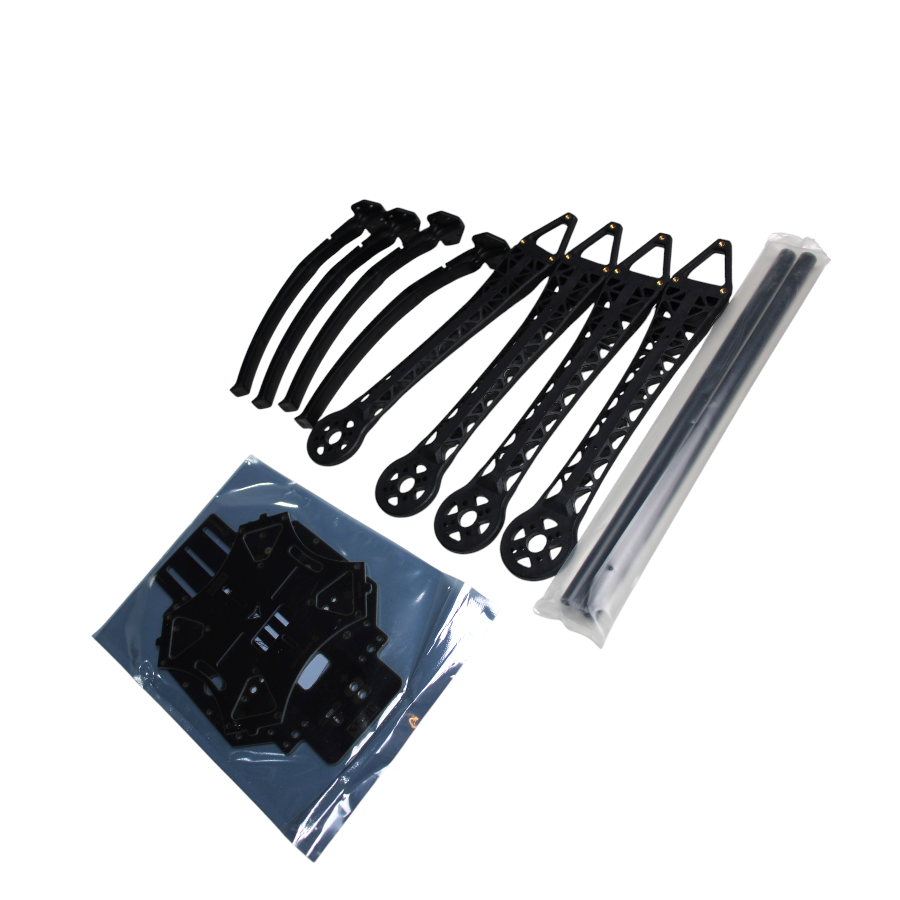

Package Includes:
1 x S500 Quadcopter Frame (Top and Bottom) with Integrated PCB.
4 x S500 arm
1 x Plastic Landing Gear for Quadcopter

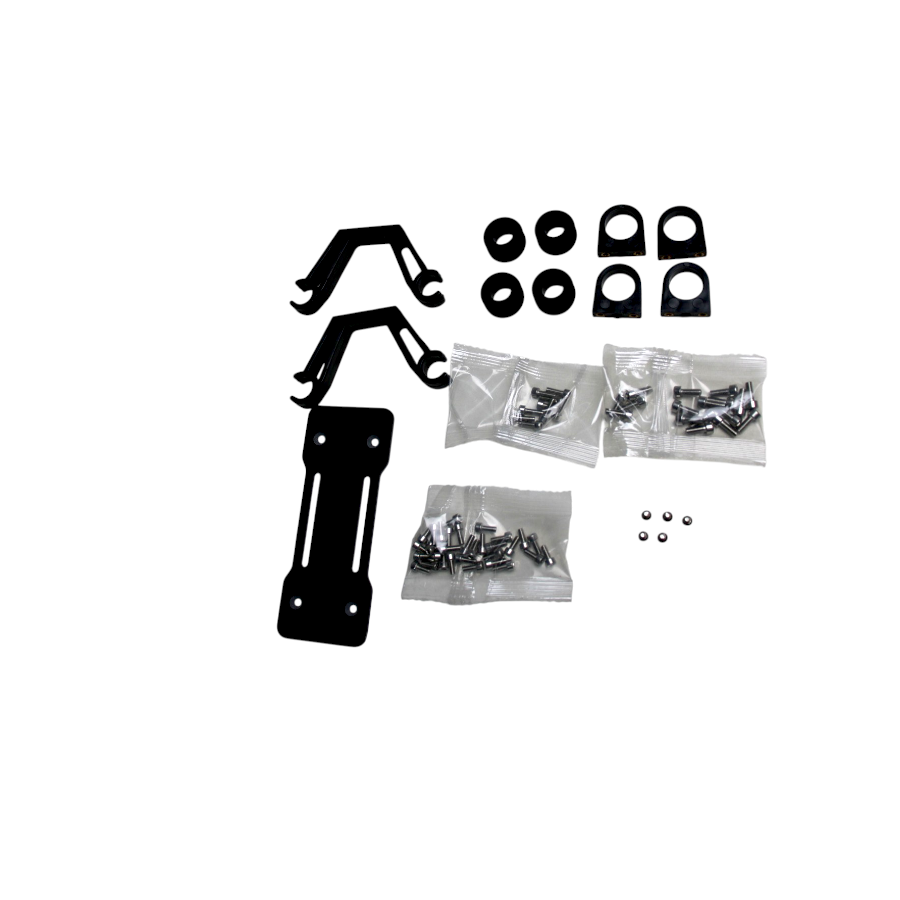

2 x Special Pipes.
4 x Pipe Supports.
1 x Screw Accessories set. (Allen Head)
1 x A manual.
Recommendation (NOT Included):
- Propeller: “1045″ OR “8045” Orange Propeller (CW & CCW)
- Battery: 3S Orange LiPo (1800 – 3600mAh)
- ESC: 15A – 40A.
- Motor: 800-1100 KV (brushless dc motor)
- Allen Key: 10 in 1 Metric Combination Hexagonal Key Allen Wrench
S500 Multi Rotor Air PCB Frame with High Landing Gear for Overview
The S500 Multi Rotor Air PCB Frame with High Landing Gear for FPV Quad-Copter is a robust 500 mm wheelbase glass fiber frame designed for building mid-sized racing and freestyle drones. Its upswept arms create a natural dihedral effect for enhanced stability, while the 200 mm ABS landing gear provides ample clearance for cameras and payloads.
Key Features of S500 Multi Rotor Air PCB Frame with High Landing Gear for
- Wheelbase: 500 mm for balanced agility and lift capacity
- Frame weight: 405 g—light yet durable glass fiber construction
- Arm dimensions: 220 × 40 mm with slight upsweep for dihedral stability
- Motor mounting hole diameter: 3 mm, compatible with standard brushless motor mounts
- Landing gear: 200 mm tall ABS legs for reliable ground clearance
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Custom FPV racing builds requiring a stable mid-sized frame
- Freestyle drone setups with high-mounted cameras or action cams
- Upgrading F450 frames to a stronger, more stable 500 mm platform
- Educational drone projects and STEM workshops
- Integrating PCB flight controllers directly onto the frame deck
- Aerial photography rigs with additional sensor mounts
How to Use S500 Multi Rotor Air PCB Frame with High Landing Gear for
Begin assembly by securing the four glass fiber arms to the central PCB mounting plate using appropriate M3 hardware. Attach the ABS landing gear legs to the underside of the plate, ensuring even clearance. Mount brushless motors onto each arm using 3 mm motor mounting holes, then install your flight controller, ESCs, battery strap, and FPV camera on the PCB deck. Route all wiring neatly along the arms and secure with zip ties before your maiden test flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Q: What is the total wheelbase of this frame?
The S500 frame features a 500 mm wheelbase, ideal for 5–6 inch propeller configurations.
Q: What materials are used in the frame and landing gear?
The main frame is constructed from tough glass fiber, while the high landing gear legs are made of durable ABS plastic.
Q: Can I use F450 mounting hardware on this frame?
Yes. The S500 frame retains the proven mounting pattern of the F450 series while offering upswept arms for improved stability.
