Product Description

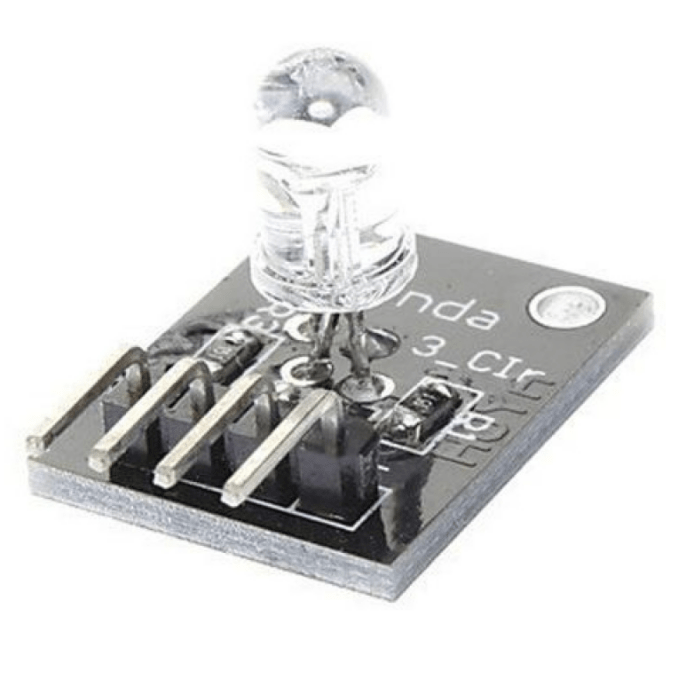

- This module features a 5mm RGB LED along with three 150Ω current-limiting resistors to prevent damage. By adjusting the PWM signal on each color pin, you can produce a wide range of colors.
- This is a DIP 3-color LED module, where the three primary colors (red, green, and blue) can be mixed using PWM adjustments to create various hues.

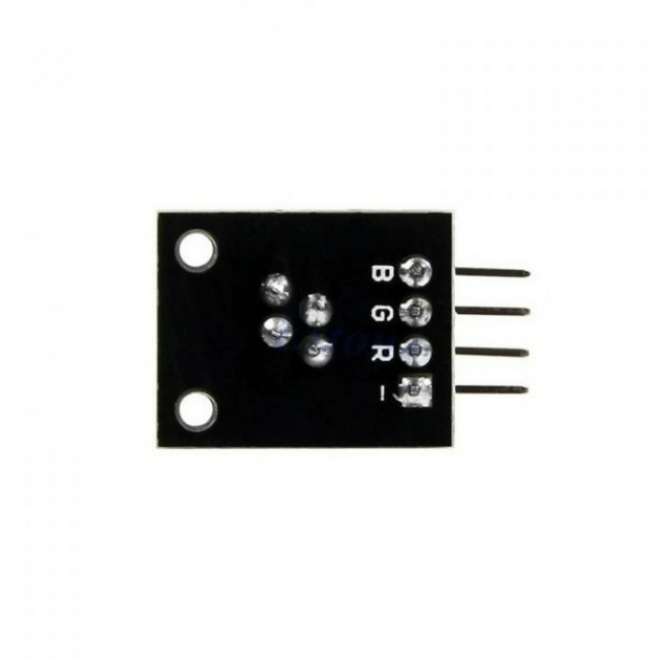

- To connect the module to an Arduino: connect the red (R) pin to pin 11, the blue (B) pin to pin 10, the green (G) pin to pin 9, and the ground (GND) pin to the Arduino’s ground.
Notice that you do not need to use limiting resistors since they are already included on the board.
Connection Diagram:
Pin Connection with Arduino:
| LED module | Arduino |
| R | Pin 11 |
| B | Pin 10 |
| G | Pin 9 |
| – | GND |
Features
- The use of plug-in full-colour LED.
- RGB trichromatic limiting resistor to prevent burnout.
- With a variety of single-chip interface.
- Through the PWM adjusting, three primary colours can be mixed to obtain different colours
- The working voltage: 5V
Package Includes
- 1 x RGB 3 Color LED Module.
