This is the 5mm variant of the 5mm Two-Color LED Module in LED Module. Available at ₹41.30 (₹35.00 + GST) with free shipping across India.
Looking for 5mm Module? 5mm Two-Color LED Module is available at Zbotic with fast shipping across India.

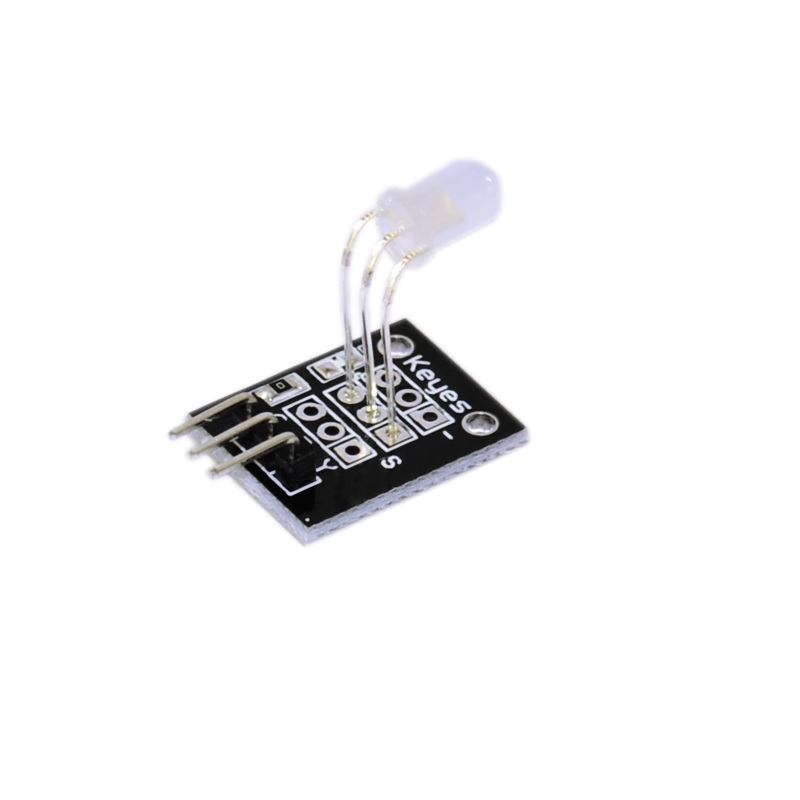

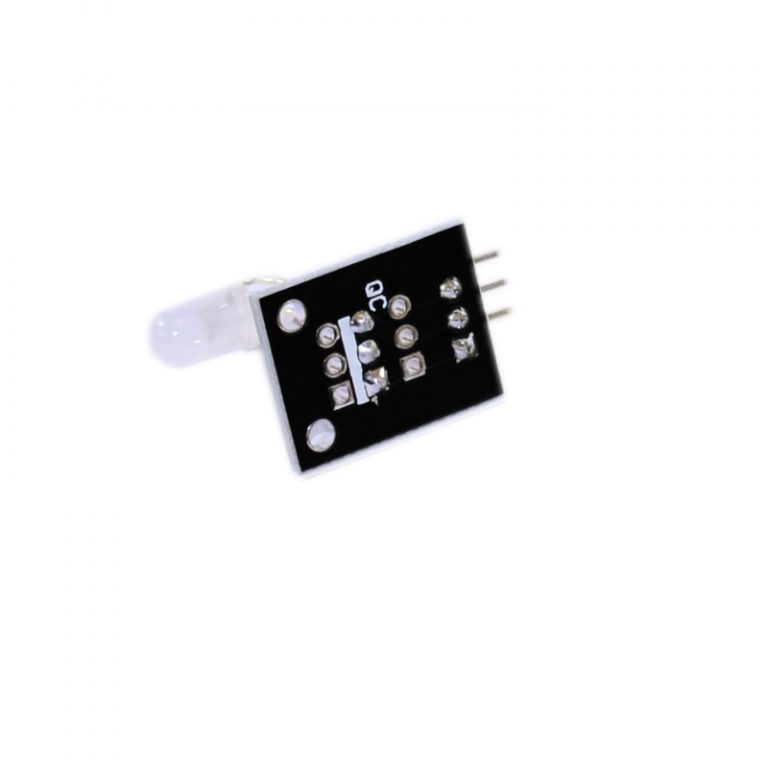

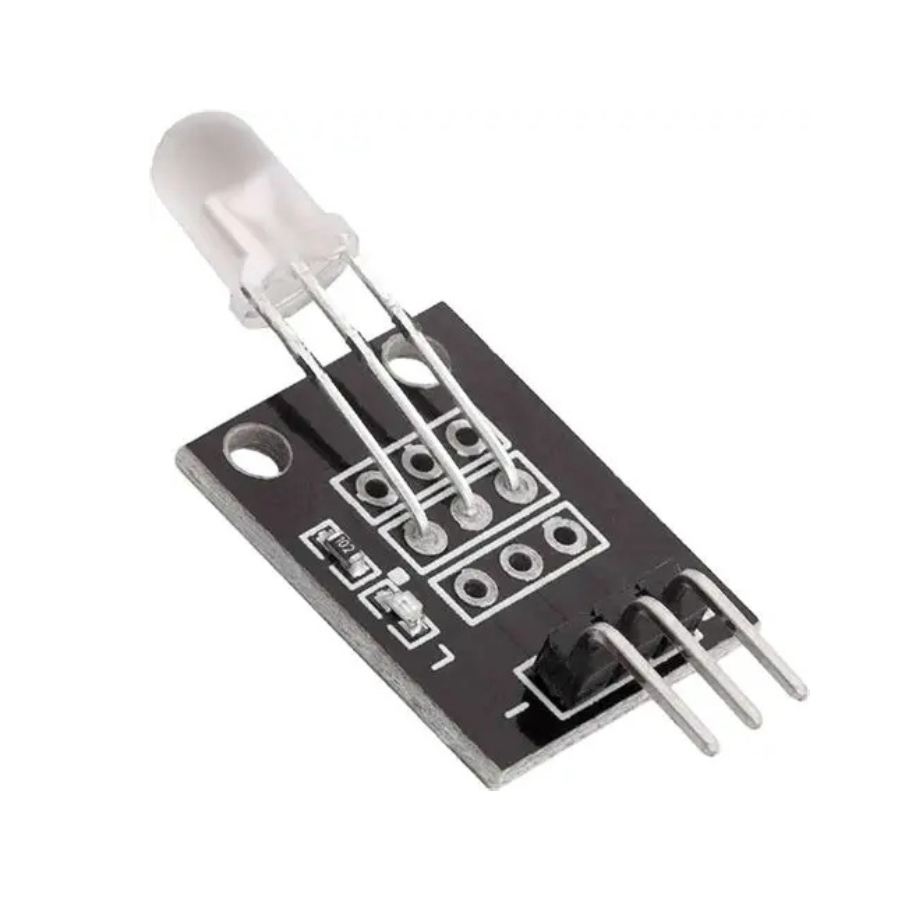

5mm Module – 5mm Two-Color LED Module:
The 5mm Two-color LED module designed for Arduino emits both red and green light, offering adjustable color intensity through PWM control.
This versatile product finds widespread application across various sectors including electronics, such as:
✔ Electronic dictionaries
✔ PDAs
✔ MP3 players
✔ Headphones
✔ Digital cameras
✔ VCD/DVD players
✔ Car audio systems
✔ Communication devices
✔ Computers
✔ Chargers
✔ Power amplifiers
✔ Instrumentation
✔ Gifts
✔ Electronic toys
✔ Mobile phones, and more.
Specification:
| Diameter | 5mm |
|---|---|
| Package Type | Diffusion |
| Color | Red + Green |
| Operating Voltage | 2.0v ~ 2.5v |
| Current | 10mA |
| Beam Angle | 150° |
Package Includes:
1 x 5mm Two-Color LED Module
5mm Two-Color LED Module Overview
The 5mm Two-Color LED Module is a compact dual-color indicator light designed for Arduino and other microcontroller projects. It features red and green LEDs in a single 5mm diffusion package, allowing you to display status signals or simple color mixing effects with PWM control.
Key Features of 5mm Two-Color LED Module
- Dual-color output: built-in red and green LEDs in one 5mm package
- Wide beam angle of 150° for clear visibility in status panels
- Low operating voltage of 2.0 – 2.5 V per LED channel
- Typical current draw of 10 mA for each color, ideal for low-power designs
- Diffused lens package ensures uniform light distribution
- Adjustable color intensity via PWM control on microcontrollers
- Genuine module with fast shipping from Zbotic across India
Applications and Use Cases
- Status indicators on Arduino-based control panels
- Signal lights in model railway or remote-control vehicles
- Power and charging indicators in DIY electronics enclosures
- Color-coded alerts in instrumentation and test rigs
- Visual feedback for electronic toys and hobby robotics
- Audio equipment level indicators or headphone amplifiers
How to Use 5mm Two-Color LED Module
Mount the module on a breadboard or PCB, then connect each LED channel to your microcontroller I/O pins through a suitable current-limiting resistor. Apply 2.0 – 2.5 V to each channel and use PWM outputs (e.g., analogWrite on Arduino) to adjust red and green brightness independently, mixing colors as needed.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage and current are required to operate the 5mm Two-Color LED Module?
This module requires 2.0 – 2.5 V per LED channel and draws around 10 mA for each color. Use series resistors to maintain correct current levels.
How do I connect the module to an Arduino?
Connect the red and green pins each through a 220 Ω–330 Ω resistor to two PWM-capable digital pins on the Arduino. Tie the module’s ground to Arduino GND and control brightness using analogWrite().
Can I mix red and green to create other colors?
Yes, by varying the PWM duty cycle of each LED, you can blend red and green to produce yellow or intermediate hues between the two colors.
