Product Description

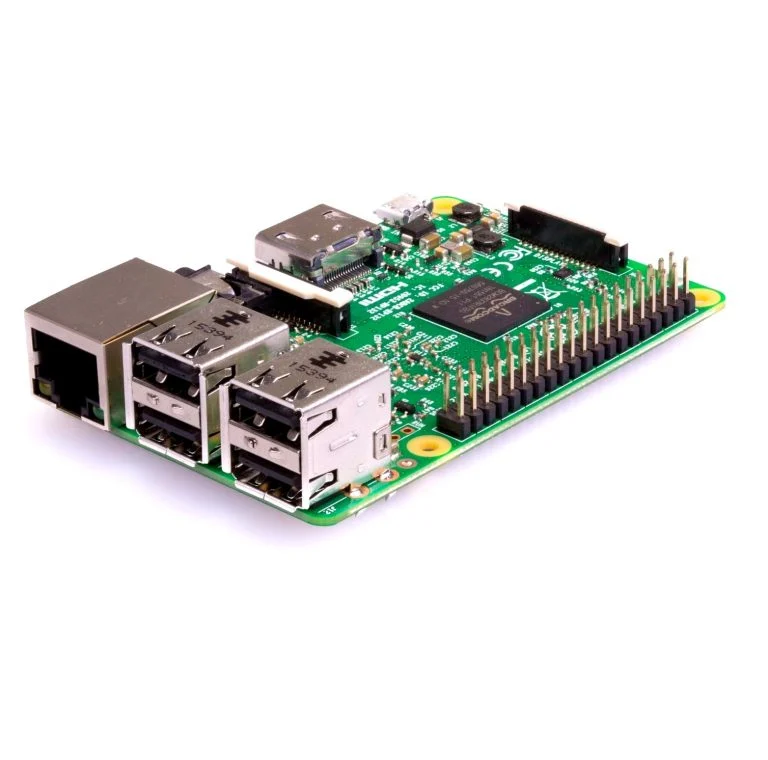

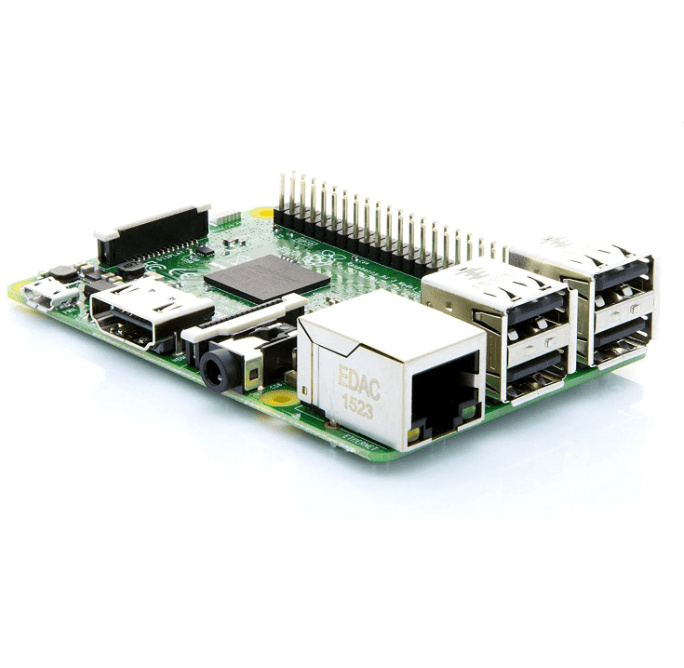

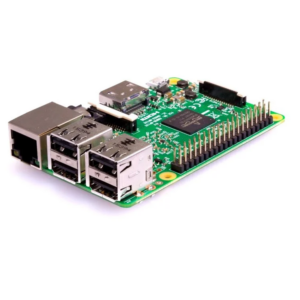

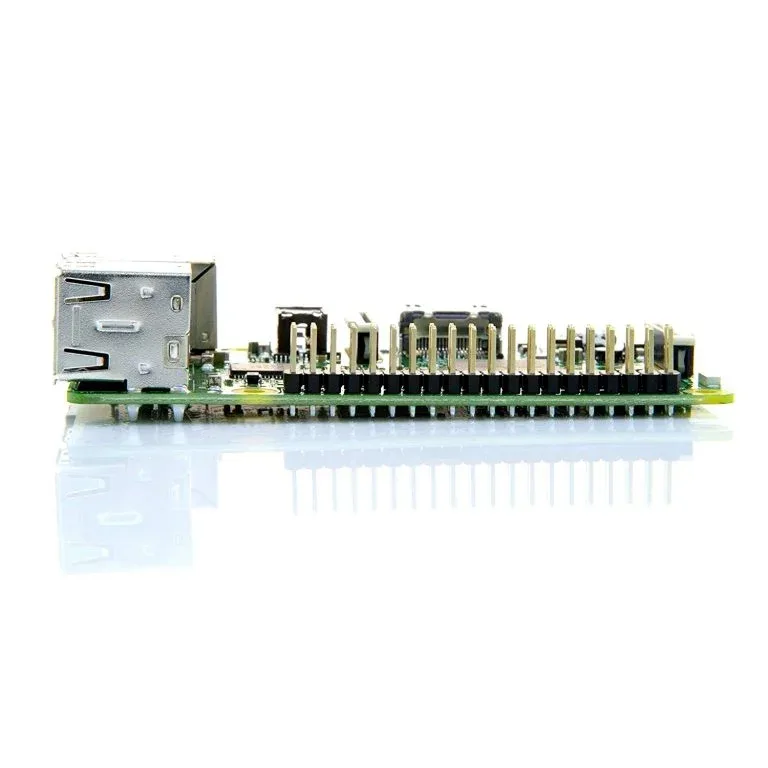

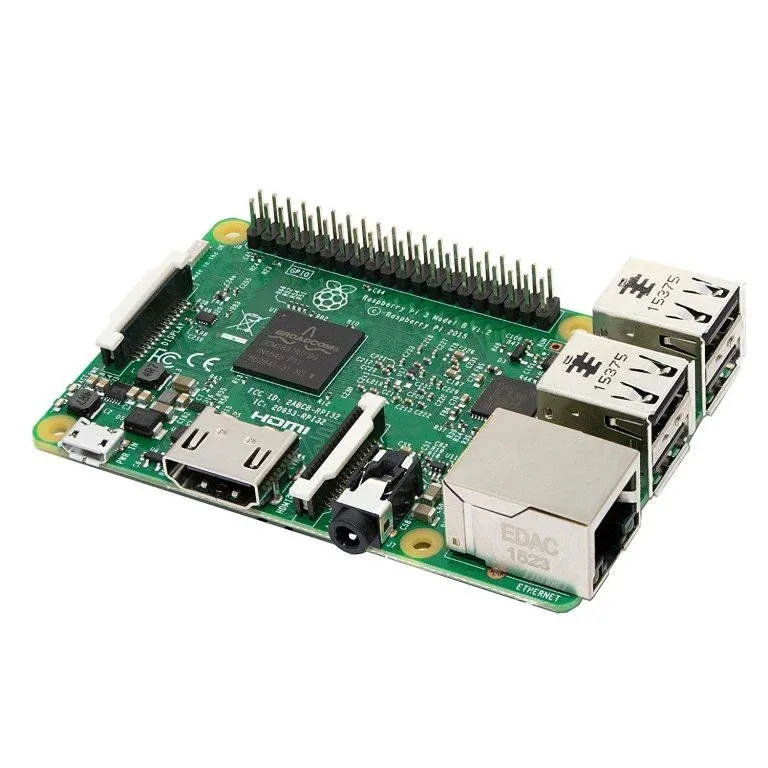

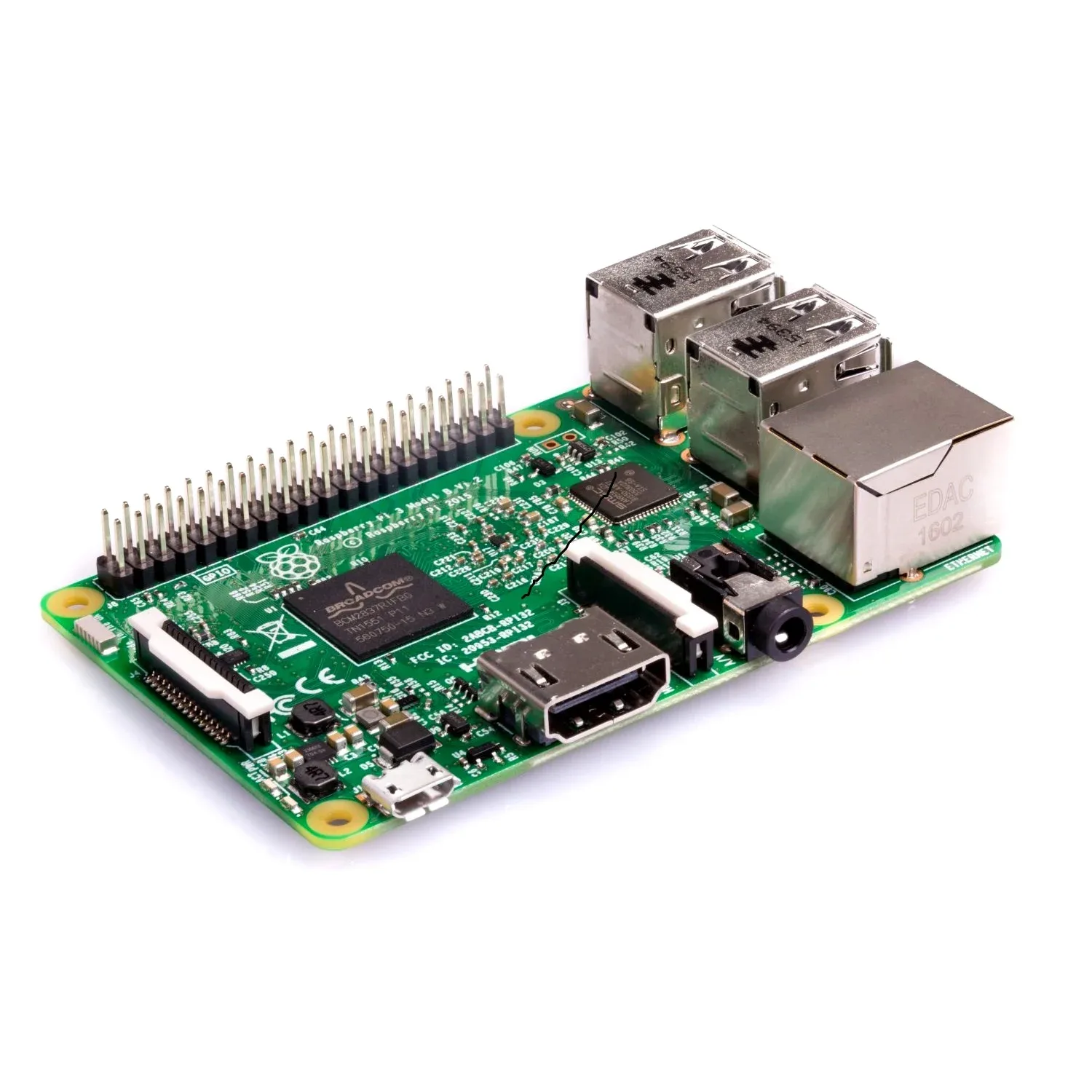

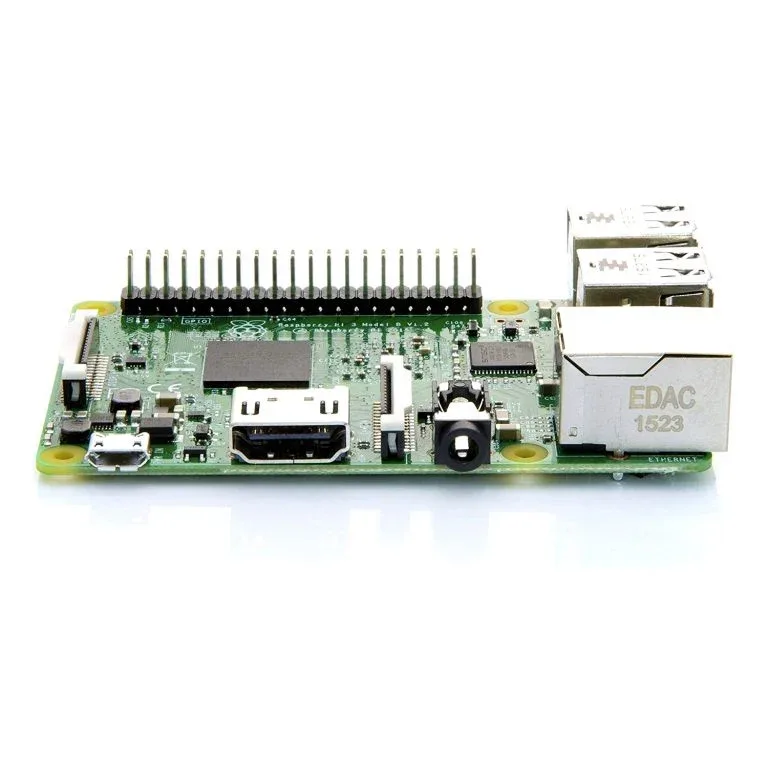

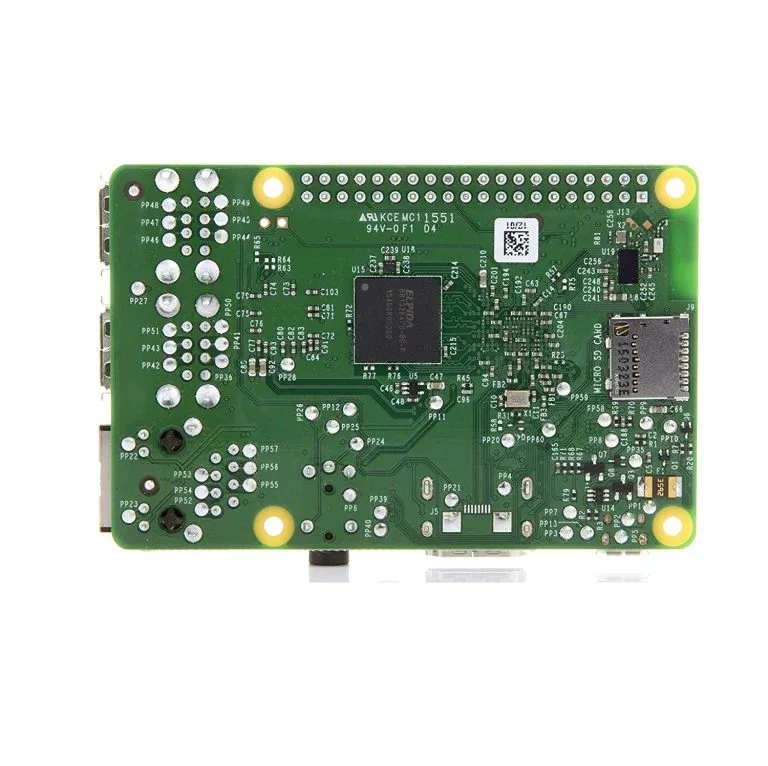

The latest product in zbotic.in among the raspberry pi family is the Raspberry Pi 3 – Model B Original. It is a third-generation product that has the same board format as other raspberry pi modules, but with a faster 1.2GHz 64-bit quad-core processor, and built-in WiFi and Bluetooth.
The Raspberry Pi 3 Model B ARMv8 with 1GB RAM has two major upgrades over the previous models. The first is a next-generation quad-core Broadcom BCM2837 64-bit ARMv8 processor that runs at up to 1.2GHz, compared to the 900MHz of the Pi 2. The second is a built-in BCM43143 WiFi chip that allows the Pi 3 to connect wirelessly without additional peripherals. No more WiFi adapters are needed. The Raspberry Pi 3 is also an excellent IoT solution with onboard Bluetooth Low Energy (BLE).
Back-compatibility note: The Raspberry Pi 3 Model B Original has the same footprint and layout as the Model 2/B+ version, so it is compatible with all Model 2/B+ items. However, the WiFi and Bluetooth antenna has moved the ACT and PWR LEDs to the opposite side of the SD card slot. Cases for the 2/B+ with LED light pipes will fit the new RPi 3, but the light pipes will not align with the LEDs.
Features
-
Processor:
- Broadcom BCM2837 chipset.
- 1.2GHz Quad-Core ARM Cortex-A53 (64Bit)
- 802.11 b/g/n Wireless LAN and Bluetooth 4.1 (Bluetooth Classic and LE)
-
GPU:
- Dual-Core Video Core IV® Multimedia Co-Processor. Provides Open GL ES 2.0, hardware accelerated Open VG, and 1080p30 H.264 high-profile decode.
- Capable of 1Gpixel/s, 1.5Gtexel/s or 24GFLOPs with texture filtering and DMA infrastructure
-
Operating System:
- Boots from Micro SD card, running a version of the Linux operating system or Windows 10 IoT
Connectors and Ports:
-
Ethernet:
- 10/100 BaseT Ethernet socket
-
Video Output:

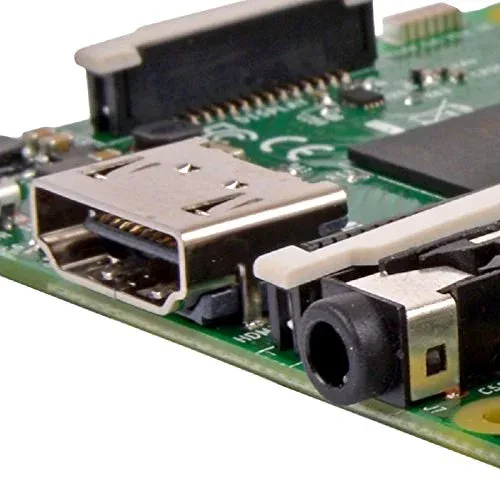

- HDMI (rev 1.3 & 1.4)
- Composite RCA (PAL and NTSC)
-
Audio Output:
- Audio Output 3.5mm jack
- HDMI
- 4 x USB 2.0 Connector
-
GPIO Connector:
- 40-pin 2.54 mm (100 mil) expansion header: 2×20 strip
- Providing 27 GPIO pins as well as +3.3 V, +5 V and GND supply lines
-
Camera Connector:
- 15-pin MIPI Camera Serial Interface (CSI-2)
-
Display Connector:
- Display Serial Interface (DSI) 15-way flat flex cable connector with two data lanes and a clock lane.
-
Memory Card Slot:
- Push/pull Micro SDIO
Package Includes
1x Raspberry Pi 3 – Model B Original with Onboard Wi-Fi and Bluetooth
