Looking for Raspberry Pi Heat Sink? Raspberry Pi 3 Heat Sink set is available at Zbotic with fast shipping across India.

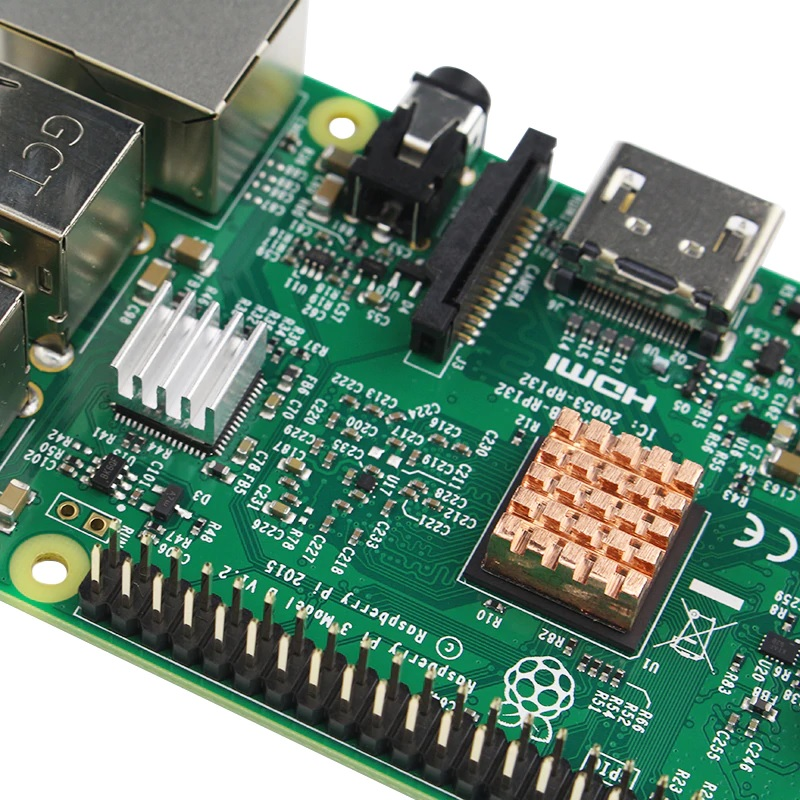

Raspberry Pi 3 Heat Sink set
Introducing the Raspberry Pi 3 Heat Sink Set, designed to fit all versions of the Raspberry Pi 2 and 3 models at an affordable price. Whether you’re overclocking your Pi, operating it in a hot environment, or simply looking to improve its appearance, this high-quality heatsink kit is engineered to efficiently reduce the temperature of your Raspberry Pi’s SoC and LAN chip, helping to extend its lifespan.
Constructed from premium copper and aluminum materials, this heat sink kit ensures optimal performance and durability. Each heatsink comes with an adhesive thermal layer for easy installation, offering reliable protection against overheating and keeping your Raspberry Pi running smoothly and efficiently. Enhance your Pi’s performance and safeguard it from excessive heat with this essential cooling solution.
.
Why Buy?
- Reduces the risk of hardware failure due to overheating
- Low profile, will fit into most cases.
- Simple, Passive cooling. No need for noisy fans.
- Perfectly sized for the RPi’s CPU
Specifications and Features:
- A set of 3 heatsinks
- Self-adhesive thermal layer for easy application
- The thermal resistance of 27°C/W
- Dimensions(LxWxH) mm:
- 12 x 12 x 3
- 8 x 8 x 5
- 14 x 12 x 5.5
- Material:
- 1 x Aluminium
- 2 x Copper
- Colour: Red and Copper.
- Weight: 30g for a set of 3 Heat Sink.
Package Includes:
2 x Copper Heatsink.
1 x Aluminum Heat Sink.
Raspberry Pi 3 Heat Sink set Overview
The Raspberry Pi 3 Heat Sink set is a trio of passive cooling solutions specifically shaped for the Raspberry Pi 3’s SoC and LAN chip. With one aluminum and two copper heatsinks in red and natural copper finishes, this kit helps lower operating temperatures and mitigate hardware failure due to overheating.
Key Features of Raspberry Pi 3 Heat Sink set
- Three-piece heatsink kit: 1× aluminum and 2× copper units
- Self-adhesive thermal layer for quick, secure installation
- Thermal resistance of 27°C/W for efficient heat dissipation
- Low-profile design fits into most Raspberry Pi cases
- Passive cooling—no fans, no noise
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Overclocking a Raspberry Pi 3 to run intensive applications
- Deploying Pi-based projects in warm or enclosed environments
- Running 24/7 headless servers or media centers
- Improving thermal performance in robotics and IoT prototypes
- Custom gaming consoles or emulation stations using RetroPie
How to Use Raspberry Pi 3 Heat Sink set
Clean the chip surfaces on your Raspberry Pi 3, peel off the protective film from each heatsink’s adhesive layer, and firmly press each heatsink onto the designated SoC and LAN chip locations. Power up your Pi as usual and enjoy lower operating temperatures without any additional cables or fans.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Will these heatsinks fit other Raspberry Pi models?
The set is engineered specifically for Raspberry Pi 2 and 3 form factors; the dimensions and adhesive placement may not align with Pi 4 or Zero boards.
How much temperature reduction can I expect?
With a thermal resistance of 27°C/W, these heatsinks can lower chip temperatures by several degrees under moderate loads, improving stability during overclocking or extended operation.
Can I remove and reuse the adhesive layer?
For best performance, install each heatsink once. If removed, the adhesive layer may lose its bond strength and should be replaced with new thermal tape.
