This is the Transparent variant of the Radiomaster TX16S MKII Radio Controller Transparent RGB M2 Edition – ELRS Version in Drone Transmitter and Receiver. Available at ₹25,477.38 (₹21,591.00 + GST) with free shipping across India.
Looking for Tx16s Controller Radiomaster 568952? Radiomaster TX16S MKII Radio Controller Transparent RGB M2 Edition – ELRS Version is available at Zbotic with fast shipping across India.
Tx16s Controller Radiomaster 568952 – Description:
Introducing the TX16S MKII Radio Transparent edition, inspired by MCK, where technology meets stunning aesthetics. Immerse yourself in the crystal-clear case design and innovative RGB lighting system, offering four captivating RGB modes and a choice of five vibrant colors. This allows you to tailor your radio to your mood or style. Unleash your creative and unique personality with the TX16S MKII Radio Transparent edition!
Features:
- Clear Crystal Case and surrounding RGB lights design, experience the Heartbeat of Technology
- CNC metal folding handle, easy to carry and storage
- Updated sticky360 gimbal stick ends to bring you a comfortable, zero-slip experience
- Improved internal circuitry and optimized power supply
- New charge circuitry with integrated reverse-polarity protection
- Optimized charge IC now allows up to 2.2A internal USB-C charge current
- Rear-mounted audio jack provided headphone output
- V4.0 Gimbal improved centering and temperature stability
- Optional high/low rear grips are included for improved ergonomics
- Improved S1/S2 knobs with clear centre-detents
- Improved LS/RS Sliders with smoother feel and better centre-detents
- Redesigned battery cover for improved battery access
- Retooled body shell with improved fit and finish
- Trainer socket changed to standard TRS 3.5mm socket
- Rear DIY Socket added for personalized mods
- Improved internal plastics for better longevity
- Gimbal: V4.0 Hall sensor
- Radio firmware: EdgeTX
- Module Firmware: ExpressLRS (ELRS)
- Module Bay: JR compatible module bay
- Upgrade method: Supports USB-C online / SD card offline upgrade
- Built-in ExpressLRS Backpack
Specifications:
| Item Type: | Controller |
|---|---|
| No. of Channels: | 16 |
| Display: | 4.3-inch TFT full-colour touch display |
| Operating Voltage (VDC): | 6.6-8.4VDC |
| Working Current (mA) | 400 |
| Micro SD Card (Y/N): | Newly updated 512MB card as standard |
| Length (mm): | 287 |
| Width (mm): | 184 |
| Height (mm): | 129 |

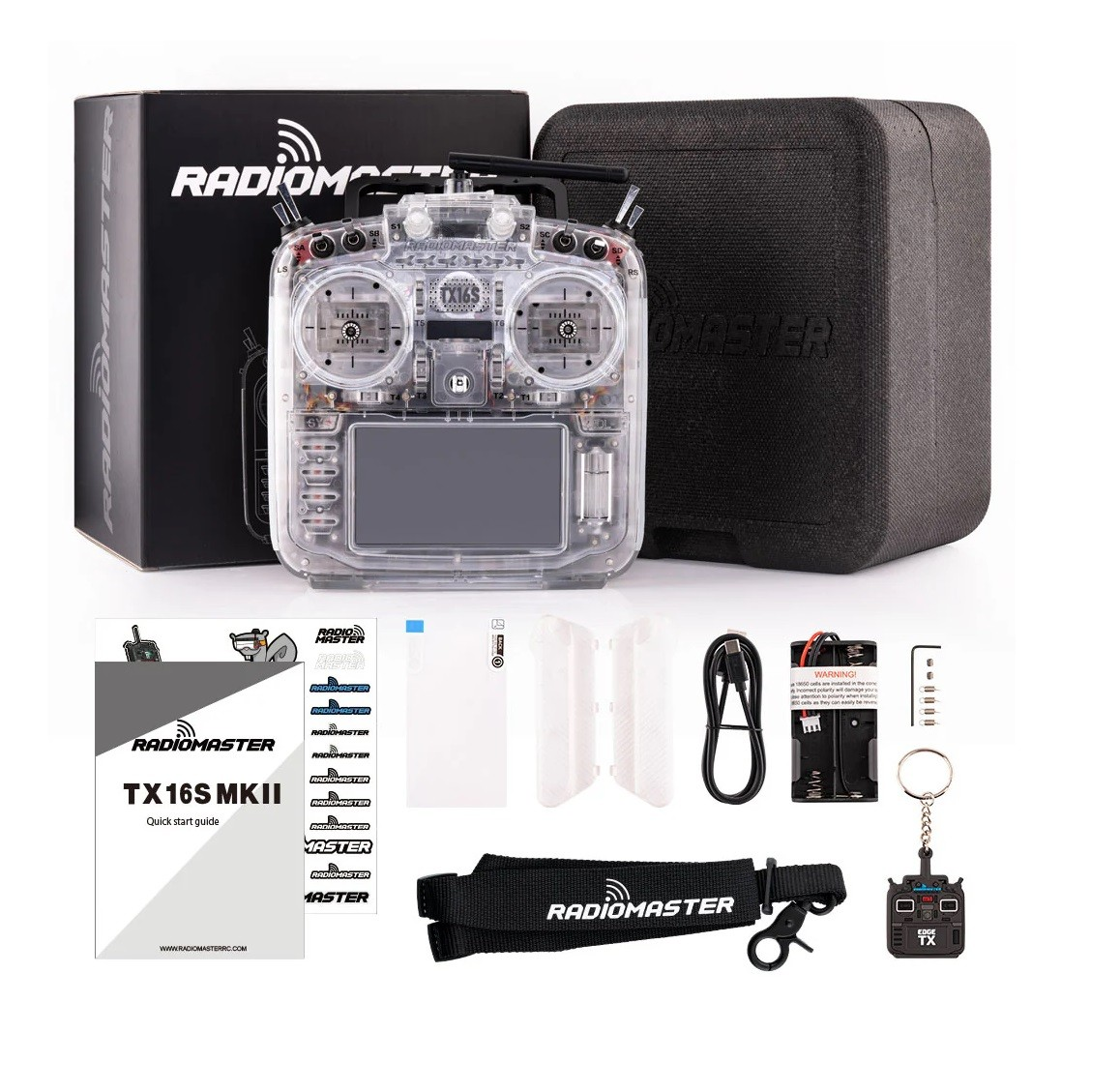

Package Includes:
- 1 x TX16S MKII Radio Transparent Version
- 1 x 18650 Tray
- 1 x USB-C Cable
- 1 x Screen Protector
- 4 x Low Tension Springs
- 1 x 1.5mm Allen Key
- 1 pair of flat grips
- 1 pair of raised grips (installed on radio by default)
- 1 x TX16S Key Chain
- 1 x RadioMaster Neck Strap
- 1 x Stickers
- 1 x Manual
Radiomaster TX16S MKII Radio Controller Transparent RGB M2 Overview
The Radiomaster TX16S MKII Transparent RGB M2 Edition – ELRS Version is a versatile radio controller designed for FPV drone and RC model pilots seeking a clear-cased transmitter with integrated lighting. It delivers a low-latency 2.400–2.480GHz link via its built-in ExpressLRS module and runs the open-source EdgeTX firmware for customizable control layouts.
Key Features of Radiomaster TX16S MKII Radio Controller Transparent RGB M2
- Transparent crystal case with 4 RGB lighting modes and 5 color options
- Internal ELRS (SX1280) module operating at 2.400–2.480GHz for fast, stable control link
- Preinstalled 512MB microSD card for model memory and firmware updates
- EdgeTX radio firmware paired with ExpressLRS module firmware for open-source flexibility
- Works on 6.6–8.4V DC input, drawing 400mA for consistent performance
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- FPV drone racing where low latency and quick response are critical
- Long-range exploration flights with reliable ELRS telemetry
- Freestyle multi-rotor sessions using dynamic RGB feedback
- RC airplane and glider control with advanced dual-rate and expo setups
- Simulator training via USB-C connection to perfect transmitter settings
How to Use Radiomaster TX16S MKII Radio Controller Transparent RGB M2
Connect a 6.6–8.4V LiPo battery to the power input, insert the supplied 512MB microSD card, and power on the controller. Enter the EdgeTX system menu to bind your ExpressLRS-compatible receiver in bind mode, configure channel mappings, set up switches and mixes, then customize RGB lighting to match your style before taking off.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Does the TX16S MKII Transparent RGB M2 include the ELRS module?
Yes, it features an internal ExpressLRS (SX1280) module operating on 2.400–2.480GHz for a low-latency, high-refresh control link.
Can I update the firmware on this radio?
The TX16S MKII runs EdgeTX and allows firmware updates for both the radio and ExpressLRS module via the microSD card slot or USB-C connection.
How long does the battery last when using this transmitter?
With a typical current draw of 400mA on 6.6–8.4V input, a 2000mAh LiPo battery provides approximately 5 hours of continuous operation.
Drone Insurance in India: Is It Mandatory? Complete Guide 2025
As drones become increasingly common across India — from hobbyist FPV pilots in residential areas to commercial operators...
Read More →
Tethered Drone Build: Unlimited Flight Time for Events and Surveillance
Tethered Drone Build: Unlimited Flight Time for Events and Surveillance Imagine a drone that can hover for eight...
Read More →
Drone Arm Strength Test: Carbon Fiber vs Aluminum Trade-off
Table of Contents Why Arm Material Matters for Drone Performance Carbon Fiber: Properties and Performance Aluminium: Properties and...
Read More →Technical Specifications
| Brand | Radiomaster |
|---|---|
| Model | TX16S |
| Interface / Protocol | ELRS |
| Package Quantity | 16 pcs |
| Color | Transparent |
| SKU | AI7302 |
| Availability | Out of Stock |
Applications & Use Cases
The Radiomaster TX16S MKII Radio Controller Transparent RGB M2 Edition – ELRS Version is a versatile drone transmitter and receiver used across a wide range of applications including FPV drone control, RC aircraft, ground vehicles, and long-range drone operations.
Common use cases:
- Setting up a new FPV quad with digital link
- Replacing a receiver after a crash
- Building a long-range fixed-wing aircraft
This product is ideal for FPV pilots, RC hobbyists, and drone builders.
Technical Tip: ELRS (ExpressLRS) offers excellent range and low latency at 2.4GHz. Ensure your transmitter and receiver use the same protocol.
