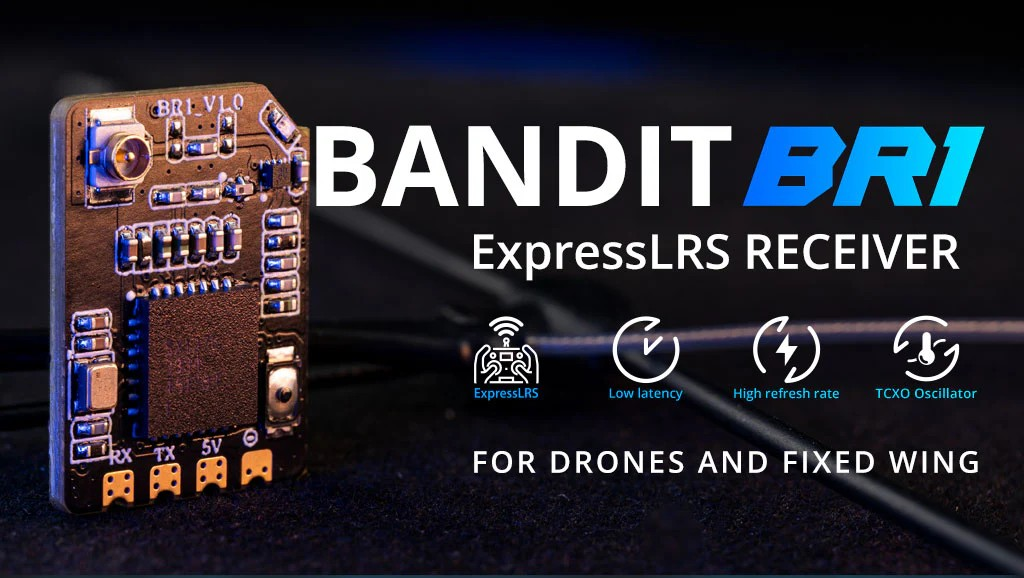

Radiomaster Bandit BR1 ExpressLRS 915MHz Receiver
Description:

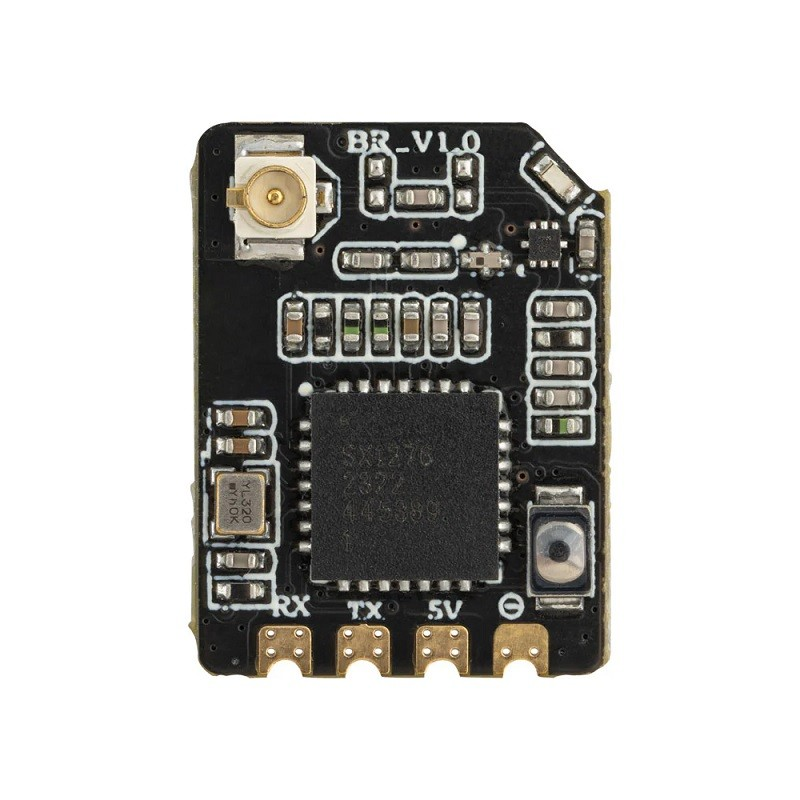

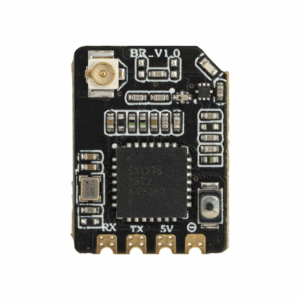

The Radiomaster Bandit BR1 ExpressLRS 915MHz Receiver Expresslrs Receiver features a built-in TCXO (temperature-compensated crystal oscillator) which ensures reliable, stable, and accurate signal reception for superior performance in demanding environments. Utilizing 0402 components, the BR1 ExpressLRS receiver also features superior resistance to vibration.

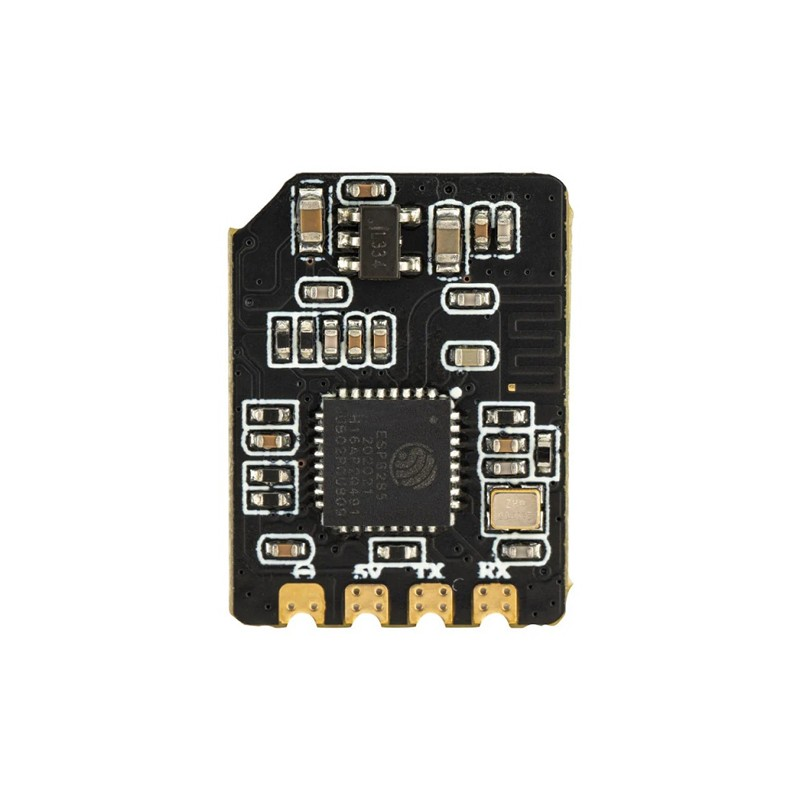

Radiomaster Bandit BR1 ExpressLRS 915MHz Receiver Expresslrs Receiver incorporates an ESP8285 MCU and SX1276 RF chip, renowned for its low latency, high sensitivity and exceptional long-range performance. The included T Antenna designed with high-sensitivity are both lightweight and easy to install depending on your application.
Due to the low-latency and high-refresh-rate RF module, the Bandit BR1 Expresslrs Receiver is ideal for FPV freestyle or Long Range.
Features:
- Built-in TCXO oscillator
- Utilizing 0402 components, superior resistance to vibration
- Lightweight and compact design

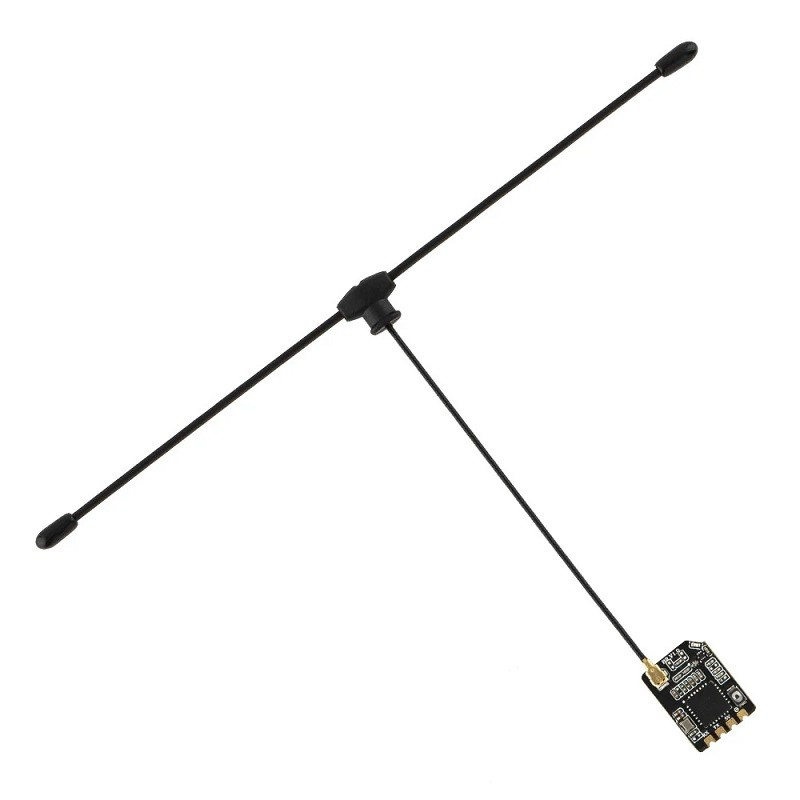

- High-sensitivity 915/868MHz T Antenna included
Specifications:
| Item Type: | Receiver |
|---|---|
| Main control (MCU) | ESP8285 |
| Antenna Type: | 15cm high sensitivity antenna |
| Output channel | 4CH PWM |
| RF Chip | SEMTECH SX1276 |

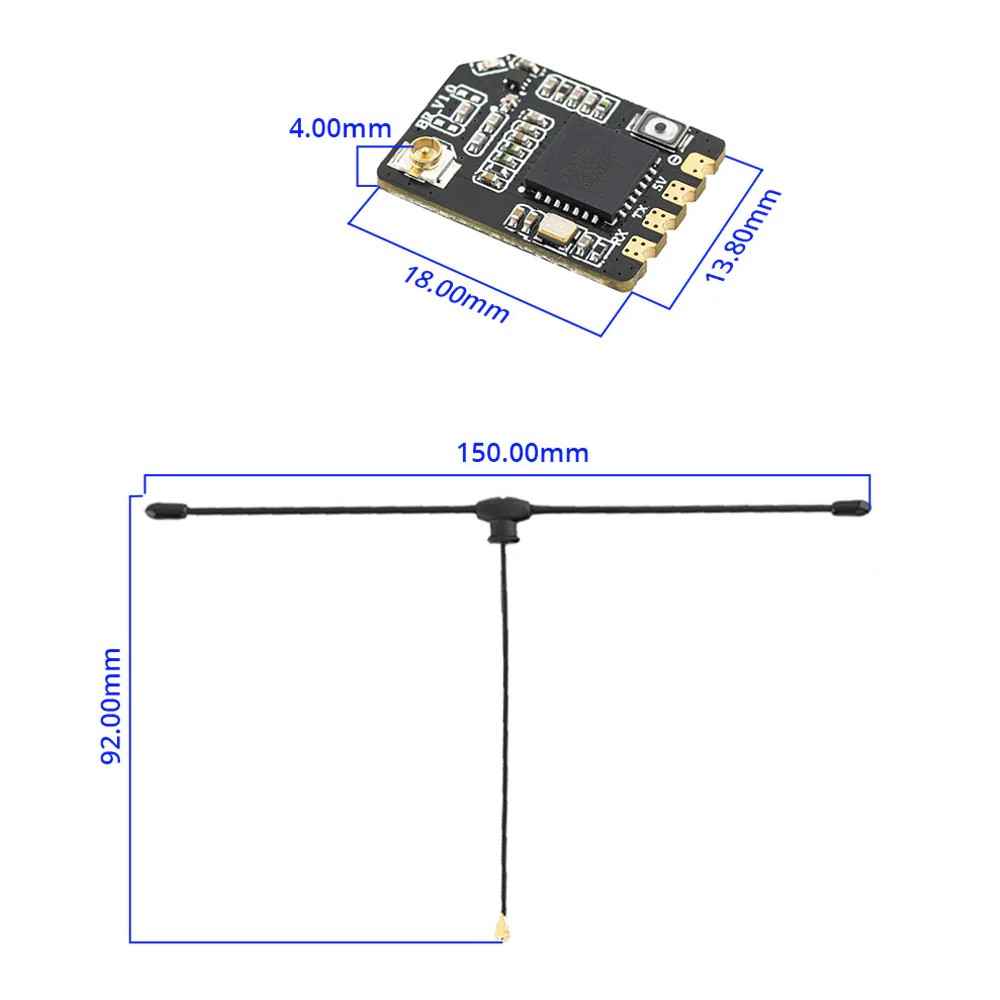

| Length (mm): | 18 |
| Width (mm): | 13.8 |
Radiomaster Bandit BR1 ExpressLRS 915MHz Receiver Overview
The Radiomaster Bandit BR1 ExpressLRS 915MHz Receiver is a high-performance long-range RC link designed for FPV drones and remote applications. It features a built-in TCXO for stable frequency accuracy and uses the CRSF bus interface to deliver low-latency control and real-time telemetry.
Key Features of Radiomaster Bandit BR1 ExpressLRS 915MHz Receiver
- Built-in TCXO ensures temperature-compensated frequency stability in harsh environments
- ESP8285 MCU paired with SX1276 RF chip offers high sensitivity and exceptional range
- Telemetry RF power selectable up to 50 mW (17 dBm) for reliable uplink data
- Includes 915/868 MHz T Antenna and Y Antenna with IPEX1 connectors for quick installation
- Vibration-resistant 0402 components maintain signal integrity on high-vibration platforms
- Operating voltage DC 5.0 V for direct integration with standard flight controllers
- Fast shipping from Zbotic ensures you receive your receiver within 24 hours*
Applications and Use Cases
- Long-range FPV drone flights requiring stable control and telemetry feedback
- RC airplanes and gliders where minimal latency and high sensitivity are critical
- Off-road robotics projects needing reliable remote operation over extended distances
- Custom unmanned vehicles that leverage CRSF for advanced telemetry channels
- FPV racing setups demanding low latency and robust signal in crowded frequency bands
How to Use Radiomaster Bandit BR1 ExpressLRS 915MHz Receiver
Power the BR1 ExpressLRS receiver with 5 V from your flight controller, mount the included T and Y antennas on separate IPEX1 ports, and bind to your ExpressLRS transmitter using the CRSF protocol. Once bound, configure RF power and telemetry settings in the ExpressLRS LUA script or companion configurator, then secure the receiver in your frame and verify signal strength before flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I bind the BR1 ExpressLRS 915MHz receiver to my transmitter?
Enter binding mode on your ExpressLRS transmitter via the LUA script, then power on the BR1 receiver. The LED will flash rapidly during binding and turn solid once the link is established.
What voltage does the Radiomaster Bandit BR1 require?
The BR1 ExpressLRS receiver requires a stable 5 V DC supply, typically provided by the flight controller’s regulated BEC output.
Can I receive telemetry data through this receiver?
Yes, the Bandit BR1 supports full CRSF telemetry, allowing real-time sensor data and battery status to be sent back to your transmitter.
Datasheet:
Package Includes:
- 1 x Bandit BR1 Expresslrs Receiver
- 3 x Receiver Shrink Tube Sleeves
- 1 x T Antenna
- 1 x CRSF Wire
- 1 x Manual
Drone Battery Voltage Sag: Why It Happens and How to Fix It
You've just taken off with a freshly charged 6S LiPo. The battery reads 25.2V on the bench. But...
Read More →
OpenPilot vs ArduCopter: Legacy and Modern Flight Controller Stacks Compared
If you've been building drones for more than a few years, you've likely encountered both OpenPilot and ArduCopter....
Read More →
Drone Photography Tips: Best Camera Settings for Aerial Shots
Drone Photography Tips: Best Camera Settings for Aerial Shots Aerial photography has democratized dramatically over the past five...
Read More →Technical Specifications
| Brand | Radiomaster |
|---|---|
| Model | BR1 |
| Frequency | 915MHz |
| SKU | AI7262 |
| Weight | 0.0156 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Radiomaster Bandit BR1 ExpressLRS 915MHz Receiver is a versatile drone transmitter and receiver used across a wide range of applications including FPV drone control, RC aircraft, ground vehicles, and long-range drone operations.
Common use cases:
- Setting up a new FPV quad with digital link
- Replacing a receiver after a crash
- Building a long-range fixed-wing aircraft
This product is ideal for FPV pilots, RC hobbyists, and drone builders.
Technical Tip: ELRS (ExpressLRS) offers excellent range and low latency at 2.4GHz. Ensure your transmitter and receiver use the same protocol.
