Ag01 Nano Gimbal – Description:
Introducing the Radiomaster AG01-Nano Gimbal Your RadioMaster Pocket just got a game-changing upgrade option! RadioMaster, renowned for elevating your RC experience, has shattered expectations once again. By popular demand, the AG01 series of gimbals now has a Nano Option for the popular Pocket controller.
Crafted from billet CNC aviation-grade aluminum and equipped with quad precision ball bearings, the AG01 Nano gimbals deliver unparalleled performance and customization. Experience effortless maneuverability with customizable movement angles ranging from 38° to 54°. Sense the Pinpoint Accuracy with High-speed, high-precision, no-contact Hall effect sensors ensures razor-sharp accuracy and effortless centering. Feel the butter-smooth action from the quad precision ball bearings delivering silky-smooth operation for a truly intuitive flying experience.
Features:
- Made with billet CNC aviation grade aluminum for superior durability and outstanding looks
- Non contact hall sensors with precise centering for accurate control
- Quad precision bearings for unparalleled feel
- Adjustable vertical travel angle (Min. 38°, Max. 54°)
- AG01 NANO Gimbal is specifically designed for the smaller POCKET radio
Specifications:
| Item Type: | Nano Gimbal |
|---|---|
| Sensor Type | Non-contact hall effect |
| Bearing | Quad precision bearings |
| Operating Temperature (°C): | -20°c-85°c |
Package Includes:
- 2 x AG01 NANO CNC Hall CNC Gimbal
- 2 x L-shaped Hexagon Socket Screwdriver
- 4 x Hard Tension Spring
- 8 x PB2*6 Screw
- 2 x CM1.6*3 screw
- 2 x Manual
Radiomaster AG01-Nano Gimbal Overview

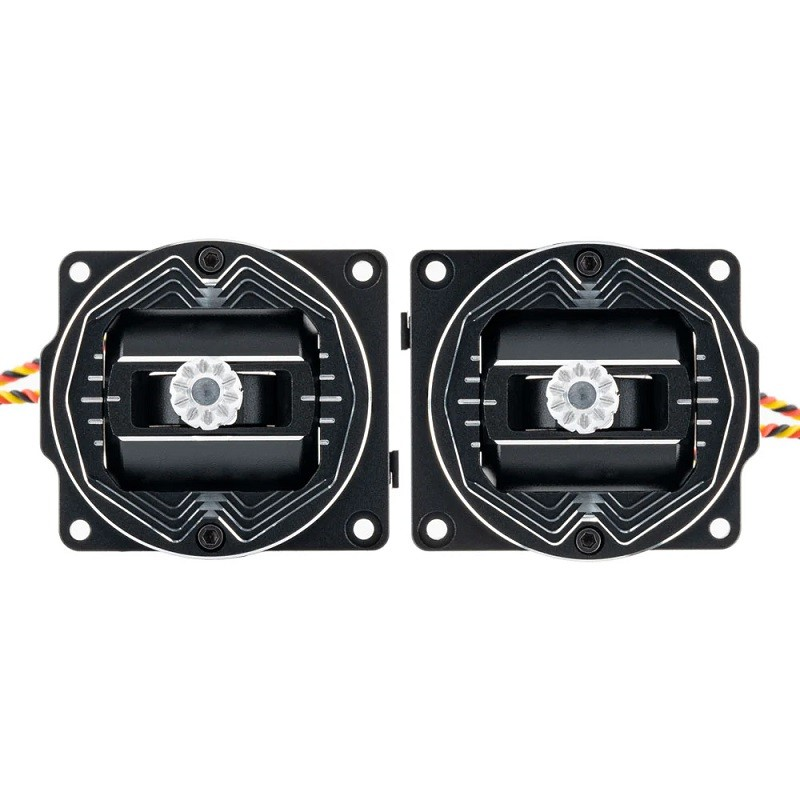

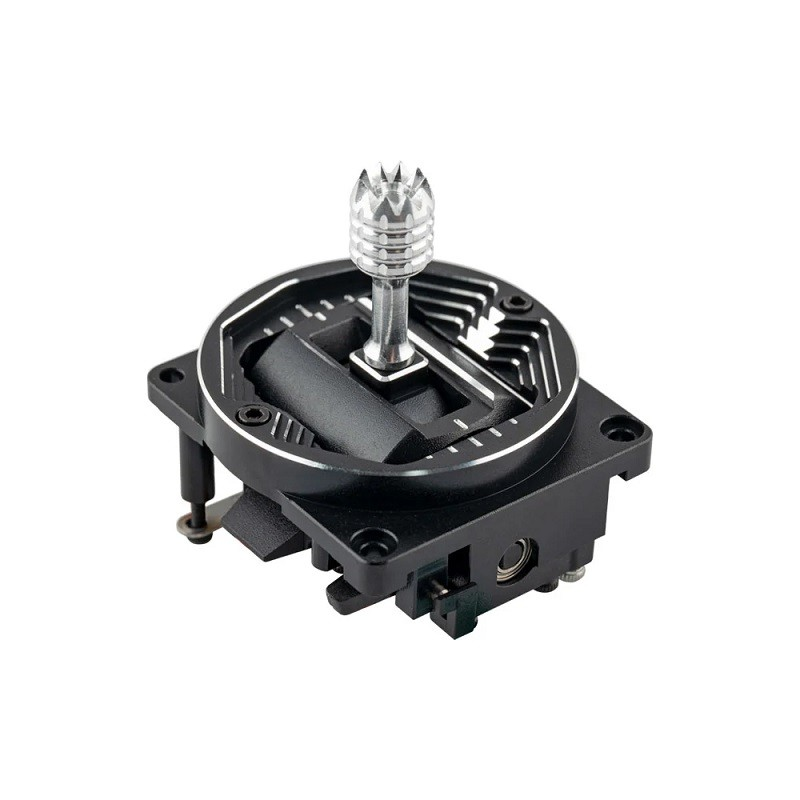

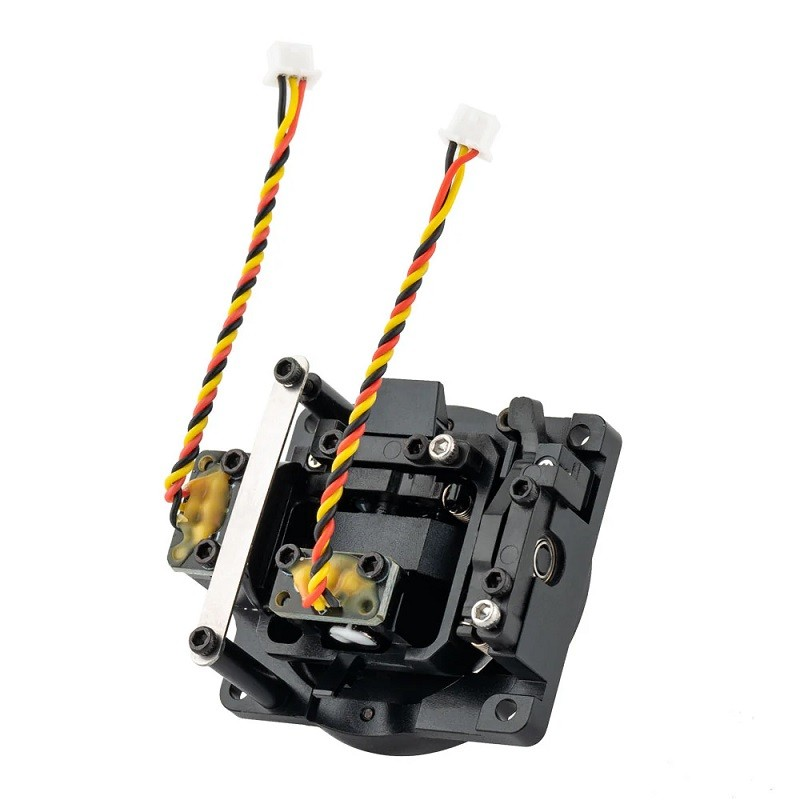

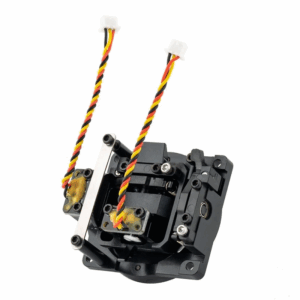

The Radiomaster AG01-Nano Gimbal is a compact, high-precision stick module designed as an upgrade for the RadioMaster Pocket transmitter. It replaces the stock gimbals with CNC aviation-grade aluminum assemblies, offering smoother control and instant response via non-contact Hall Effect sensors.
Key Features of Radiomaster AG01-Nano Gimbal
- Non-contact Hall Effect sensors for real-time, drift-free stick inputs
- Adjustable travel angle from 38° to 54° to suit different pilot preferences
- Self-centering springs with tension and mode adjustments for tailored stick feel
- Quad precision ball bearings ensure ultra-smooth movement under load
- CNC-machined aviation-grade aluminum housing for durability and lightweight handling
- Fast shipping from Zbotic – get your gimbals delivered within 24 hours*
Applications and Use Cases
- Upgrading RadioMaster Pocket controller for enhanced FPV racing precision
- Fine-tuning control sensitivity in drone freestyle and acro flights
- Replacing worn-out sticks on remote units used for multi-rotor photography rigs
- Improving consistency and response in RC plane throttle and elevator control
- Customizing stick feel for long-range fixed-wing or glider missions
How to Use Radiomaster AG01-Nano Gimbal
To install, remove the RadioMaster Pocket bottom plate, unplug the stock gimbals and fit the AG01-Nano modules into their slots. Secure them with the included screws, then reassemble the transmitter. Power on, enter the radio’s calibration menu to set the new stick endpoints and fine-tune travel angles, tension and centering to your preference.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the AG01-Nano compatible with other RadioMaster transmitters?
The AG01-Nano is specifically designed for the RadioMaster Pocket controller’s stick module. It uses the same connector and footprint, but it will not fit larger or differently laid-out RadioMaster radios without modification.
Do I need to update firmware after installing the Nano gimbals?
No firmware update is required. After installing the AG01-Nano, simply recalibrate stick endpoints in your existing firmware version to recognize the new travel limits and sensor readings.
How do I adjust the tension and centering on these gimbals?
The AG01-Nano includes small adjustment screws on each module. Turn the tension screw clockwise to increase stick resistance or counterclockwise for lighter feel. Use the centering screw to fine-tune the neutral position before calibration.
