Looking for Ag01 Box? Radiomaster AG01 CNC Hall Gimbals for TX16S & Boxer is available at Zbotic with fast shipping across India.
Ag01 Box – Description:
Radiomaster AG01 CNC Hall Gimbals for TX16S & Boxer gimbals have been in development with our engineers and champion pro pilots such as MCK, Alex Campell , Noical, and Veysi. FPV, AZFPV, Xiao Zheng, and Long XL meet the demanding requirements of the world’s most competitive racing events.
The Radiomaster AG01 CNC Hall Gimbals for TX16S & Boxer is fully CNC milled for ultimate precision with quad ball bearings for a smooth and precise feel. Featuring front-accessible tension and travel adjustment for easy fine-tuning. The AG01 will take your TX16S to the next level.
Features:
- Made with CNC processed aviation grade aluminum

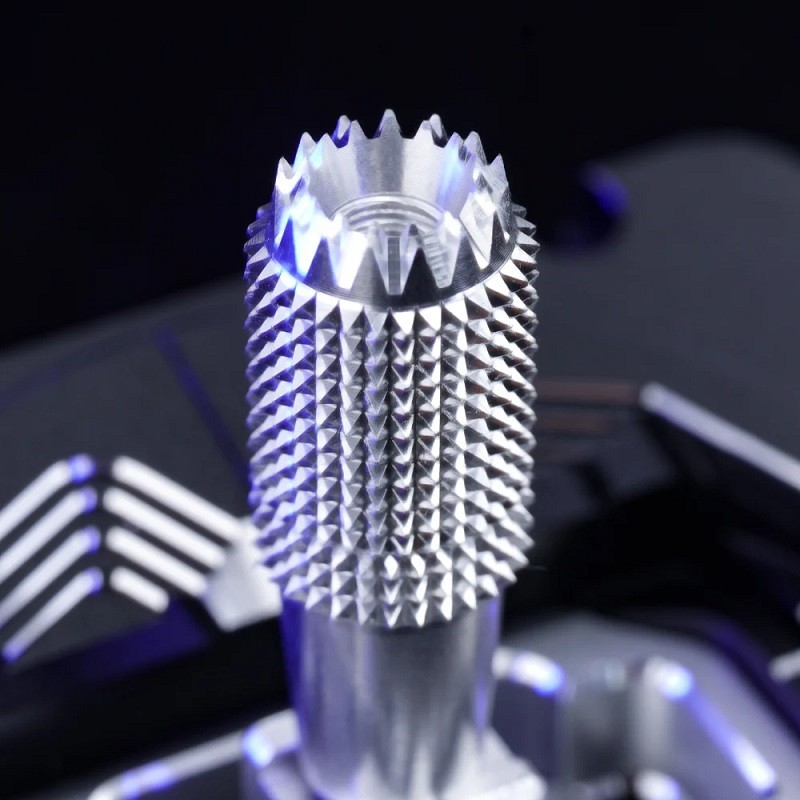

- Ergonomic stick ends
- Non-contact hall sensors, for accurate control inputs and precise centering.
- Quad precision bearings, for unparalleled stick feel.
Specifications:
| Item Type: | AG01 CNC Hall Gimbal- HOLLOWSHAFT- Set |
|---|---|
| Sensor Type | Hall Sensor |
| Operating Temperature (°C): | -20°c-85°c |

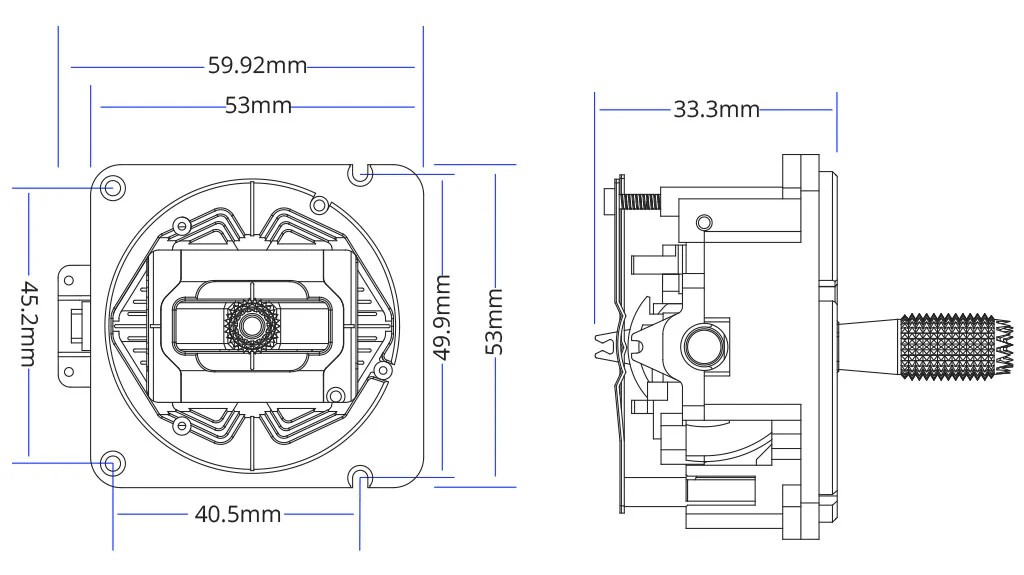

| Length (mm): | 60 |
| Width (mm): | 53 |
| Height (mm): | 56 |

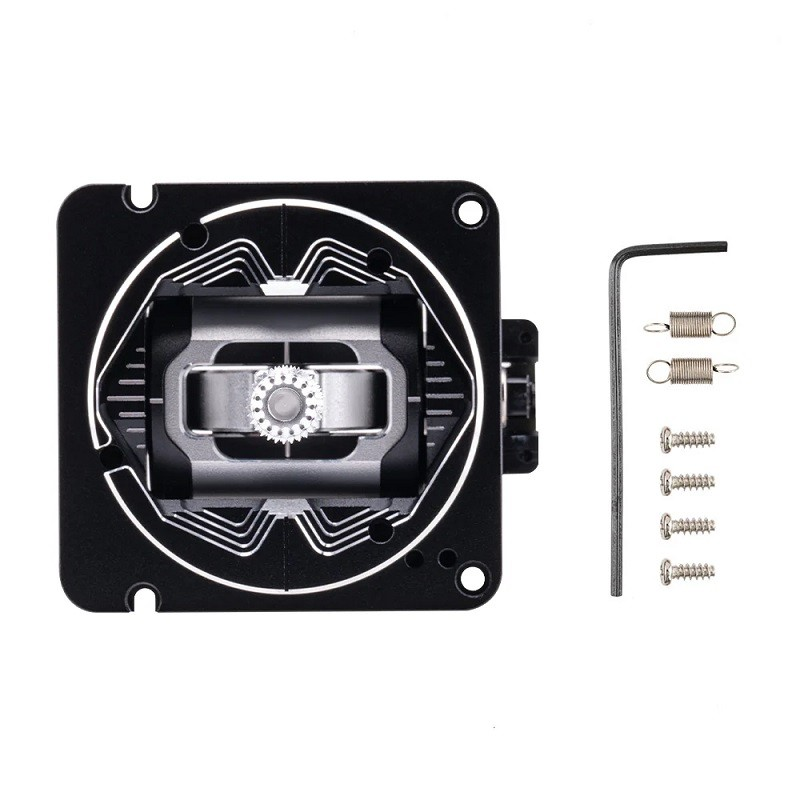

Package Includes:
- 1 x AG01 CNC Hall Gimbal (Centering / Throttle)
- 1 x TX16S Softer Tension Spring Set
- 1 x Hexagon socket screwdriver
- 1 x Manual
Radiomaster AG01 CNC Hall Gimbals for TX16S & Boxer Overview
The Radiomaster AG01 CNC Hall Gimbals for TX16S & Boxer are precision-engineered replacement stick modules designed to upgrade your Radiomaster TX16S or Boxer remote controller. These Hall-effect gimbals deliver smooth, real-time stick sensing and adjustable range, ideal for competitive FPV racing and high-end flight control.
Key Features of Radiomaster AG01 CNC Hall Gimbals for TX16S & Boxer
- Hall-effect sensing with DC 3.3 V operation for accurate stick position detection
- Real-time linearity with no delay, ensuring instant response to stick movements
- Adjustable travel range from 38° to 54° via front-accessible screws
- Fully CNC-milled aerospace-grade aluminum construction for durability and precision
- Quad ball-bearing design for ultra-smooth, low-friction stick action
- Available with fast shipping across India when ordered from Zbotic
Applications and Use Cases
- Upgrading stock gimbals on Radiomaster TX16S and Boxer transmitters
- Enhancing stick precision for FPV drone racing and freestyle flying
- Customizing travel limits for simulators and virtual flight training
- Reducing stick wear and tear in frequent practice sessions
- Fine-tuning tension for pilots who require different stick resistance levels
How to Use Radiomaster AG01 CNC Hall Gimbals for TX16S & Boxer
To install the AG01 gimbals, open your TX16S or Boxer transmitter’s backplate, remove the original stick modules, and plug in the new Hall gimbals into the matching connector. Secure them using the supplied screws, then adjust the front-accessible tension and travel screws to your preferred stick feel and throw range. Finally, power on the transmitter and calibrate the sticks in the settings menu for optimal performance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Are these gimbals compatible with other transmitter models?
The AG01 CNC Hall Gimbals are specifically designed for Radiomaster TX16S and Boxer controllers. They use the same connector and mounting points, ensuring a perfect fit without modifications.
How do I adjust the stick travel range?
Front-accessible travel adjustment screws allow you to set the stick throw between 38° and 54°. Turn the screw clockwise to reduce travel or counterclockwise to increase it, then retighten securely.
Do I need to recalibrate after installation?
Yes. After installing the AG01 gimbals, access your transmitter’s calibration menu and follow the on-screen prompts to map the new stick range and ensure accurate stick positions.
