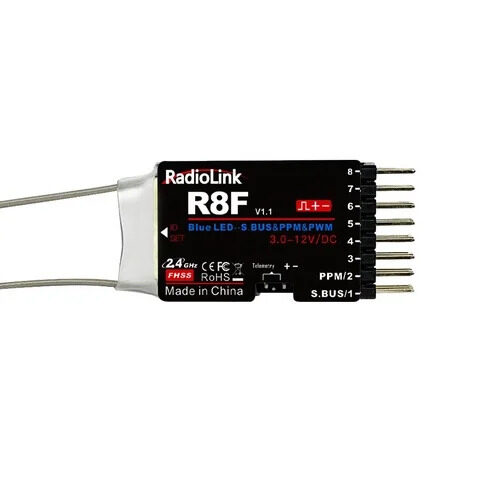

Radiolink R8F Receiver:
The stable remote-control distance of R8F is up to 800 meters on the ground. Control with the camera and the display screen/goggle makes the drivers enjoy FPV fun. Capable of real-time transmission of RSSI, receiver, and model voltage. The RSSI value and receiver voltage will display on the screen once the binding complete between transmitter and receiver.

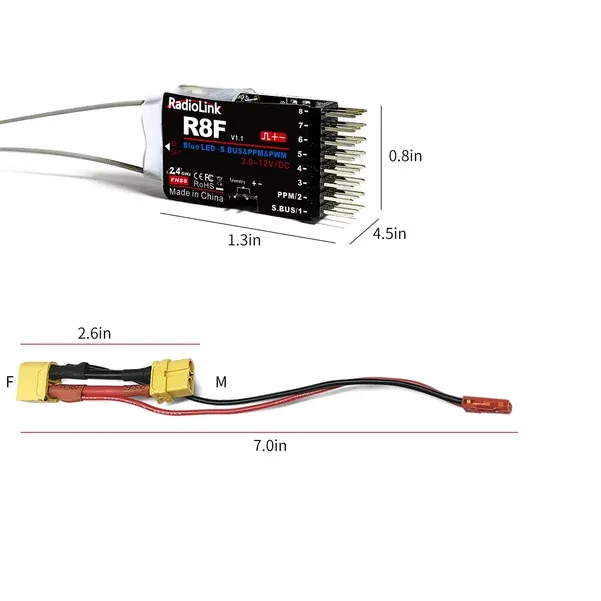

The model voltage will display on the screen by connecting the battery to the Telemetry port via the voltage feedback cable (come with R8F), without extra backhaul module needed. The real-time maximum voltage can be up to 8S battery. To support the two-way transmission function, the corresponding latest firmware needs to be flashed.

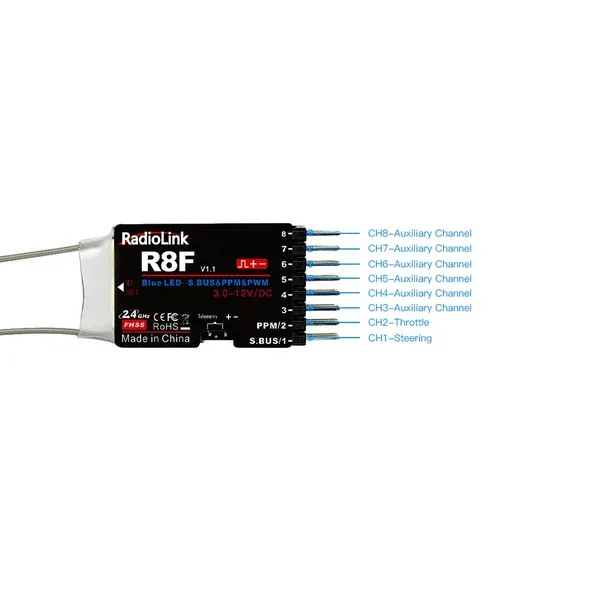

When at standard working mode, channel (CH) 1 to channel 8 are PWM signal output. Besides CH1 for steering and CH2 for throttle, CH3 to CH8 are auxiliary channels to connect extended functions such as light modules and buzzers.
When at SBUS/PPM signal output, the flight controller can be connected and works with GPS to realize the RTL function of the shipping boat or setup of Mecanum models.
FHSS spread spectrum algorithm and 67-channel pseudo-random frequency hopping make excellent anti-interference performance, perfect for multiplayer complete synchronously.The 32 bits industrial level M0 chip applied makes better protection from fuel engine spark and ensures the safety of enjoying fuel-powered model cars.
Features:
- The stable remote-control distance of R8F is up to 800 meters on the ground
- Control with the camera and the display screen/goggle makes the drivers enjoy FPV fun
- FHSS spread spectrum algorithm and 67-channel pseudo-random frequency hopping make excellent anti-interference performance
Specifications:
- Channels: 8ch
- Signal output: PPM/PWM/S-BUS, 2.4GHz
- Modulation Mode: GFSK
- Antenna Length: 200mm
- Control Distance: 600 meters on the ground
- Power Supply: 3v-15v DC(new test)
- Voltage Telemetry: 1S-8S
- RF Power: <10dbm
- Channel resolution: 4096
- Working Current: 30mA

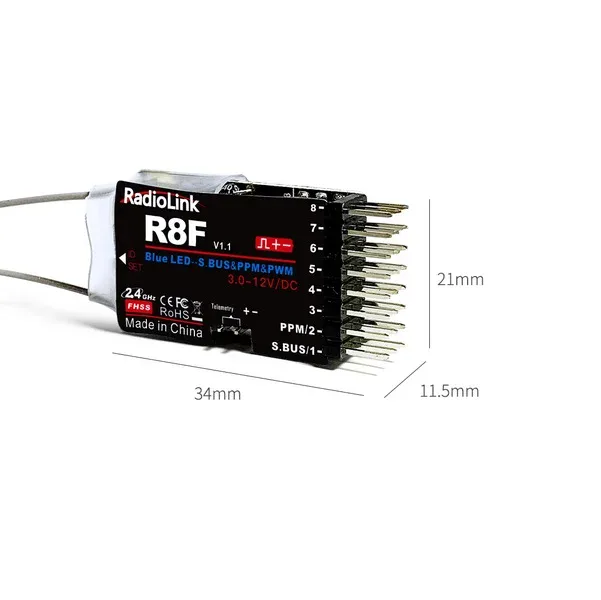

- Size: 34*21*11.5mm
- Weight: 6.5g
- Model Application: Car/boat/Fixed wing/Glider/Multirotor
- Compatible transmitter: RC4GS/RC4GS V2 RC6GS/RC6GS V2 T8FB T8S
Packages Includes:
1 x Radiolink R8F receiver
Radiolink R8F Receiver Overview
The Radiolink R8F Receiver is an 8-channel, 2.4 GHz GFSK remote-control receiver designed for drones and RC models. It delivers stable signal output in PPM, PWM or S-BUS formats and provides real-time RSSI and voltage telemetry directly to your transmitter or display.
Key Features of Radiolink R8F Receiver
- 8-channel output supporting PPM, PWM and S-BUS signal protocols
- Real-time RSSI and receiver voltage telemetry displayed upon binding
- Direct battery voltage feedback (up to 8S) via included voltage cable—no extra module required
- Up to 600 m reliable ground control range with diversity 200 mm antennas
- Wide power input from 3 V to 15 V DC for flexible installation
- Genuine Radiolink R8F Receiver with fast shipping from Zbotic
Applications and Use Cases
- Long-range FPV drone flights requiring stable telemetry and control
- Multi-rotor UAVs needing voltage monitoring and RSSI display on goggles or ground station
- Fixed-wing RC models with S-BUS servos and real-time link quality feedback
- Custom robotics projects where eight channels and voltage telemetry are critical
- Aerial mapping platforms that benefit from direct battery voltage reporting
How to Use Radiolink R8F Receiver
Mount the R8F in your model ensuring the two antennas are orthogonal for best reception. Power the unit with 3–15 V DC, then short the bind port to enter bind mode. Initiate binding on your Radiolink transmitter; once the LEDs indicate a successful link, remove the bind jumper. Connect the voltage feedback cable from your battery to the Telemetry port to begin real-time voltage and RSSI reporting.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I bind the Radiolink R8F Receiver to my transmitter?
Power on the R8F with the bind plug inserted. On your Radiolink transmitter, select “Bind” mode under the receiver settings. Once the receiver’s LED changes from flashing to solid, binding is complete—remove the bind plug and power-cycle the receiver.
Can I monitor my flight battery voltage without extra hardware?
Yes. The R8F includes a voltage feedback cable that connects your battery to the Telemetry port. It will display real-time battery voltage up to an 8S pack on your Radiolink transmitter or compatible display.
What signal outputs are available on the R8F?
The R8F provides PPM, up to eight PWM channels in standard mode, and S-BUS output. Switch output modes via your transmitter firmware or configuration software as needed for your servos or flight controller.
