Product Description:

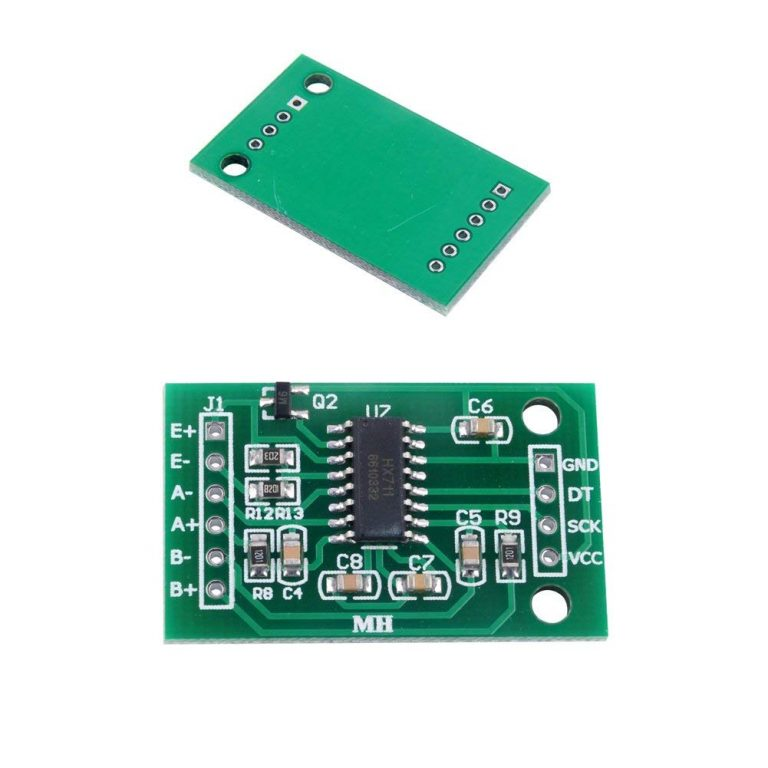

This product is a 5kg HX711AD Pressure Sensor Module with 4P DuPont Wire Shell and a Weighing Electronic Weighing Sensor Kit.
The kit includes a straight bar load cell (or strain gauge) that can convert up to 5 kg of pressure (force) into an electrical signal. The load cell measures the electrical resistance that changes according to the strain (e.g. pressure or force) applied to the bar. The load cell is made of aluminium alloy and has a capacity range of 0~5KG.
The load cell has four lead wires that can be connected to the HX711 A/D Pressure Sensor Module. The module can be powered by 5-10V and produces an output voltage that varies with the force on the load cell.

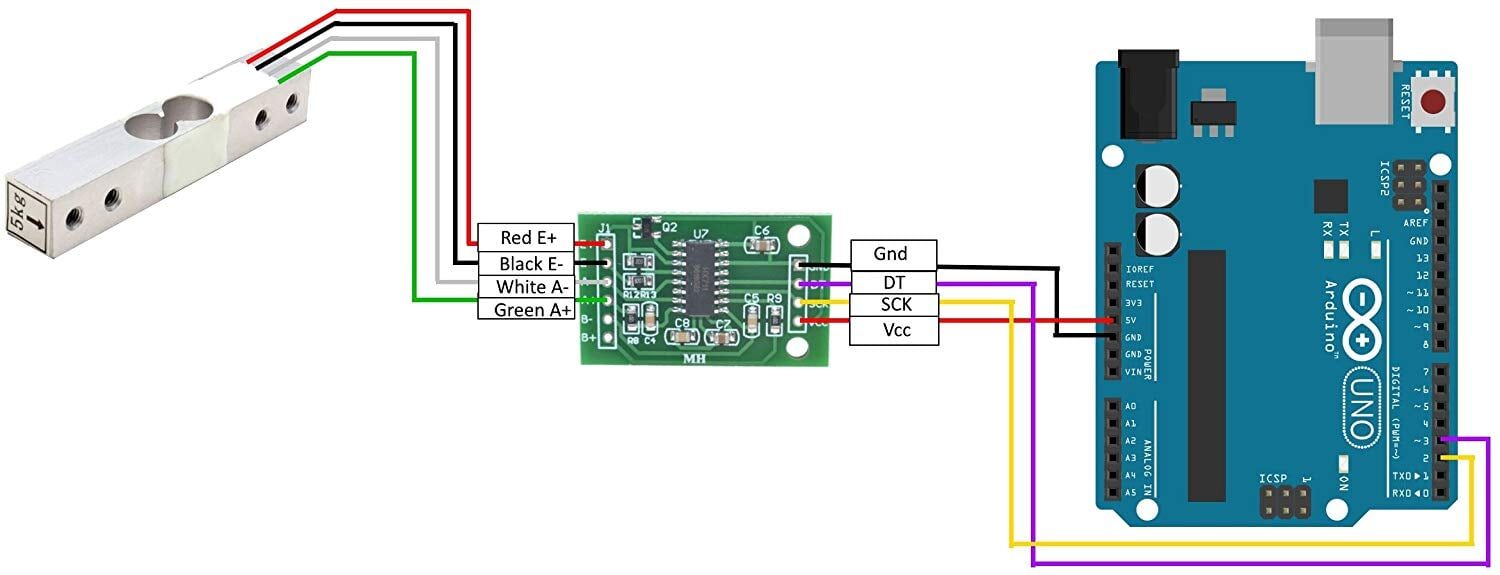

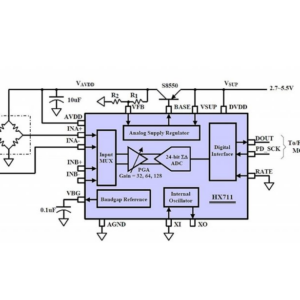

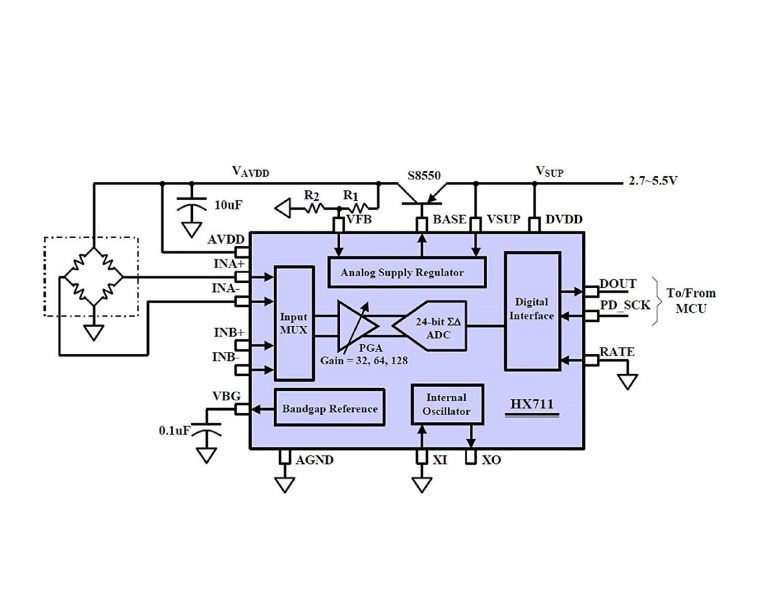

Connection Diagram with Arduino via HX711:
Features:
- On-chip active low noise PGA with selectable gain of 3264 and 128
- Simple digital control and serial interface: pin-driven controls programming needed
- You need to connect load cell with HX711 module like this, Red to E , Black to E-, Green to A , White to A-
- This HX711 module uses 24 high precision A/D converter chip hx711.
Package Includes:

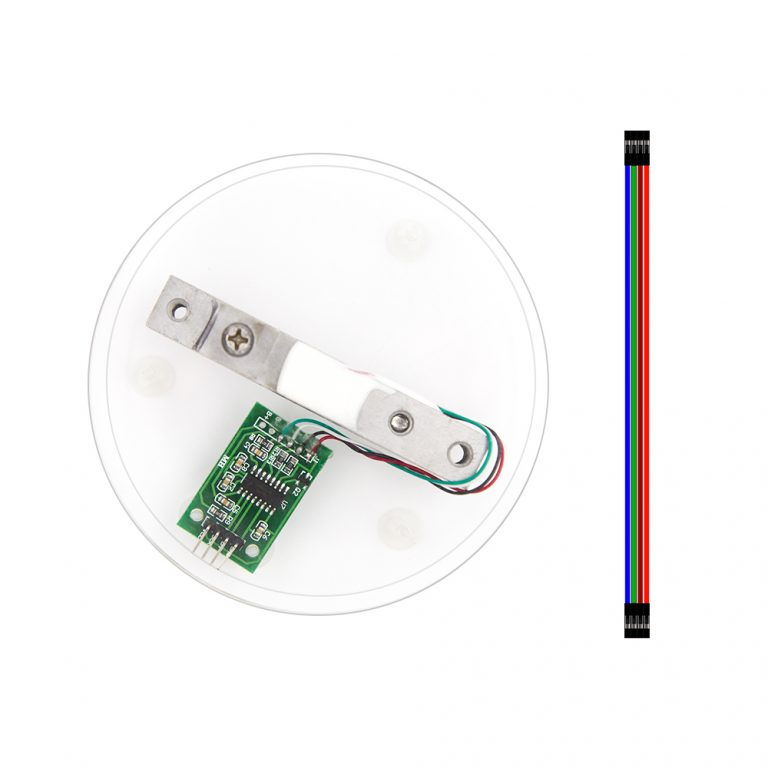

1 x 5 kg Load Cell with HX711AD Module, Shell and 4P DuPont Wire Kit
