This is the Red variant of the Foxeer PredatorV5_Mini_HS1251 in FPV Cameras. Available at ₹3,957.98 (₹3,354.22 + GST) with free shipping across India.

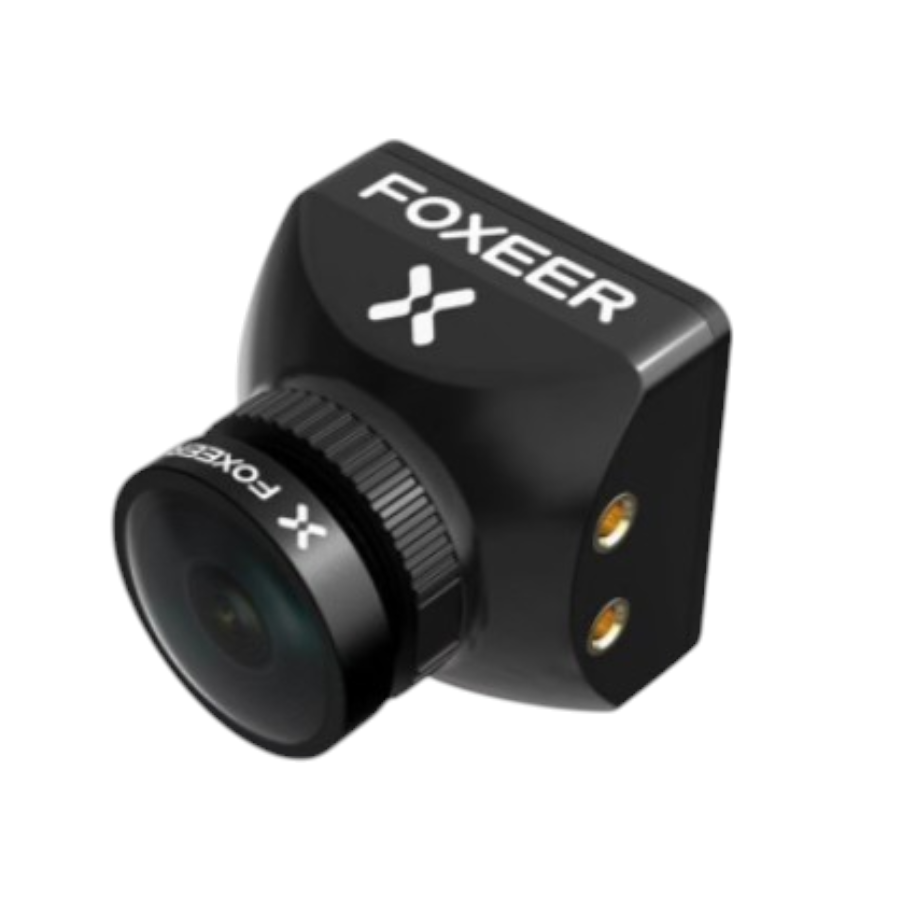

Foxeer PredatorV5_Mini_HS1251
Description:

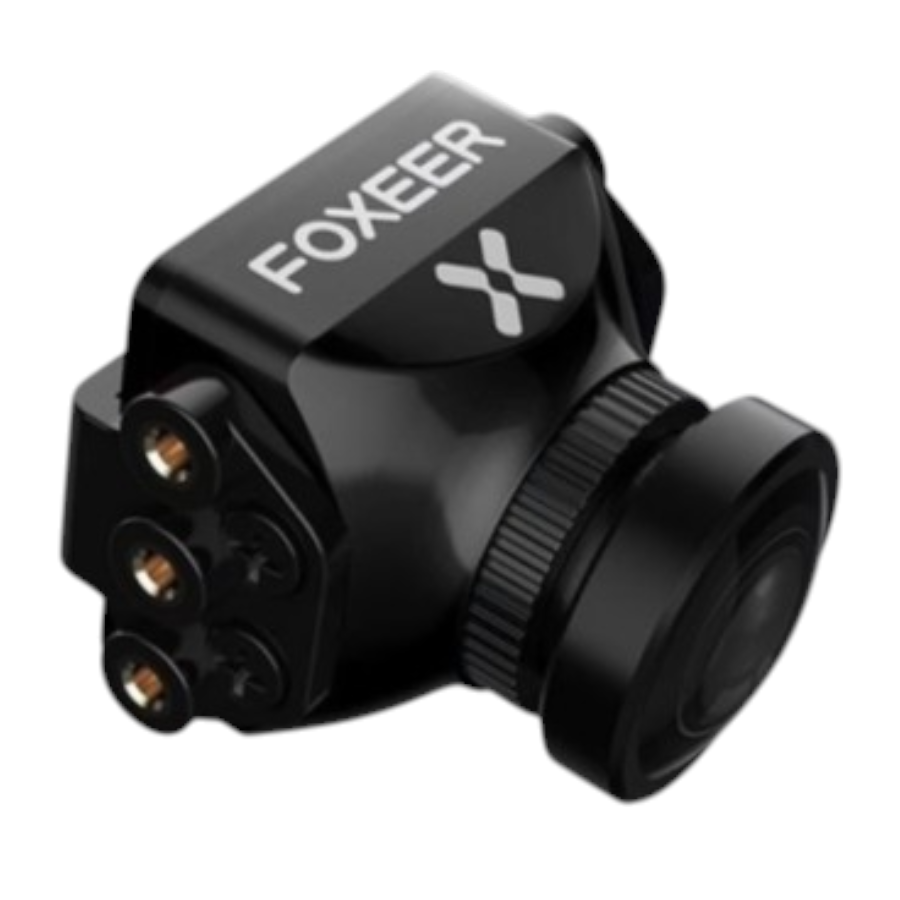

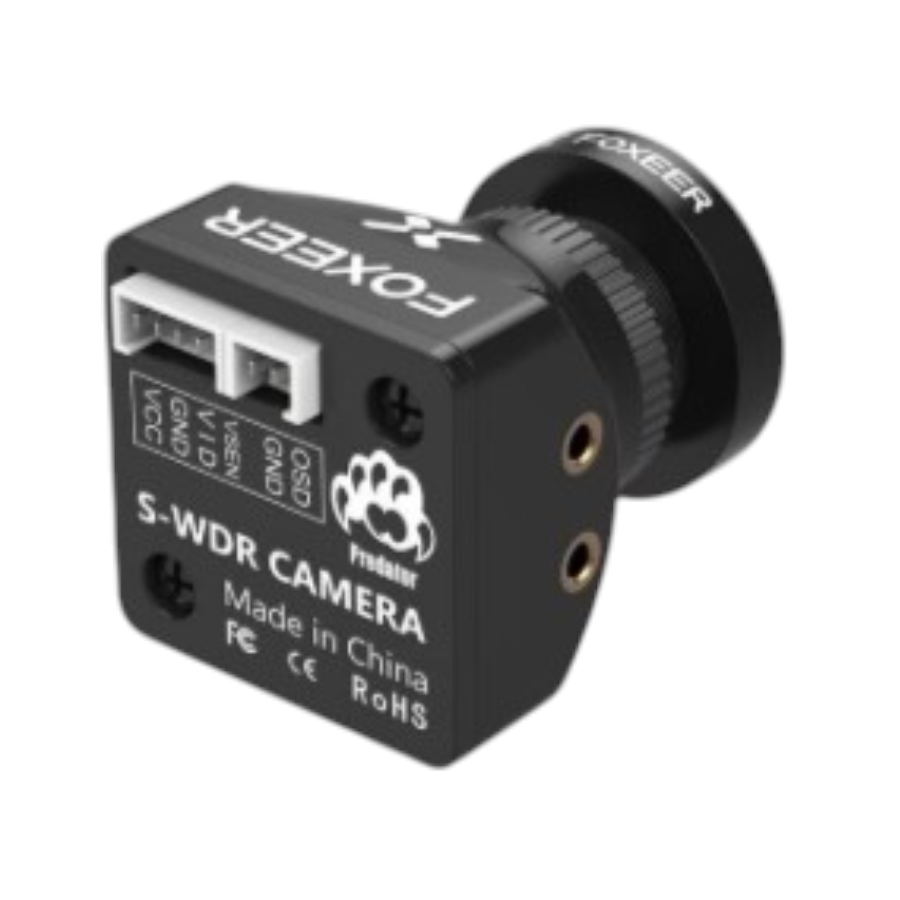

The Foxeer Predator 5 Mini FPV Camera 1000TVL is a 22x22mm FPV camera. This camera features a 1/3″ CMOS sensor, 1000TVL resolution, 4ms latency, NTSC/PAL switchable, image flip, super WDR function, and many other cool features! Compare to the Predator 4, the Predator 5 has a more natural image, and it is also exclusive for LEDs.
The Predator Mini has a 150° field of view, super WDR function for improved contrast in different light conditions, and 4-millisecond latency for virtually instant feedback, all of which make it perfect for FPV racing.
Other key features of the Predator 5 are that it is optimized for LED glare so is perfect for night flying where LED lights are being used, provides a super, crisp natural-looking image, has optional crosshairs for accurate flying, is NTSC/PAL switchable plus lots more. The camera is supplied with a 5-button, easy-to-use OSD control unit, wiring harness, mounting bracket, and mounting screws. Improve your FPV racing/flying experience with this easy-to-set-up, high-quality camera.
Specification:
| Item Type: | FPV Camera |
| Resolution (TVL): | 1000 |
| Color | Black |
| Sensor Type | Sony 1/3″ CMOS Sensor |
| Scale | 4:3(Default)/16:9 Switchable |
| TV System | PAL(Default)/NTSC Switchable |
| Video Output | CVBS Analog Signal |
| Field of View (FOV): | 2.1mm: FOV-H:110°, FOV-D 140° |
| Shutter Speed | Auto |
| Minimum Illumination | 0.01Lux |
| White Balance | Auto |
| DNR | 3DNR 2DNR |
| WDR | Super WDR |
| Day/Night | Auto/Color/B&W |
| Flight OSD | Voltage/Cam Title/Time/Cross Hair |
| Flip | Supported |
| Modes | DAY/CLOUDY/Night/LED |
| Fast Mode Switch | Long Press Right Button to switch among DAY/CLOUDY/Night/LED |
| Input Voltage (V): | 4.5V~20V |
| Language | ENGLISH/ DEUTSCH/ FRANCAIS/ PYCCKNN/ PORTUGUES/ ESPANOL/ 中文 |
| Operating Temperature (°C): | -10°~50°C RH90% MAX |
| Operating humidity | 20~80% |
| Storage Temperature (°C): | -20°~70°C |
| Consumption | 50mA±15% @ DC12V 115mA±15% @ DC5V |

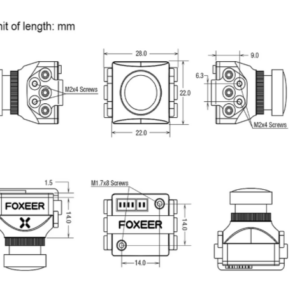

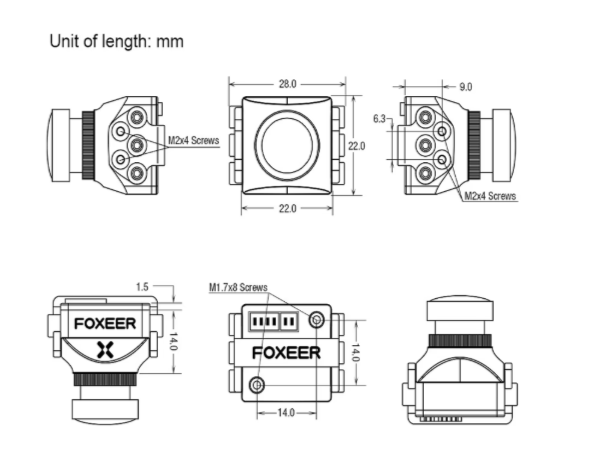

| Overall Dimension | 22*22mm; 28*22mm(Add Bracket) |
Features:
- Ultra Clarity: Enjoy crystal-clear FPV footage with the Foxeer Predator 5 Mini’s high-resolution image sensor.
- Wide Dynamic Range (WDR): Capture vivid details in both bright and dark environments for enhanced visibility.
- Low Latency: Experience real-time video transmission with minimal delay for a seamless FPV flying experience.
- Compact and Lightweight: The mini size and lightweight design make it perfect for FPV racing drones without sacrificing performance.

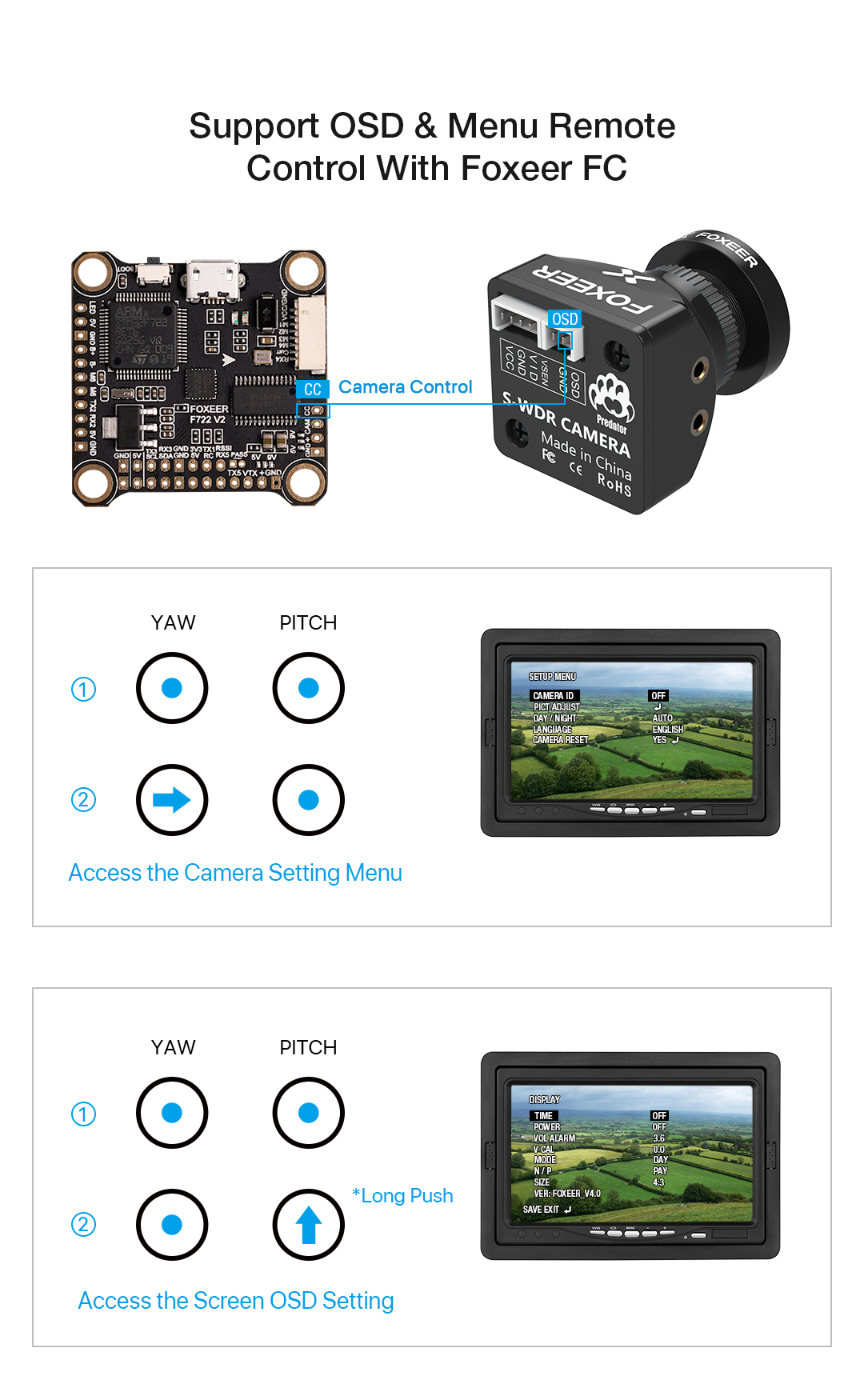

- OSD Configuration: Easily adjust camera settings on-screen, including brightness, contrast, and more.
- Strong Anti-Interference: Built-in 5.8GHz frequency support ensures stable video transmission, even in crowded areas.
- Wide Voltage Range: Compatible with a wide range of input voltages, making it versatile for various FPV setups.
- Durable Construction: Designed to withstand the demands of FPV racing, with a robust casing and reinforced connectors.
- Easy Installation: The Predator 5 Mini FPV camera offers hassle-free mounting options for seamless integration into your drone.
- Multi-Functional Bracket: The adjustable bracket allows for flexible positioning, ensuring optimal camera angle and view.

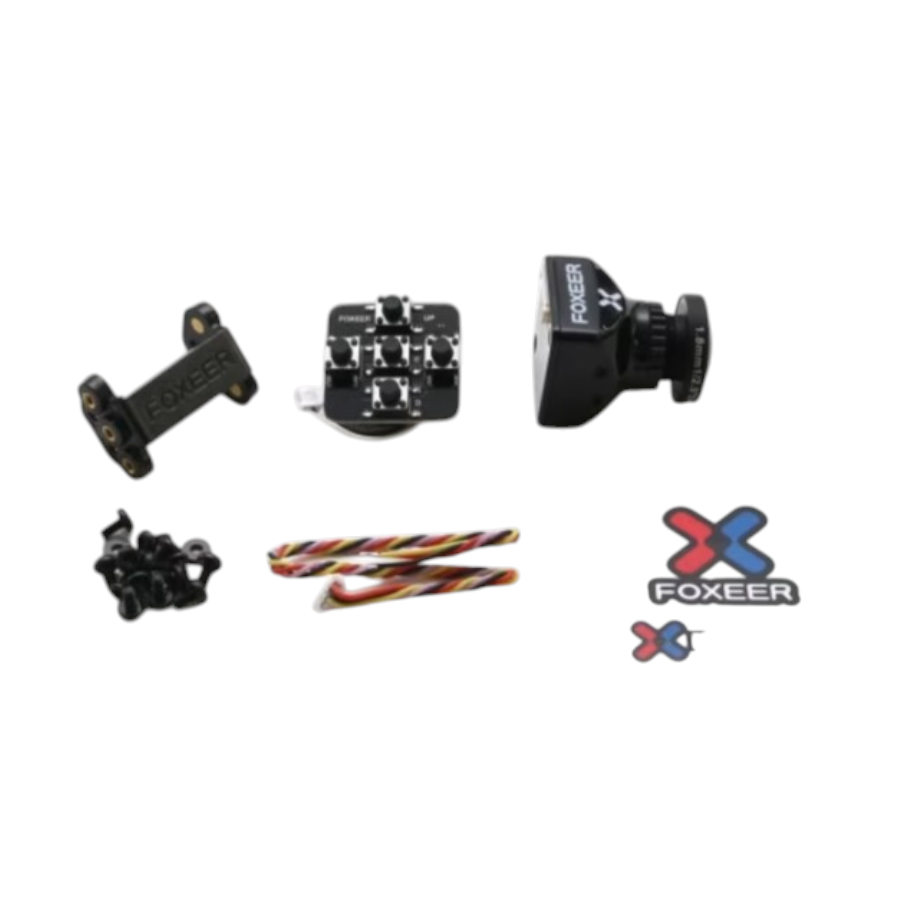

Package Includes:
1 x Foxeer Predator 5 Mini 1 x OSD Board 1 x Bracket 12 x Bracket Screws 6 x Bracket Ring 1 x 2pin OSD Cable 1 x Servo Cable
Technical Specifications
| Brand | Foxeer |
|---|---|
| Color | Red |
| SKU | AI8211 |
| Weight | 12 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Foxeer PredatorV5_Mini_HS1251 is a versatile fpv cameras used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
