Product Description
PIXHAWK PX4 2.4.8 Flight Controller is a high-performance autopilot-on-module suitable for fixed wing, multi rotors, helicopters, cars, boats and any other robotic platform that can move. It is targeted towards high-end research, amateur and industry need and combines the functionality of the PX4FMU PX4IO.
The universal vibration damping mount or shock absorber has a list of useful applications. This is free camera mounting to Flight controller isolation. It absorbs vibration, the center supported plate is ideal for sensitive electronics and cameras. The flush flat-bottom mounting allows bolt or tape style attachment.
A new generation Ublox GPS NEO-M8N, with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy; support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol, and mode or more. The GPS Folding Antenna Base mount comes will a laser cut adhesive pad to quickly attached your GPS module, while the mount itself can be fixed to your craft using the base plate M3 hole, or the cross slides.
The PIXHAWK PX4 2.4.8 Power Module is a simple way of providing your Pixhawk PX4 2.4.8; with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable.

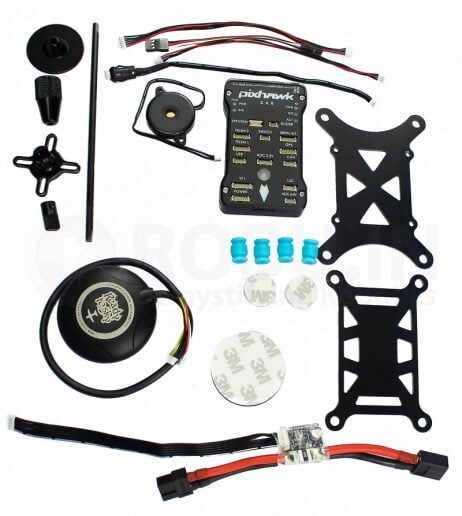

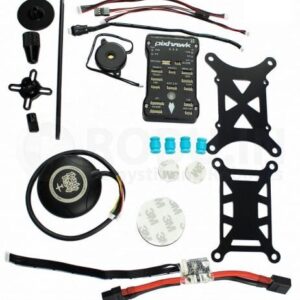

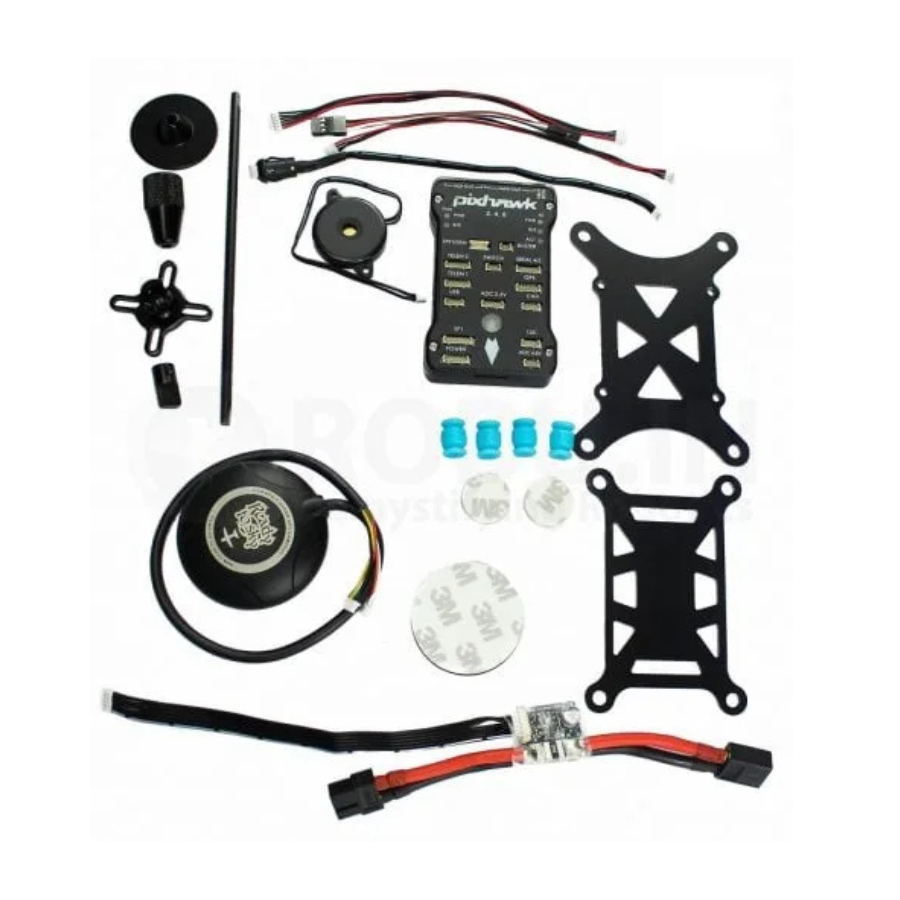

Package Includes:
1 x Pixhawk V2.4.8 Flight board with Original Shell.
3 x Connecting Cables
1 x Buzzer Module
1 x Glass Fiber Flight Controller Anti-vibration/Shock absorber Set.
1x NEO-M8N GPS Module with translucent Shell.
1 x GPS Folding Base Antenna set.
1 x APM 2.5.2/2.6/2.8 Pixhawk Power Module.
Specifications and Features:
Pixhawk V2.4.8 Flight board:
- The advanced 32-bit ARM CortexM4 high-performance processors can run NuttX RTOS real-time operating system.
- 14 PWM / servo output.
- Bus interface (UART, I2C, SPI, CAN).
- The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe.
- Provide automatic and manual modes.
- Provide redundant power input and failover.
- Multicolor LED lights.
- Provide multi-tone buzzer Interface.
- Micro SD recording flight data.
Processor:
-
32bit STM32F427 Cortex M4 core with FPU.
-
168 MHz.
-
128 KB RAM.
-
2 MB Flash.
-
32-bit STM32F103 failsafe co-processor.
Sensors:
-
ST Micro L3GD20H 16 bit gyroscope.
-
ST Micro X4HBA 303H 14 bit accelerometer/magnetometer.
-
Invensense MPU 6000 3-axis accelerometer/gyroscope.
-
MEAS MS5607 barometer.
Interfaces:
-
5x UART (serial ports), one high-power capable, 2x with HW flow control.
-
2x CAN (one with an internal 3.3V transceiver, one on expansion connector).
-
Spektrum DSM / DSM2 / DSM-X® Satellite compatible input.
-
Futaba S.BUS® compatible input and output.
-
PPM sum signal input.
-
RSSI (PWM or voltage) input.
-
I2C.
-
SPI.
-
3.3 and 6.6V ADC inputs.
-
Internal micro USB port and external micro USB port extension.
Glass Fiber Flight Controller Anti-vibration/Shock absorber Set:
- Color: Black
- Material: Glass fiber
- Suit for different open source flight controller, like APM 2.5/2.6/2.8, KK, MWC, and Pixhawk 2.4
- Package Weight: 24 gm.
- Upper Frame size: 90 x 60 x 2 mm(LxWxH).
- Lower Frame Size: 100 x 70 x 2 mm(LxWxH).
- Shock absorber Height: 10 x 12 mm.(DxH).

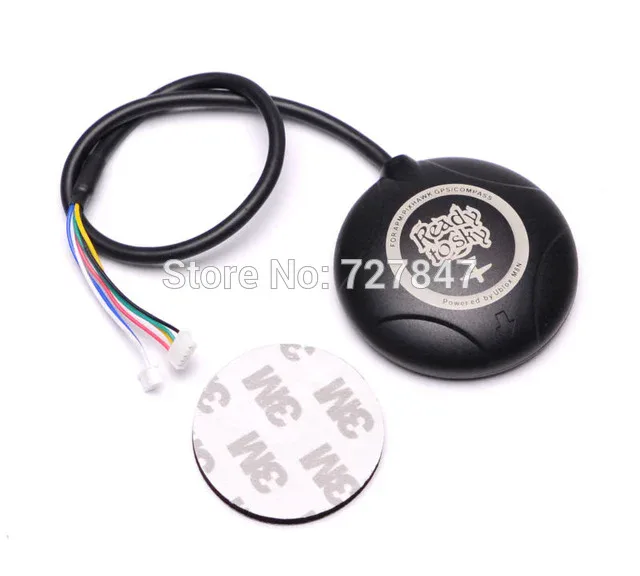

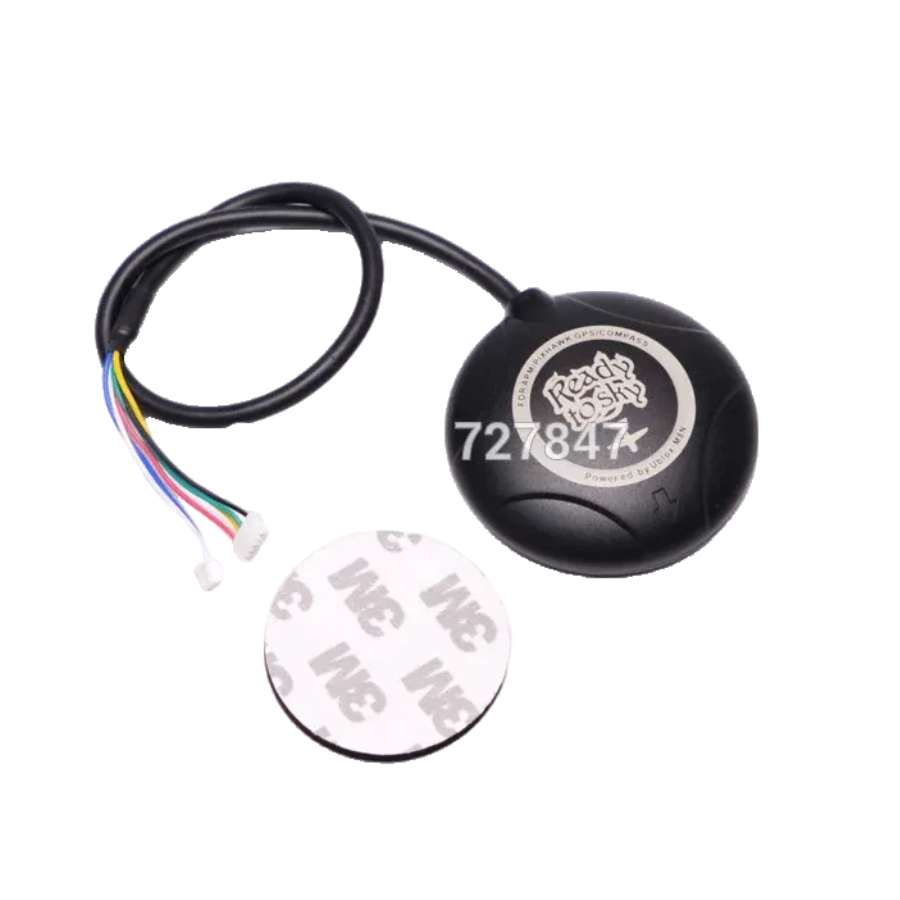

NEO-M8N GPS Module:
- Receiver type 72-channel Ublox M8 engine.
- GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1.
- SBAS L1 C/A: WAAS, EGNOS, MSAS.
- Galileo-ready E1B/C (NEO-M8N).
- Nav. update rate1 Single GNSS: up to 18 HZ.
- Concurrent GNSS: up to 10 Hz.
- Position accuracy2 2.0 m CEP.
- Acquisition2 Cold start: 26 s.
- Aided starts: 2 s.
- Reacquisition: 1.5 s.
- Sensitivity2 Tracking & Nav: –167 dBm.
- Cold start: –148 dBm.
- Hot starts: –156 dBm.
- Assistance AssistNow GNSS Online.
- Assist Now GNSS Offline (up to 35 days)3.
- Assist Now Autonomous (up to 6 days).
- OMA SUPL & 3GPP compliant
- Oscillator TCXO (NEO-M8N/Q).
- Crystal (NEO-M8M).
- RTC crystal Built-In.
- Noise figure On-chip LNA (NEO-M8M). Extra LNA for.
- lowest noise figure (NEO-M8N/Q).
- Anti-jamming Active CW detection and removal.
- Extra onboard SAW bandpass filter (NEO-M8N/Q).
- Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N).
- Supported antennas Active and passive.
- Odometer Travelled distance.
- Data-logger For position, velocity, and time (NEO-M8N).
GPS Folding Base Antenna set:
- Material: CNC Aluminum alloy, carbon glass fiber rod
- Mounting rod diameter: 4mm
- length of rod: 14 cm.
- GPS plate diameter: 40 mm.
- Base plate diameter: 35 mm
- Mounting hole spacing: 16-35mm
- Weight: 20g
- Colour: Anodised black
- Note: Adhesive Pad is not included.

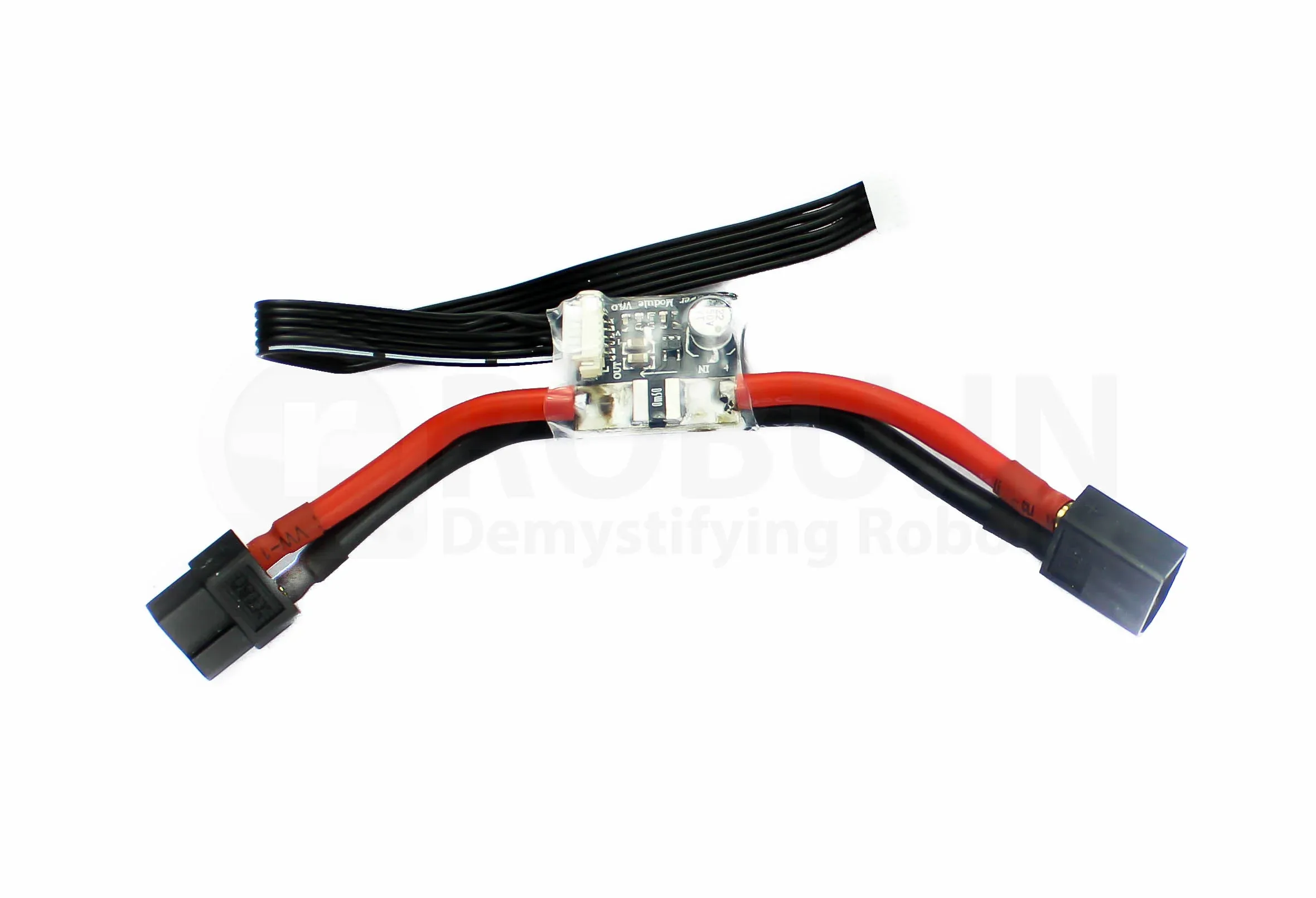

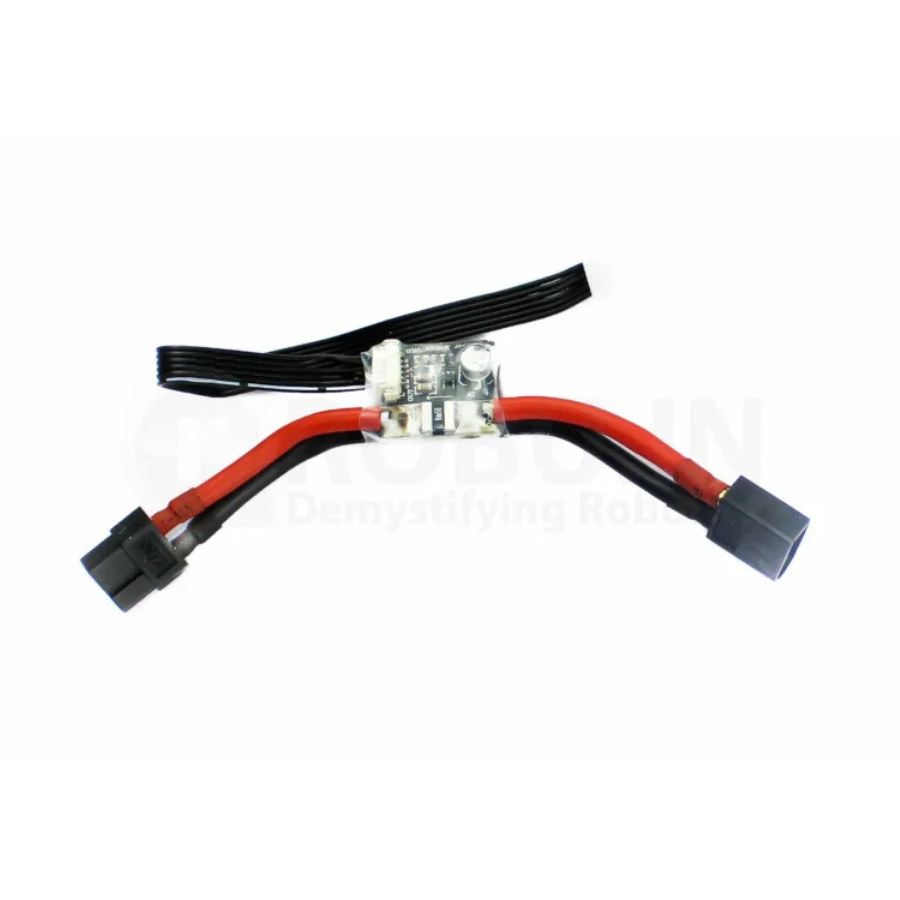

APM 2.5.2/2.6/2.8 Pixhawk Power Module:
- Max input voltage: 28V
- Max current sensing: 90A
- Voltage and current measurement configured for 5V ADC
- Switching regulator outputs 5.3V and 3A max
- 6-pos DF13 cable plugs directly to APM 2.5’s ‘PM’ connector
- Support 6S battery
This Pixhawk 2.4.8 Basic Module is a popular choice among hobbyists and professionals. The Pixhawk 2.4.8 Basic Module offers reliable performance for your projects.
Pixhawk 2.4.8 Basic Flight Controller kit with GPS Module Overview
The Pixhawk 2.4.8 Basic Flight Controller kit with GPS Module is an all-in-one autopilot solution designed for multirotors, fixed-wing aircraft, helicopters, cars, boats and other robotic platforms. This combo includes the Pixhawk V2.4.8 flight board, NEO-M8N GPS module, power module and vibration damping mount for reliable control and navigation.
Key Features of Pixhawk 2.4.8 Basic Flight Controller kit with GPS Module
- Pixhawk V2.4.8 flight board with original protective shell, combining PX4FMU and PX4IO functionality
- NEO-M8N GPS module in a translucent shell plus folding base antenna for precise satellite positioning
- APM 2.5.2/2.6/2.8 Pixhawk power module to supply regulated voltage and measure battery current
- Universal glass fiber anti-vibration mount and shock absorbers to isolate the flight controller from frame vibrations
- Buzzer module for audible alerts and failsafe notifications during flight operations
- Includes three connecting cables; fast shipping across India from Zbotic.in
Applications and Use Cases
- Building a custom multirotor drone with advanced waypoint navigation
- Integrating into fixed-wing UAVs for aerial mapping and surveying tasks
- Autonomous RC car or rover projects requiring precise motor control and telemetry
- Model helicopter stabilization and Mission Planner integration
- Small robotic boats with GPS waypoints for environmental monitoring
- University and hobbyist research platforms for sensor integration and flight testing
How to Use Pixhawk 2.4.8 Basic Flight Controller kit with GPS Module
Mount the Pixhawk board on the supplied vibration damping plate using the glass fiber shock absorbers, then connect the power module between your battery and the flight controller’s power port. Attach the GPS module on its folding base antenna at a clear, elevated location away from high-current wires. Plug in the provided cables for I/O ports, install the buzzer, and configure firmware (PX4 or ArduPilot) via Mission Planner or QGroundControl to calibrate sensors and mission parameters.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the Pixhawk 2.4.8 compatible with ArduPilot and PX4 firmware?
Yes, the Pixhawk V2.4.8 flight board integrates PX4FMU and PX4IO modules and fully supports both ArduPilot (APM) and PX4 open-source autopilot firmware.
How do I install the vibration damping mount?
Use the included glass fiber plate and four rubber shock absorbers to sandwich the flight controller shell. Secure with bolts through the flat-bottom mounting holes, or use strong double-sided tape on your drone frame.
What exactly does the power module do?
The supplied APM power module provides a regulated 5 V output to the Pixhawk, measures battery voltage and current draw, and feeds this telemetry data back to the flight controller for in-flight monitoring.
