PIMORONI Nano HAT Hacker for Raspberry Pi
Introducing the PIMORONI Nano HAT Hacker, your key to full access to all 40 pins on your Pi, conveniently broken out at the top for easy access. This ultra-slim 0.8mm PCB, akin to our SHIMs, allows for seamless soldering directly onto your Pi’s pins while still leaving enough clearance for a standard header to accommodate a HAT or pHAT on top.

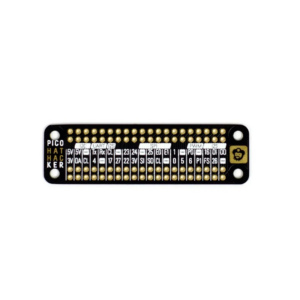

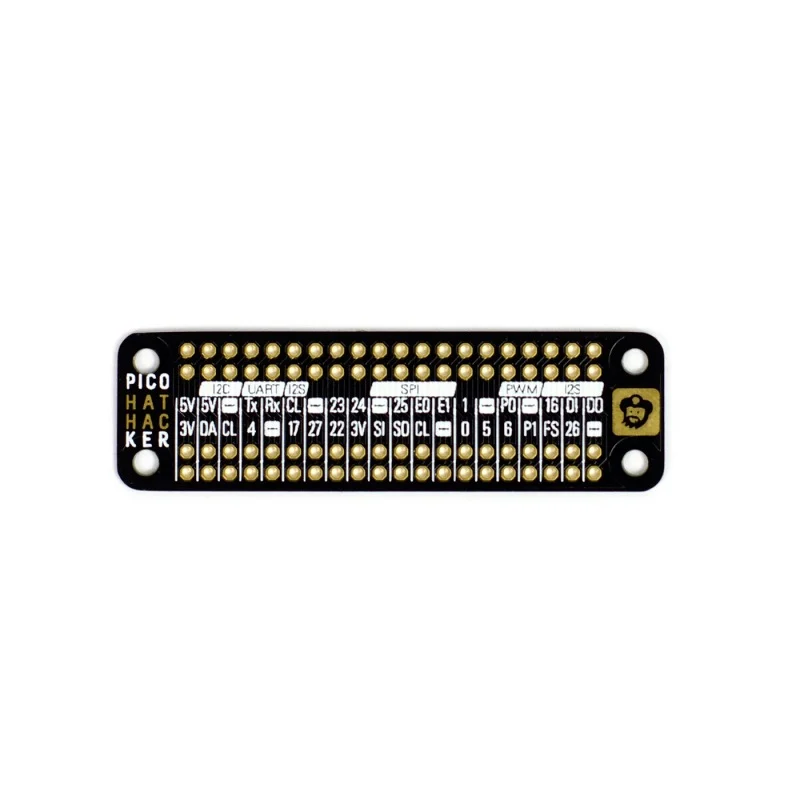

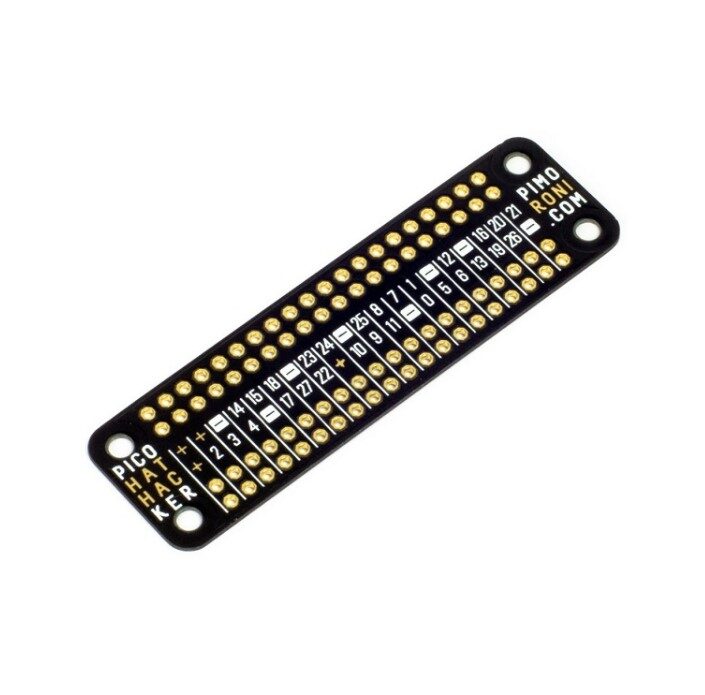

Featuring handy labels for all pins, you’ll find BCM pin numbering on one side and more descriptive labels on the other, highlighting the locations of the I2C, UART, SPI, PWM, and I2S pins. Whether you prefer the BCM pin numbering or the descriptive labels, you have the flexibility to solder the Pico HAT Hacker either way up, catering to your specific preferences and requirements.
Unlock the full potential of your Raspberry Pi with the PIMORONI Nano HAT Hacker, providing effortless access to all pins and enabling seamless integration with your favorite add-ons and accessories.
Notes:
- You’ll need to pick up an extra 40-pin male header to solder onto Pico HAT Hacker
- Be sparing with the solder when soldering Pico HAT Hacker onto the pins of your Pi, otherwise, the solder will wick up the pins and you’ll find it awkward to fit HATs/pHATs on top.
-
Compatible With Raspberry Pi 40 Pin GPIO Header Pin Labeling BCM Mounting Holes M2.5 Length (mm): 65 Width (mm): 19 Height (mm): 0.8 Weight (g): 10 Shipping Weight 0.015 kg Shipping Dimensions 7 × 2 × 1 cm
Features:
- BCM and descriptive pin labeling
- Mounting holes (M2.5)
- 0.8mm thick PCB
- Compatible with all 40-pin header Raspberry Pi models
Package Includes:
1 x PIMORONI Nano HAT Hacker
PIMORONI Nano HAT Hacker for Raspberry Pi Overview
The PIMORONI Nano HAT Hacker for Raspberry Pi is a slimline breakout board that exposes all 40 GPIO pins at the top of your Pi. It’s designed for direct soldering onto the 40-pin header while still allowing you to stack a HAT or pHAT on top, making prototyping and debugging simple and efficient.
Key Features of PIMORONI Nano HAT Hacker for Raspberry Pi
- Breaks out all 40 pins of the Raspberry Pi GPIO header for easy access
- Ultra-slim 0.8mm PCB thickness leaves room for a standard header and stacked HAT
- Dual-silkscreen labels: BCM pin numbering on one side, descriptive I2C, SPI, UART, PWM, I2S labels on the other
- Direct solder-on design ensures secure connections for long-term projects
- Genuine Pimoroni Nano HAT Hacker—fast shipping from Zbotic within 24 hours
Applications and Use Cases
- Prototyping custom sensor circuits by tapping GPIO signals without bulky wiring
- Debugging and monitoring I2C, SPI, UART and PWM lines in hardware development
- Stacking additional HATs or pHATs for robotics, cameras or motor controllers
- Educational workshops to teach GPIO pin functions and Raspberry Pi interfacing
- Integrating bespoke PCBs for home automation, IoT gateways or environmental monitors
- Testing new peripherals before final PCB design or soldering directly to the Pi
How to Use PIMORONI Nano HAT Hacker for Raspberry Pi
Align the Nano HAT Hacker over the Raspberry Pi’s 40-pin GPIO header and solder its pads directly to the header pins. Optionally solder a standard 40-pin header on top for stacking a HAT or pHAT. Use jumper wires on the breakout pads to connect sensors, modules or test equipment, referring to the silkscreen labels for pin identification.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which Raspberry Pi models support the Nano HAT Hacker?
The Nano HAT Hacker works with any Raspberry Pi featuring the standard 40-pin GPIO header, including Pi 4, 3B/3B+, 2B and Zero 2 W (with adapter).
Can I still stack another HAT after installing the Hacker?
Yes. Thanks to its 0.8mm PCB, you can solder a standard header on top and add a HAT or pHAT without interference.
How do I identify each GPIO pin on the board?
One side of the board shows the BCM pin numbers, while the reverse side has descriptive labels marking I2C, SPI, UART, PWM and I2S pins for quick reference.
Raspberry Pi Cooling Guide: Fan, Heatsink and Thermal Pads
Heat is the primary enemy of Raspberry Pi performance. When your Pi's SoC (System on Chip) reaches 80°C,...
Read More →
Pi-hole vs AdGuard Home on Raspberry Pi: Which Is Better?
If you are looking to set up a network-wide ad blocker at home, Pi-hole and AdGuard Home are...
Read More →
Raspberry Pi Power Options: USB-C, PoE, Battery and Solar
Choosing the right power supply is one of the most underrated decisions in any Raspberry Pi project. An...
Read More →Technical Specifications
| Brand | Raspberry Pi |
|---|---|
| SKU | AI0893 |
| Weight | 0.010 kg |
| Availability | Out of Stock |
Applications & Use Cases
The PIMORONI Nano HAT Hacker for Raspberry Pi is a versatile raspberry pi hats used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
