- I/O Isolation for MCUs (Micro Controller Units)
- Noise Suppression in Switching Circuits
- Signal Transmission Between Circuits of Different Potentials and Impedances
Features:
- Driving Port Signal Voltage: 3.6-24V
- Output Port Voltage Port: 3.6-30V
- Output Can Be Switched From Pull-Up or Pull-Down With Jumpers.
Specification:
| Width (mm): | 37.7 |
|---|---|
| Height (mm): | 10 |
| Weight (g): | 15 |
| Shipping Weight | 0.018 kg |
| Shipping Dimensions | 5 × 4 × 1 cm |
Package Includes:

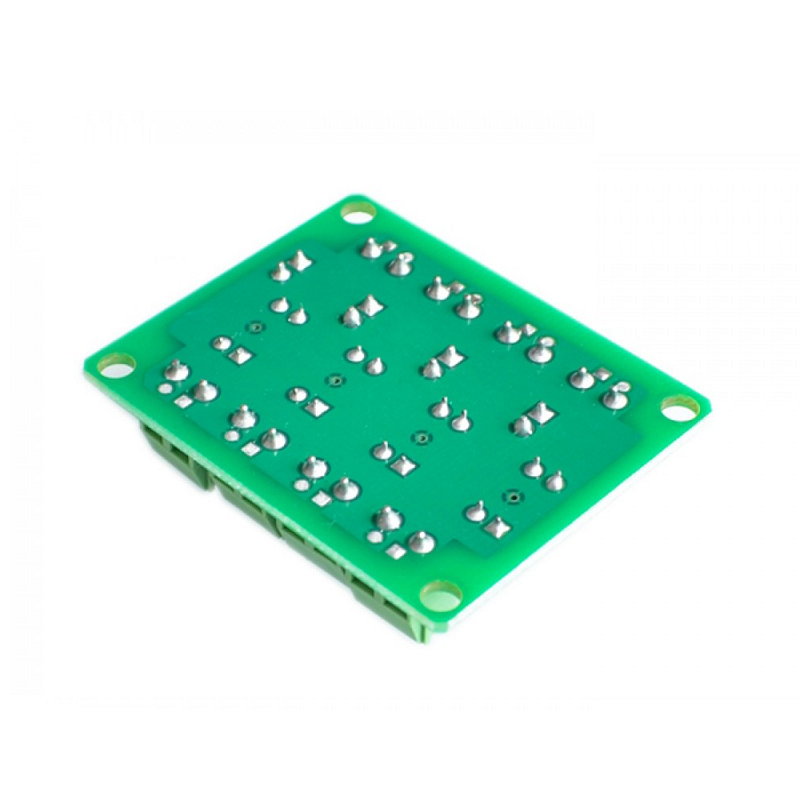

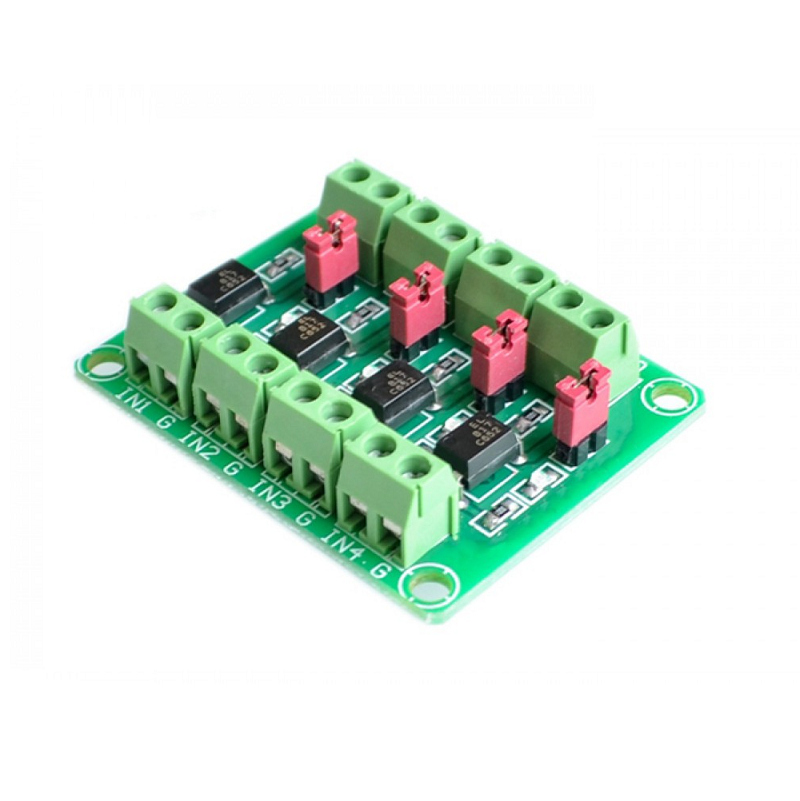

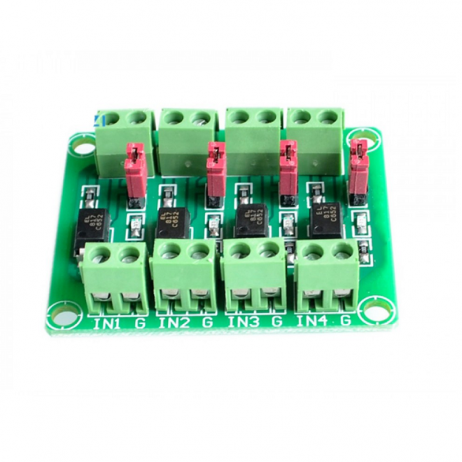

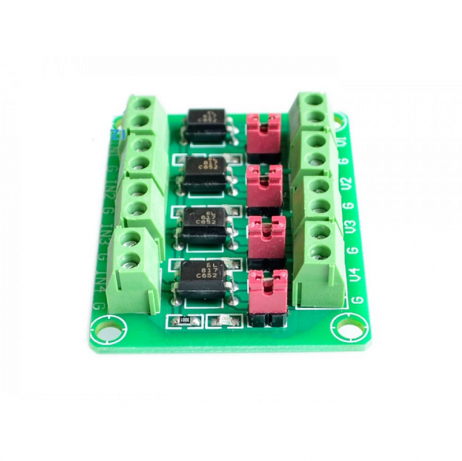

1 x PC817 4 CH Optocoupler Isolation Module
Google Cloud IoT with Raspberry Pi: Getting Started
Table of Contents Introduction to Google Cloud IoT Why Google Cloud for IoT in India Setting Up Your...
Read More →
IoT Air Quality Monitor: TVOC and CO2 with SCD40 Sensor
Indoor air quality is a growing concern across India, especially in cities like Delhi, Mumbai, and Bengaluru where...
Read More →
ESP32 Modular IoT Design: Create Reusable Project Templates
Adopting an ESP32 modular IoT project design philosophy transforms the way you build connected devices. Instead of writing...
Read More →Technical Specifications
| Model | PC817 |
|---|---|
| Channels | 4-channel |
| SKU | AI5214 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The PC817 4 CH Optocoupler Isolation Module is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
