Original Arduino Uno Rev3 A000066

Original Arduino Uno Rev3 A000066

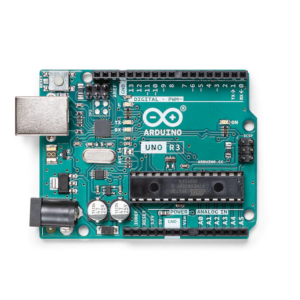

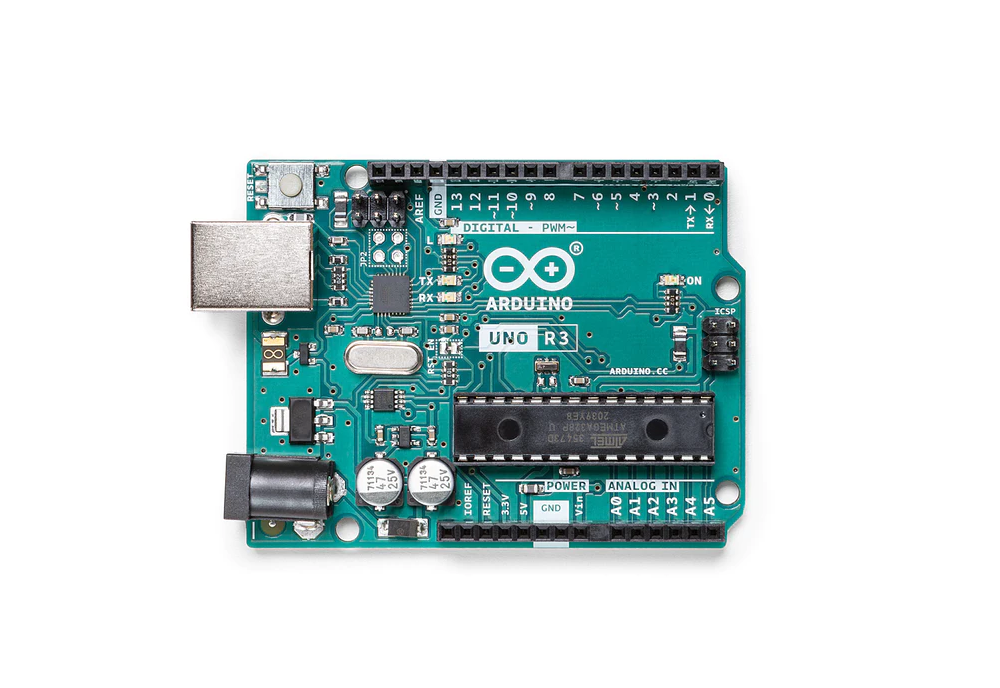

This Arduino Uno is an original microcontroller board from Arduino officials based on the ATmega328P.  It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.. You can tinker with your UNO without worrying too much about doing something wrong, worst case scenario you can replace the chip for a few dollars and start over again.

“Uno” means one in Italian and was chosen to mark the release of Arduino Software (IDE) 1.0. The Uno board and version 1.0 of Arduino Software (IDE) were the reference versions of Arduino, now evolved to newer releases. The Original Arduino Uno Rev3 board is the first in a series of USB Arduino boards and the reference model for the Arduino platform; for an extensive list of current, past or outdated boards see the Arduino index of boards.

Features:

Manufacturer: Arduino Officials

Micro-controller : ATmega328P.

Operating Voltage: 5V.

Input Voltage (recommended) : 7-12V.

Digital I/O Pins: 14 (of which 6 provide PWM output).

Analog Input Pins: 6.

Specifications:

Package Includes:

1 x Original Arduino Uno Rev3 A000066

About Rev3 A000066

Original Arduino Uno Rev3 A000066 is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Arduino, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.

Product Details

• Brand: Arduino
• SKU: AI5973
• Category: Original Arduino Boards

Why Buy from Zbotic?

Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Rev3 A000066 and other products.

Applications

Rev3 A000066 can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Rev3 A000066 today and start building.

Original Arduino Uno Rev3 A000066 Overview

The Original Arduino Uno Rev3 A000066 is an official microcontroller development board from Arduino, featuring the ATmega328P at its core. Designed for electronics prototyping and learning, it offers digital I/O, PWM outputs, and analog inputs to build a wide range of DIY projects.

Key Features of Original Arduino Uno Rev3 A000066

• ATmega328P microcontroller running at 16 MHz for reliable operation
• 14 digital I/O pins (6 provide PWM output) and 6 analog input pins
• Operating voltage 5 V; recommended input 7–12 V via USB or power jack
• USB connection for programming and serial communication
• ICSP header and onboard reset button for advanced debugging
• Genuine Arduino board, fast shipping from Zbotic

Applications and Use Cases

• Prototyping LED lighting effects and RGB strip controllers
• Building robot controllers with sensor and motor interfaces
• Developing data-logging systems for temperature, humidity, etc.
• Creating motor control circuits for DC and servo motors
• Designing interactive installations with buttons and sensors
• Testing home automation concepts like smart switch prototypes

How to Use Original Arduino Uno Rev3 A000066

Start by connecting the Uno Rev3 to your PC via USB or feeding 7–12 V into the barrel jack. Install the Arduino IDE, select “Arduino Uno Rev3” under Boards, write your sketch in C/C++, and upload it via USB. Use the digital and analog headers to wire sensors, LEDs, motors or modules, and monitor serial output through the IDE’s serial monitor.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Is the Arduino Uno Rev3 compatible with older Arduino shields?

Yes, the Uno Rev3 maintains the same shield-pin layout as previous Uno versions, ensuring compatibility with most Arduino shields.

Can I power the Uno Rev3 from a battery pack?

Yes, you can supply 7–12 V to the onboard barrel jack from a battery pack; the onboard regulator will step it down to the 5 V needed by the board.

How do I replace the ATmega328P chip if it gets damaged?

If the ATmega328P becomes faulty, you can purchase a DIP-28 replacement chip and swap it into the Uno’s socket, then burn the Arduino bootloader using another Arduino as an ISP.
