This is the Red variant of the Orange 12V 100 RPM Johnson Geared DC Motor – Grade A Quality-Encoder Compatible in Johnson Geared Motor. Available at ₹476.00 (₹403.39 + GST) with free shipping across India.
Looking for 12v Dc Motor? Orange 12V 100 RPM Johnson Geared DC Motor – Grade A Quality-Encoder Compatible is available at Zbotic with fast shipping across India.
These are the enhanced quality motors by Orange. Orange has carefully manufactured this Johnson Geared Motor with the best quality material to give you said torque at said RPM.

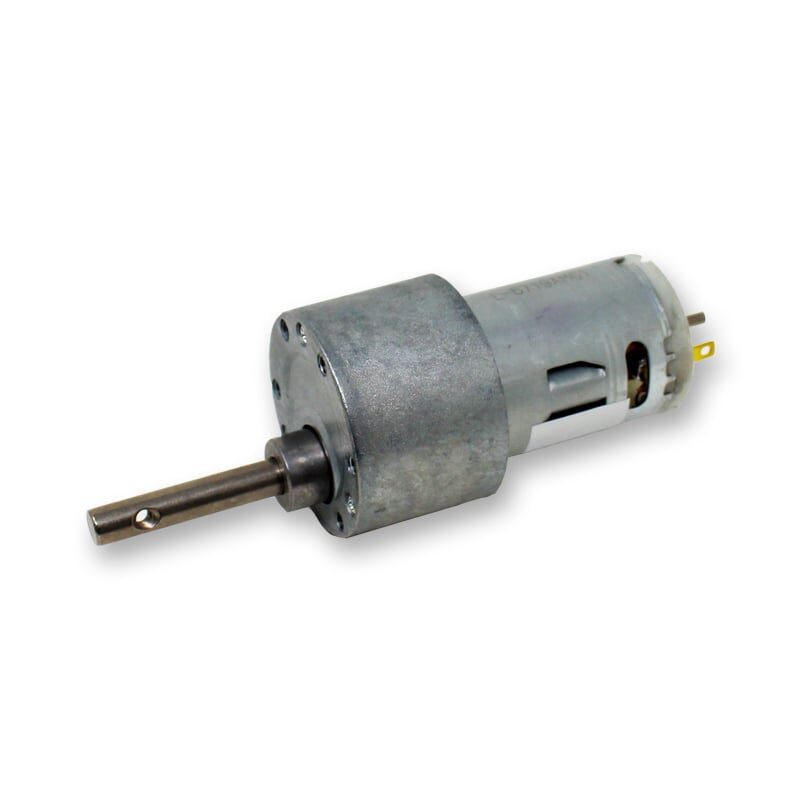

Special attention is given to the design of the shafts, the main shaft is longer (30mm) and comes with a hole (M3) for strong and reliable coupling, and the Back shaft is compatible with all encoders.
Throughout their journey from the production line to the customer’s doorsteps, maximum efforts are taken to retain quality and performance.
This motor is a simple DC motor coupled with Metal Gearbox for delivering more power/torque. Compact size and massive torque make them stand tall in the market.

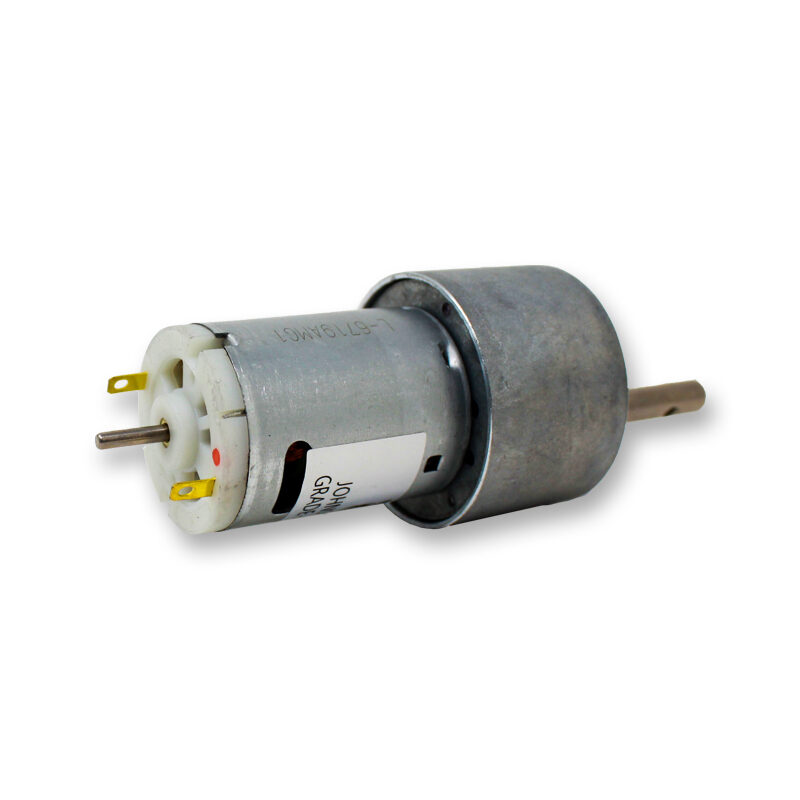

Additionally, we made this motor encoder enabled with a rear-shaft to mount the encoder for your convenience. You can mount the encoder easily if it is needed in your application. The compatible OE-28 hall effect Encoder can be mounted to the rear shaft of the motor which acts as a feedback encoder to provide the real-time feedback of speed and rotating position of the Motor.
This Orange Johnson Geared Motor has an operating voltage of 6V to 18V. It is rated at 12V for efficient performance, provides a speed of 100 rpm and torque of 103 N-cm.
We are selling these branded Orange Johnson Geared Motor and also, another inferior quality Johnson geared motor AKA Made in India Johnson motors. The difference between them is the quality of the material used for manufacturing them and literally nothing else!!!! So, owing to this advantage the Orange Johnson Geared Motor provides you some more torque at the same RPM compared to the other.
We offer a range of Johnson motors with different RPM as shown below, click on RPM numbers for more information.
Grade A Quality:
5 – 636 N-cm
10 – 472.6 N-cm
20 – 328.3 N-cm
30 – 254 N-cm
60 – 157.6 N-cm
100 – 103 N-cm
200 – 56.1 N-cm
300 – 34.2 N-cm
600 – 15.1 N-cm
Made In India:
10 – 114.73 N-cm
30 – 92.18 N-cm
60 – 73.54 N-cm
100 – 55.9 N-cm
200 – 38.24 N-cm
300 – 21.6 N-cm
500 – 9.8 N-cm
1000 – 7.84 N-cm
Features :
- Grade A Quality branded Johnson DC Motor.
- It has a sturdy construction.
- Comes with Rear shaft for encoder mounting
- Shaft equips metal bushes for long life.
- It comes with High-Quality gears.
- The shaft has a hole for better coupling.
Package Includes :
1 x Johnson Geared Motor 100 RPM – Grade A Quality
About 12v Dc Motor
Orange 12V 100 RPM Johnson Geared DC Motor – Grade A Quality-Encoder Compatible is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Generic, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Generic
- SKU: AI2076
- Category: Johnson Geared Motor
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about 12v Dc Motor and other products.
Applications
12v Dc Motor can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your 12v Dc Motor today and start building.
About 12v Dc Motor
Orange 12V 100 RPM Johnson Geared DC Motor – Grade A Quality-Encoder Compatible is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Generic, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Generic
- SKU: AI2076
- Category: RFID card, Tags & Reader
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about 12v Dc Motor and other products.
Applications
12v Dc Motor can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your 12v Dc Motor today and start building.
Orange 12V 100 RPM Johnson Geared DC Motor – Grade A Overview
The Orange 12V 100 RPM Johnson Geared DC Motor – Grade A is a precision-engineered DC motor mated to a metal gearbox, delivering high torque at low speed. Encoder-compatible and built with a longer output shaft, it’s ideal for robotics, automation, and motion-control projects requiring reliable performance.
Key Features of Orange 12V 100 RPM Johnson Geared DC Motor – Grade A
- Grade A quality components for consistent torque and speed
- Metal gearbox (27×37 mm) providing 100 RPM output at 12 V
- High rated torque of 103 N·cm and stall torque up to 700 N·cm
- Extended 30 mm main shaft with M3 coupling hole for secure attachment
- Rear shaft designed for seamless encoder mounting
- Fast shipping across India from Zbotic’s warehouse
Applications and Use Cases
- Precision positioning in robotic arms and grippers
- Drive systems for AGVs, conveyors, and small automated carts
- Actuation in gate valves, dampers, and window regulators
- Turntables and rotary platforms in inspection setups
- DIY mechatronics projects and educational kits
How to Use Orange 12V 100 RPM Johnson Geared DC Motor – Grade A
Mount the gearbox securely using the provided housing dimensions (27×37 mm) and align the long output shaft for coupling. Connect the motor leads to a 6–18 V DC supply—12 V for optimal performance—and adjust speed with a PWM controller. For feedback, attach your encoder to the rear shaft, then calibrate the system in your control software.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the motor shaft encoder-ready?
Yes, the rear shaft is specifically designed to accept standard encoders, allowing for precise speed and position feedback in control applications.
What voltage range can I use with this motor?
The motor operates safely between 6 V and 18 V DC, with 12 V being the rated voltage for achieving 100 RPM and its specified torque values.
How do I mount attachments to the output shaft?
The main 30 mm output shaft includes an M3 threaded hole, enabling secure coupling of pulleys, gears, or other fixtures without additional adapters.
MG90S vs SG90: Torque, Accuracy & Best Uses Compared
The SG90 and MG90S are arguably the two most popular micro servo motors in the hobbyist and robotics...
Read More →
Stepper Motor Half-Step vs Full-Step: Resolution & Torque Trade-offs
Stepper motors are the workhorse of precise motion control — used in 3D printers, CNC routers, laser cutters,...
Read More →
Servo Motor Horn Types: Propeller, Disc & Arm for Robotics
Table of ContentsIntroduction: Why the Horn Matters in Servo DesignHow a Servo Motor WorksComplete Guide to Servo Horn...
Read More →Technical Specifications
| Operating Voltage | 12V |
|---|---|
| Interface / Protocol | BLE |
| Speed | 100 RPM |
| Color | Red |
| SKU | AI2076 |
| Availability | Out of Stock |
