Nextion Discovery NX4832F035 3.5″ Resistive Touch Display

Looking for Nx4832f035 Display? Nextion Discovery NX4832F035 3.5″ Resistive Touch Display is available at Zbotic with fast shipping across India.

Nextion Discovery NX4832F035 3.5″ Resistive Touch Display

Description:

Nextion NX4832f035 is a 3.5″ Discovery series SMART HMI Touch display having a resistive touch screen. The discovery series of Nextion displays are cost-effective HMI solutions based on STM32GO ARM Cortex-M0+ 64MHz Onboard MCU Processor. In the discovery series when the Deep Sleep Mode is activated, the device’s working current is down to 0.25 mA. Your Battery Powered HMI device will last a longer working time with such a low power consumption. Compared to the Nextion basic series the discovery series reaches up to 30% more performance improvement.

Next Discovery NX4832f035 3.5″ Resistive Touchscreen Display is so simple to the interface that it can easily work with Arduino, Raspberry Pi, ESP8266, ESP32, PIC Microcontroller, AVR controller, ARM Microcontroller and you won’t believe it will work even with basic 8051 microcontrollers basically it will work with any board or Microcontroller that has UART port.

Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. And the drag-and-drop function ensures that users spend less time in programming. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.

Features:

1. 3.5” LCD-TFT Resistive HMI touch display module
2. 480 x 320 screen resolution
3. RGB 65K true-to-life colours
4. Onboard ARM® Cortex®-M0+ 64MHz MCU
5. 3584 Byte SRAM
6. 16 MB Flash memory

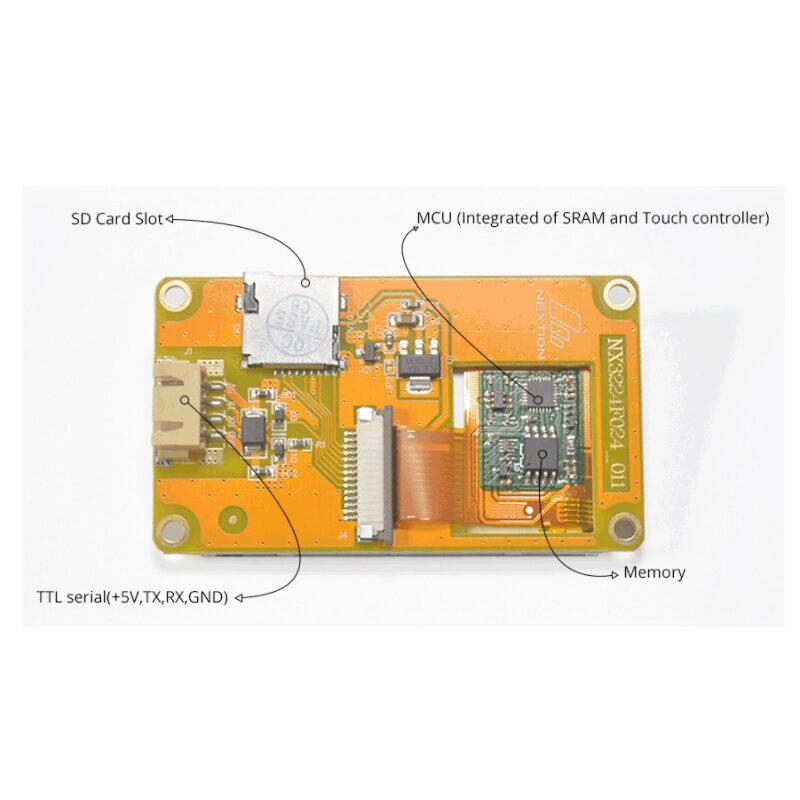

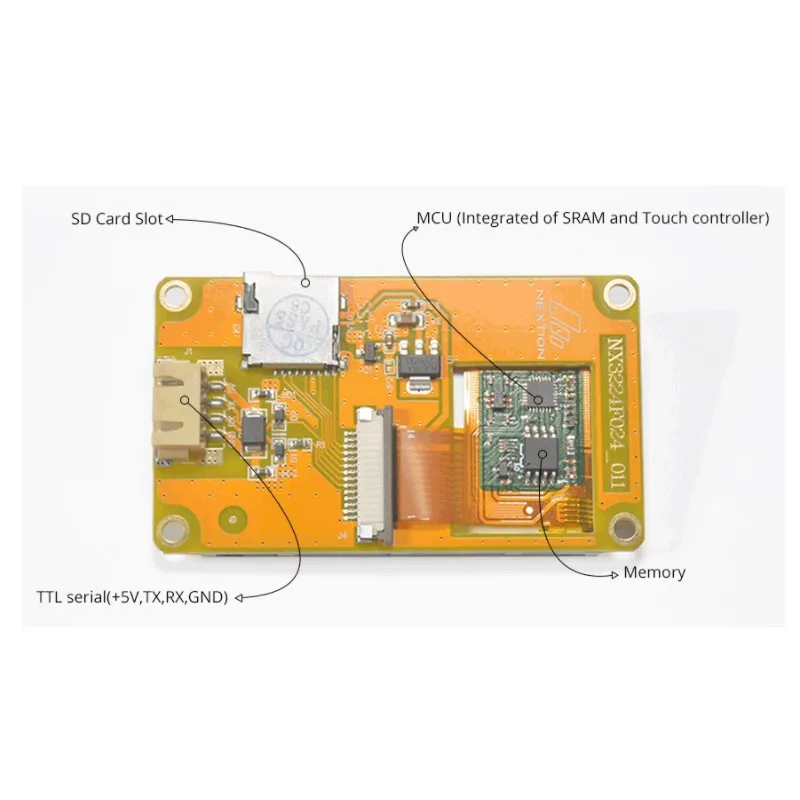

7. XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface

Datasheet:

https://nextion.tech/datasheets/nx4832f035/

Package includes:

• 1 × 3.5″ Nextion HMI Display
• 1 × power supply test board
• 1 x 4-pin grove cable

About Nx4832f035 Display

Nextion Discovery NX4832F035 3.5″ Resistive Touch Display is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Nextion, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.

Product Details

• Brand: Nextion
• SKU: AI1824
• Category: HMI LCD Display

Why Buy from Zbotic?

Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Nx4832f035 Display and other products.

Applications

Nx4832f035 Display can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Nx4832f035 Display today and start building.

Nextion Discovery NX4832F035 3.5″ Resistive Touch Display Overview

The Nextion Discovery NX4832F035 is a 3.5-inch resistive touch HMI display module featuring an integrated STM32GO ARM Cortex-M0+ 64 MHz MCU. Designed for embedded interfaces, it provides a cost-effective solution for creating custom graphical user interfaces in industrial, consumer, and battery-powered applications.

Key Features of Nextion Discovery NX4832F035 3.5″ Resistive Touch Display

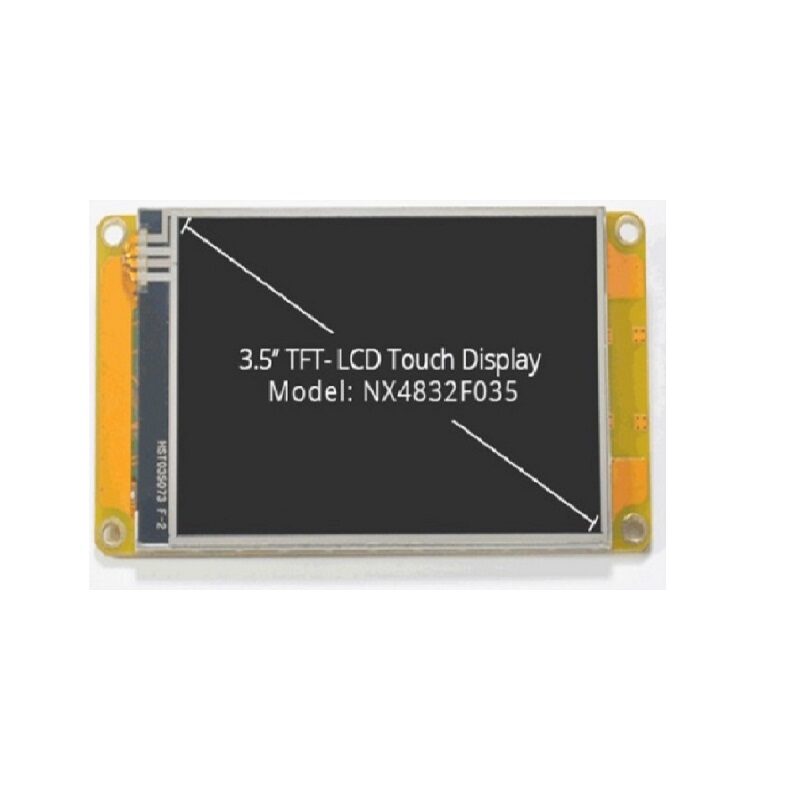

• 3.5″ TFT LCD with 480 × 320 resolution and resistive touch panel (RTP)

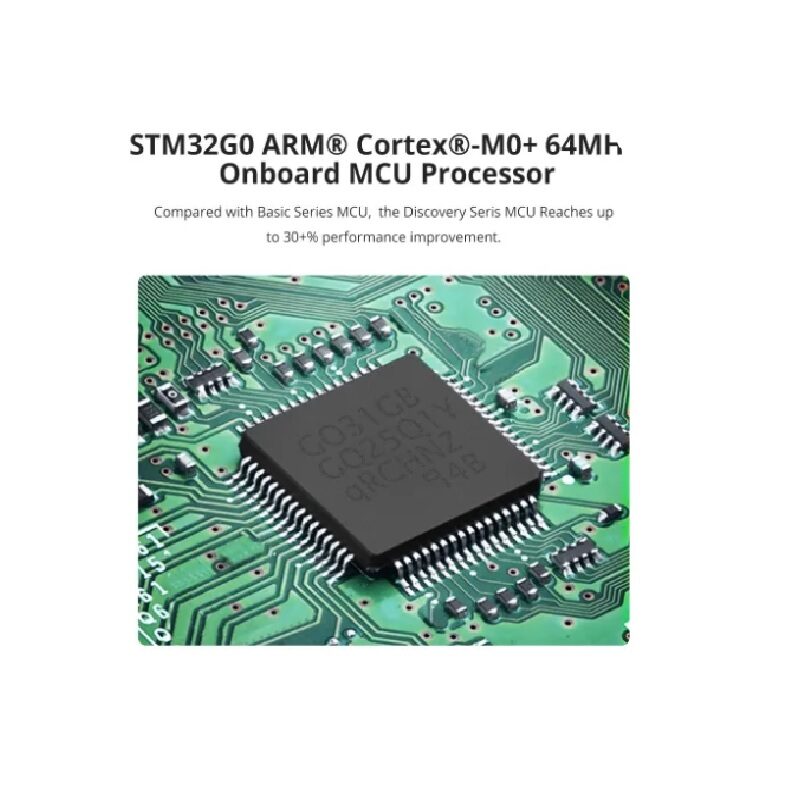

• Onboard STM32GO ARM Cortex-M0+ 64 MHz processor for standalone HMI control
• 4 MB flash memory and 3584 bytes SRAM for UI resources and data storage
• Deep Sleep Mode reduces working current to 0.25 mA for extended battery life
• DC 5 V 500 mA power input with XH2.54 4-pin USART interface for easy MCU connectivity
• Up to 30% performance improvement over Nextion Basic series
• Fast shipping across India from Zbotic for quick deployment

Applications and Use Cases

• Industrial machine control panels requiring local touchscreen configuration
• Portable diagnostic tools and measurement instruments
• Home automation control interfaces (HVAC, lighting, security)
• 3D printer and CNC machine touchscreens
• Battery-powered IoT devices with low-power standby requirements
• Robotics dashboards and educational electronics projects

How to Use Nextion Discovery NX4832F035 3.5″ Resistive Touch Display

Connect the display’s 4-pin USART header (VCC, GND, TX, RX) to your microcontroller and power it with a stable 5 V 500 mA supply. Design your GUI in the Nextion Editor, compile the HMI project, and upload it via microSD card or serial port. Once programmed, use simple serial commands to update screens, read touch events, and enter Deep Sleep Mode to minimize power consumption when idle.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

How do I upload my GUI project to the Nextion NX4832F035?

Use the Nextion Editor on your PC to design and compile the interface file. Copy the generated .TFT file to a microSD card, insert it into the display’s card slot, and power on. The module will automatically load and flash the new GUI. Alternatively, you can upload via USB-to-serial adapter through the 4-pin USART port.

What kind of touch input does this model support?

The NX4832F035 uses a resistive touch panel (RTP), which responds to pressure from a finger or stylus. It is ideal for environments where gloves might be worn or precision input is required.

Can I use this display in battery-powered projects?

Yes. When Deep Sleep Mode is activated, the display’s current draw drops to approximately 0.25 mA, extending battery life. Normal operation requires DC 5 V at up to 500 mA, so plan your power budget accordingly.
