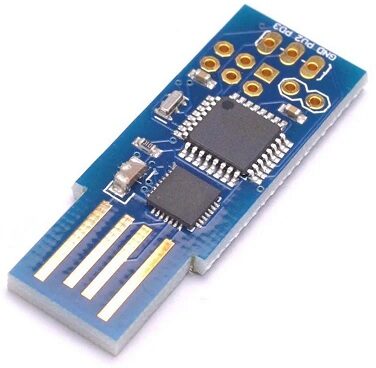

New ESC USB Linker Programmer For Simonk BLHeli Firmware SN/BL/16A/20A/30A/40A
If you’re in need of a programming tool to update the firmware of SimonK and BLHeli ESCs, this is the perfect solution for you. Simply connect your ESC signal cable and begin updating your settings.
Introducing the new ESC USB Linker Programmer: compatible with both SIMONK and BLHELI ESCs, it supports BLHeli and SimonK bootloaders, Atmel or SiLabs chips, with or without a bootloader. It supports ISP and C2 mode, enabling you to modify the bootloader, flash new firmware, adjust settings, or repair issues when the bootloader is not installed. It’s the ultimate multi-functional ESC programming tool.
Features:
- Direct plug design, works with most USB port and USB extension cable
- Low power consumption design

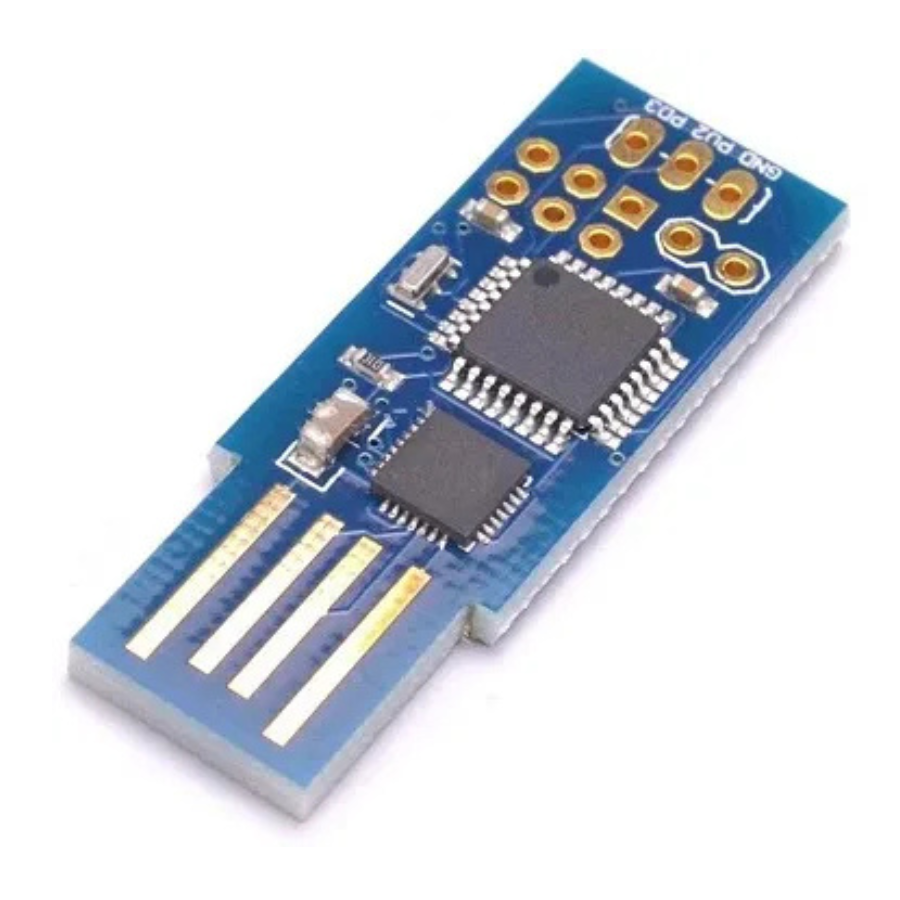

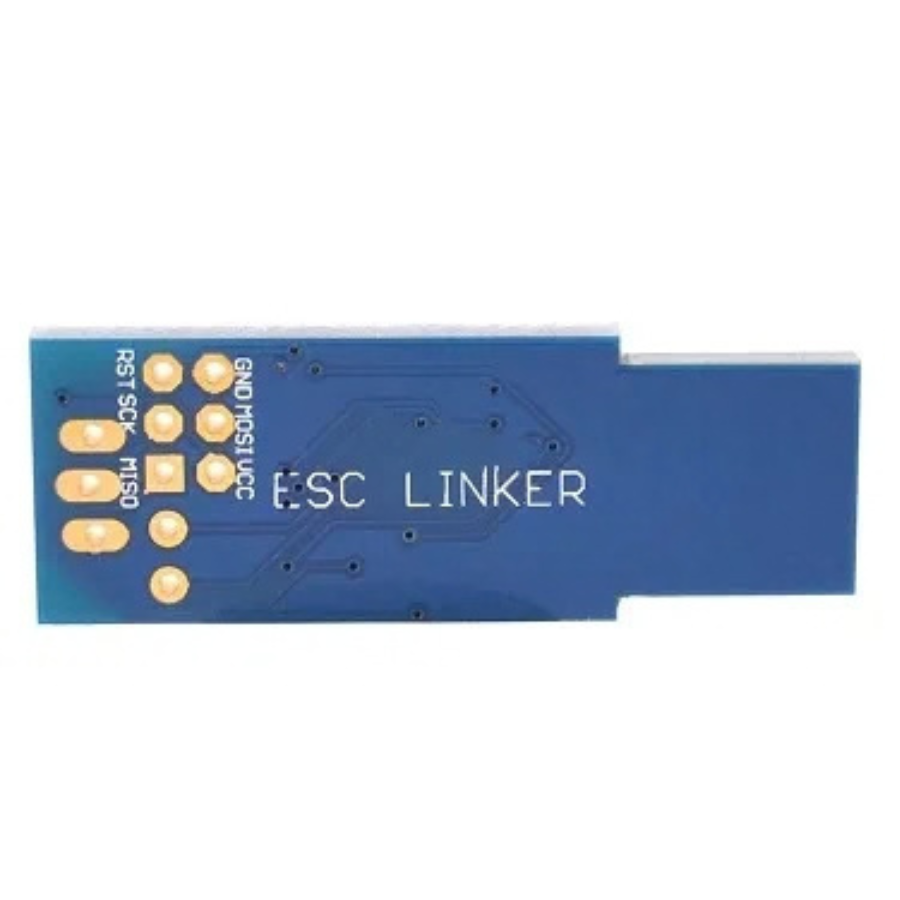

- Onboard 2×3 Pin AVR ISP port
- 3pin servo connector can be used as servo or C2 connection
- Supports SIMONK and BLHELI ESC, KKflashtool compatible
- KKflashtool and RapidFlash compatible
- Silabs CP2102 Driver chip! (Win, Mac, Linux)
- Software upgradeable (via Arduino or BLHELISUIT)
- Pre-load as BLHELISUIT 4w-if 14.1 firmware
Specifications:
| Compatible With | SimonK and BLHeli |
|---|---|
| Length (mm): | 41.32 |
| Width(mm) | 15.13 |
| Height (mm): | 4 |
| Weight (g): | 3 |
Package Includes:
1 x New ESC USB Linker Programmer For Simonk Blheli Firmware Sn/bl/16a/20a/30a/40a
New ESC USB Linker Programmer For Simonk BLHeli Firmware Overview
The New ESC USB Linker Programmer is a dedicated tool for programming and updating SimonK and BLHeli ESC firmware on SN/BL series controllers (16A/20A/30A/40A). It allows you to flash new bootloaders, adjust ESC settings and repair units without a pre-installed bootloader via ISP or C2 mode.
Key Features of New ESC USB Linker Programmer For Simonk BLHeli Firmware
- Direct plug design for hassle-free connection to USB ports and extension cables
- Low power consumption ensures minimal draw from your PC or laptop
- Onboard 2×3-pin AVR ISP port for in-circuit programming of Atmel chips
- 3-pin servo connector doubles as a servo or C2 interface for SiLabs chips
- Supports SimonK and BLHeli bootloaders (SN/BL series) with or without existing bootloader
- Compatible with KKflashtool and RapidFlash software for Windows
- Genuine product, fast shipping from Zbotic across India
Applications and Use Cases
- Flashing SimonK firmware on 20A drone ESCs to improve throttle response
- Upgrading BLHeli firmware on multirotor speed controllers for smoother performance
- Repairing ESCs that lost their bootloader after a failed update
- Fine-tuning motor timing, braking and startup modes via KKflashtool
- Converting Atmel-based ESCs to C2 mode for advanced SiLabs chip support
- Batch programming multiple ESCs quickly using a single PC interface
How to Use New ESC USB Linker Programmer For Simonk BLHeli Firmware
Connect the USB linker to your computer’s USB port or extension cable, then attach the ESC’s signal connector to the 3-pin port. Launch KKflashtool or RapidFlash, select ISP or C2 mode as required, choose your target ESC model and firmware version, then initiate the flash sequence. Monitor progress on the software interface and disconnect once completed.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which ESC chipsets and bootloaders are supported?
This programmer supports both Atmel and SiLabs chips on SimonK and BLHeli ESCs (SN/BL series 16A to 40A), whether a bootloader is present or not. You can use ISP mode for Atmel and C2 mode for SiLabs controllers.
Can I use the programmer with USB extension cables?
Yes. The direct plug design works reliably with most USB ports and standard USB extension cables, allowing flexible setup on your workbench.
Which software is required to flash firmware?
You can use KKflashtool or RapidFlash on Windows. Both tools are compatible with this linker and provide guided workflows for selecting firmware files, ESC protocols and flash modes.
