Looking for Nema 17 3d Stepper Motor? Nema 17 3D Printer 2-phase 4-wire Stepper Motor for 1.8Deg 17HD34008-22B is available at Zbotic with fast shipping across India.

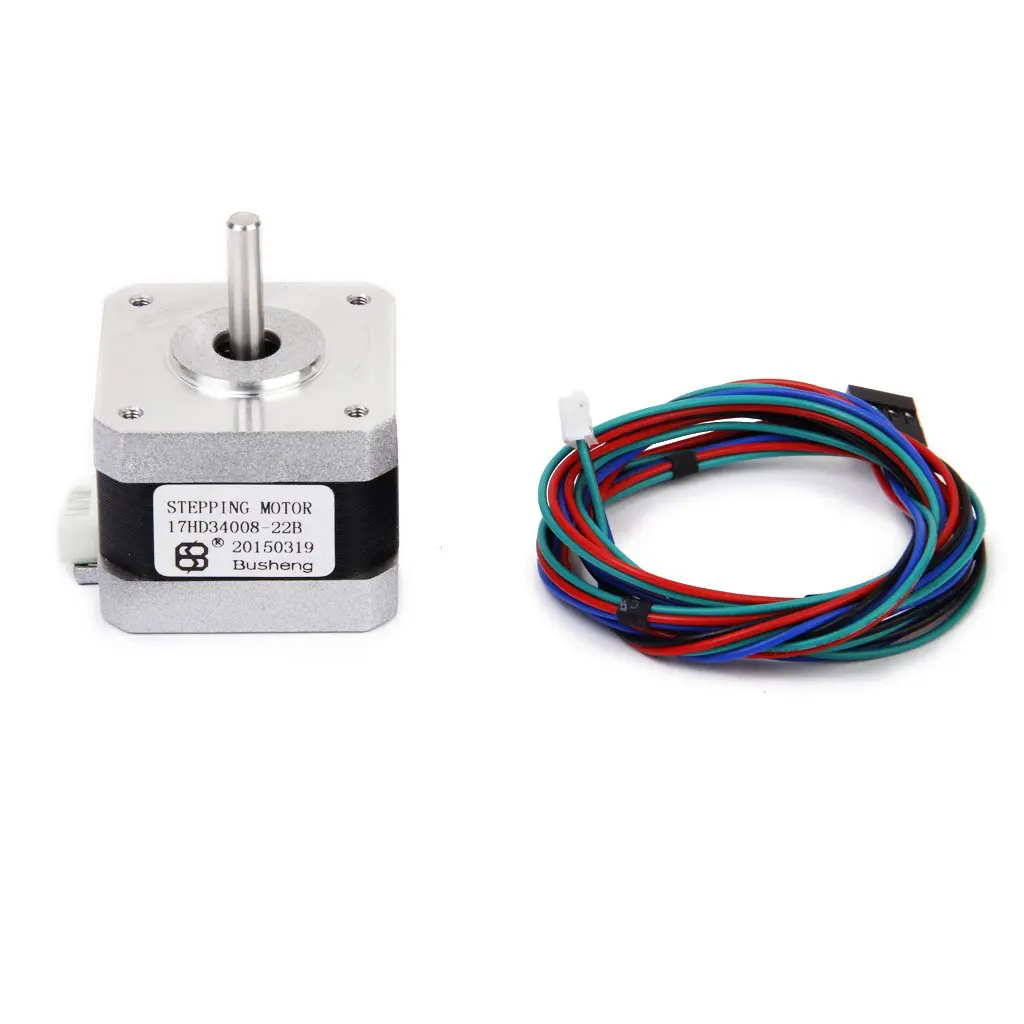

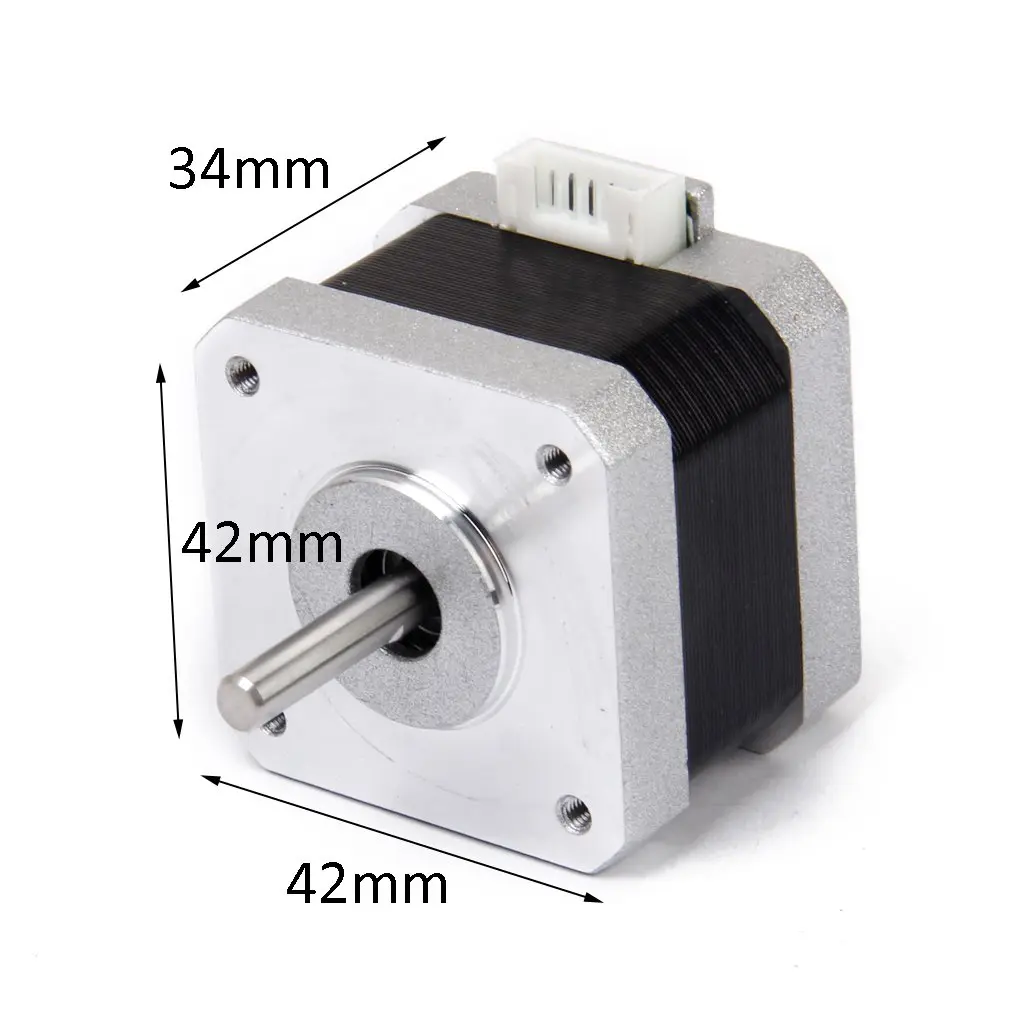

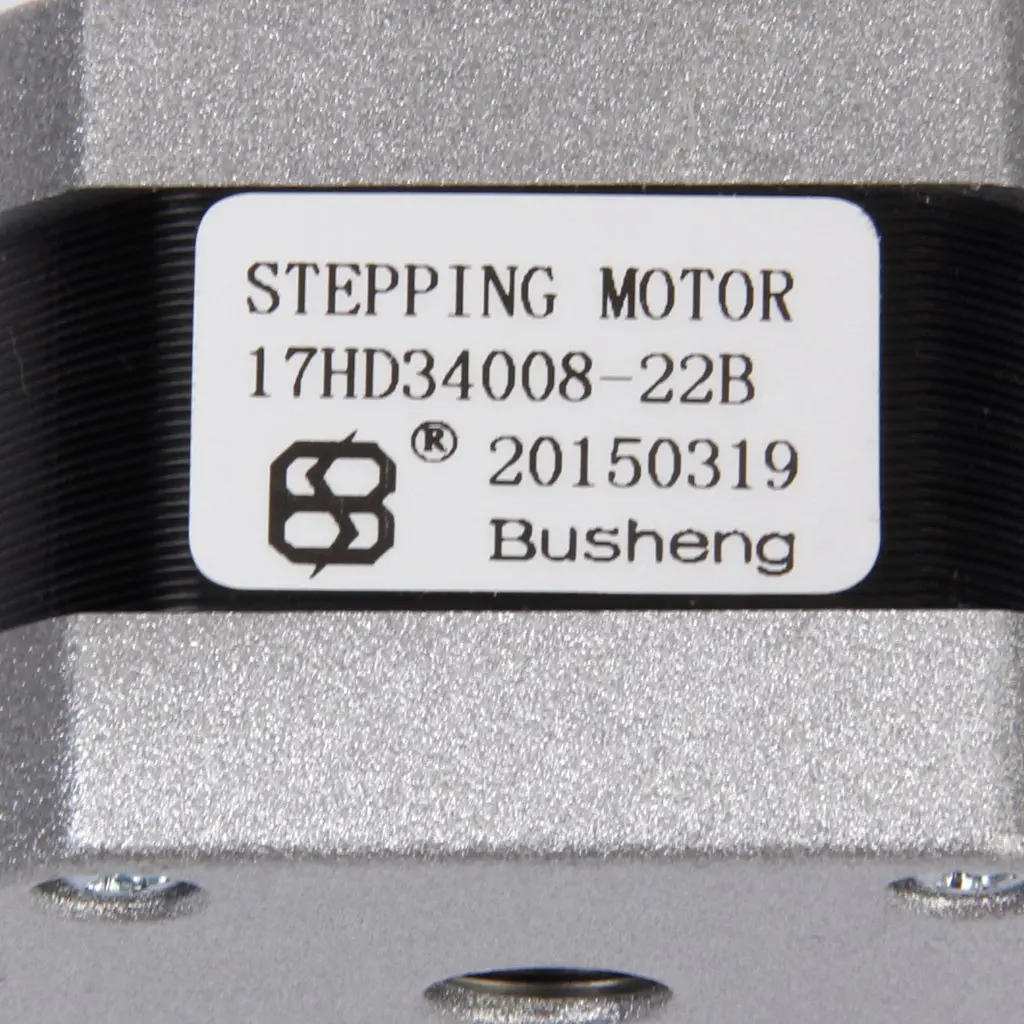

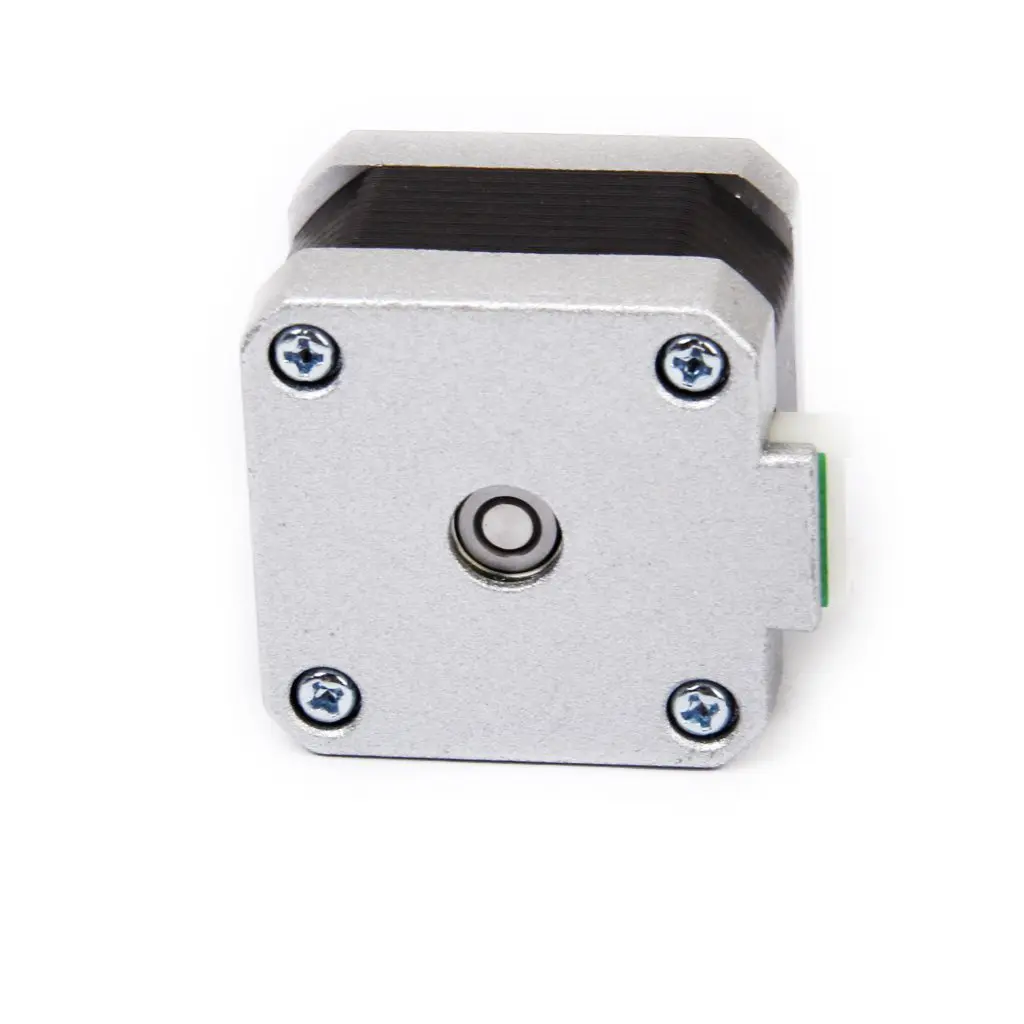

Nema 17 3D Printer 2-phase 4-wire Stepper Motor for 1.8Deg 17HD34008-22B
Introducing the Nema 17 3D Printer 2-Phase 4-Wire Stepper Motor (Model: 17HD34008-22B), a reliable and high-performance component designed to elevate your 3D printing projects.
This stepper motor is expertly crafted for seamless integration and optimal performance in your 3D printer. With precision engineering and durable construction, it provides smooth and accurate movement, essential for achieving detailed and flawless prints.
Features:
- Enhanced wire design: 1m wire with heat shrink tubing to prevent tangling and ensure seamless connectivity.
- Compatible with 17HD3400822B mixing type stepping motors.
- Drive mode: Chopping wave constant current drive for smooth operation.
- Exciting mode: Twophase 4-wire configuration enables forward and reverse rotation.
- Rated current (one phase): 1.5A DC
- Rated voltage: 3.45V
- Stepping angle: 1.8°
- Operating Conditions: Suitable for temperatures ranging from 20 to 50℃, with RH up to 90%.
- Mounting Position: Can be installed horizontally or vertically.
- Direct current winding resistance: 2.3&;±10% at 25℃.
- Winding inductance: 3mH±20%
- Cogging torque: 12mN.m REF.
- Holding torque: ≥300mN.m at I=1.5A
- Max. no-load starting frequency: ≥1500pps
- Max. no-load running frequency: ≥8000pps
- Temperature rise: <80K
Specifications:
| Feature | Specification |
|---|---|
| Wire Length | 1 meter |
| Wire Type | 4-wire |
| Exciting Mode | Two-phase, 4-wire |
| Drive Mode | Chopping wave constant current drive |
| Rated Current (one phase) | 1.5A DC |
| Rated Voltage | 3.45V |
| Stepping Angle | 1.8° |
| Operating Temperature | 20 to 50℃ |
| Relative Humidity (RH) | Up to 90% |
| Mounting Position | Horizontal or Vertical |
| Resistance (25℃) | 2.3&;±10% |
| Winding Inductance | 3mH±20% |
| Cogging Torque | 12mN.m REF. |
| Holding Torque | ≥300mN.m (at I=1.5A) |
| Max. No-load Starting Freq. | ≥1500pps |
| Max. No-load Running Freq. | ≥8000pps |
| Temperature Rise | <80K |
Upgrade your 3D printer with the Nema 17 3D Printer Stepper Motor, offering superior performance and precise control for your printing needs. Experience smoother operation and reliable results with our quality stepper motor.
Package Include:
1 x Nema 17 3D Printer 2-phase 4-wire Stepper Motor for 1.8Deg 17HD34008-22B
Nema 17 3D Printer 2-phase 4-wire Stepper Motor for 1.8Deg Overview
The Nema 17 3D Printer 2-phase 4-wire Stepper Motor (17HD34008-22B) is a high-precision drive unit with a 1.8° step angle designed for 3D printers and CNC applications. Its robust construction and constant-current chopping drive mode deliver smooth, accurate motion control for detailed prints and precise positioning.
Key Features of Nema 17 3D Printer 2-phase 4-wire Stepper Motor for 1.8Deg
- 1.8° step angle for fine resolution and consistent layer alignment
- Rated current: 1.5 A per phase at 3.45 V ensures efficient torque delivery
- Holding torque ≥300 mN·m for stable platform and extruder operation
- 1 m heat-shrink-tubed 4-wire cable to prevent tangles and simplify routing
- Chopping wave constant current drive mode for low vibration and quiet performance
- Fast shipping across India – order today for next-day dispatch from Zbotic
Applications and Use Cases
- Direct-drive extruder or Bowden setups in desktop 3D printers
- XY gantry systems in CNC milling or laser engraving machines
- Precision linear actuators for robotics and automation projects
- Camera sliders and motion-control rigs for time-lapse videography
- Pick-and-place modules in small assembly lines
- Educational STEM kits requiring accurate stepper motion
How to Use Nema 17 3D Printer 2-phase 4-wire Stepper Motor for 1.8Deg
Mount the motor to your printer’s carriage or frame using the standard Nema 17 bolt pattern, then connect its four leads to a compatible stepper driver (e.g., A4988, DRV8825) in the correct coil sequence. Set the driver’s current limit to 1.5 A, verify proper wiring polarity, and configure your firmware for a 1.8° step angle. Once calibrated, the motor will provide stable, accurate positioning for your print head or gantry.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the step angle and resolution of this motor?
This Nema 17 stepper motor has a 1.8° step angle, providing 200 full steps per revolution for high-resolution positioning in 3D printing and CNC tasks.
Can I drive this motor with a standard A4988 driver?
Yes. Set the A4988 current limit pot to 1.5 A per phase, wire the four leads to the driver coils, and configure your controller for a 1.8° step angle to ensure proper operation.
How does the heat-shrink-tubed cable benefit my setup?
The 1 m cable comes with integrated heat-shrink tubing that prevents wire tangling and wear, simplifying cable management and improving long-term reliability in moving assemblies.
