Product Description

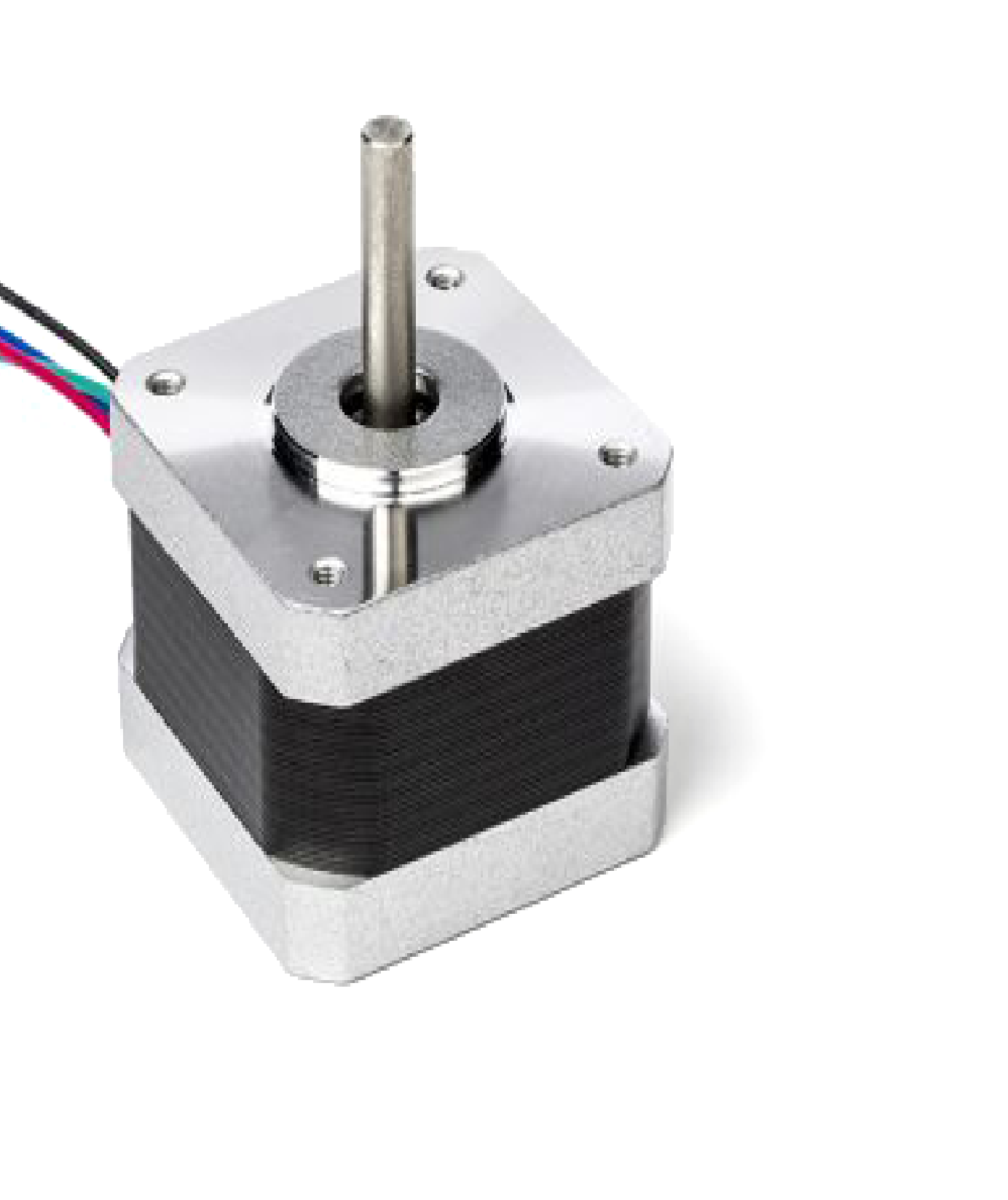

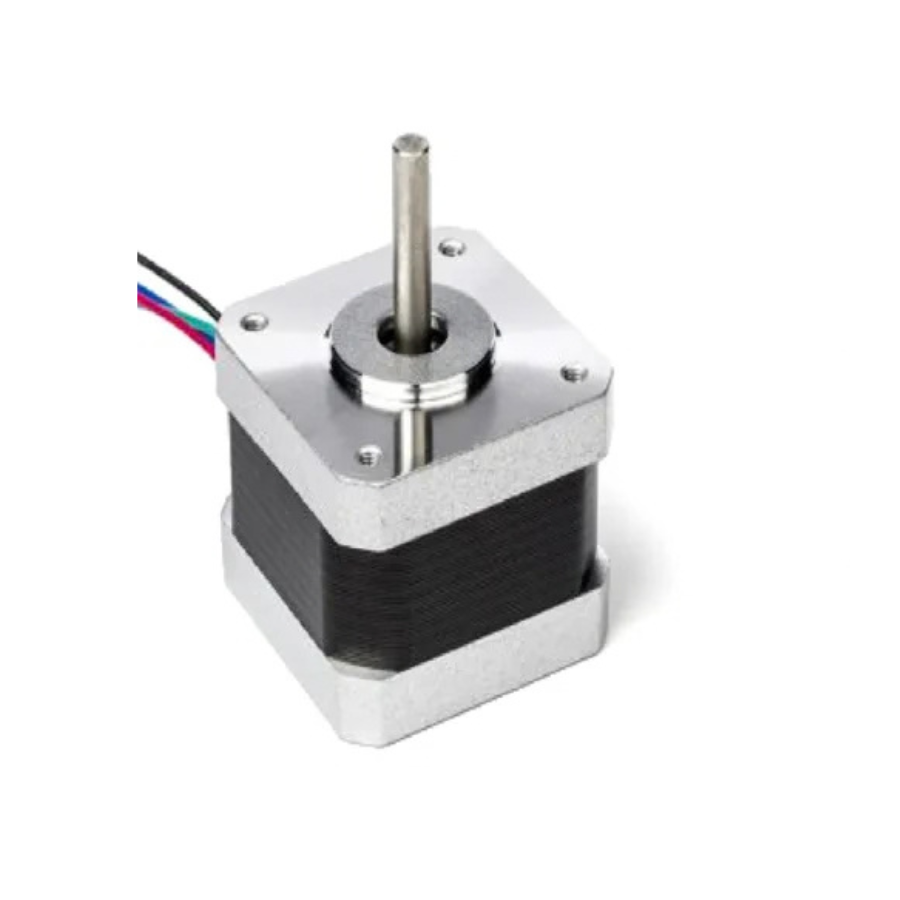

The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. The NEMA17 4.2 kg-cm Stepper Motor can provide 4.2 kg-cm of torque at 1.2A current per phase.
The motor’s position can be commanded to move or hold at one position with the help of Stepper Motor Drivers. The NEMA17 4.2 kg-cm Stepper Motor provides excellent response to starting, stopping and reversing pulses from stepper motor driver.
They are very useful in the various application, especially which demands low speed with high precision. Many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters etc.
It is a brushless DC motor, so the life of this motor is dependent upon life of the bearings. The position control is achieved by a simple Open Loop control mechanism so doesn’t require complex electronic control circuitry.

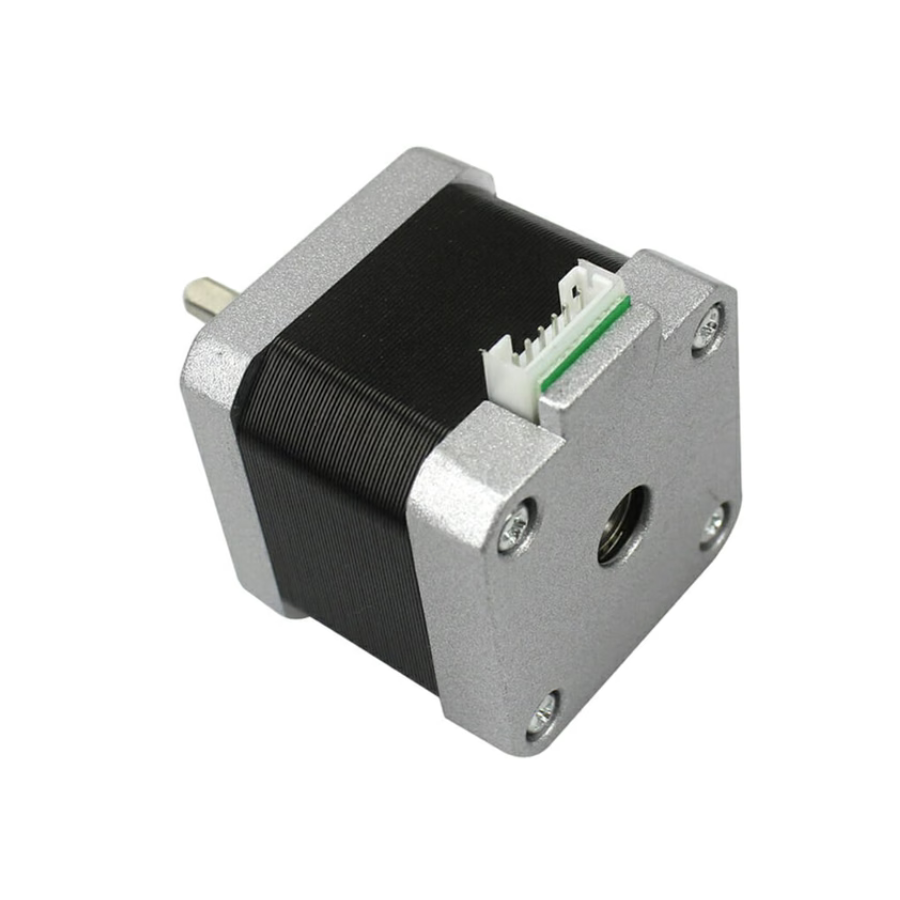

It comes with a detachable 70cm cable which makes wiring and rewiring very fast and easy work. The design of this cable is such that it can directly be mounted on a stepper motor controller. So, playing with the connection is done with just snap of fingers.
The motor’s shaft has been machined for good grip with a pulley, drive gear etc., and especially avoiding stall or slip.
We are engaged in supplying and wholesaling a quality approved collection of the Stepper Motors which are highly acknowledged and accepted for long service life and high reliability. To explore more of them click below,
Stepper Motors
Note :
- The Nema17 4.2kgcm Stepper motor dimensions and weight may have ±2% error.
- Resonances can occur because of improper installment.
- Not easy to operate at extremely high speeds.
- You need TB6600 or DM542 driver to run NEMA motors because they have switches to provide more current to motors.
Features :
- Input pulse decides the rotation angle of the motor.
- High accuracy of around 3 to 5% a step.
- Provides good starting, stopping and reversing.
- Control of this motor is less costly because of exclusion of complex control circuitry.
- The speed is proportional to the frequency of the input pulses.
Package Includes :
1 x JK42HS40-1204AF-02 NEMA17 4.2 kg-cm Stepper Motor – D-Type Shaft
Stepper Motor Half-Step vs Full-Step: Resolution & Torque Trade-offs
Stepper motors are the workhorse of precise motion control — used in 3D printers, CNC routers, laser cutters,...
Read More →
Smart Gate Opener with DC Motor & IR Remote: Arduino Project Guide
A motorised gate opener transforms a mundane entrance into a convenient, automated experience — and building one yourself...
Read More →
High Speed DC Motor: 12V 300RPM to 10000RPM Buying Guide
Whether you are building a combat robot, an electric go-kart, a drone, or an industrial conveyor system, the...
Read More →Technical Specifications
| Model | JK42HS40-1204AF |
|---|---|
| SKU | AI2084 |
| Weight | 0.3 kg |
| Availability | Out of Stock |
Applications & Use Cases
The JK42HS40-1204AF-02 NEMA17 4.2 kg-cm Stepper Motor – D-Type Shaft is a versatile stepper motors and accessories used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
