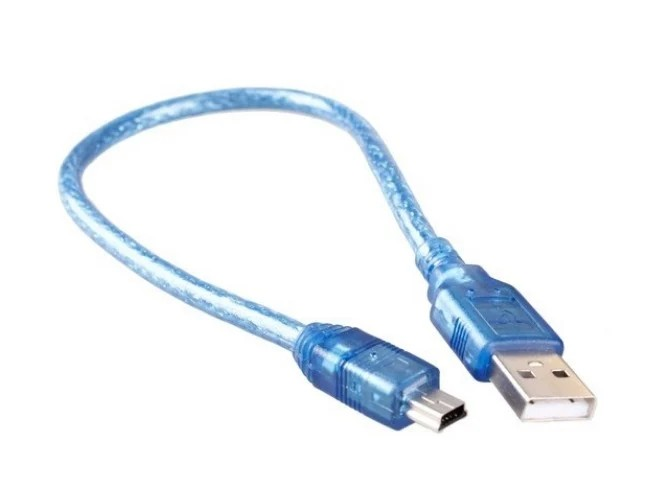

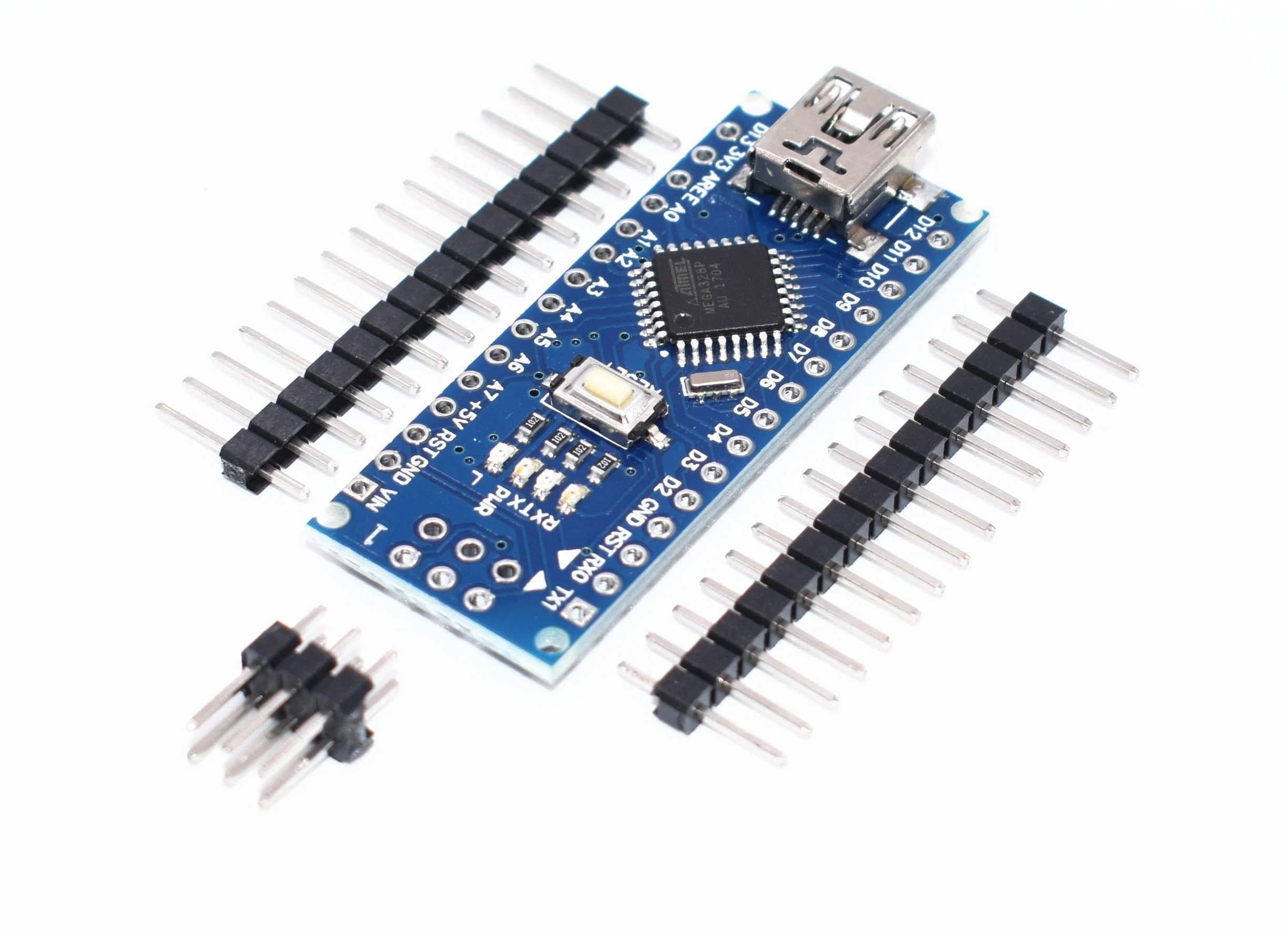

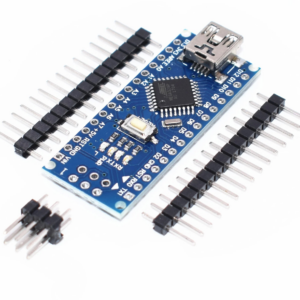

The Nano V3.0 CH340 Chip with Mini USB Cable is a compact version of the popular Arduino Uno, offering the same functionality but in a smaller form factor.
Perfect for small projects where space is crucial, the Nano V3.0 is ideal when you don’t require many pin-outs but need a sleek, space-saving design.
This version uses a low-cost USB-Serial CH340 chip, making it more affordable than older Arduino Nano versions, which used the FTDI USB-Serial chip.
Based on the ATmega328 (Nano R3), the Arduino Nano is a small, fully functional board that is breadboard-friendly. It offers nearly the same capabilities as the Uno but in a more compact package. Unlike the Uno, it lacks a DC power jack and instead uses a Mini-B USB cable for connectivity.
The Nano can be powered through the Mini-USB connection, a 6-20V unregulated external power supply (pin 30), or a 5V regulated external power supply (pin 27). It automatically selects the highest voltage source for power.
Measuring just 43mm x 18mm, the Nano V3.0 with the CH340 chip features 6 PWM I/O pins out of 14 digital I/O pins, 8 analog inputs, a 16MHz clock speed, and 32KB of flash memory.
Note:-
- CH340 chip might not work directly with some PC/Laptop, you will need some ch340 drivers.
- This board comes with OLD BOOTLOADER buy it accordingly
Features :
- 1 pair of TTL level serial transceiver ports RX / TX
- Using Atmel Atmega328P-AU MCU
- There is a bootloader(old) installed in it
- Support USB download and Power
- Support for external 5V ~ 12V DC power supply
- Support power supply by 9V battery
- Support ISP download
- Automatic reset during program download.
- Power OK blue LED on the bottom.
- Green (TX), red (RX) and orange (L) LED.
- +5V to AREF jumper.
- Auto sensing/switching power input.
- Small mini-B USB for programming and serial monitor.
- ICSP header for direct program download.
- Standard 0.1” spacing DIP (breadboard friendly).
- Manual reset switch.
Specification
| Item Type: | Dev. Board, Unsoldered |
|---|---|
| Board Type: | Nano |
| With Cable (Y/N): | Y |
| Chip Type: | CH340 |
| Color: | Blue |
| Microcontroller | ATmega328 |
| Operating Voltage (VDC) | 5 |
| Input Voltage (V) | 7-12 V |
| Power Consumption (W) | 1 |
| Analog I/O Pins | 8 |
| Digital I/O Pins | 22 |
| PWM Output Pins | 6 |
| Architecture | AVR |
| Clock Speed | 16 MHz |
| DC Current per I/O Pin (mA) | 40 |
| Flash Memory: | 32 KB |
| EEPROM | 1KB |
| SRAM | 2 |
Package Includes :

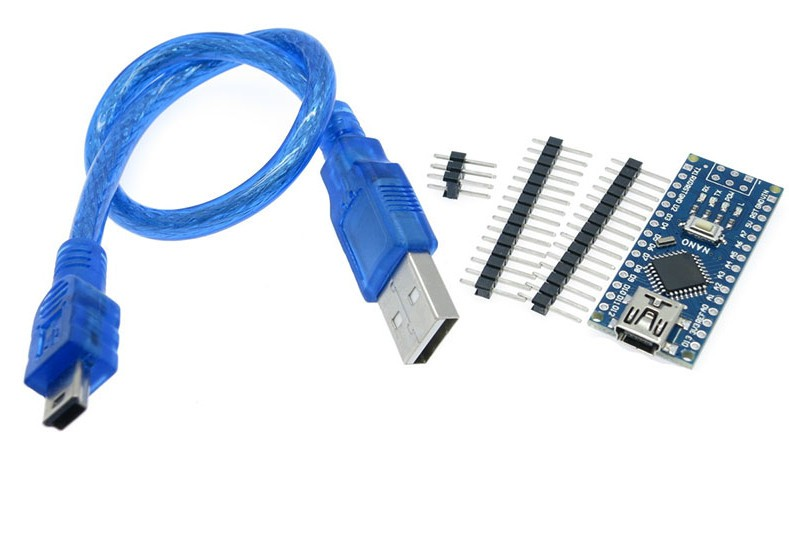

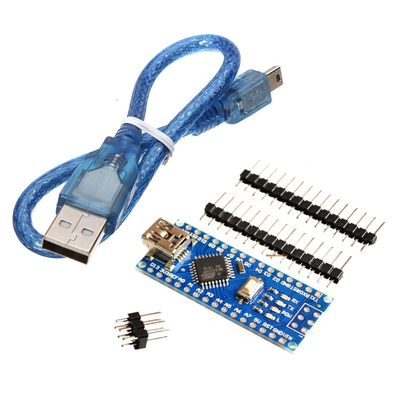

1 x Nano V3.0 CH340 Chip with Mini USB Cable Compatible with Arduino (Unsoldered)
