PRODUCT DESCRIPTION

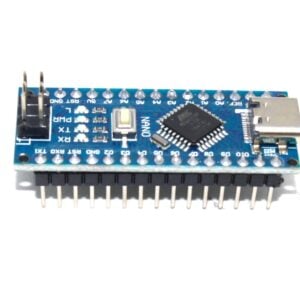

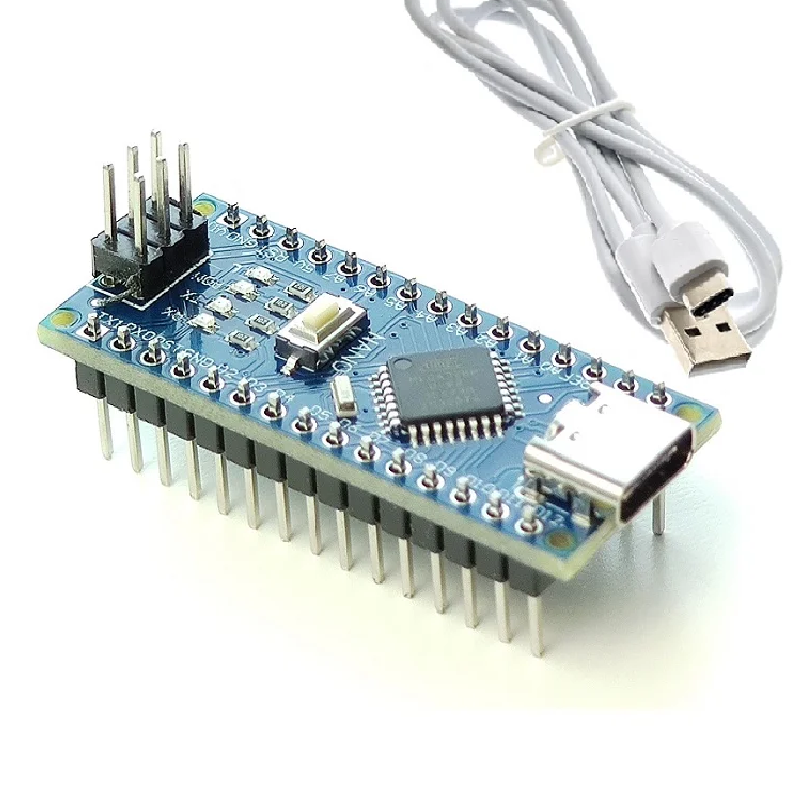

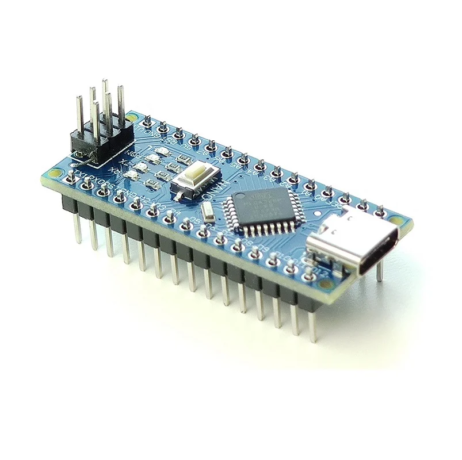

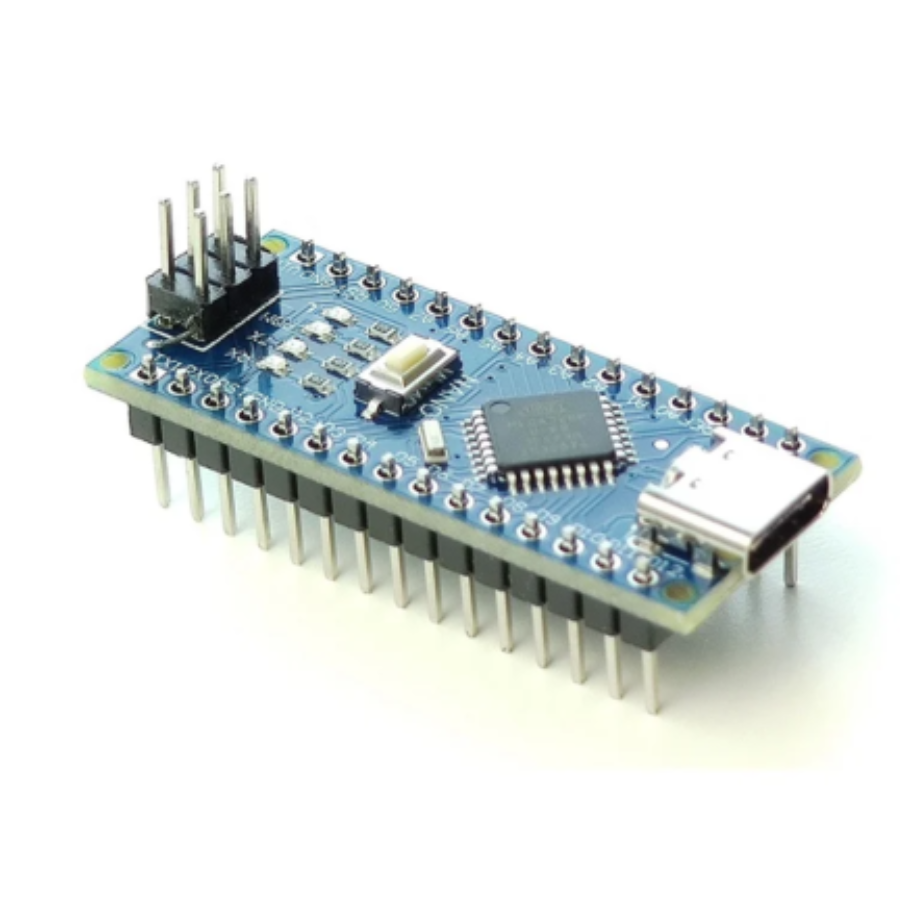

The Nano V3.0 ATmega328P 5V 16MHz CH340 Type-C, accompanied by a white Type-C cable measuring 30cm, is an Arduino-compatible microcontroller. This compact board mirrors the functionality of the Arduino Duemilanove, albeit in a more diminutive form factor, foregoing a DC power jack in favor of a Mini USB (Mini-B) connector.
Â
The Nano V3.0 integrates the CH340G USB interface controller and is fully compatible with Arduino sketches and the Arduino IDE. It accepts power through the Mini-B USB connection, an unregulated external power supply ranging from 6-20V (pin 30), or a 5V regulated external power supply (pin 27), with automatic selection of the highest voltage source.Features:Â
- CH340G USB bus converter chip replaces FT232RL
- Operating Voltage（logic level): 5V
- 8 analog inputs ports: A0 – A7
- 14 Digital input / output ports: TX, RX, D2 – D13
- 6 PWM ports: D3, D5, D6, D9, D10, D11
- 1 pair of TTL level serial transceiver ports: RX / TX
- Uses Atmel Atmega328P-AU MCU with bootloader installed
- Support USB download and Power over Mini-B Mini USB connector
- Recommended input voltage: 7V – 12V DC on pin 30 or 5V on pin 27
- Maximum input voltage limits: 6V – 20V
- Supports ISP download
- Supplied with connector pins (headers), not soldered to the board for user flexibility
Package Includes:
- 1 X Nano V3.0 16MHz CH340
- 1 X Type-C Cable 30cm.
