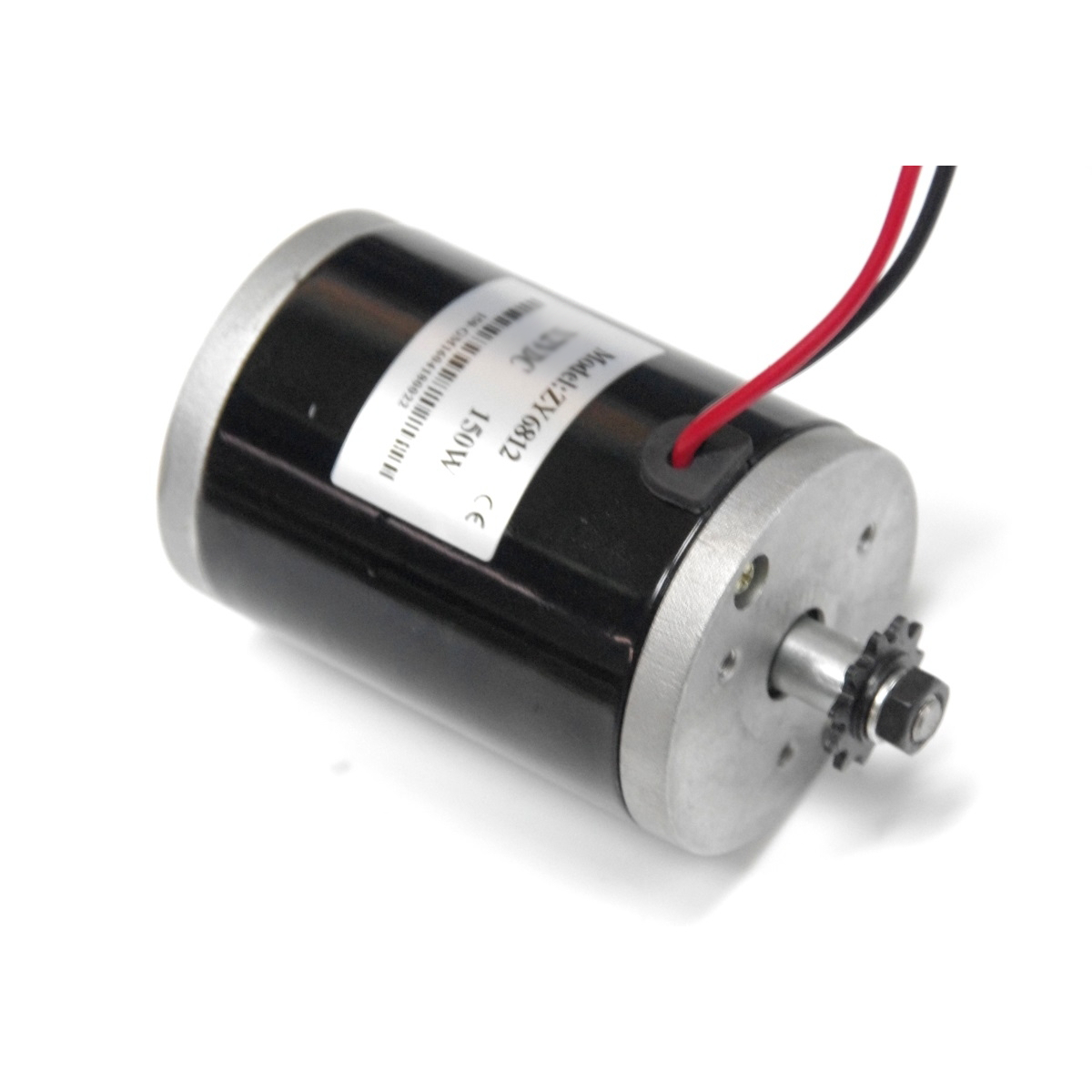

This is a MY6812 150W 24V 2750RPM DC Motor for E-bike Bicycle. It is a popular choice for scooters or general applications. It has a high durability and reliability.
It is commonly used in 24V scooters or small kiddie carts. It is also a proven motor for robotics. It has a 100% ball bearing construction.
The motor has a belt drive attached to an 8mm d-cut shaft with a circlip. You can remove the belt drive by taking off the circlip and sliding it off. Some companies glue the belt drive in place, but that is not necessary as it fits firmly.

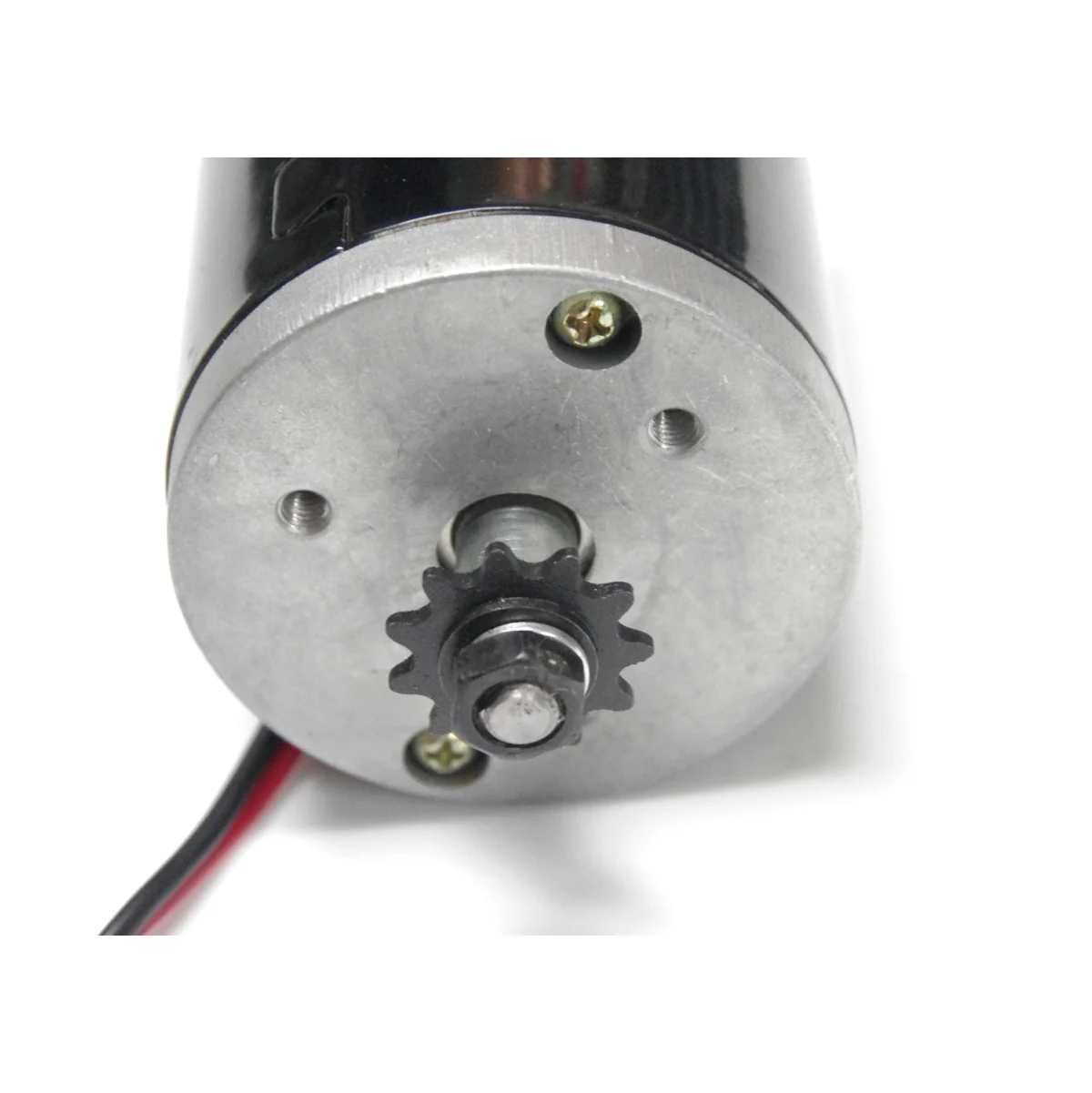

This motor is also a chain drive type of DC motor for E-bike. It has a 9-tooth sprocket for #25 chain.
Specification:
Operating Voltage (VDC) | 24 |
---|---|
No-Load Current (mA) | 1000 |
Loaded RPM | 2600-3000 |
Sprocket | 9 tooth, #25 bicycle chain |
Efficiency | 70% |
Shipping Weight | 1.45 kg |
Shipping Dimensions | 14 × 9 × 9 cm |
Package Includes:Â
1 x MY6812 150W 24V 2750RPM DC MOTOR
Reviews
There are no reviews yet.
