The MY1016 350WZ3 (GB)+ Motor Controller + Twist Throttle + Brake is a DIY Electric Bicycle Kit that contains everything you need to build your own eBike: a motor, a controller, a twist throttle, and a brake lever. These components are compatible with each other, so you don’t have to worry about finding the right match for your project. Plus, you can save money by buying them as a bundle.
This motor is one of the most common and versatile motors for scooters, bikes, and quads. It has a gear reduction system that gives it more torque and power than a standard motor. It is also very reliable and durable. You can use it for many different applications, even ones that it was not designed for.
If you are a DIY enthusiast who loves to create your own electric vehicles, you will love this motor. It can run on 24 volts and 350 watts, and it has a 9-tooth sprocket that fits a 1/8″ bicycle chain. You can also reverse the direction of the motor by switching the power wires.
The kit also includes a motor controller that is compatible with the MY1016 350WZ3 (GB) motor. It has connections for the motor, battery, charger, brake light, power lock, accelerator, and brake. The controller regulates the speed and power of the motor according to your input.

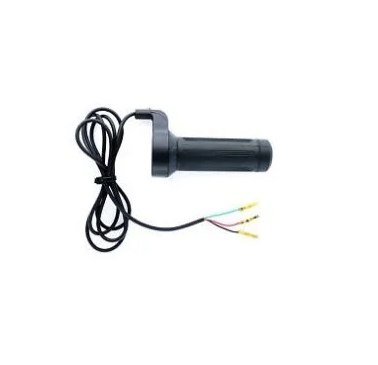

To complete the kit, you will also get a twist throttle and a left-handed brake lever. These are essential parts for controlling your eBike. The twist throttle lets you adjust the speed of the motor by twisting the handlebar grip. The brake lever lets you stop the motor by squeezing the lever.
Specifications and Features:

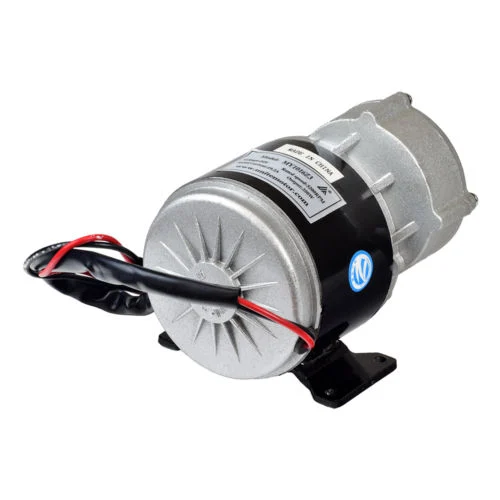

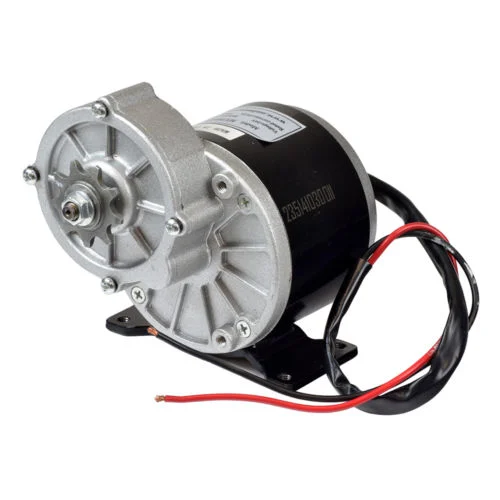

MY1016Z3 350W Motor:
- Voltage: 24 volts DC
- Output: 350 watt
- Left or right rotation by reversing wires
- MY1016Z3 motor with gear reduction
- 300 RPM (after Reduction)

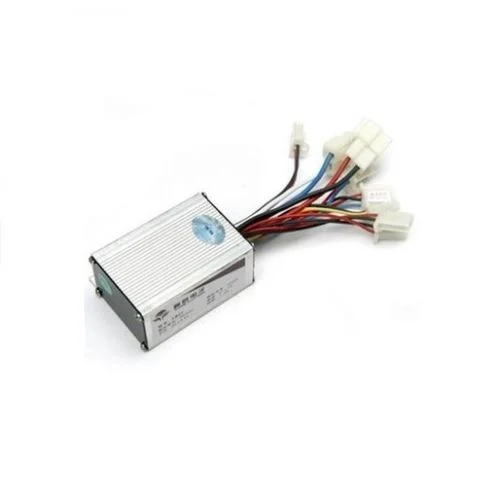

Motor Controller Specifications:
- Dimensions: 83 x 70 x 38 mm(LxWxH)
- Cables length: 10 CM(Approx.)
- Weight: 196 gm
- Rated voltage: 24 v DC
- Current limit: 33A
- Rated power: 350 w
- Matching motor: dc brushed motor
- Under Voltage Protection: 20V
- Strong Aluminium body

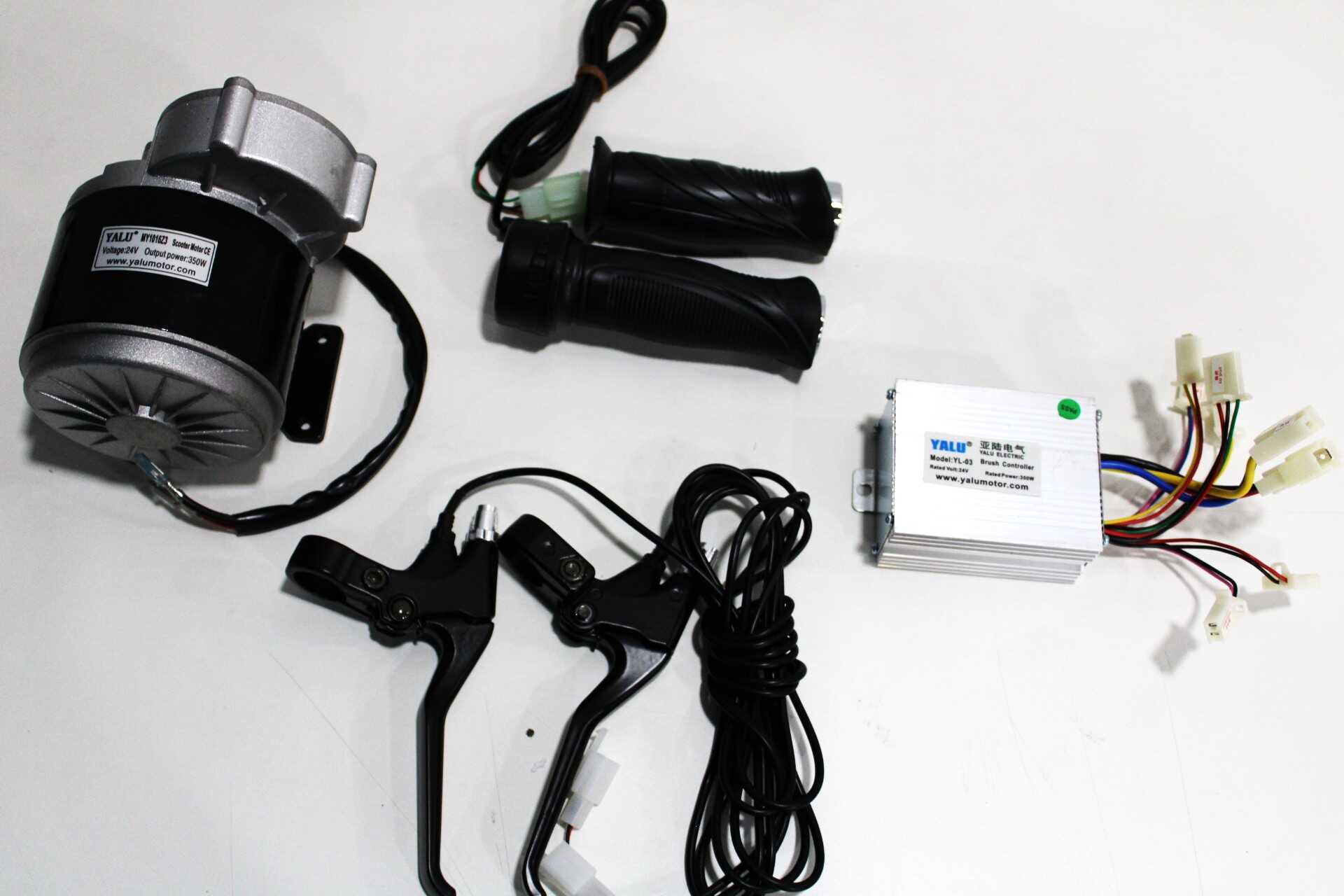

Package Includes:
1 x MY1016Z3 350W 24V brush motor
1 x Ebike Motor Controller
1 x Throttle and dummy
1 x Brake Gears
Technical Specifications
| Brand | Yalu |
|---|---|
| Model | MY1016Z3 |
| Power Rating | 350W |
| Interface / Protocol | TTL |
| SKU | AI4784 |
| Weight | 5.07 kg |
| Availability | In Stock |
Applications & Use Cases
The Yalu MY1016Z3 350W (GB)+ Motor Controller + Twist Throttle + Brake, DIY Electric Bicycle Kit is a versatile ebike kit used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
